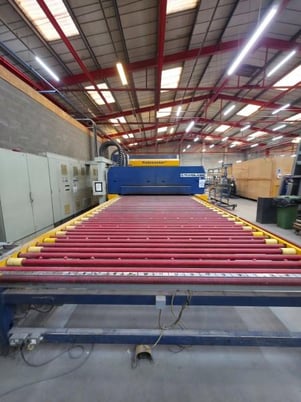

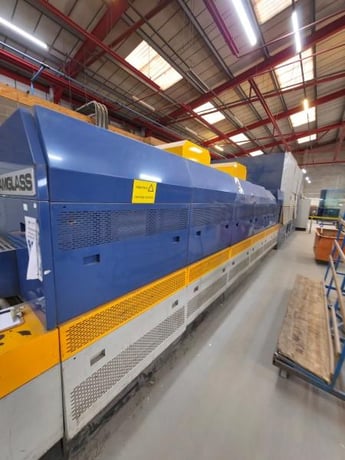

Tamglass (Glaston) #HTF-PRO-E-2448-CTS-20, flat glass tempering furnace

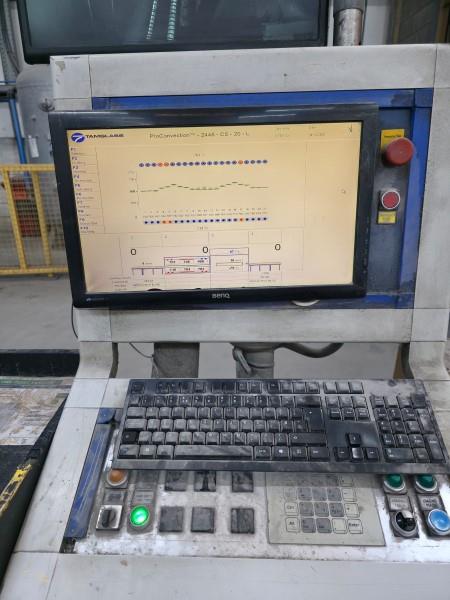

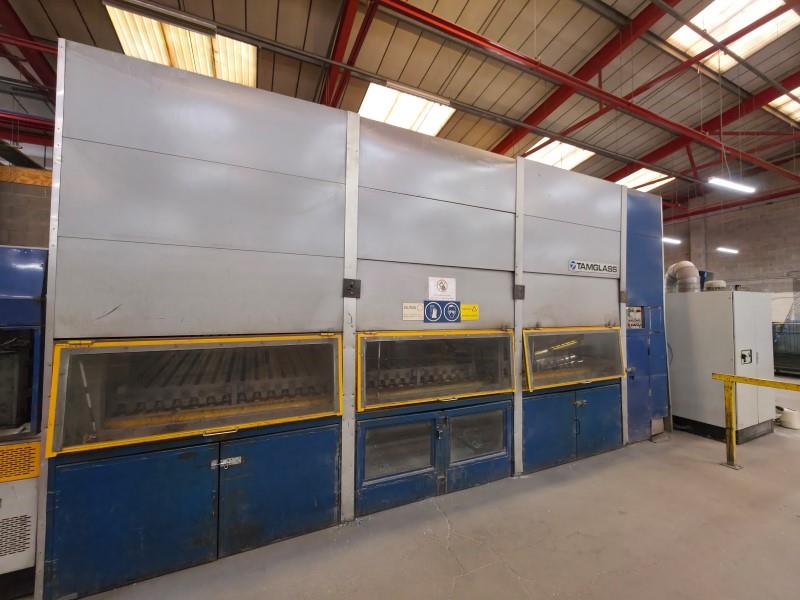

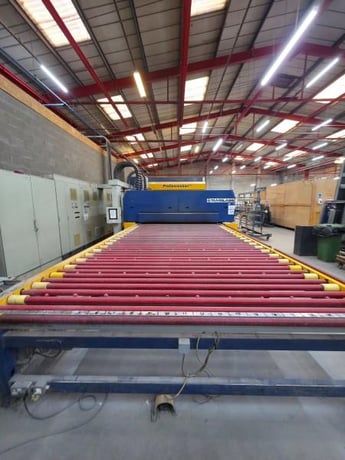

TAMGLASS - HTF CONVECTION PRO E 2448 CTS-20: Flat Glass Tempering Furnace for Low-E GlassesTempering Furnace, which utilizes optimized heating system with convection, which additionally heats the top of the glass for convection purposes. The most important of these are individual heating element controls, individual operation of the furnace modules, and a high efficiency quench system. Low-E glass has: Microscopically thin, transparent coating, much thinner than a human hair; reflects long-wave infrared energy (or heat). Low-E can also reflect significant amounts of shortwave solar infrared energy. This Entire Tempering Line consists of the Following Equipment Components: ● Infeed and Outfeed Conveyors with Lifting Tables ● Heating Station ● Quenching Station ● Noise Reduction Cabin ● Electrical Components Control Station ● PC Based Operator Control Module ● Anti-Scratch Powder Applicator SystemSpecifications● Right-handed model● Min. glass size: 100 x 250 (3.94" x 9.84)● Max. glass size: 2,440 x 4,800 mm (94.1/2" x 189")● Glass thickness: 4 - 19 mm (0.16" - 3/4")Max. Glass size: ANSI Z97.1-1984 / EN 12150● 4 - 5 mm 2,000 x 3,000 mm● 6 - 12 mm 2,400 x 4,800 mm● 15 - 19 mm 2,000 x 4,800 mmMax. Application with a loading area utilization of K = 100%, (with normal float glass) Capacity m/h:● 4 mm 224 m● 5 mm 184 m● 6 mm 153 m● 8 mm 115 m● 10 mm 122 m● 12 mm 92 m● 15 mm 57 m● 19 mm 43 m● Tempering range per thickness: 4 - 19 mm (715 C - 660 C)Dimensions:Total length: Approx. 20,900 mm (823")Overall height: 3,100 mm (122")Working area height: 900 mm (35-1/2")Overall width: 5,300 mm (209") (+ approx. 7 x 8 m for the Blower Room if placed to the side; currently mounted overhead)Shaft diameter: 95.25 mm (3-3/4")Distance between shafts 120 mm (4.73")NOTE: In 2019, the ceramic shafts were completely replaced with new; disassembled by Professionals and ready for immediate delivery. NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full-Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door-to-door), US or Canadian Customs, Duty, and domestic shipping to your Plant Door.
