Manufacturer: Takisawa
Model: TS-3000
Year: 2022
Stock # 7195
Price: $99,500 USD - Finance for as low as $2,018/mth
For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Dan Wheeler
909-34...> Show Seller's Phone Number 909-348-5610 Let the seller know you found their listing on Surplus Record!
Description

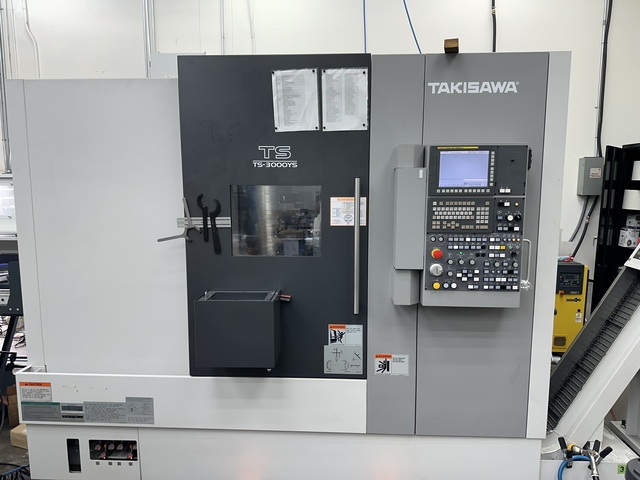

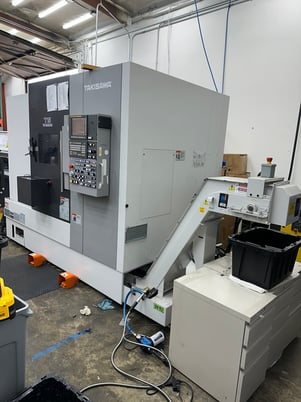

2022 Takisawa TS-3000 YS Multi Axis CNC Lathe #7195 #1

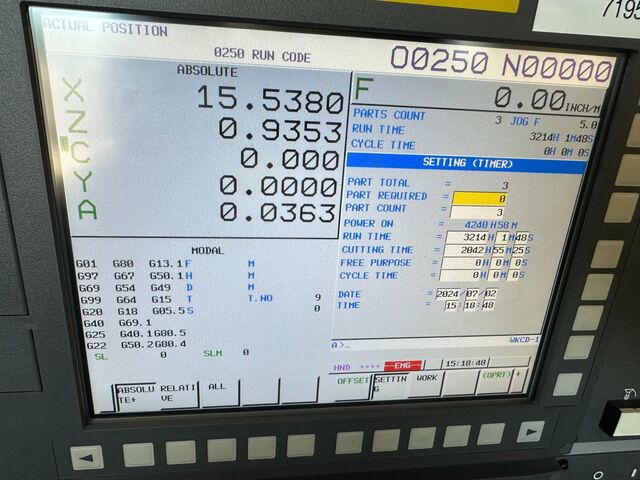

CNC controller: FANUC 32i Model B
Axes/capacity
X-axis travel mm: 261
Y-axis travel mm: -50+70
Z-axis travel mm: 630
C-axis : 0,001
Turning length mm: 545
Swing diameter mm: 292
Bar work capacity mm: 67

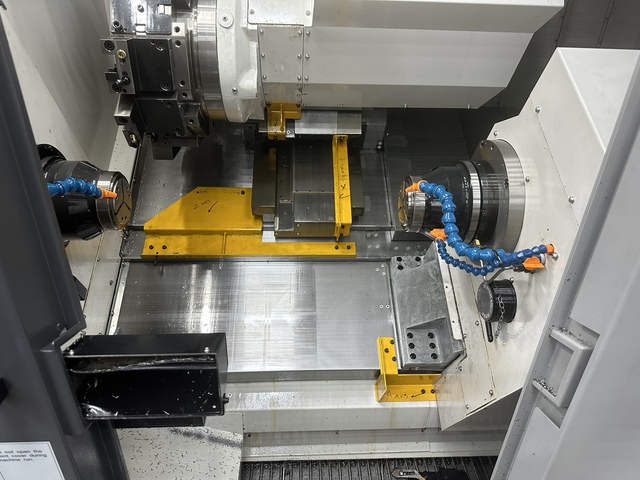

Turret
Tool holder: BNT-40
Number of tool slots St .: 12
Speed driven tools RPM: 6000
Drive power driven tools kW: 7,5/3,7
Main spindle
Speed spindle rpm: 5000
Drive power spindle kW: 15/11
Spindle bore mm: 77
Counter spindle
Speed spindle rpm: 6000
Drive power spindle kW: 11/7.5
Spindle bore mm: 53
Counter spindle travel mm: 665
Equipment
Renishaw probing system

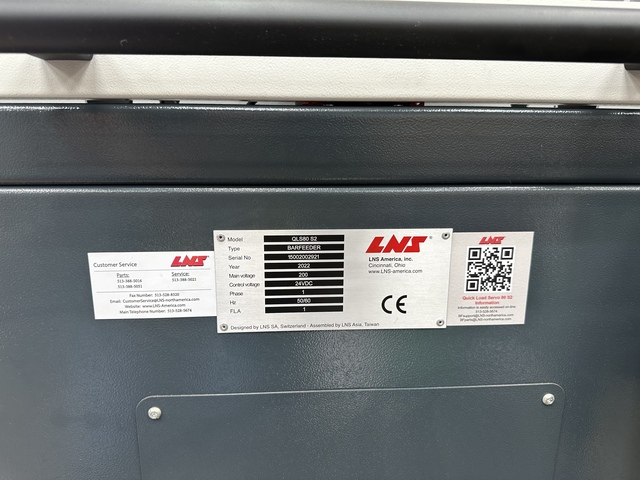

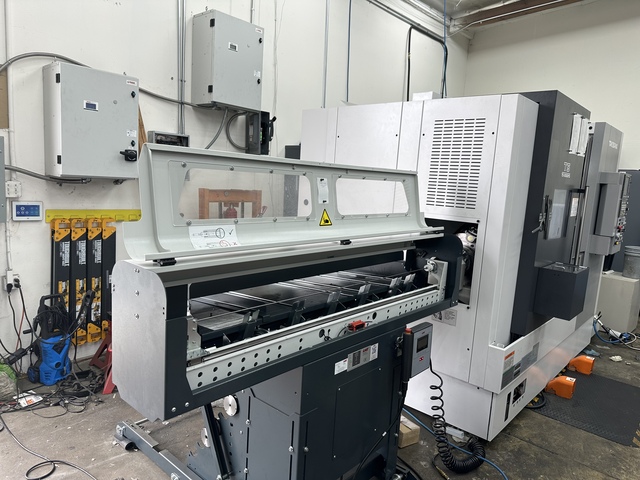

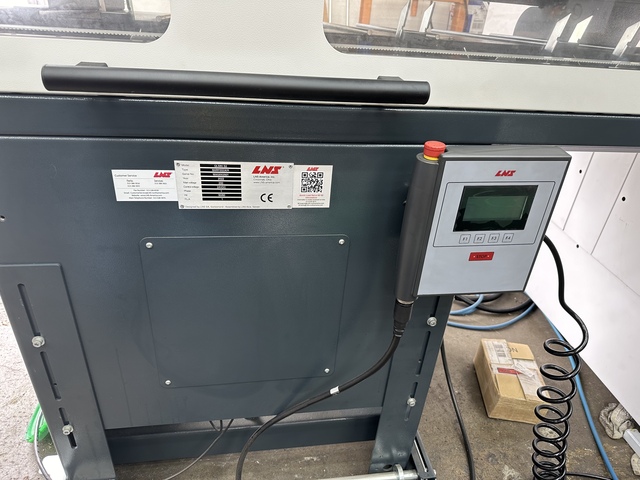

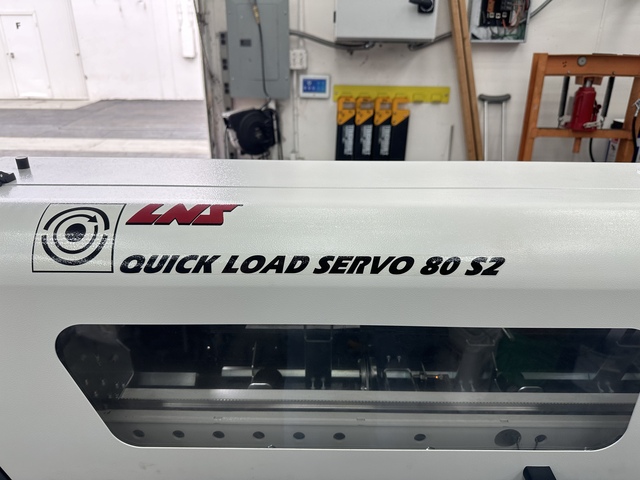

LNS QLS80 S2 bar feeder

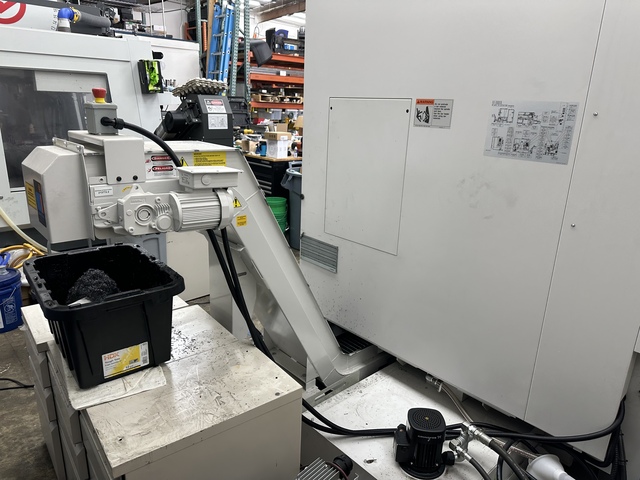

Chip conveyor
Part catcher for right spindle (max. 80 mm and L 120 mm)
Air or water through the center of the spindle (counter spindle)
Driven tools included

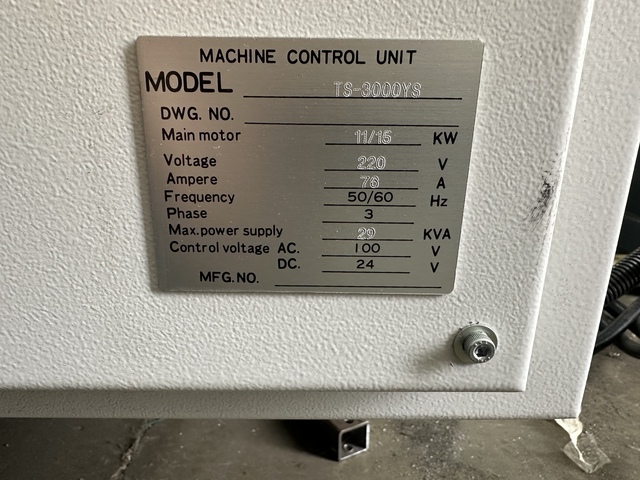

Rated power kVA: 31
Dimensions
Lathe:
L86" x W11" (170" with chip conveyor) x H91"
Bar Feed:
L66" x W80" x H54"
Weight: Approx. 15,000 lbs. with all equipment
CNC controller: FANUC 32i Model B
Axes/capacity
X-axis travel mm: 261
Y-axis travel mm: -50+70
Z-axis travel mm: 630
C-axis : 0,001
Turning length mm: 545
Swing diameter mm: 292
Bar work capacity mm: 67
Turret
Tool holder: BNT-40
Number of tool slots St .: 12
Speed driven tools RPM: 6000
Drive power driven tools kW: 7,5/3,7
Main spindle
Speed spindle rpm: 5000
Drive power spindle kW: 15/11
Spindle bore mm: 77
Counter spindle
Speed spindle rpm: 6000
Drive power spindle kW: 11/7.5
Spindle bore mm: 53
Counter spindle travel mm: 665
Equipment
Renishaw probing system
LNS QLS80 S2 bar feeder
Chip conveyor
Part catcher for right spindle (max. 80 mm and L 120 mm)
Air or water through the center of the spindle (counter spindle)
Driven tools included
Rated power kVA: 31
Dimensions
Lathe:
L86" x W11" (170" with chip conveyor) x H91"
Bar Feed:
L66" x W80" x H54"
Weight: Approx. 15,000 lbs. with all equipment
Inquire Further with Wheeler Machinery Sales!
