Description

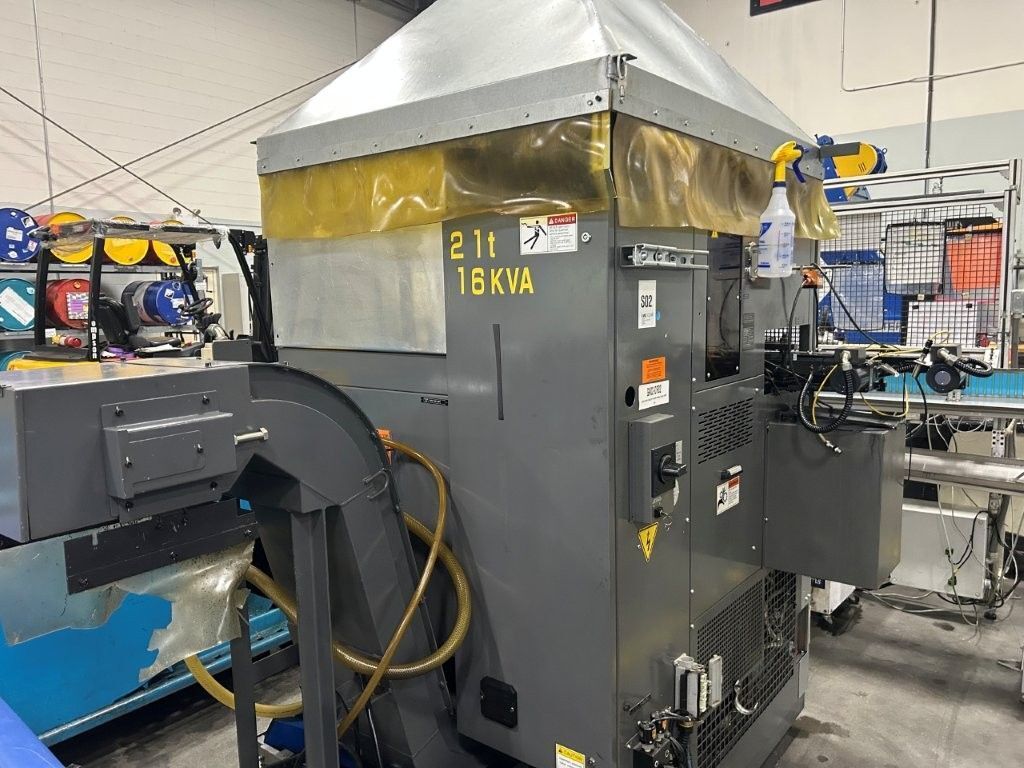

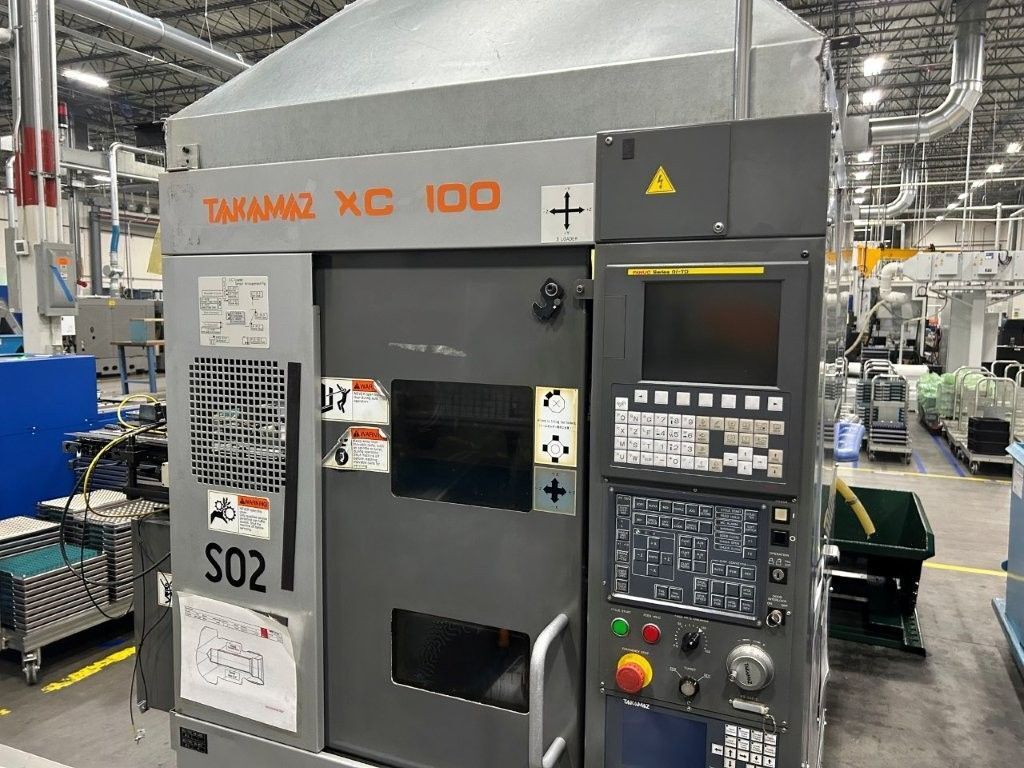

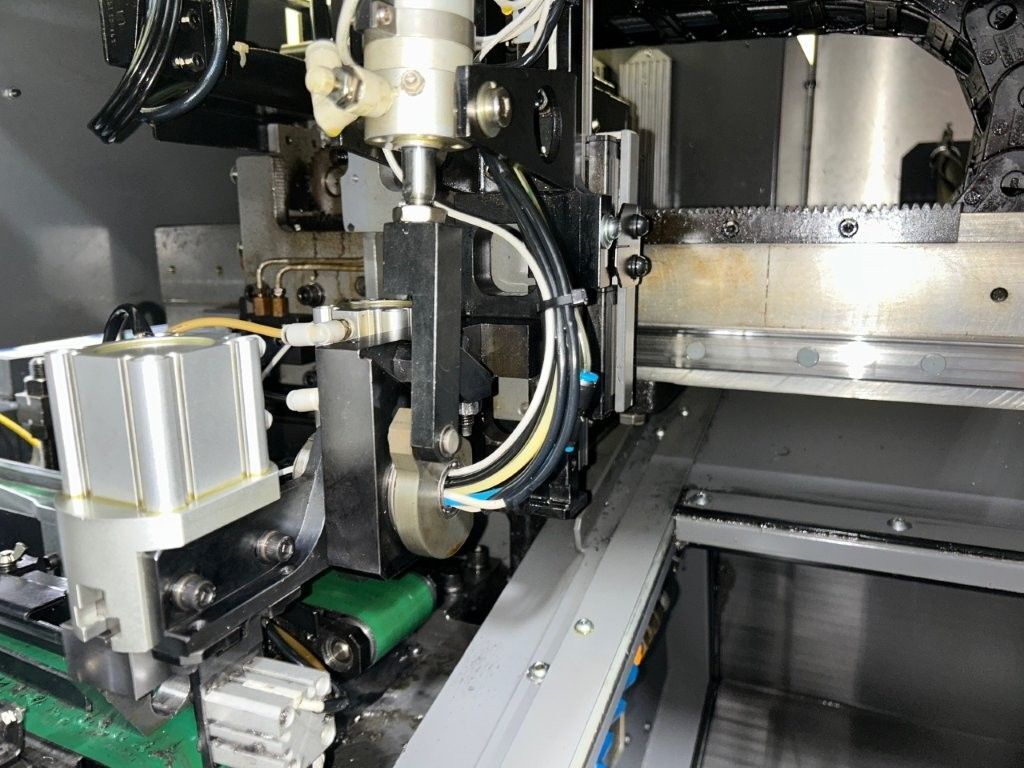

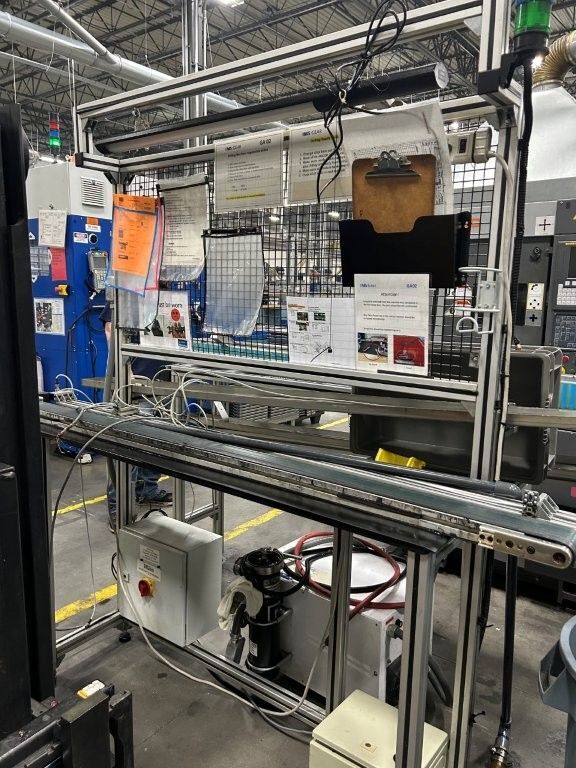

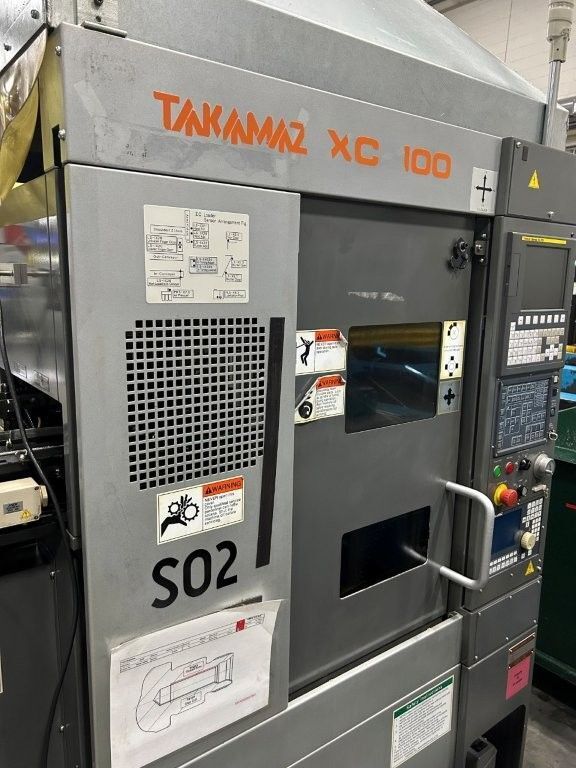

The TAKAMAZ XC-100 is a highly compact, single-spindle, single-turret CNC lathe manufactured by TAKAMAZ. It is designed specifically for high-efficiency, unattended mass production, featuring a built-in gantry-style auto-loader system with integrated in-feed and out-feed conveyors for automated part handling.
Specifications:
Spindle & Capacity:
-Chuck Size: 6" (152.4 mm)
-Maximum Turning Diameter: 7.08" (180 mm)
-Maximum Turning Length: 7.48" (190 mm)
-Maximum Bar Diameter/Hole: 1.81" (46 mm)
-Maximum Spindle Speed: 4,500 RPM
-Spindle Nose: A2-5
-Spindle Bearing I.D.: 2.95" (75 mm)
-Spindle Motor HP: 10 HP
Turret & Tooling:

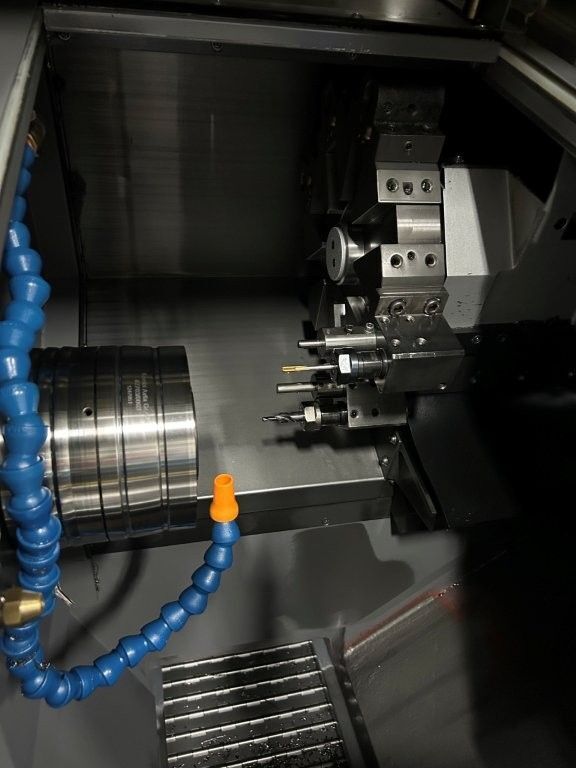

-Turret Type: 8-Station Turret
-Tool Shank Size: 3/4" (19.05 mm)
-Boring Holder I.D.: 1" (25.4 mm)
Axis Travel & Feed Rates:
-X-Axis Stroke: 4.72" (120 mm)
-Z-Axis Stroke: 9.05" (230 mm)
-Rapid Traverse Rate (X): 472 IPM (12 m/min)
-Rapid Traverse Rate (Z): 708 IPM (18 m/min)
Control System & Dimensions:
-CNC Control: Fanuc Oi-TD
-Machine Width (ultra-slim): 45.2"
-Machine Depth: 58.2"
Specifications:
Spindle & Capacity:
-Chuck Size: 6" (152.4 mm)
-Maximum Turning Diameter: 7.08" (180 mm)
-Maximum Turning Length: 7.48" (190 mm)
-Maximum Bar Diameter/Hole: 1.81" (46 mm)
-Maximum Spindle Speed: 4,500 RPM
-Spindle Nose: A2-5
-Spindle Bearing I.D.: 2.95" (75 mm)
-Spindle Motor HP: 10 HP
Turret & Tooling:
-Turret Type: 8-Station Turret
-Tool Shank Size: 3/4" (19.05 mm)
-Boring Holder I.D.: 1" (25.4 mm)
Axis Travel & Feed Rates:
-X-Axis Stroke: 4.72" (120 mm)
-Z-Axis Stroke: 9.05" (230 mm)
-Rapid Traverse Rate (X): 472 IPM (12 m/min)
-Rapid Traverse Rate (Z): 708 IPM (18 m/min)
Control System & Dimensions:
-CNC Control: Fanuc Oi-TD
-Machine Width (ultra-slim): 45.2"
-Machine Depth: 58.2"
