Sykes #4E, Herringbone generator, 60+" dia., 30° guides, complete with change gears

Description
Sykes model 1600H herringbone generator 65+" diameter , 30 degree guides complete with change gears large spindle bore 12" s/n MP3033
Specifications

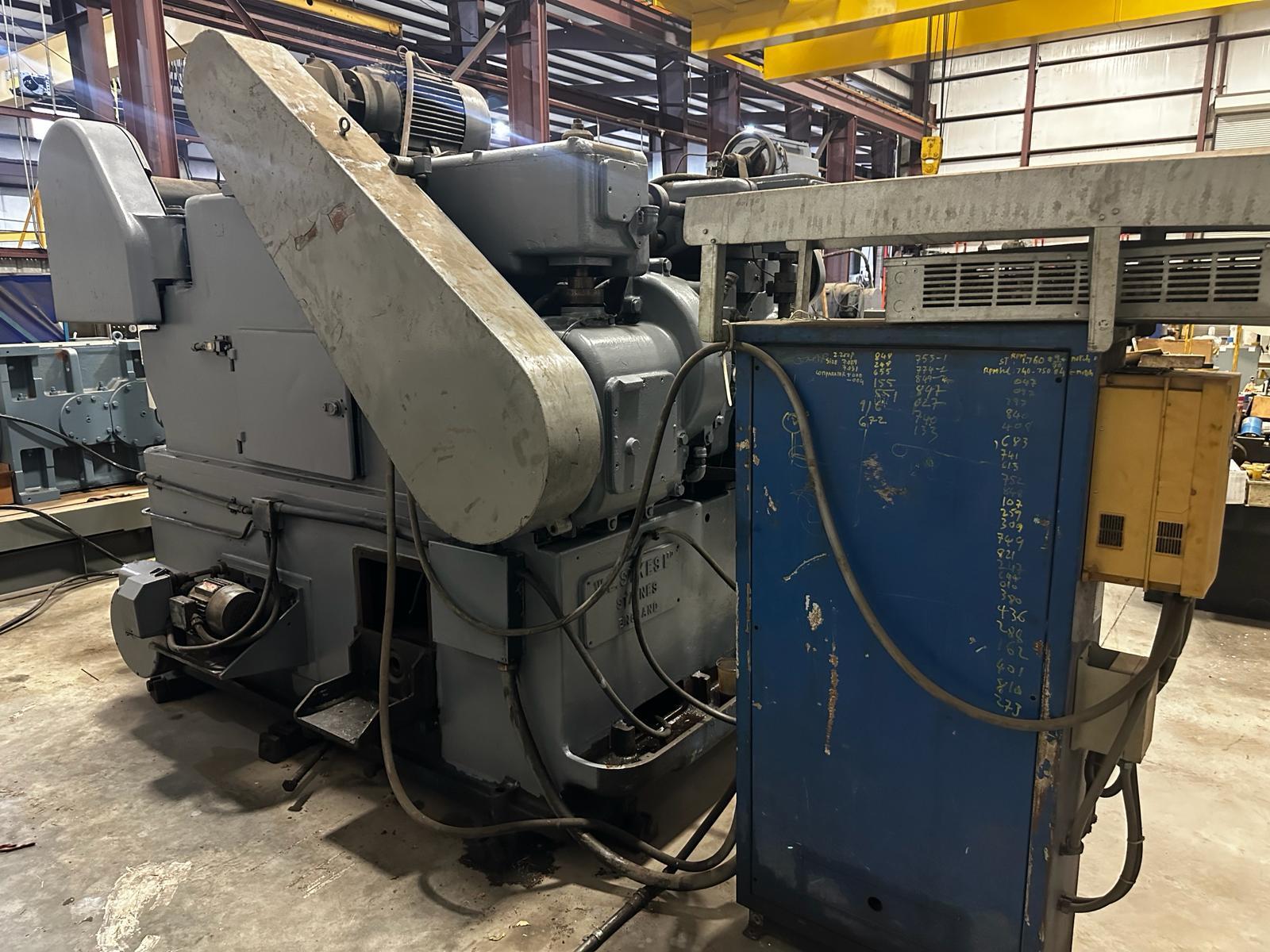

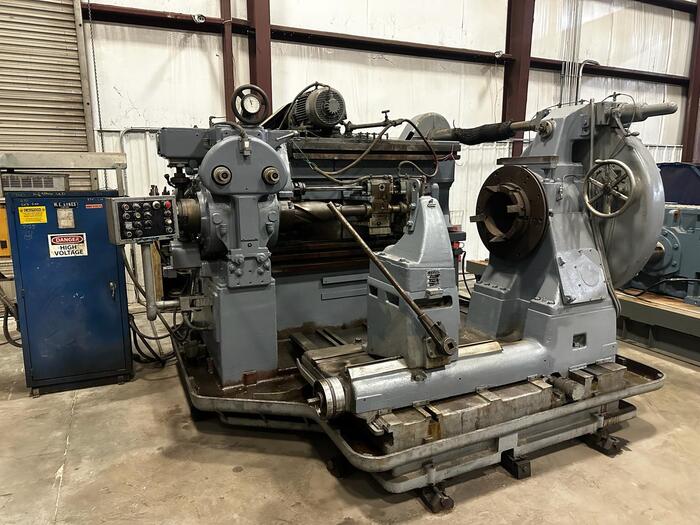

SYKES double helical Herringbone generating gear machine
Model 1600H
s/n MP3033 new 1979/1980
very good running condition
W.E. SYKES Gear Generating Machine, suitable for the cutting of
straight spur, single helical, and double-helical / herringbone gears
and pinions, up to 65 (1650mm) maximum diameter, up to 1.5 DP (module 17)
EQUIPMENT / FEATURES:

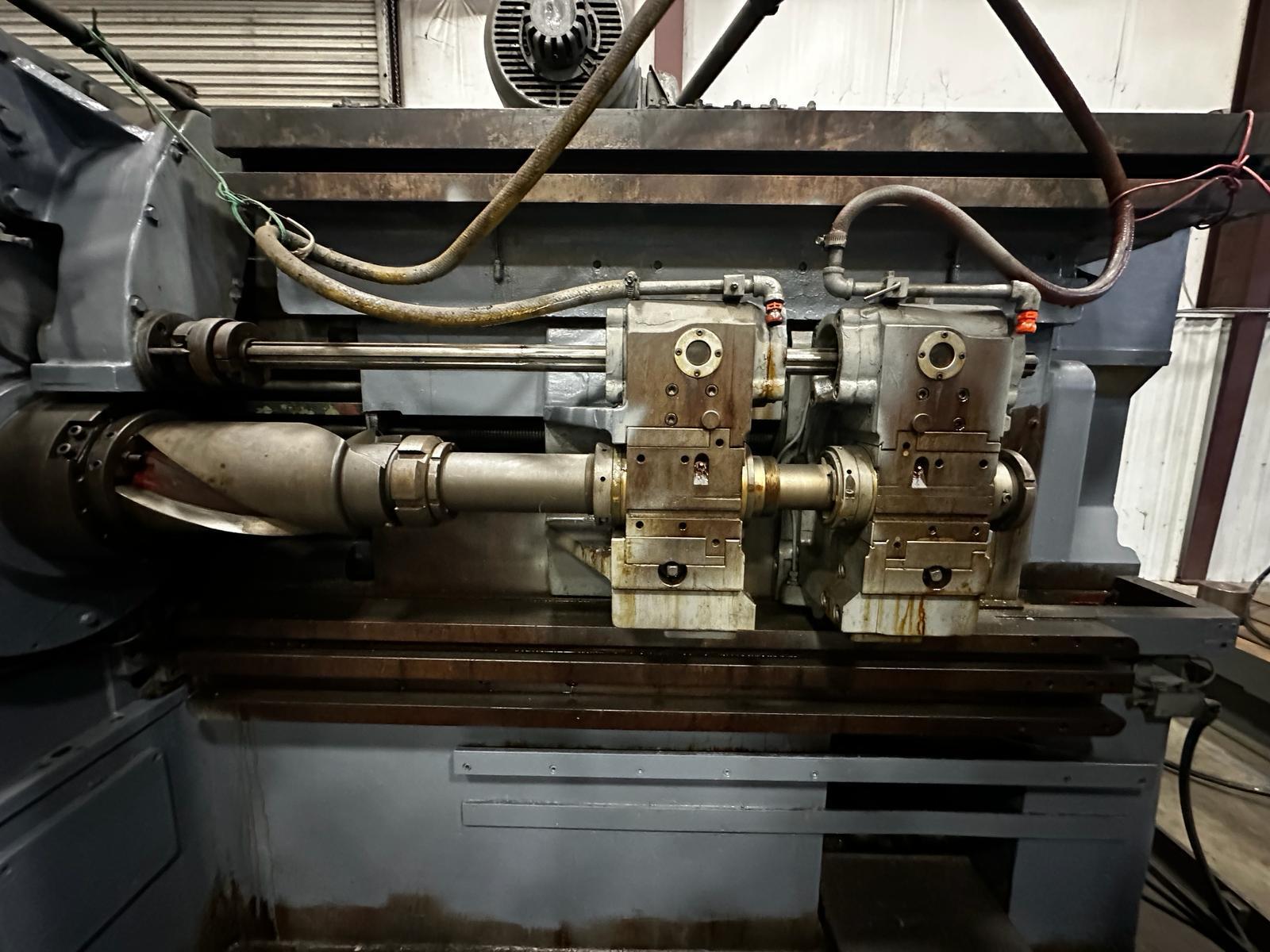

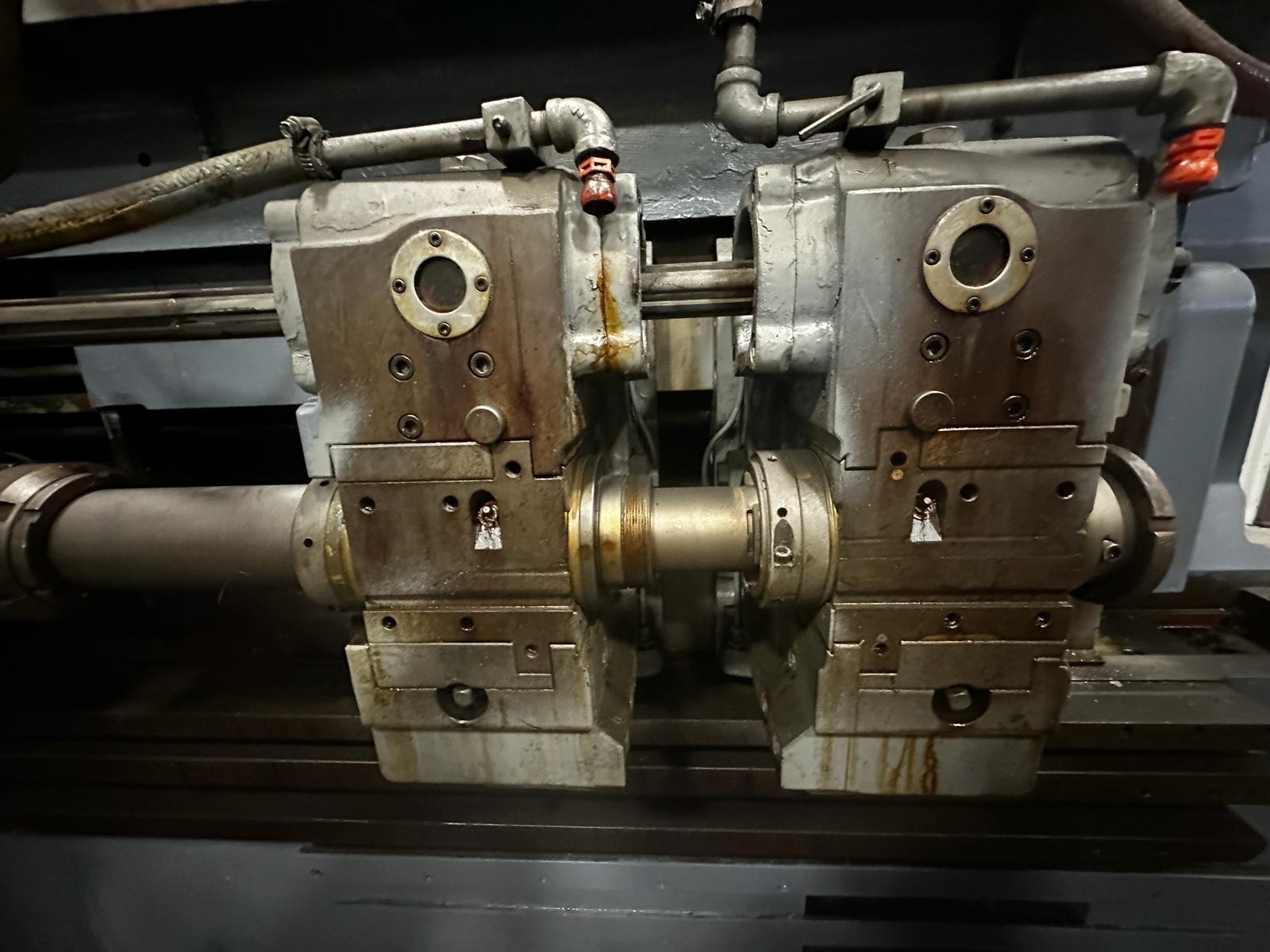

right & left hand cutter-spindles /drives
one (1) pair of 30 degree double-helical guides
one (1) pair of rim steadies

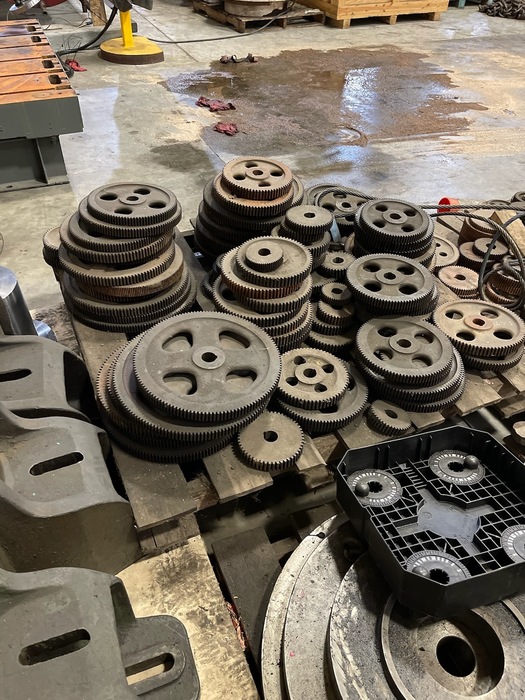

assortment of change gears
self contained coolant system, pump & piping
power forced lubrication system

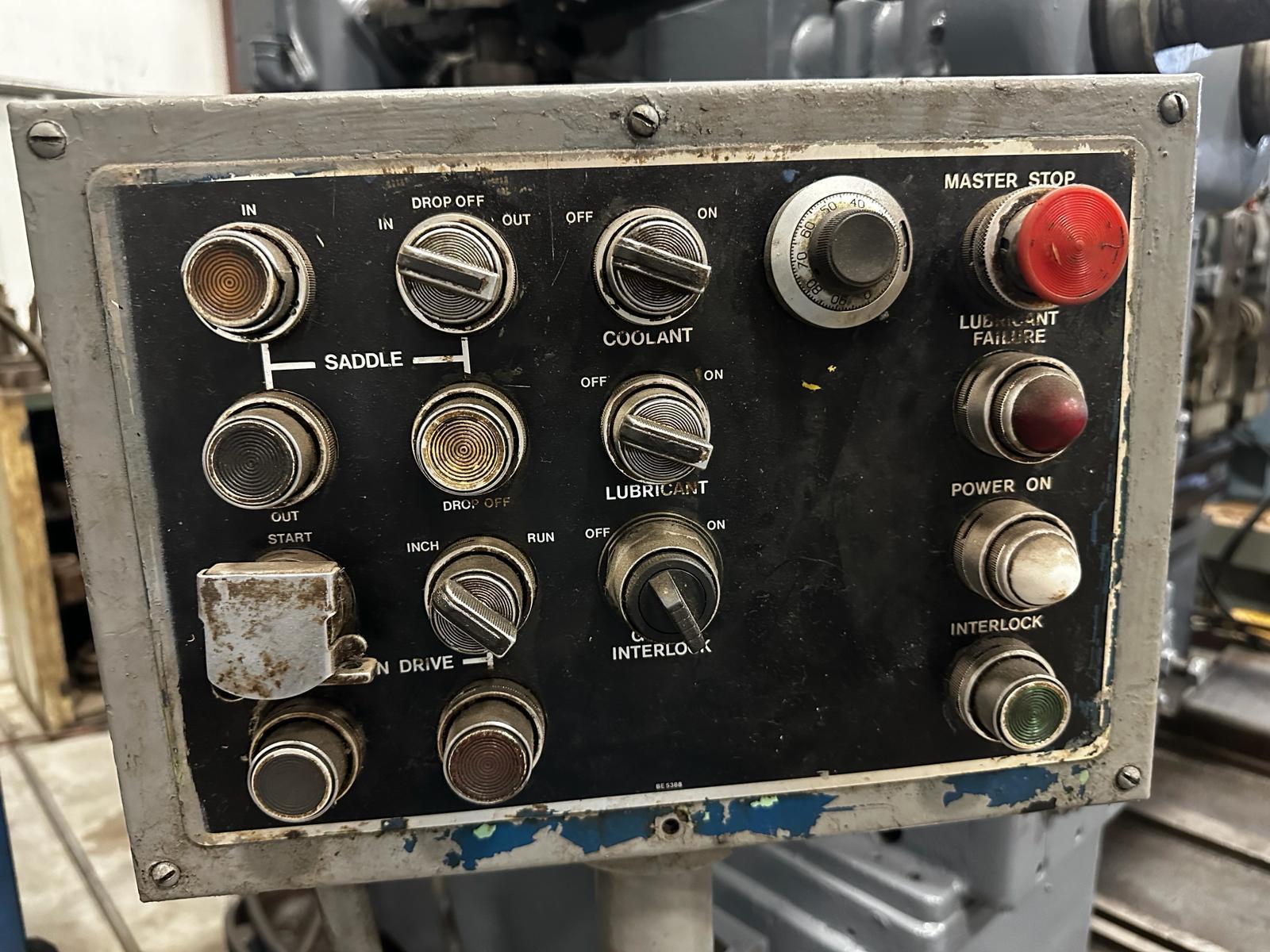

full complement of electrics (motors/controls) with

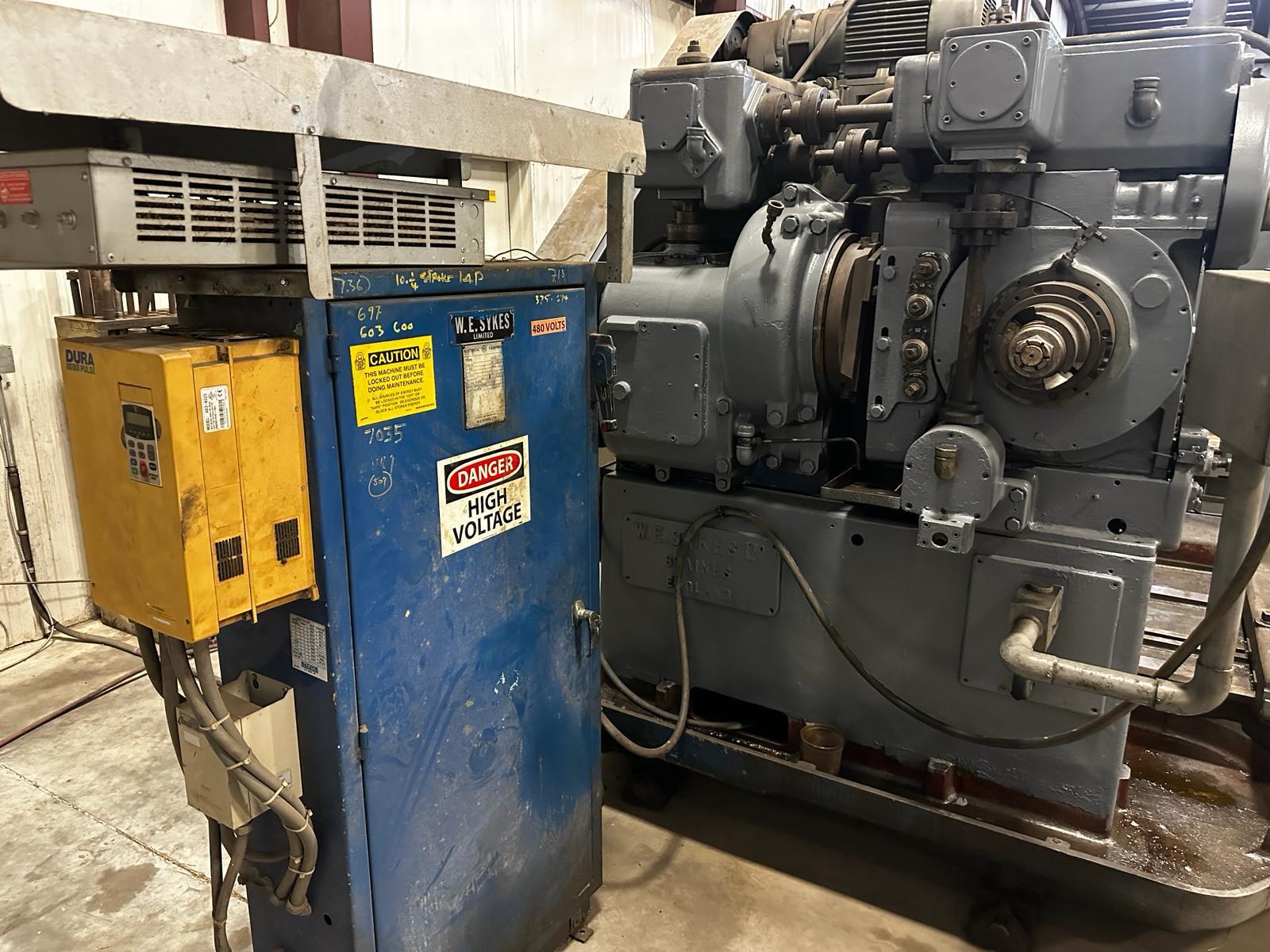

free-standing, up-graded electrical switch-gear cabinet
(presently arranged for 460 volt,60Hz operation)

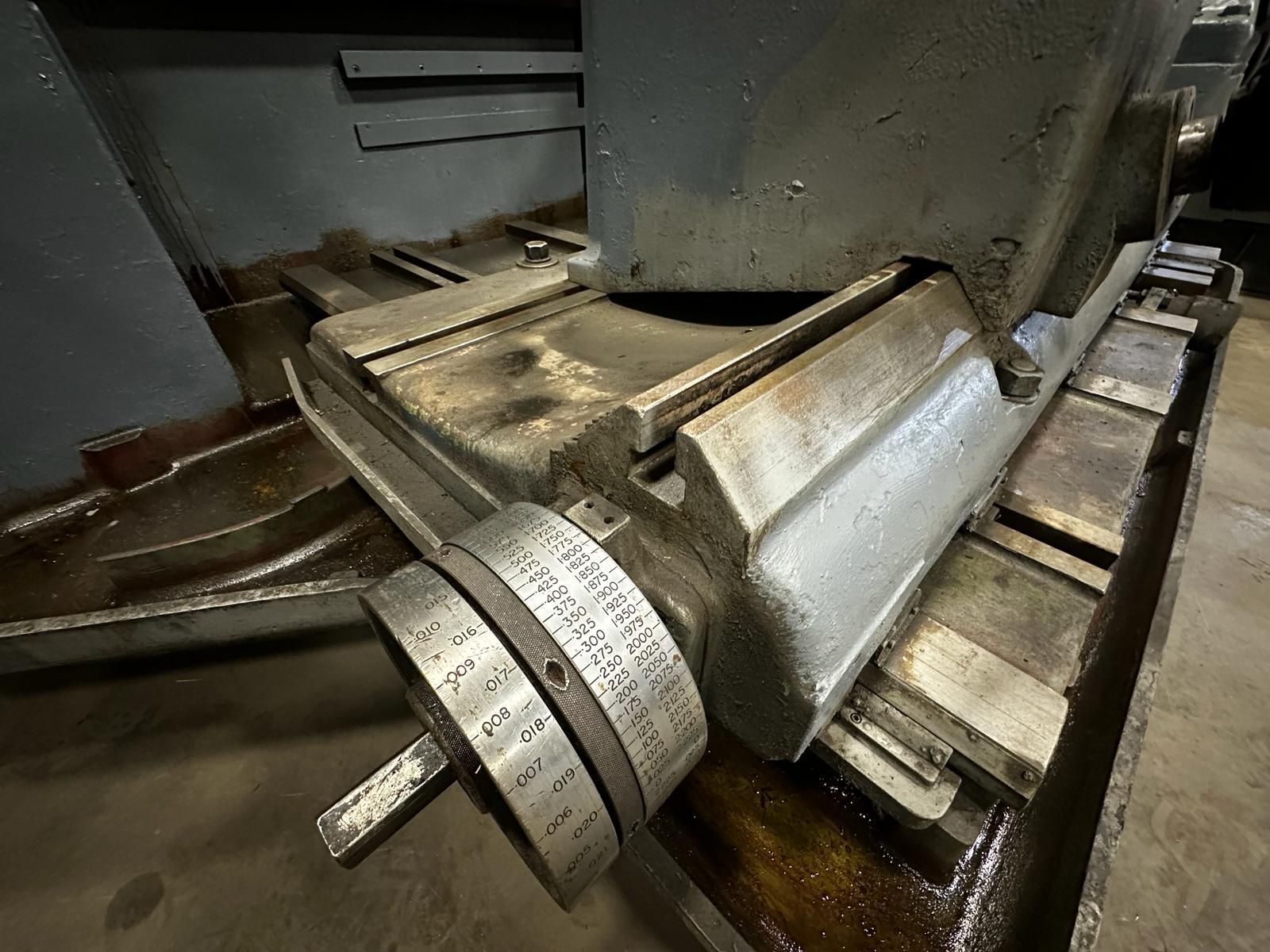

guards, covers, hand-wheels, operating handle
machine leveling wedges
operators manual, wiring diagrams
PRINCIPAL SPECIFICATIONS:
Max. diameter external to clear V-way 65 (1650mm)
Max. diameter external to clear saddle gap 68.89 (1750mm)
Min. diameter external (152 dia. cutter 2 mod.) 3.54 (90mm)
Min. diameter internal blank 62.9 (1600mm)
Max. rim thickness = 356 - cutter diameter 2
Max. diameter blank internal to clear side 47.8 (1215mm)
Max. rim thickness = 356 - cutter diameter 2
Max. diametral pitch (module) 1.5 DP (17 module)
Max. helix left hand and right hand
(w/proper guides) 45 degrees
Cutter stroke max. 12.4 (315mm)
Cutter stroke 180 degrees adjt. (for external
cutting without machine change-over) 5.3 (135mm)
Max. face width double helical 18" (457mm)
Max. face width Spur & Helical. 12 (305mm)
Max. Cutting speeds gearbox up to 120 SPM
Max. center distance - cutter to work 38.9 (990mm)
Min. center distance - cutter to work 4.9 (124mm)
Max. distance tailstock to face of work flange 43.3 (1100mm)
Nominal cutter diameter 6 (152mm)
Cutter bore diameter 3.5 (88.9mm)
Work flange diameter 26.3 (670mm)

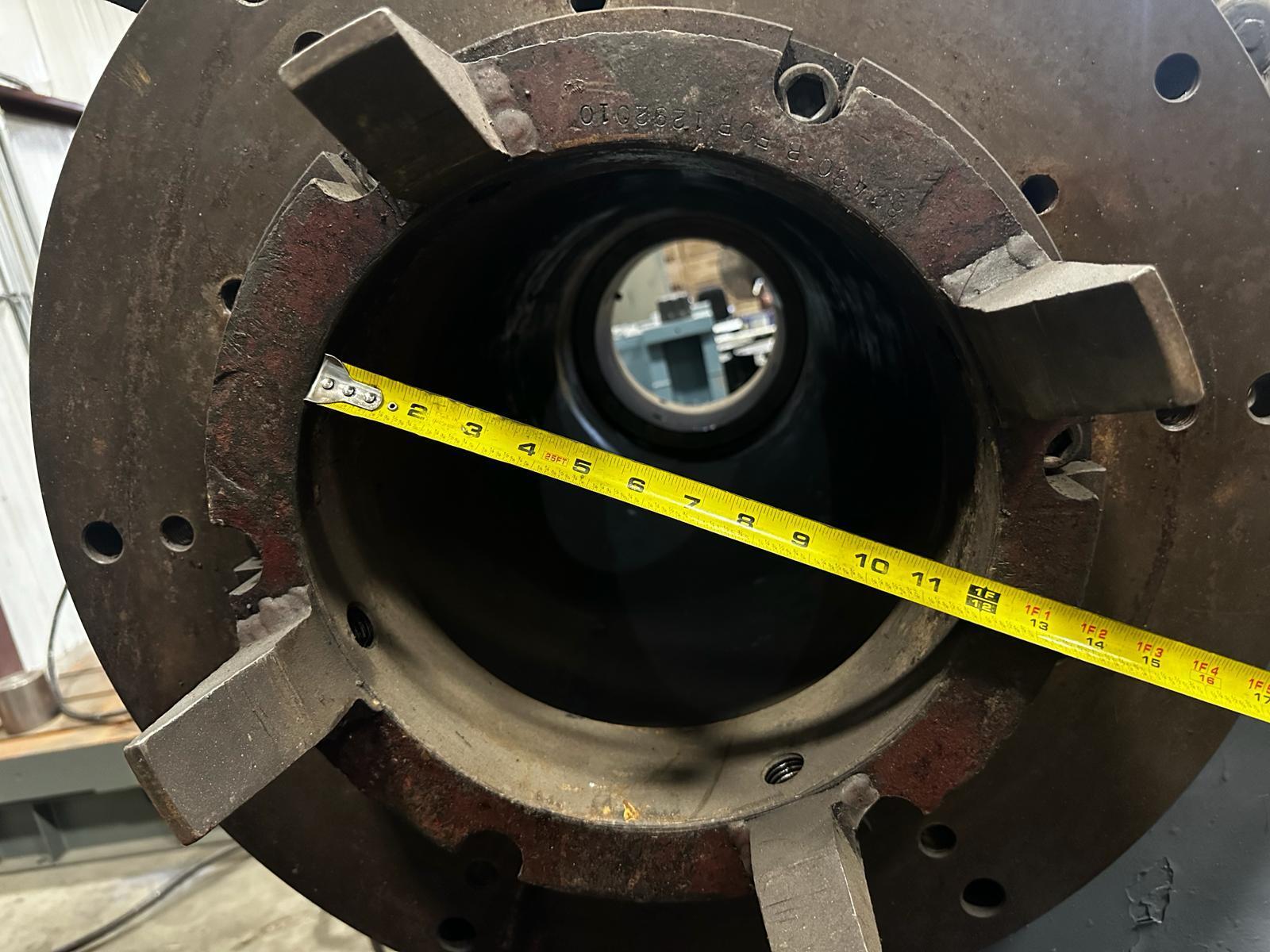

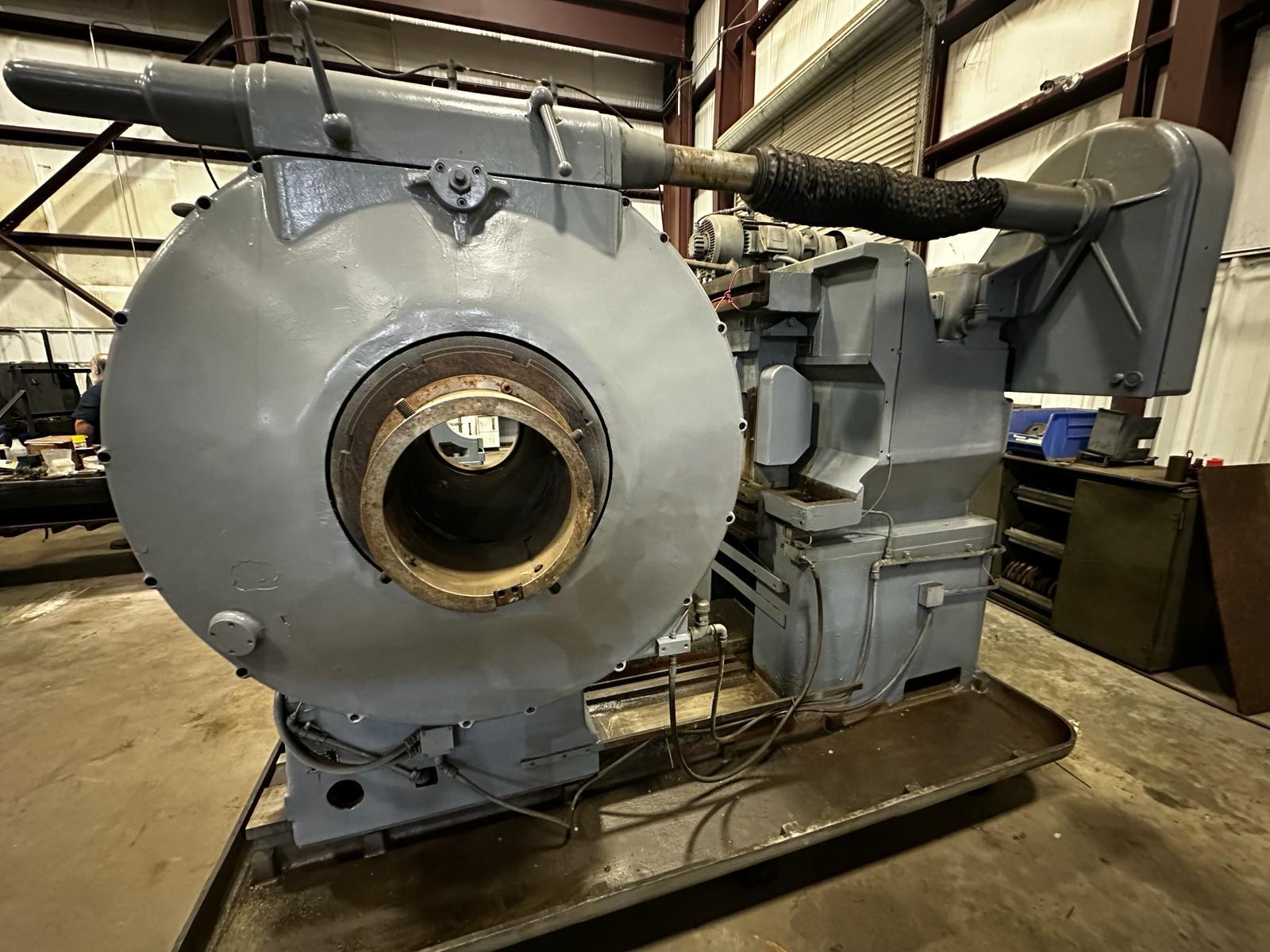

Work spindle bore diameter 12 (305mm)
Cutter worm wheel diameter 17.7 (451mm)
Work worm wheel diameter 47.9 (1219mm)
Rotary feed with 152 diameter cutter, 4 feeds 0.3 - 0.84 rpm
Rotary feed - manual incremental to suit module
T.E.F.C. main motor 7.5 kW 2 speed 750 - 1500 rpm
T.E.F.C. saddle traverse motor 0.75 kW 750 rpm
Coolant capacity 190 L
Lubricant capacity 18 L
Floor area 144 x 200(3.66x5.1m)
Machine length x width x height 125x200x100(3.18x5.08x2.5m)
Weight approx. 40,304 Lbs. (18,320 kGs)
Machine can be inspected under power in customers facility in Texas
with proper notice . The machine specifications and model number will
be determined shortly and additional specifications will be made available
contact rich piselli at rich@pisellient.com or visit www.piselliEnt.com for
more machines available or to receive a formal quote and pricing !!!
