Switchgear for generator set package enclosure with cable ties

SKU: 114345
Condition: Used
Additional Description:
E-House Overview
As annotated in the pictures shown, this E-House consists of:
- Left Side - Main Powerhouse containing Auxiliary Generator Control Panel, Battery Bank, Auxiliary Power Battery Charger, VFDs, etc.
- Right Side - Switchgear Room

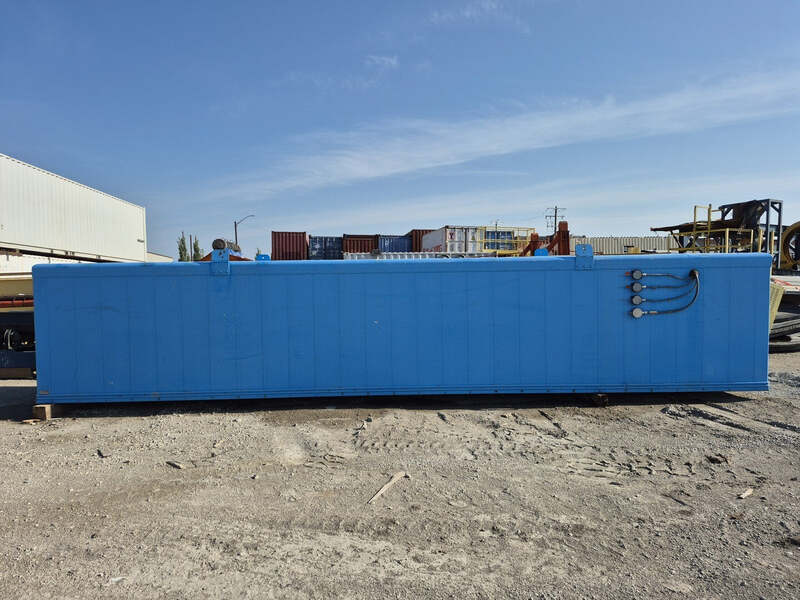

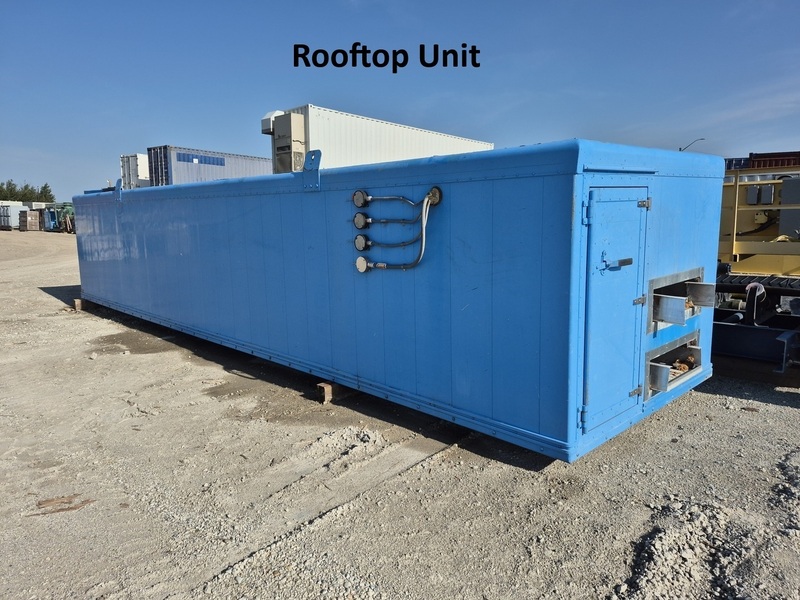

- Rooftop Unit - contains COOPER B-Line Cable Trays 36A12-36-240 ST SC
- Dimensions (Left + Right Side Together): 44' x 12' x 12' approx.
- Dimensions (Rooftop Unit Only): 31' x 8' x 7' approx.

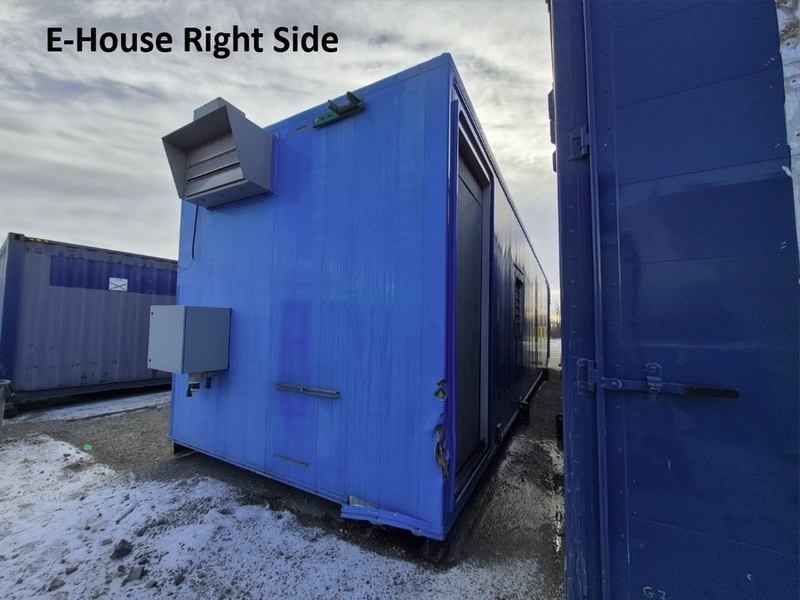

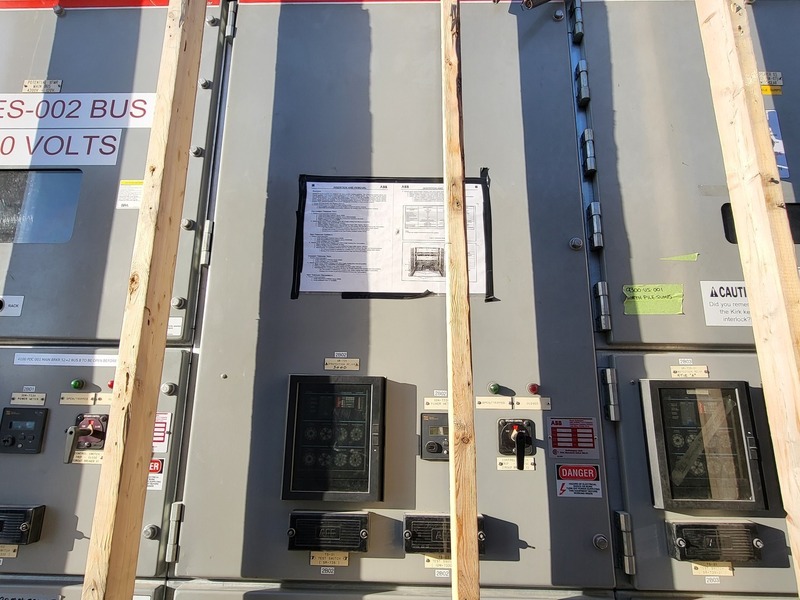

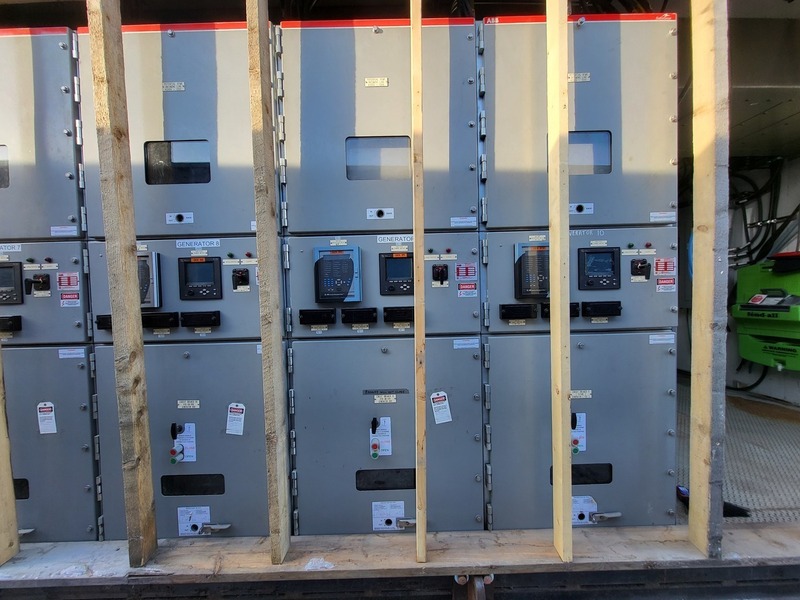

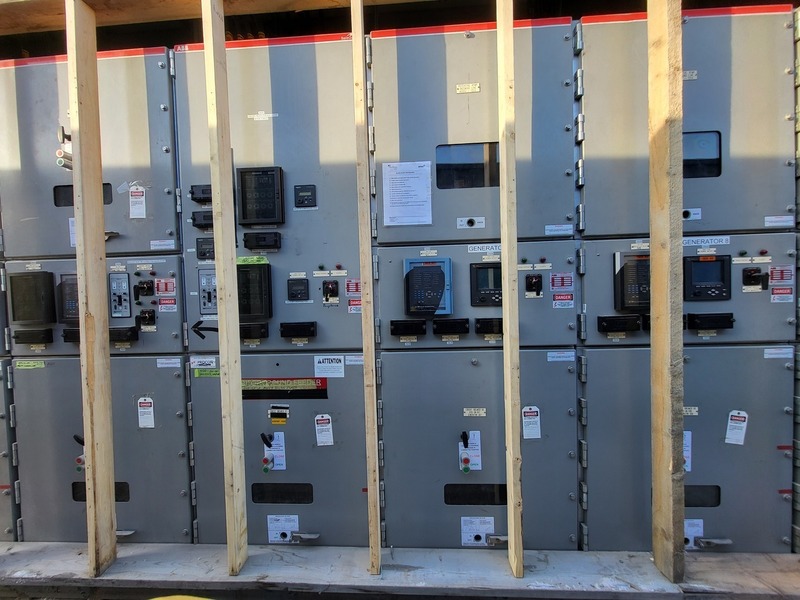

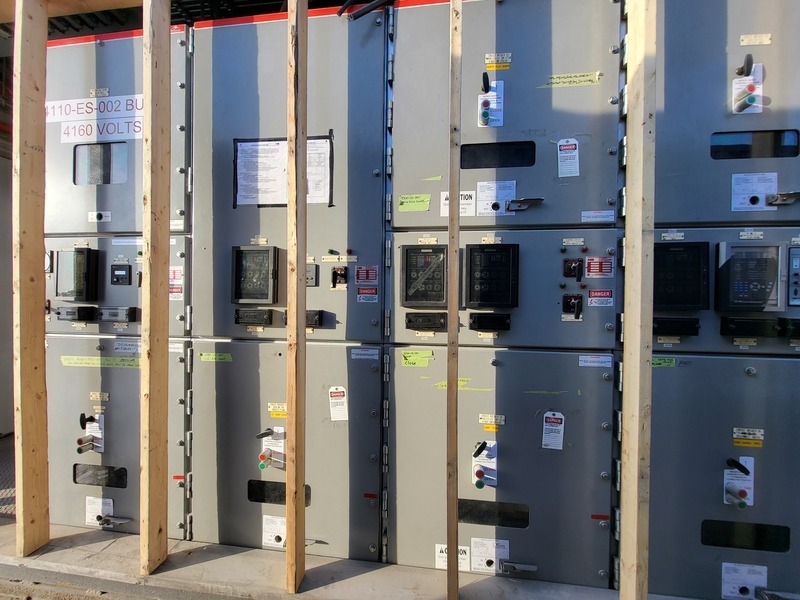

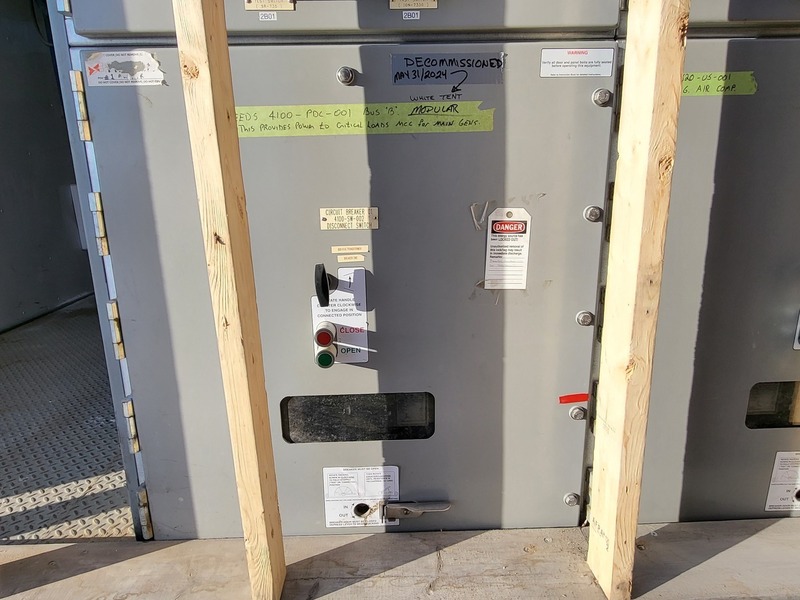

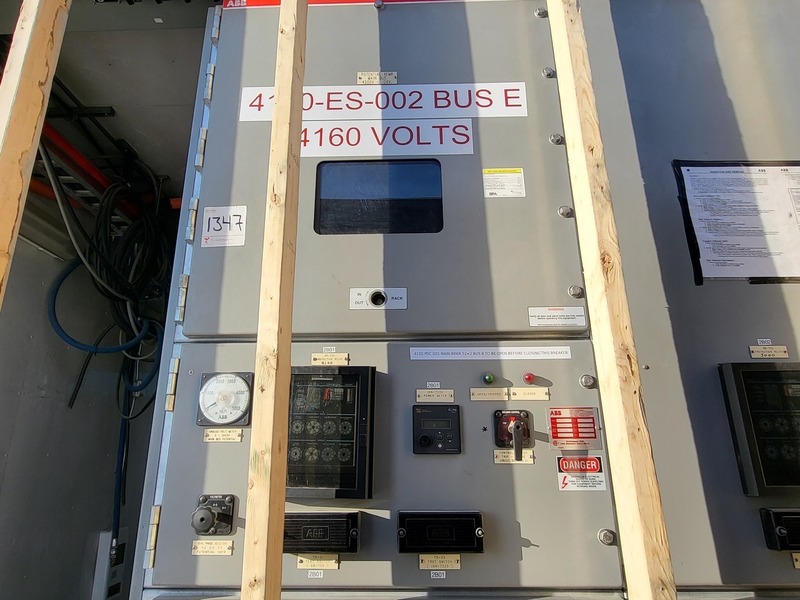

Right Side - Switchgear Room

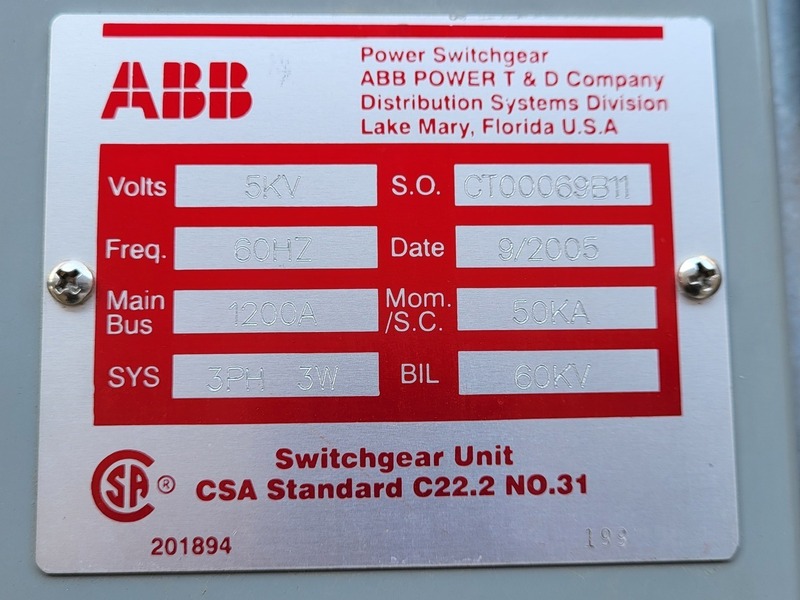

Switchgear Units: 9
Volts: 5 kV
Phase: 3
Main Bus: 1200 A
Short Circuit: 50 kA
Additional Equipment
- Neutral Grounding Resistor: 4160 Sys. Voltage, 2400 Line Voltage
- Grounding Transformer: Input 4160 Voltage, 25 A Neutral Current
- Transfer Switch
- Emergency Eye Wash Station
- Breaker Panelboard: 42 circuits, 600 V
- Heavy Duty Safety Switch: 60 A, 600V
Left Side - Main Powerhouse
- 200 A Breaker Panelboard
- 400 A Breaker Panelboard
- (3) ABB 30 HP 600 V Variable Frequency Drives
- Auxiliary Power Battery Charger:Input 600 VAC, 6 A / Output 120 VDC, 30 A
- Battery Bank
- Auxiliary Generator Control Panel
- Fire Alarm
- Emergency Spill Kit
- Flammable Liquid Storage Cabinet
- 30 kVA Transformer, 600V Pri., 208Y/120V Sec.
