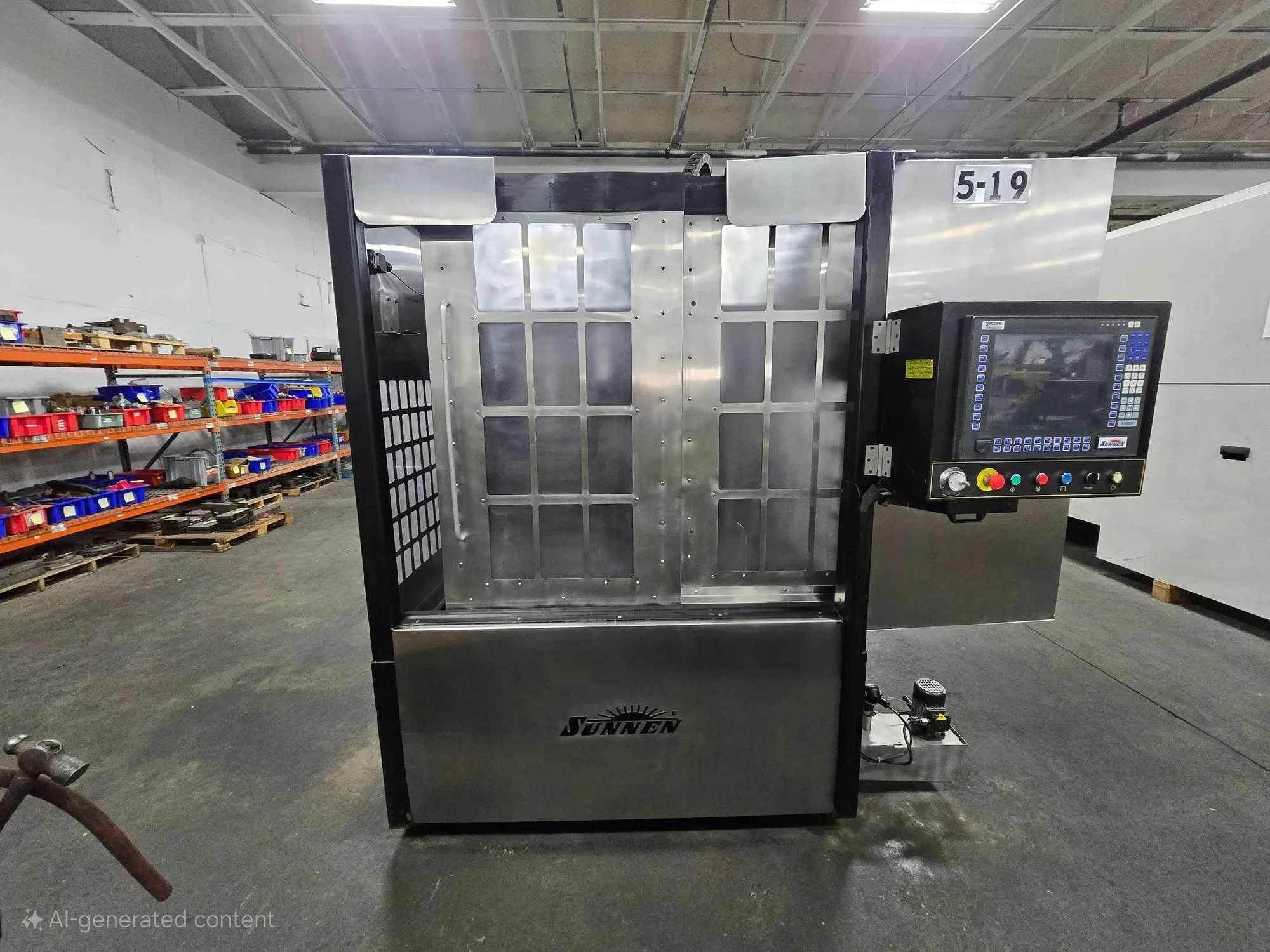

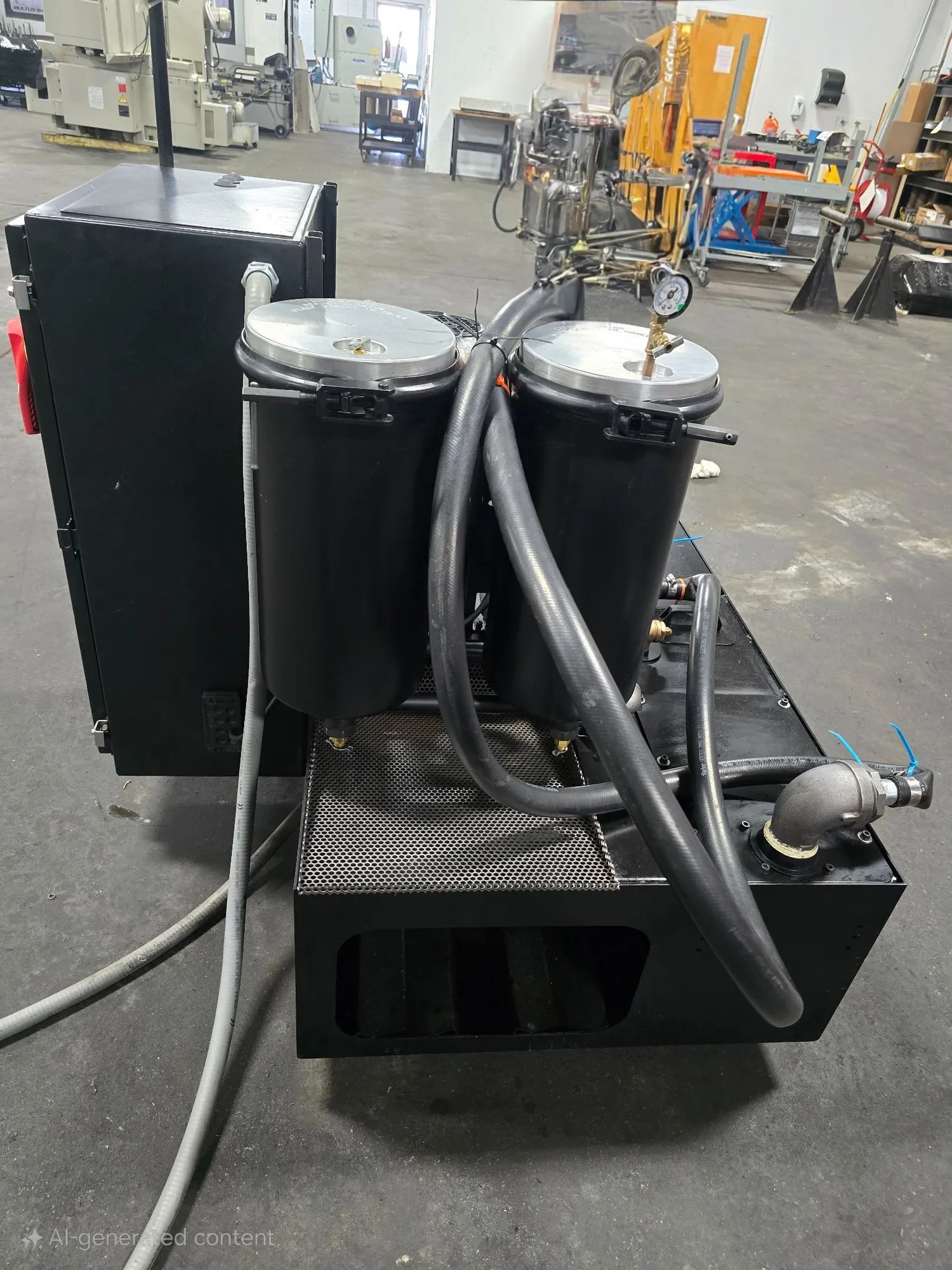

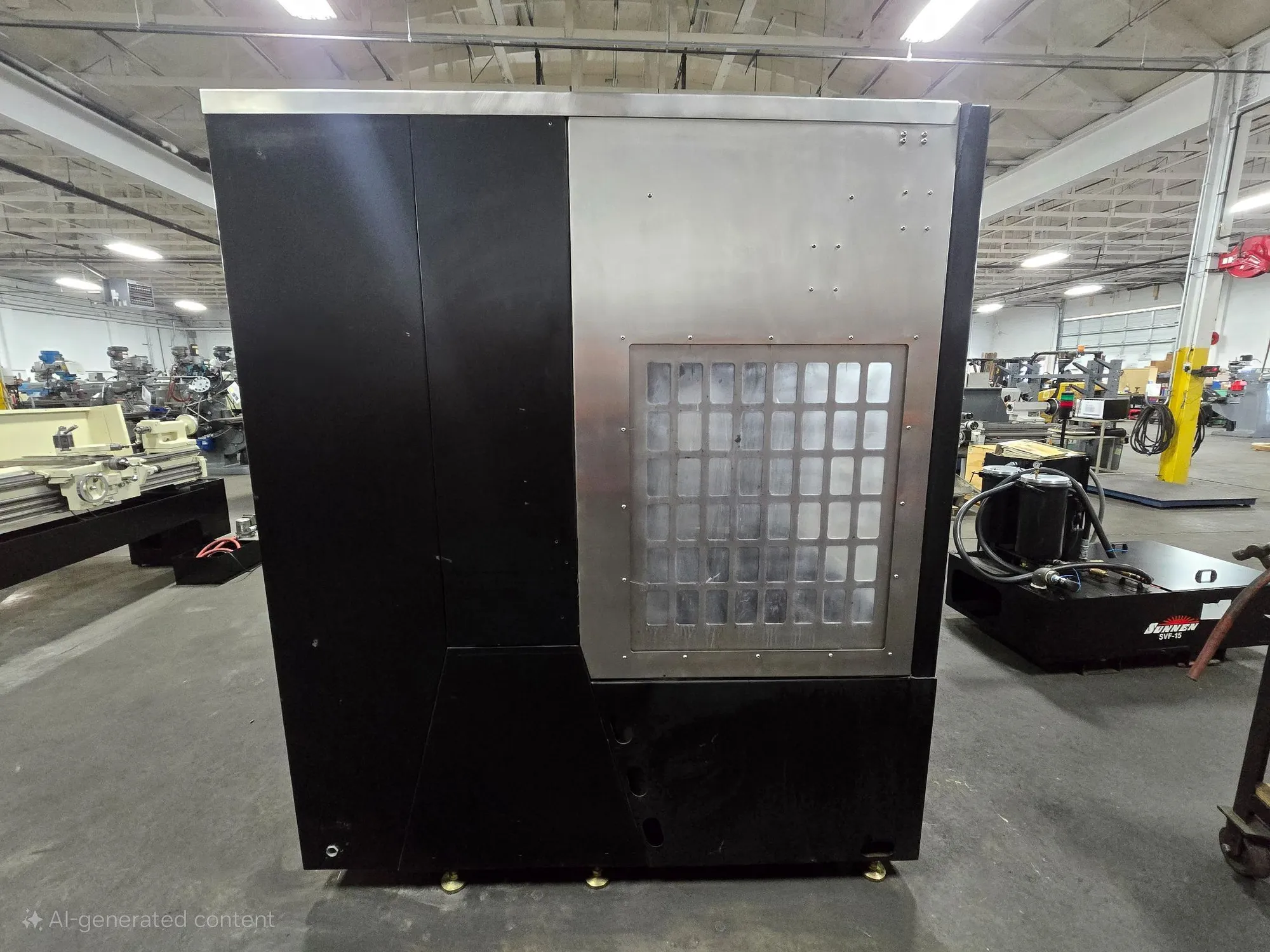

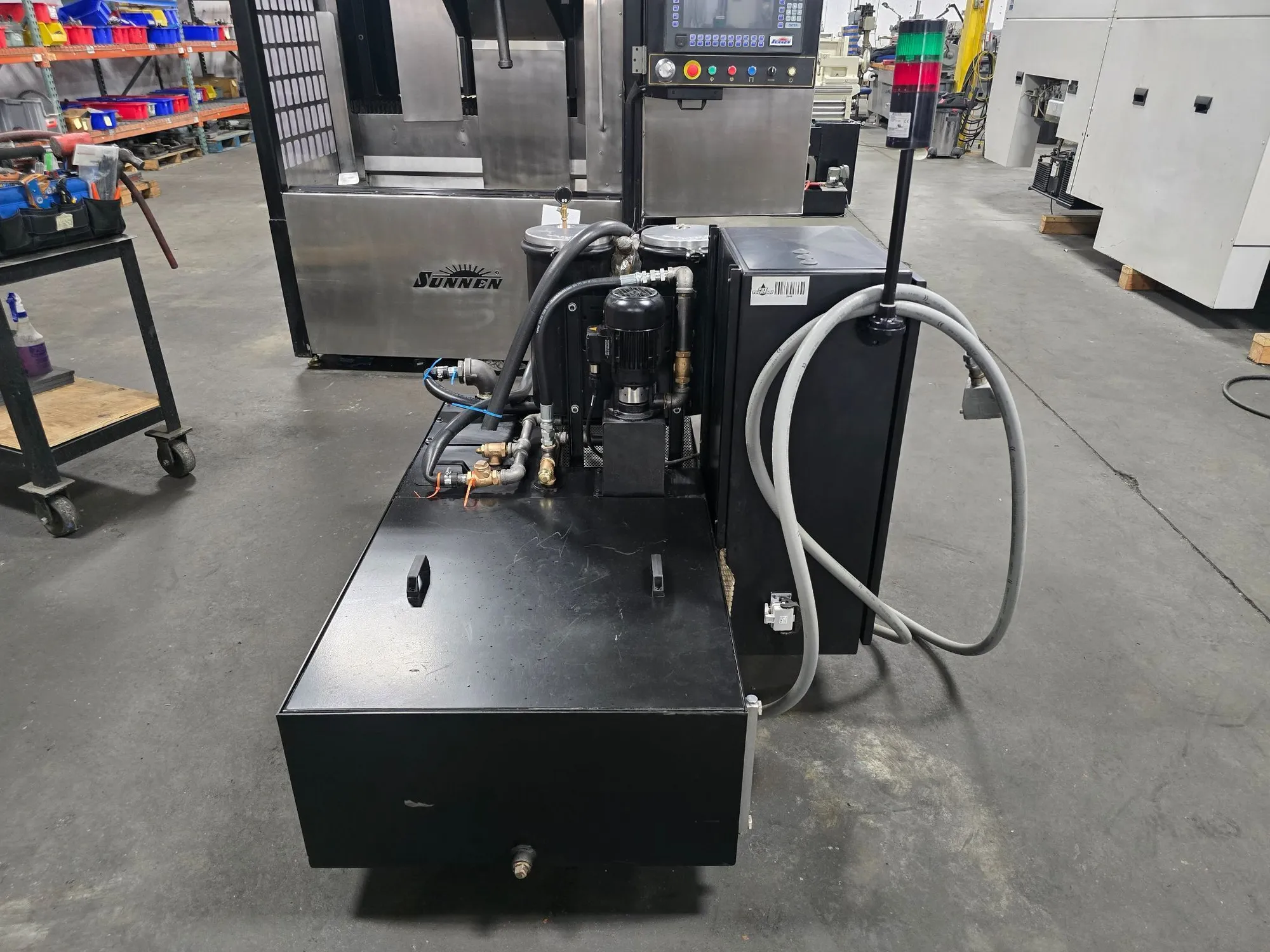

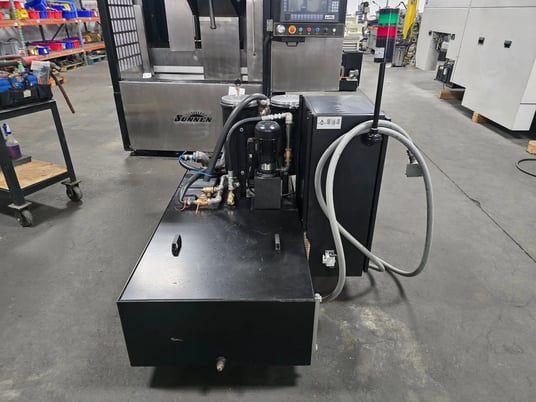

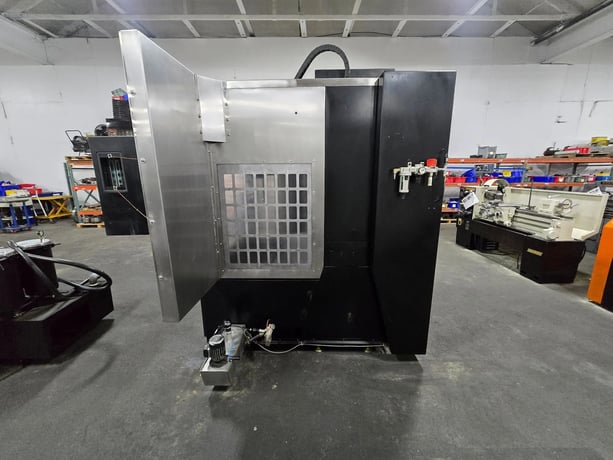

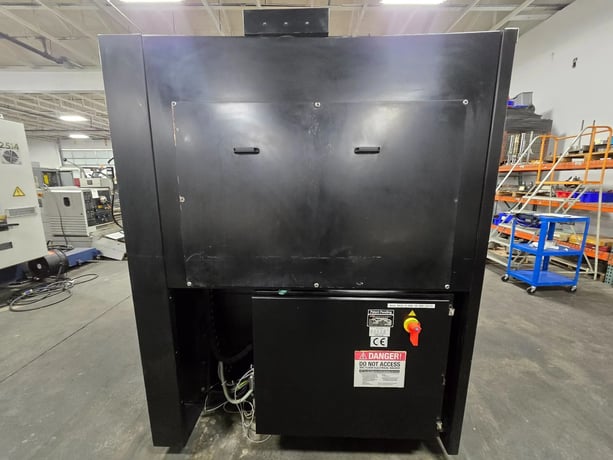

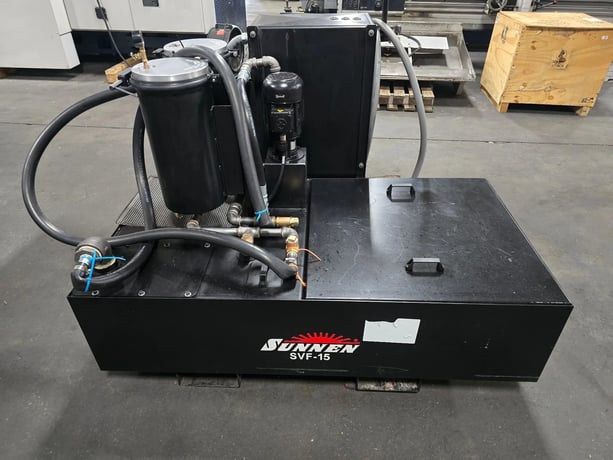

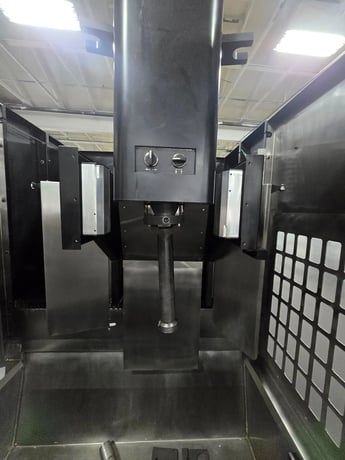

THIS 2006 SUNNEN SV-210 IS A CNC VERTICAL HONE WITH AN INTERNAL DIAMETER RANGE OF 3/4″ TO 8″. IT IS CAPABLE OF HANDLING WORKPIECES WITH A MAXIMUM WEIGHT OF 2,000 LBS AND A MAXIMUM LENGTH OF 24″ WITHIN A 36″ X 40″ WORK AREA ENVELOPE. THE CARRIAGE HAS A LENGTH OF 30″ AND AN X-AXIS TRAVEL OF 29″. A 10 HP STROKE MOTOR CONTROLS THE STROKE LENGTH, WHICH IS UP TO 30″, AND THE RECIPROCATION SPEED (STROKE Y-AXIS) RANGES FROM 20 TO 160 SPM, WITH A MAXIMUM THRUST OF 3,000 LBS. THE SPINDLE MOTOR IS 7.5 HP, DELIVERING SPINDLE SPEEDS FROM 90 TO 600 RPM, AND THE MAXIMUM ROTARY FEED IS UP TO 224.8 LBF PER INCH OF TORQUE. THE MACHINE INCLUDES A 2019 SUNNEN SVF-15-FO55E COOLANT FILTRATION SYSTEM WITH A 1/3 HP SUMP PUMP MOTOR AND A SUMP PUMP RATE OF 30 GPM. APPROXIMATE DIMENSIONS ARE 88″L X 86″W X 90″H, AND THE APPROXIMATE WEIGHT IS 4,500 LBS.
, Enhance precision with this 2006 Sunnen SV-210 CNC Vertical Hone, featuring a 2019 SVF-15-FO55E coolant filtration system. Ideal for honing diameters from 3/4 to 8, it supports workpieces up to 2,000 lbs and 24 long with spindle speeds of 90-600 RPM., Spec Sheet:, 2006 Sunnen SV-210 CNC Vertical Hone w/2019 Sunnen ...more
Inventory No. 1125-041-0012 Manufacturer Sunnen Model No. SV-310-S4 Name Vertical Hone Arrival Date 03-05-2026 Dimensions L x W x H (inches) Unavailable Capacity 36" X 40" TABLE Weight (lb.) 1 Category Fabrication Condition Used, tested Available Quantity 1 Make Year 2014 Item Windows Based CNC Control, Cyclotron ...more
SUPERIOR HONE MODEL VA Price: $5,950 Subcategory: Hones - Vertical Maximum diameter: 3" Stroke: 18" Manufacturer: Superior Model: VA Condition: Used, S/N: 2800-10, (VERY RARE MACHINE) 3 PH 480V.
