For Sale by Adams Machinery
Description
EQUIPPED WITH
SPECIFICATIONS: | |
Diameter Range (ID) | 0.12” – 2.56” (3-65 mm) |
Workpiece Length | 9.8” (250 mm) |
Work Area Envelope (Table) | 6” x 6” x 6” (150 x 150 x 150 mm) |
Carriage Travel | 24.8 (630 mm) |
Carriage Speed | 2 to 2000 IPM (0.001 to 0.800 MPS) |
Reciprocation Speed (Stroke) | 30 – 400 SPM |
Column Motor | 10 HP (7.5 kw) |
Spindle Motor | 7.5 HP (5.5 kw) |
Approximate Dimensions | 84” x 86” x 114” H (2104 x 2190 x 2900 H mm) |
Approximate Weight | 5750 Lbs |
Equipped With:

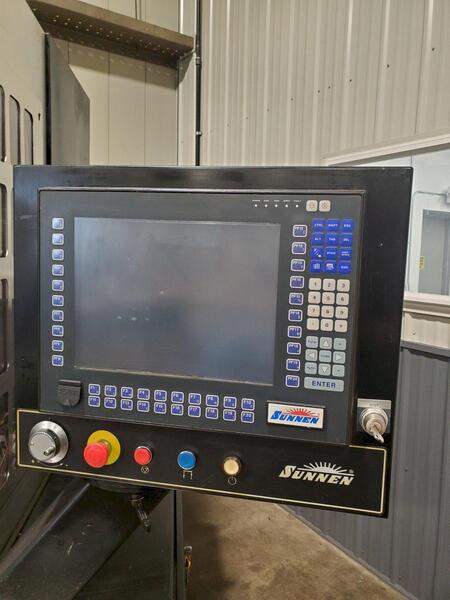

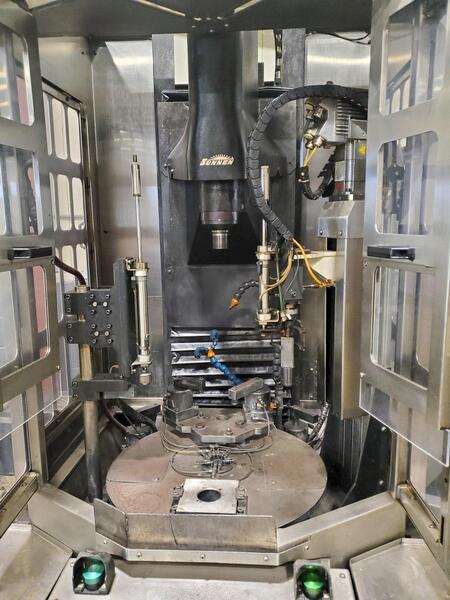

Sunnen Windows Based PC Touch Screen Controller. 2-Positions Bi-Directional Servo Driven Index Table (Infinitely Adjustable). Ball Screw Stroke Control Allows Machine to Short Stroke or Dwell in any Part of the Bore. Coolant Filtration System. Manuals and Drawings.
The Quoted Sunnen Hone Appears to be in Very Good Condition. * Temporary Specifications Subject to Verification. *
