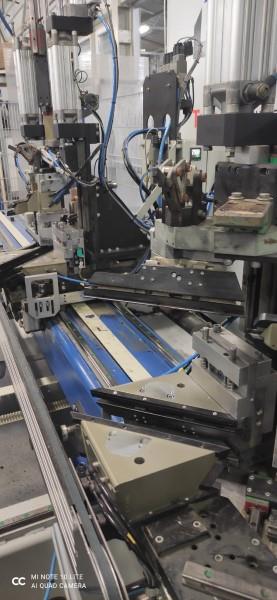

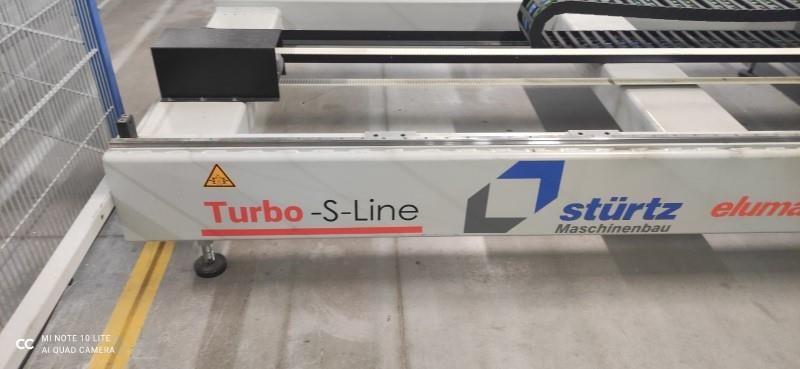

Sturtz #welding/cleaning, window line, 4-head horizontal welding machine, 2017

$189,050 USD

Request Formal Quote

STURTZ ConnectStar TURBO / OpticStar PVC Window Welding/Cleaning Production Line - 3000 x 2600 mmGerman-engineered CNC cleaning and welding production line for PVC windows. Suited for mid to large production manufacturing environments and compatible with all PVC window profiles. Depending upon the product mix, up to 120 windows with one element per welding cycle can be welded in a diagonal or parallel joining process within an 8-hour shift. PC-based control technology with LCD process-reliable display of production and machine data with easy-to-operate intuitive menu navigation and the visual representation of machining processes on the touchscreen display.Window Welding/Cleaning Production Line Consists Of The Following Components:STURTZ ConnectStar H-4-P TURBO 30/26 Multi-Point (4-Head) Horizontal Welding Machine (2017) CNC simultaneous high-temperature welding of four corners at an angle of 90 with parallel welding feed. With electronic positioning of welding heads, PC control, Weld seam limitation of 2 mm & automatic outfeed.Specifications: ● Working direction: Right to Left ● Line capacity: Standard 120 units / 8 hours shift. 1 unit = 1 frame + 1 sash ● Min. window size: 330 x 320 mm (13" x 12.5") ● Max. window size: 3000 x 2600 mm (118" x 102") ● Min. profile depth: 45 mm (1.77") ● Max. profile depth: 120 mm (4.7") ● Min. profile sight line: 25 mm ( 1") ● Max.. profile sight line: 130 mm (5.1")Weight: 3100 kG (6,820 Lbs)STURTZ Transport / Cooling Table (2017)The powered automatic table transports the elements from welding to cleaning positions during which time the welds are allowed to "cool".STURTZ OpticStar - 4MX CNC Twin Head Corner Cleaner (2017)CNC Corner cleaning machine with (4) interpolating axes for complete machining of corners of uPVC window frames. Fully automatic cleaning of visible surfaces, outer corners, seal grooves, and inner corners on uPVC window frames and sashes. Specifications: ● Min. window size: 290 x 290 mm ● Max. window size: 3000 x 2600 mm (during turning operation) ● Min. profile depth: 25 mm ● Max. profile depth: 160 mm ● Min. profile sightline: 25 mm ● Max. profile sightline: 130 mmStandard Tooling: ● (1) Drill unit for top sealing groove ● (1) Drill unit for bottom sealing groove ● (2) Grooving knives ● (2) Inner corner knives ● (1) Outer contour milling discFeatures: ● 4-Axis Twin Head Cleaner ● Four-axis system for fast, simultaneous top and bottom cleaning ● Flexible outer contour machining with saw blade ● Graphical Teach-in programming under Windows operating system ● Automatic profile recognition ● Tooling capability to clean most North American profiles ● Optional tools to clean radii and slopes ● Optional automatic turning station ● Optional Network capability to welderMachine dimensions: 3353 x 2057 x 2134 mm (132“ x 81“ x 84“)Weight: 1500 k
