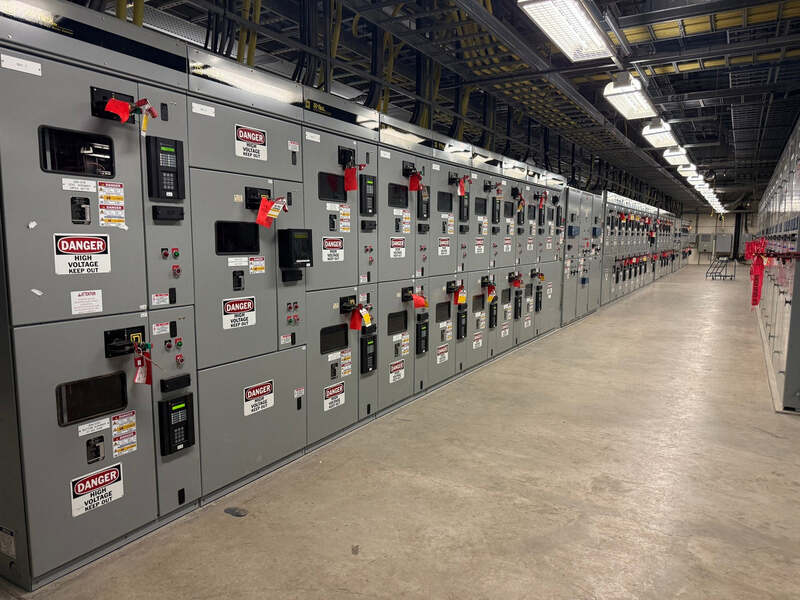

Square D, Iso-Flex #4, switchgear lineup with main tie breaker, 5 KV, 2002

$594,150 USD

Request Formal Quote

SKU: 141614
Model: Model 4
Year: 2002
Condition: Used
Electrical Specifications:
Amps: 360 amps
Voltage: 5000 volts
Phase: 3-phase
Made In: CANADA
Additional Description:

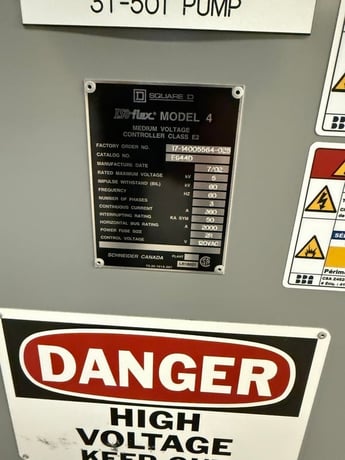

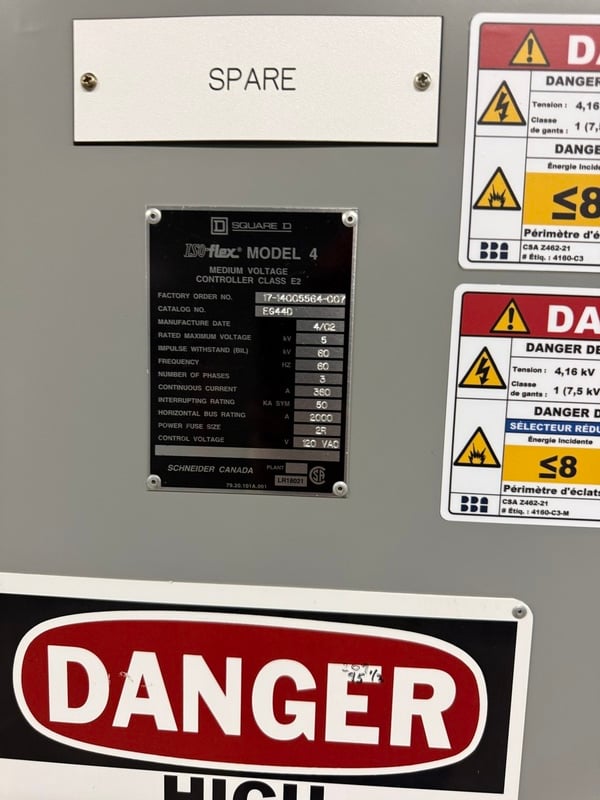

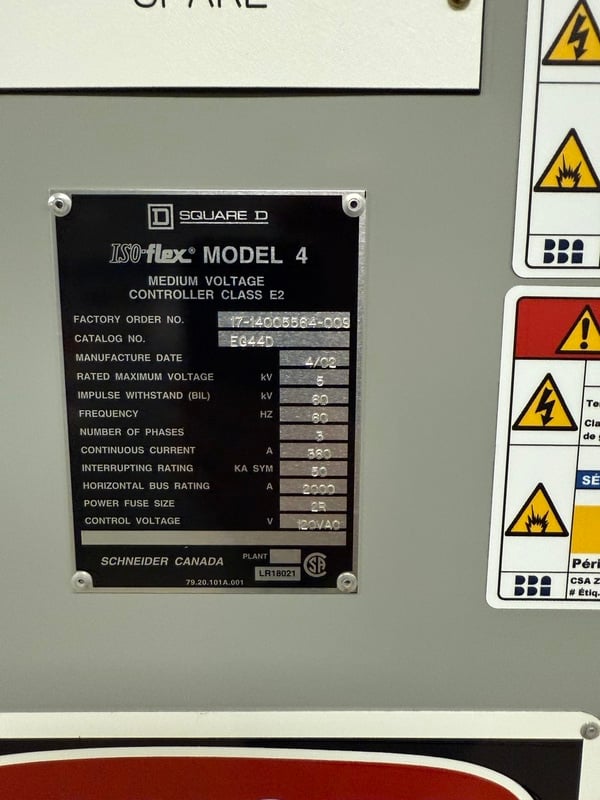

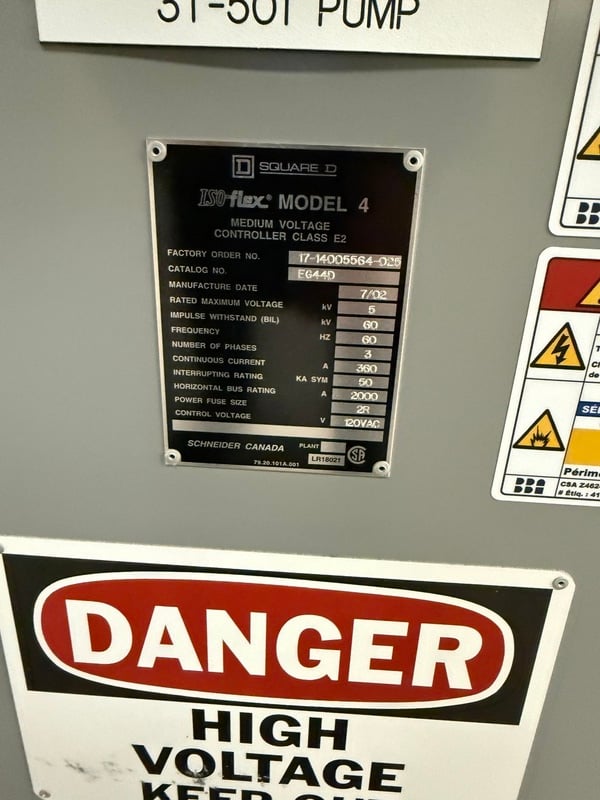

Cat No.: EG44D
Factory Order No.: 17-14005564-025/ 17-14005564-009, 17-14005564-007
Rated Maximum Voltage: 5 kV
Impulse Withstand (BIL): 60 kV
Frequency: 60 Hz
Phase: 3
Continous Current: 360 A
Interrupting Rating: 50 kA Sym
Horizontal Bus Rating: 2000A
Power Fuse Size: 2R
Control Voltage: 120VAC

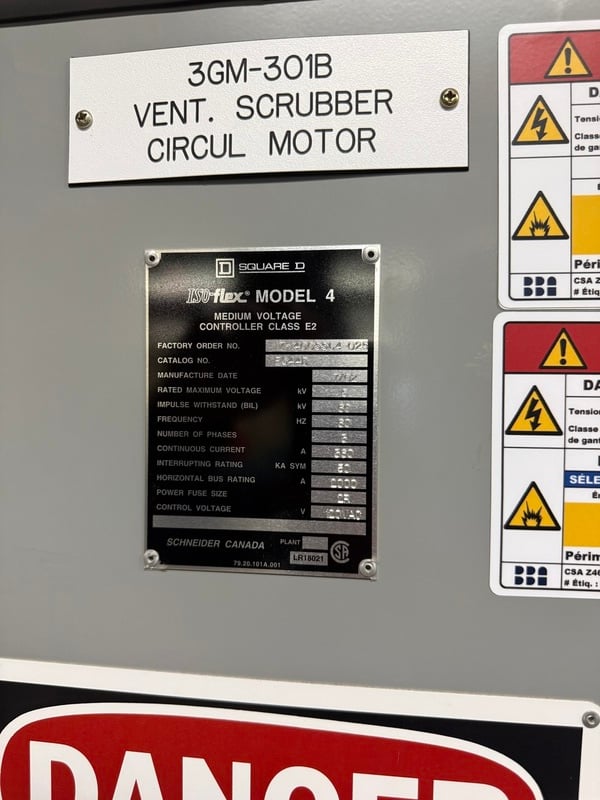

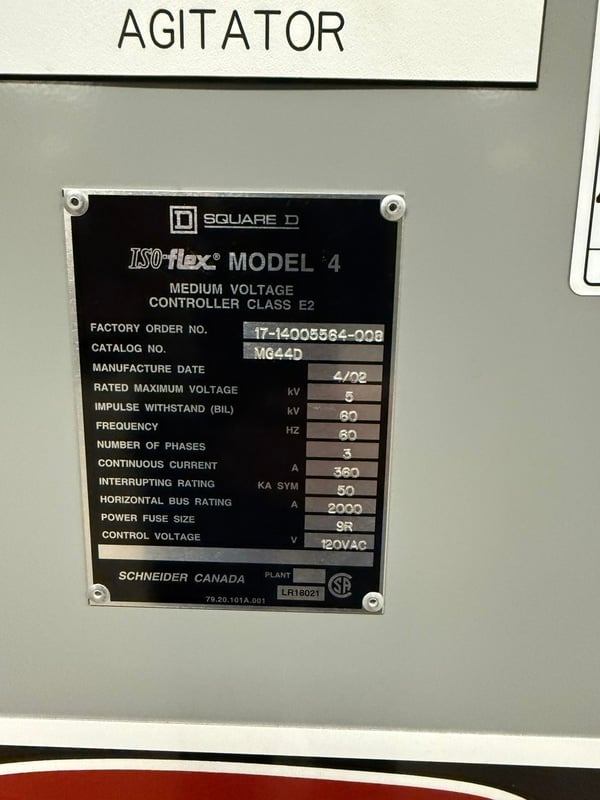

Cat No.: MG44D
Factory Order No.: 17-14005564-008
Rated Maximum Voltage: 5 kV
Impulse Withstand (BIL): 60 kV
Frequency: 60 Hz
Phase: 3
Continous Current: 360 A
Interrupting Rating: 50 kA Sym
Horizontal Bus Rating: 2000A
Power Fuse Size: 9R
Control Voltage: 120VAC

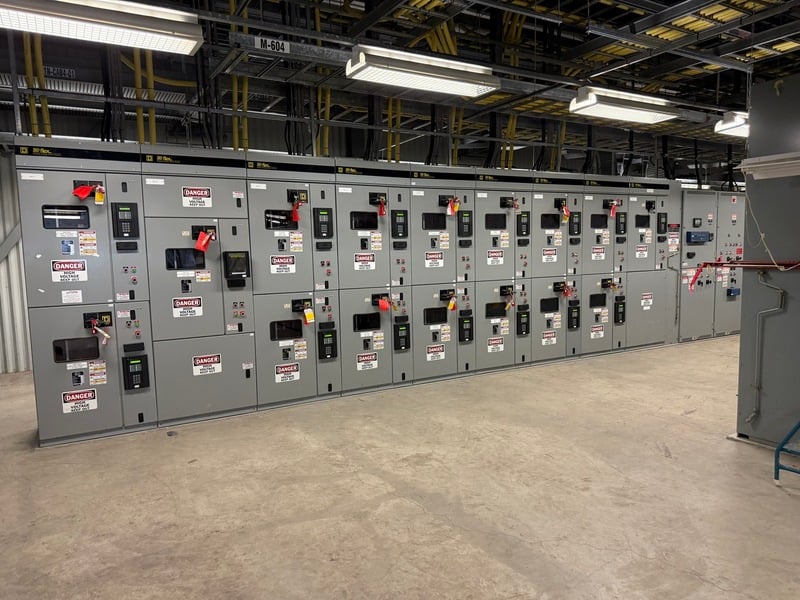

Lineup Includes:

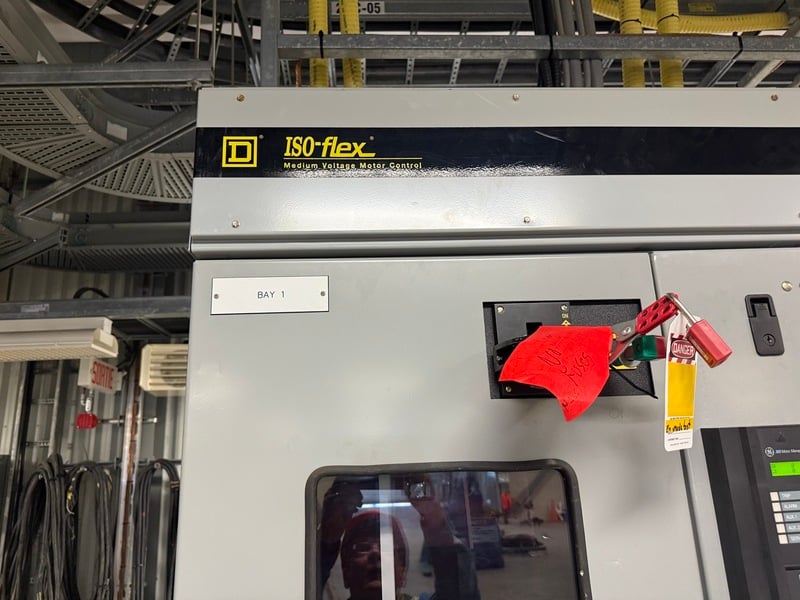

152519 5 kV Iso-Flex Model 4 Switchgear Section - Main Incoming Breaker, 2000A
152520 5 kV Iso-Flex Model 4 Switchgear Section - Feeder Breaker, 2000A
152521 5 kV Iso-Flex Model 4 Switchgear Section - Feeder Breaker, 2000A

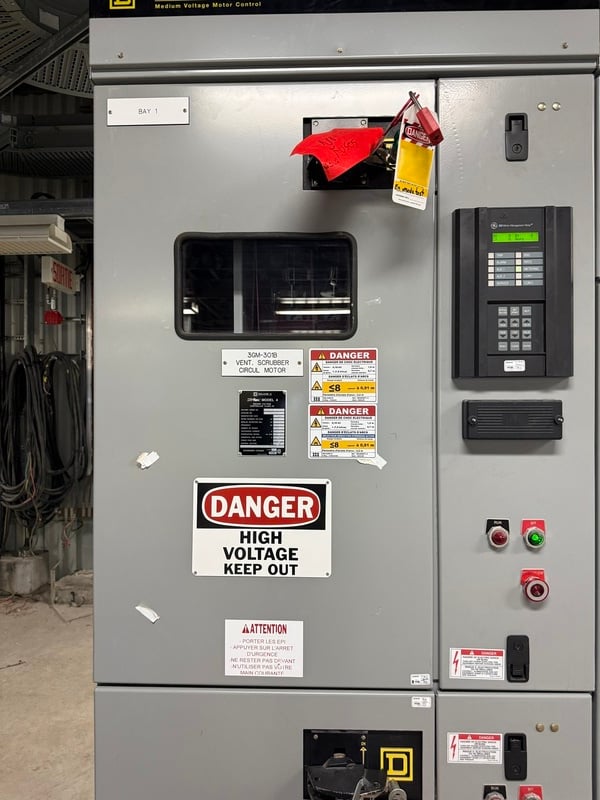

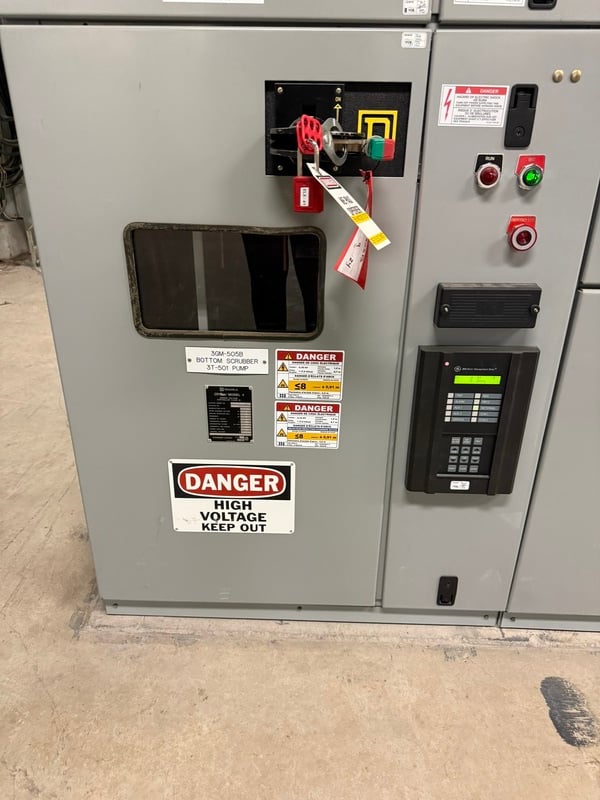

152522 5 kV Iso-Flex Model 4 Motor Control Section - (4) Vacuum Motor Starters, 2000A Bus
152523 5 kV Iso-Flex Model 4 Motor Control Section - (4) Vacuum Motor Starters, 2000A Bus
152524 5 kV Iso-Flex Model 4 Motor Control Section - (4) Vacuum Motor Starters, 2000A Bus
152525 5 kV Iso-Flex Model 4 Motor Control Section - (4) Vacuum Motor Starters, 2000A Bus
152526 5 kV Iso-Flex Model 4 Motor Control Section - (3) Vacuum Motor Starters, 2000A Bus
152527 5 kV Iso-Flex Model 4 Motor Control Section - (4) Vacuum Motor Starters, 2000A Bus
152528 5 kV Iso-Flex Model 4 Motor Control Section - (3) Vacuum Motor Starters, 2000A Bus
152529 5 kV Iso-Flex Model 4 Motor Control Section - (4) Vacuum Motor Starters, 2000A Bus
152530 5 kV Iso-Flex Model 4 Motor Control Section - (4) Vacuum Motor Starters, 2000A Bus
