Southwestern Industries #Trak-DPM2, CNC vertical bed mill, 9" x49" table, 32" x16" x27" travel, 70-4200 RPM, 3 HP, ProtoTRAK SMX CNC

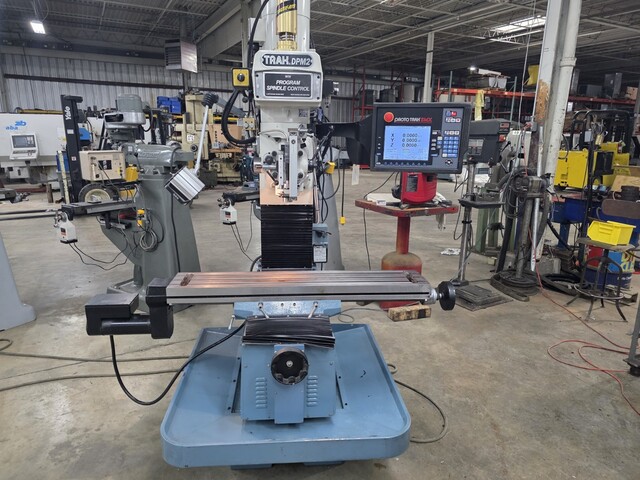

TRAK DPM Bed Mill with the ProtoTRAK SMX CNC

Stock #05407

S/N152DK863

TABLE & TRAVEL

Table Size: 49" × 9"
T-Slots: 3 × .63" Wide × 2.5" Pitch
X-Axis Travel: 32"
Y-Axis Travel: 16"
Z-Axis Travel: 27"
Quill Diameter: 3-3/8"
Maximum Quill Travel: 5"

SPINDLE

Spindle Taper: R8
Spindle Speed Range – Varispeed Head: 70–4,200 RPM
Spindle Speed Range – Optional E Head: 40–600 / 300–5,000 RPM
Spindle Center to Column Face: 18"
Spindle Motor – Varispeed Head: 3 HP
Spindle Motor – Optional E Head: 3 HP

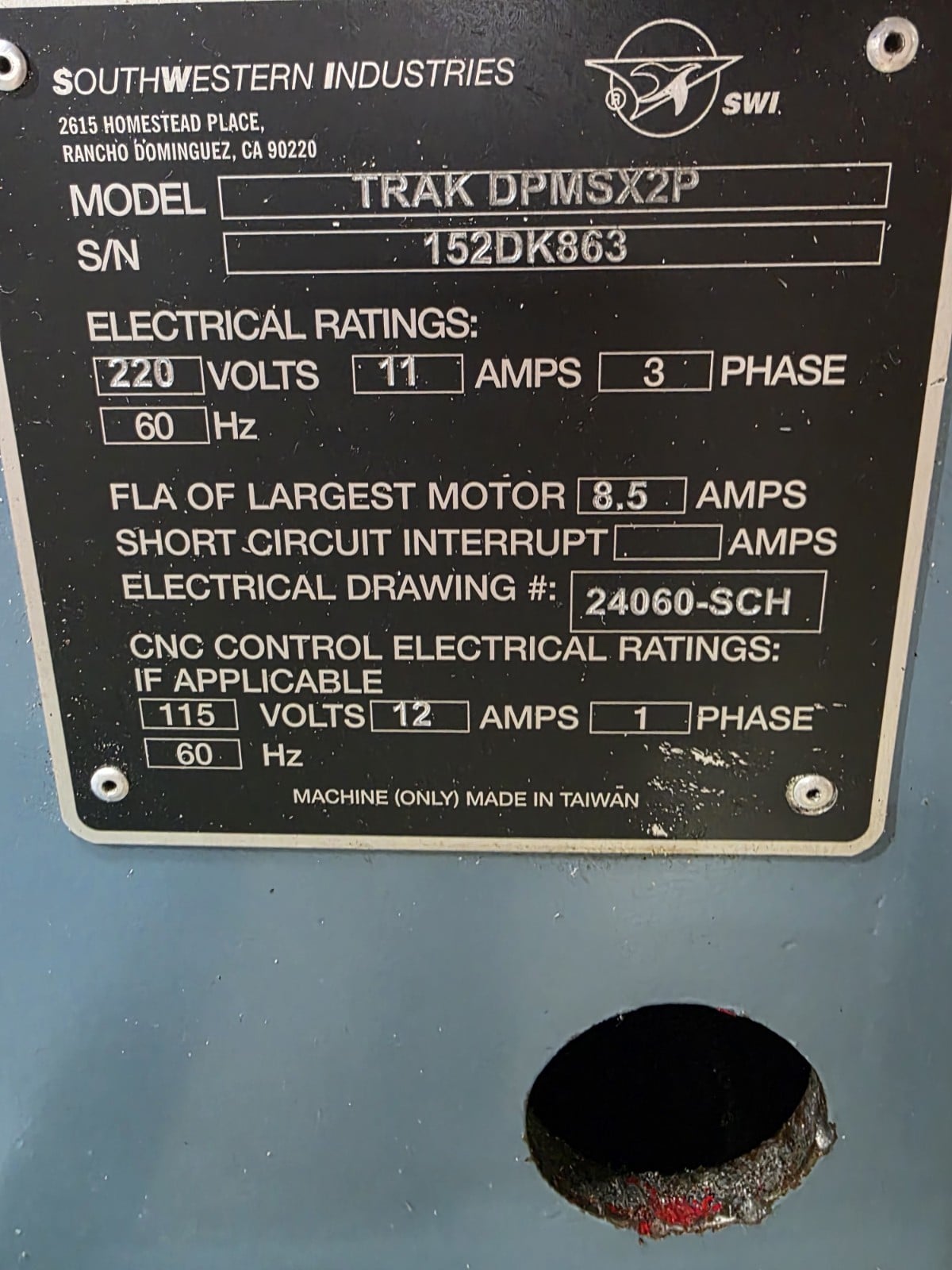

ELECTRICAL

Control Power: 110V, 1 Phase, 8A
Varispeed Machine Power: 220/440V, 3 Phase, 8.5/4.25A
Optional E Head Machine Power: 220V, 3 Phase, 11A

CAPACITY

Maximum Workpiece Weight: 1,320 lbs
Rapid Traverse X/Y/Z: 150 IPM
Coolant Capacity: 10 Gallons

DIMENSIONS

Table Height from Bottom of Bed: 36.75"
Maximum Spindle Nose to Table: 25.75"
Minimum Machine Height: 90"
Maximum Machine Height: 98"
Width Including Table: 70"
Overall Width at Full Table Traverse: 104"
Length – Electrical Box Door Closed: 64"
Overall Length – Electrical Box Door Open: 72"
Machine Footprint: 23" × 40"

WEIGHT

Net Weight: 3,200 lbs

Shipping Weight: 3,500 lbs

MAXIMUM WORK CAPACITIES – MILD STEEL

Varispeed Head:
Drilling Capacity: 1" Diameter
Milling Capacity: 2 in³/min
Tapping Capacity: 5/8"

Machine Condition

Machine powers up properly and runs as it should. Axes move smoothly and the control operates correctly. Overall clean condition for the year with normal cosmetic wear from use. This machine came from a professional manufacturing environment and appears to have been maintained accordingly.

The Above Specifications are Deemed Accurate; however, they are subject to verification.

Shipping & Loading

• Buyer responsible for shipping and rigging
• We can assist with loading
• Machine stored indoors
• Freight quotes and shipping dimensions available upon request

Why Buy From Us?

We specialize in CNC and manual machine tools and regularly service TRAK equipment. Buying from an SWI dealer with factory-trained technicians gives buyers additional confidence that the machine has been properly evaluated before sale.

Please message with any questions, requests for additional photos/videos, or inspection appointments.
