Description
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

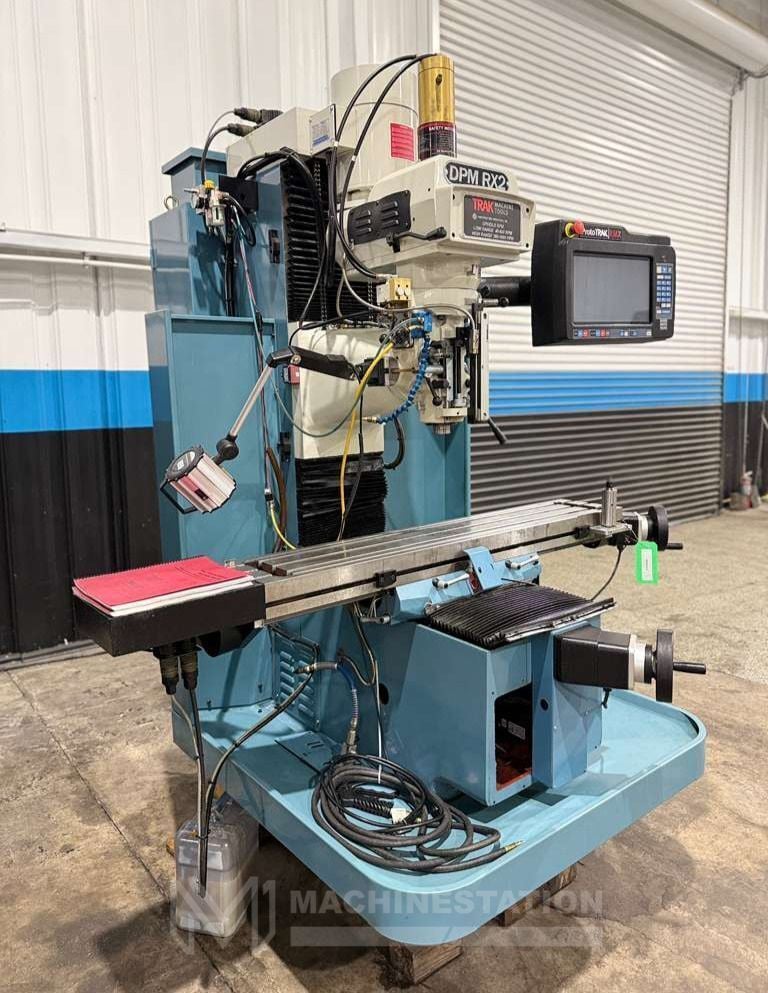

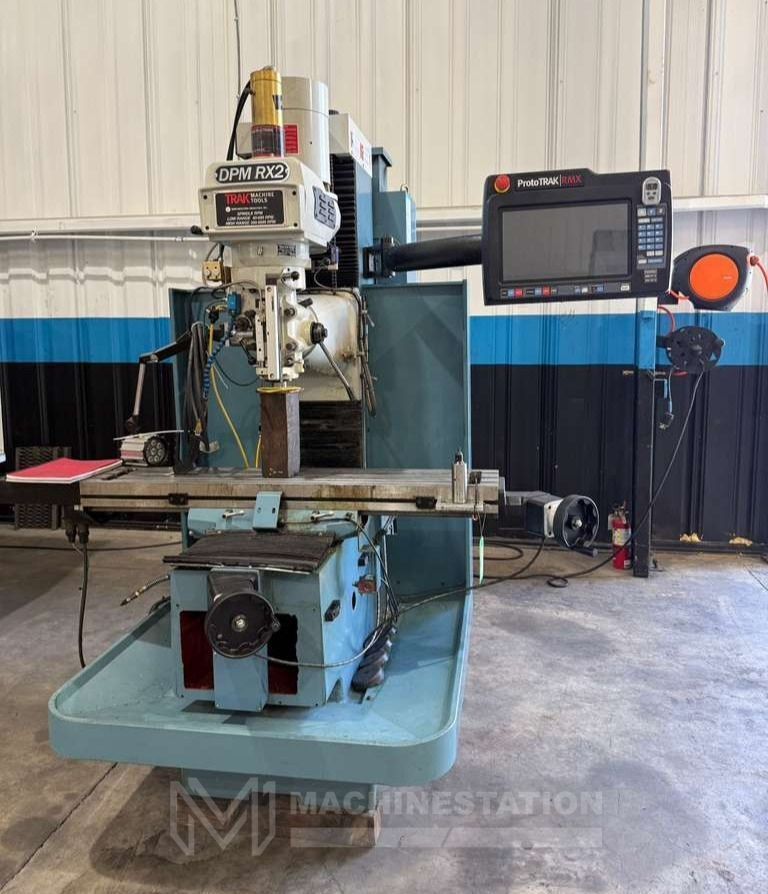

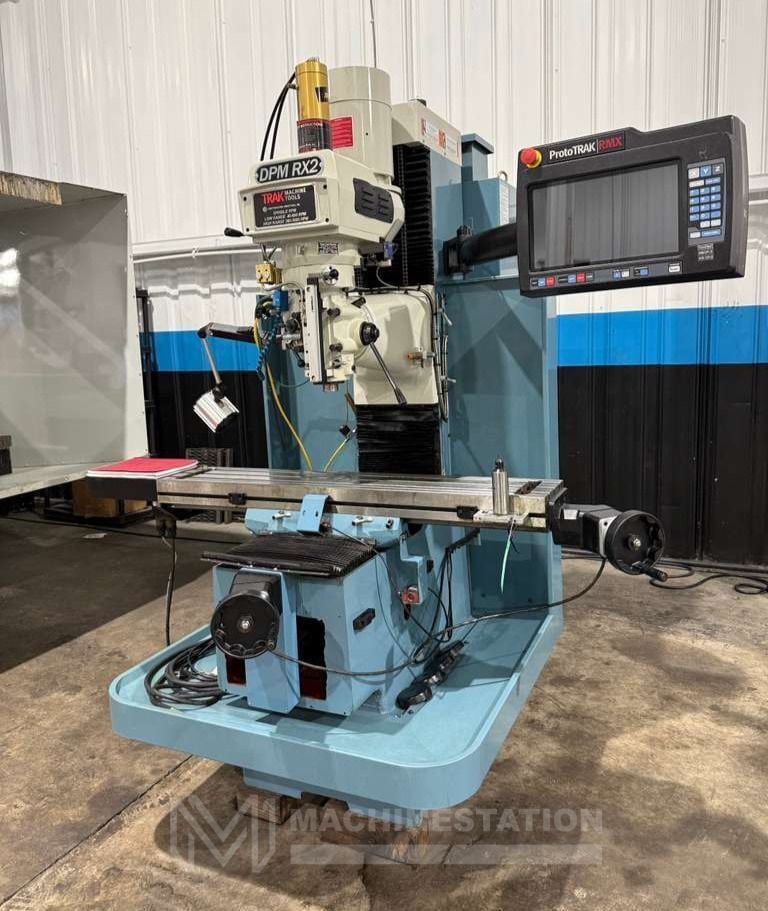

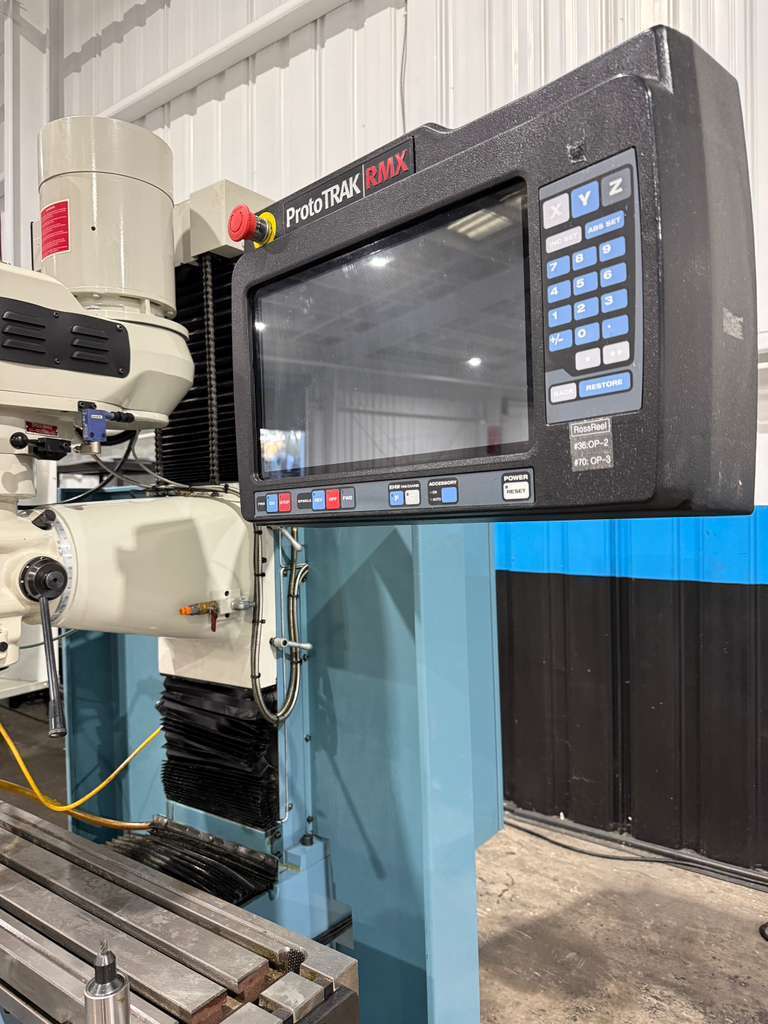

ProtoTRAK RMX 3-Axis CNC Control
Programmable Spindle Speeds
Programmable Tapping

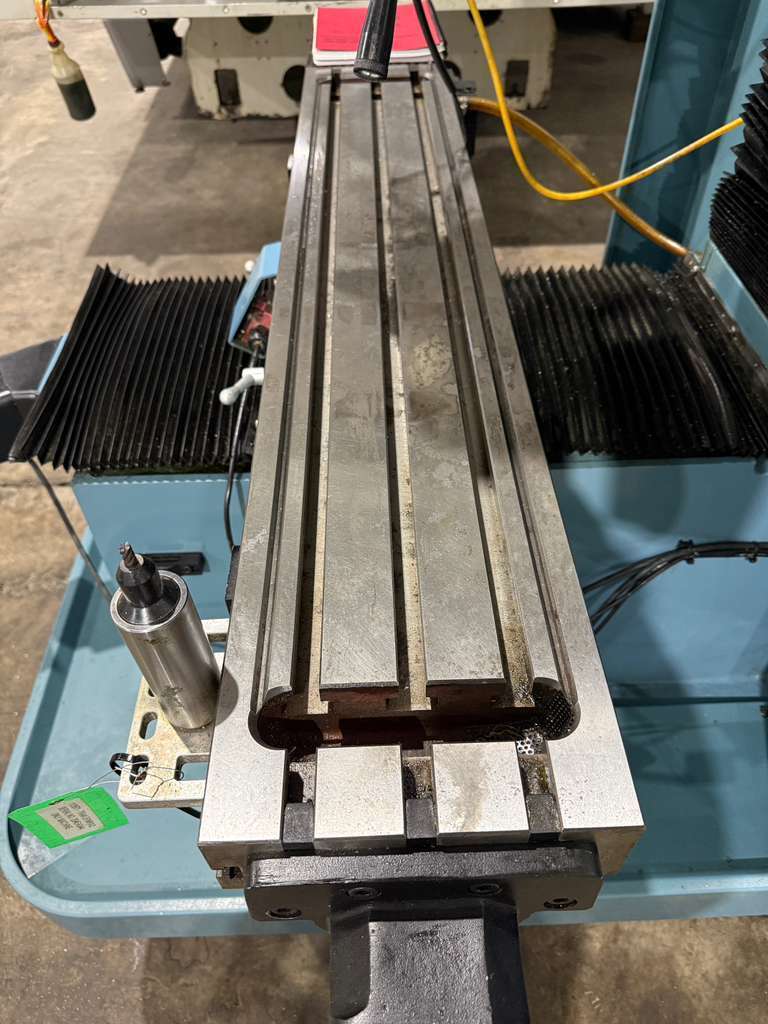

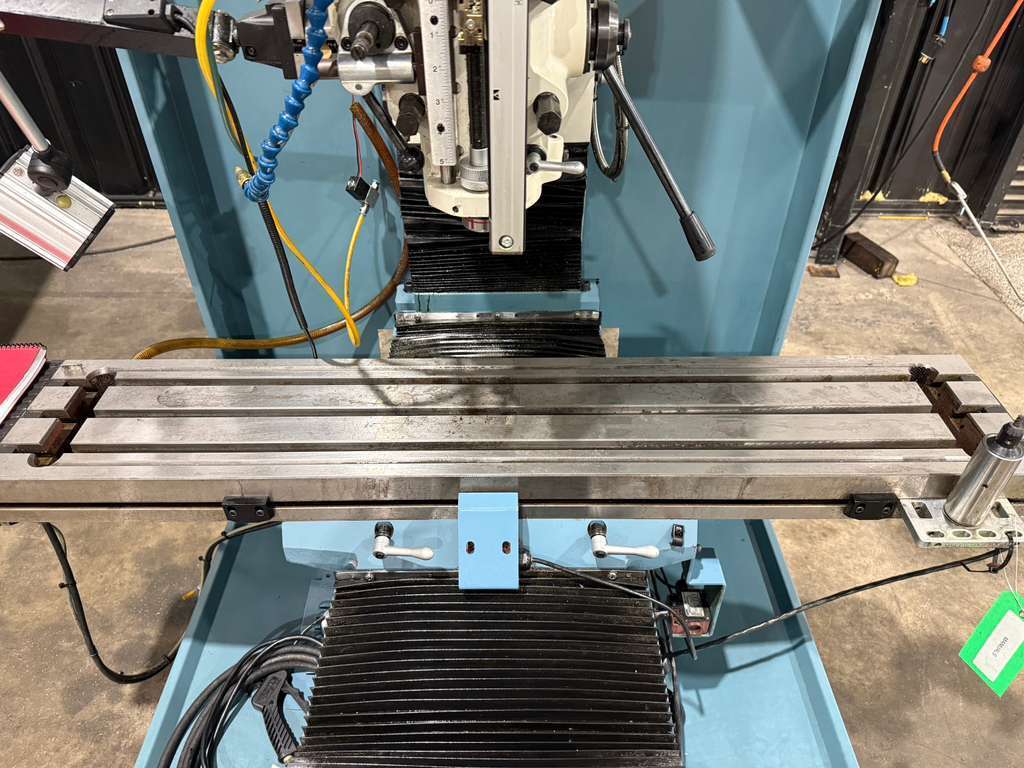

Table:
Table Size: 49.0" x 9.0"
Number of T-Slots: 3
T-Slot Width: 0.63"
T-Slot Spacing: 2.50"
Maximum Table Load: 1,320 lbs
Travels:
X-Axis Travel: 31.0"
Y-Axis Travel: 16.0"
Z-Axis Travel: 23.25"
Maximum Quill Travel: 5.0"

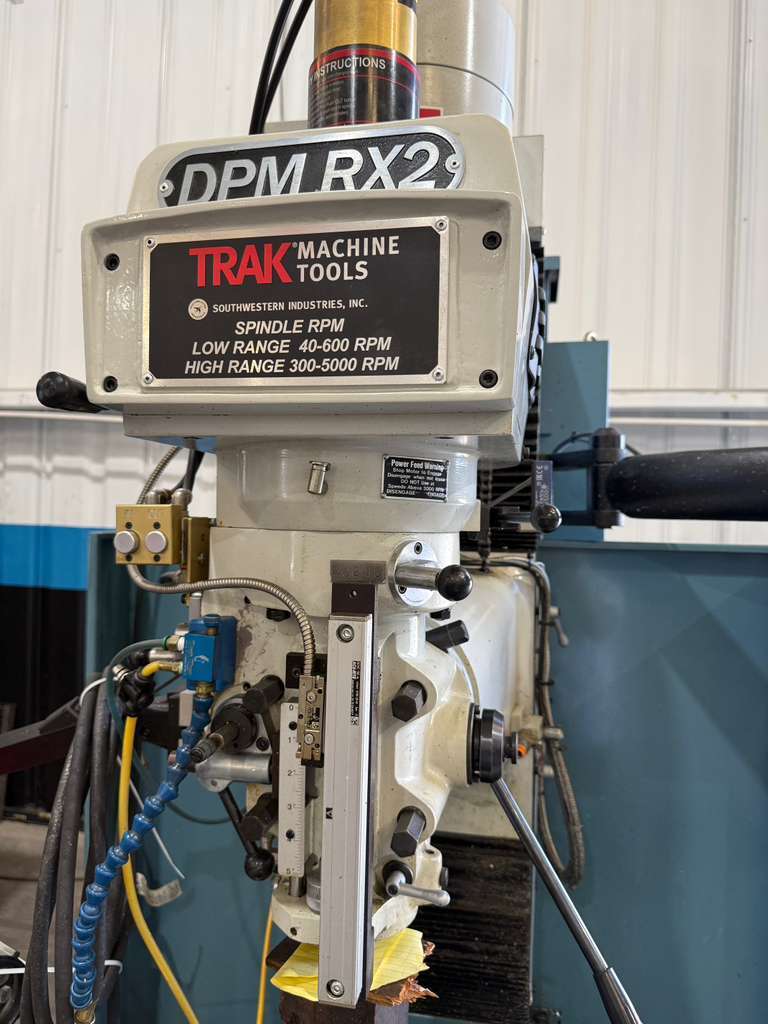

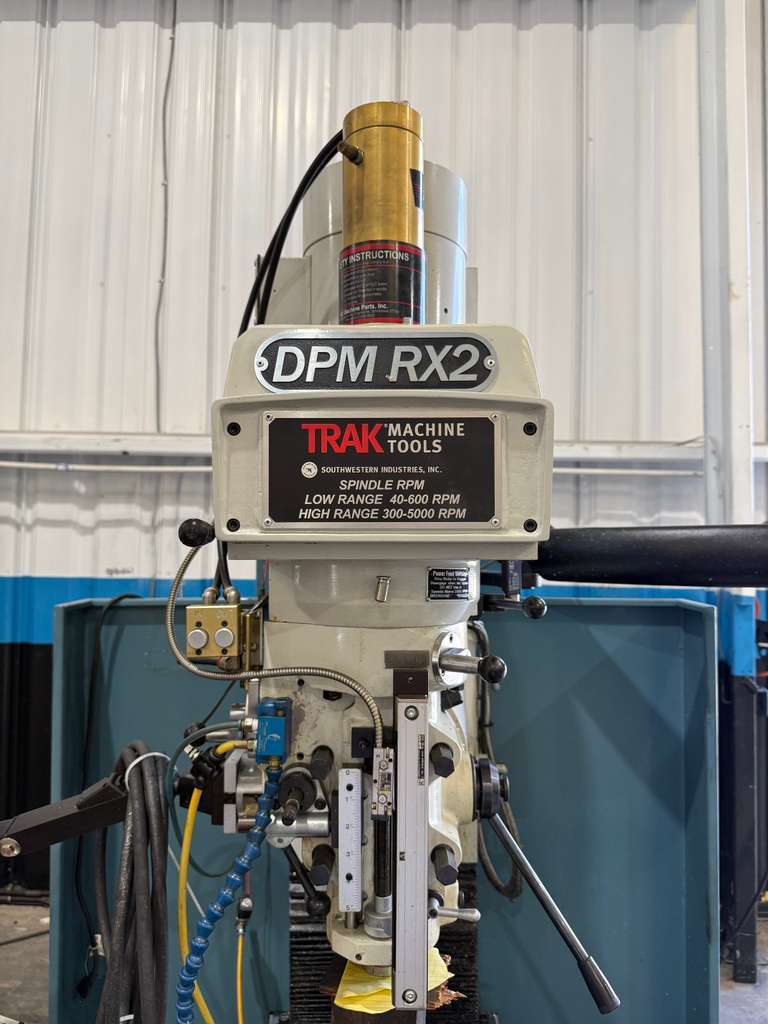

Spindle:
Spindle Taper: R8
Low-Speed Range: 40600 RPM
High-Speed Range: 3005,000 RPM
Spindle Motor: 3 HP
Quill Diameter: 3.375"
Spindle Center to Column Face: 18.5"
Maximum Spindle Nose to Table: 25.5"
Head Swivel: ±90 Degrees
Quill Feed Rates: 0.0015 / 0.003 / 0.006 IPR
Feedrate:
Rapid Traverse, X and Y Axes: 400 IPM
Rapid Traverse, Z Axis: 250 IPM
Machining Capacity:
Maximum Drilling Capacity: 1.0" Diameter
Maximum Tapping Capacity: 3/4"-10
Maximum Milling Capacity: 3 Cubic Inches per Minute
General:

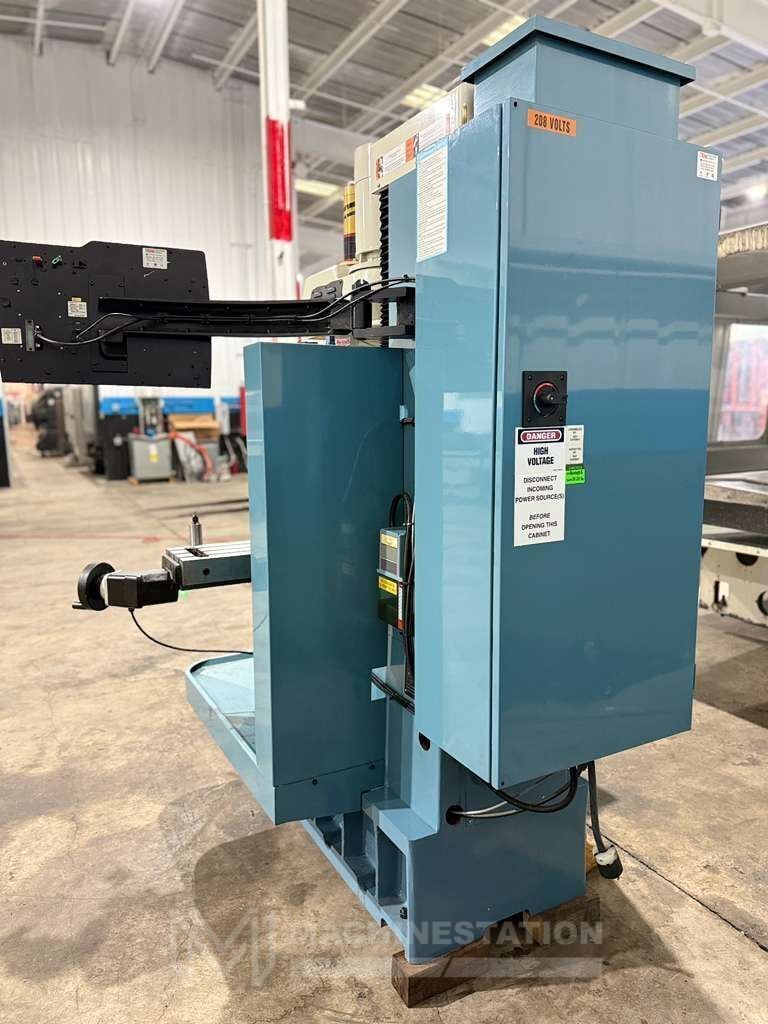

Electrical Requirement: 208 Volts, 27 Amps, 3-Phase, 60 Hz
Approximate Overall Dimensions: 103" W x 94" D x 99" H
Approximate Net Weight: 3,300 lbs
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
ProtoTRAK RMX 3-Axis CNC Control
Programmable Spindle Speeds
Programmable Tapping
Table:
Table Size: 49.0" x 9.0"
Number of T-Slots: 3
T-Slot Width: 0.63"
T-Slot Spacing: 2.50"
Maximum Table Load: 1,320 lbs
Travels:
X-Axis Travel: 31.0"
Y-Axis Travel: 16.0"
Z-Axis Travel: 23.25"
Maximum Quill Travel: 5.0"
Spindle:
Spindle Taper: R8
Low-Speed Range: 40600 RPM
High-Speed Range: 3005,000 RPM
Spindle Motor: 3 HP
Quill Diameter: 3.375"
Spindle Center to Column Face: 18.5"
Maximum Spindle Nose to Table: 25.5"
Head Swivel: ±90 Degrees
Quill Feed Rates: 0.0015 / 0.003 / 0.006 IPR
Feedrate:
Rapid Traverse, X and Y Axes: 400 IPM
Rapid Traverse, Z Axis: 250 IPM
Machining Capacity:
Maximum Drilling Capacity: 1.0" Diameter
Maximum Tapping Capacity: 3/4"-10
Maximum Milling Capacity: 3 Cubic Inches per Minute
General:
Electrical Requirement: 208 Volts, 27 Amps, 3-Phase, 60 Hz
Approximate Overall Dimensions: 103" W x 94" D x 99" H
Approximate Net Weight: 3,300 lbs
