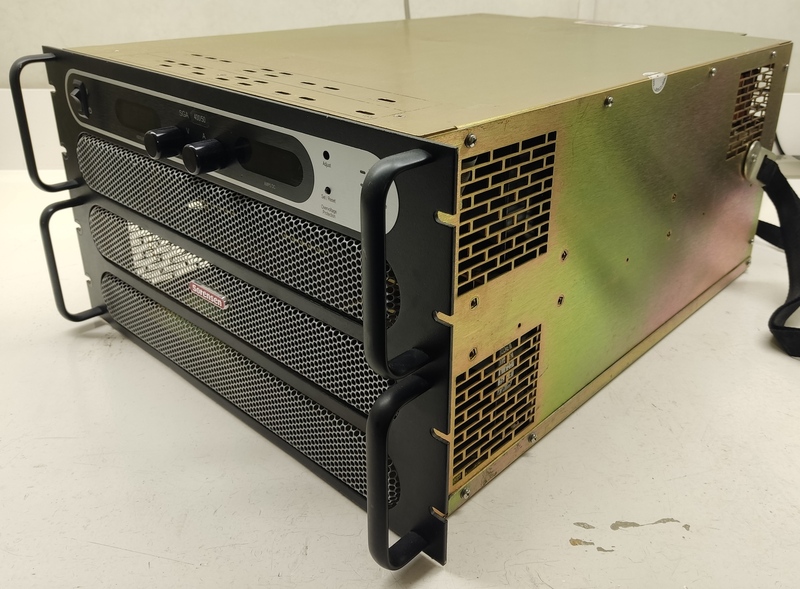

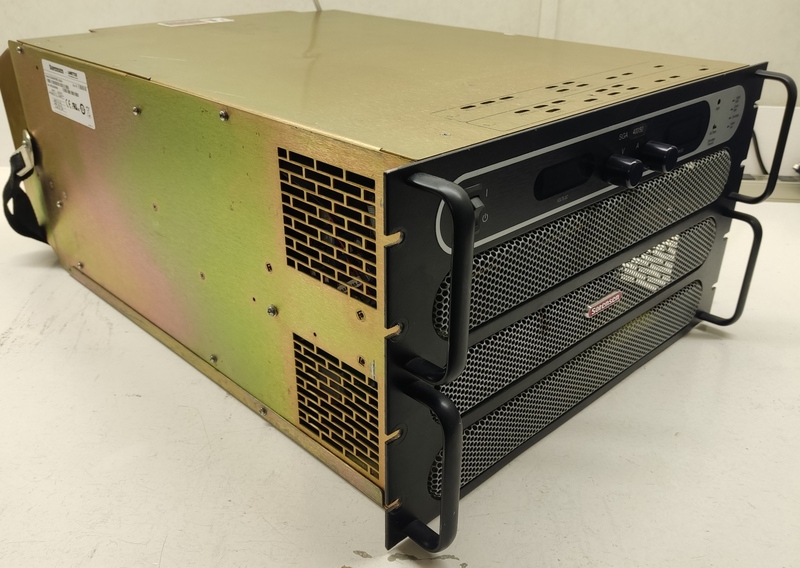

Sorensen, SGA400/50D-1AAA, DC Analog programmable power supply, 400 Volts, 50/60 Hz

$6,363 USD

Request Formal Quote

SKU: 134378

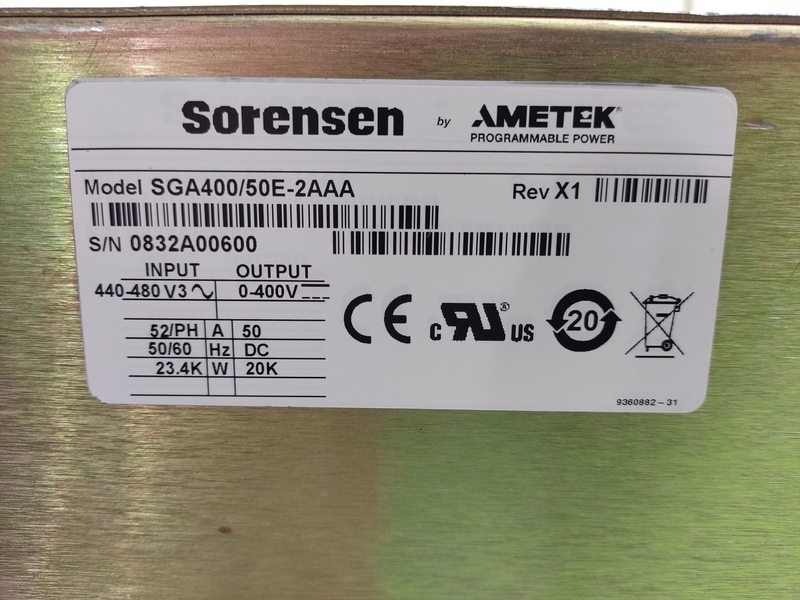

Model: SGA400/50E-2AAA
Condition: Used
S/N: 0832A00600
General Specifications:
Type: DC
Electrical Specifications:
Output Capacity: 400 Volts
Frequency: 50/60 Hz
Dimensions: 12.00 (H) x 12.00 (W) x 38.00 (L) inches
Additional Description:
Electrical Specifications
- Amperage: 50 A DC output
- Voltage Output Range: 0 - 400 VDC
- Output Power: 20 kW DC
- Input Voltage: 440 - 480 VAC, 3 Phase
- Input Frequency: 50 / 60 Hz
- Input Current: 52 A per phase
- Input Power: 23.4 kW max
Power Supply Features
- Programmable DC Power Supply
- High Power Density Industrial Test Supply
- Adjustable Voltage and Current Controls

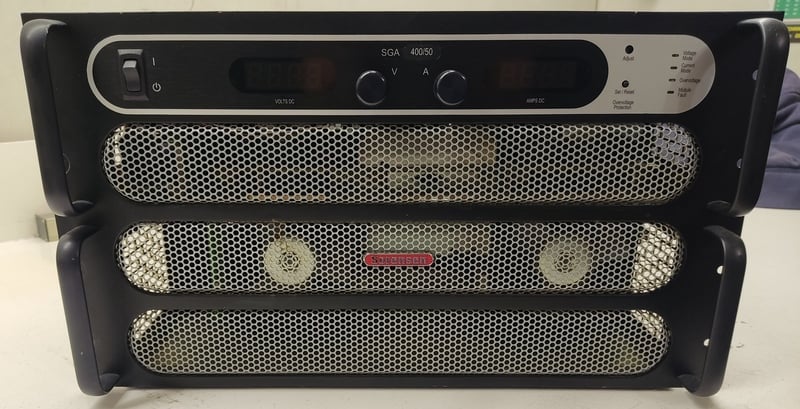

- Digital Voltage and Current Displays
- Constant Voltage / Constant Current Operation
- Overvoltage Protection
- Low Ripple and Stable Output Regulation
- High Efficiency Switching Power Design
Control & Communication Interfaces
- Analog Control Interface (DB-25)
- Sense Input Connector
- Parallel IN / OUT Ports
- RS232 Serial Communication Port
- GPIB (IEEE-488) Interface Port
- Remote Programming Capability
Mechanical / Connection Features
- Rack Mount Chassis with Front Handles
- Heavy Duty Industrial Steel Enclosure
- High Current DC Output Terminals
- 3-Phase AC Input Terminals (A/B/C + Ground)
- Forced Air Cooling with Internal Fans

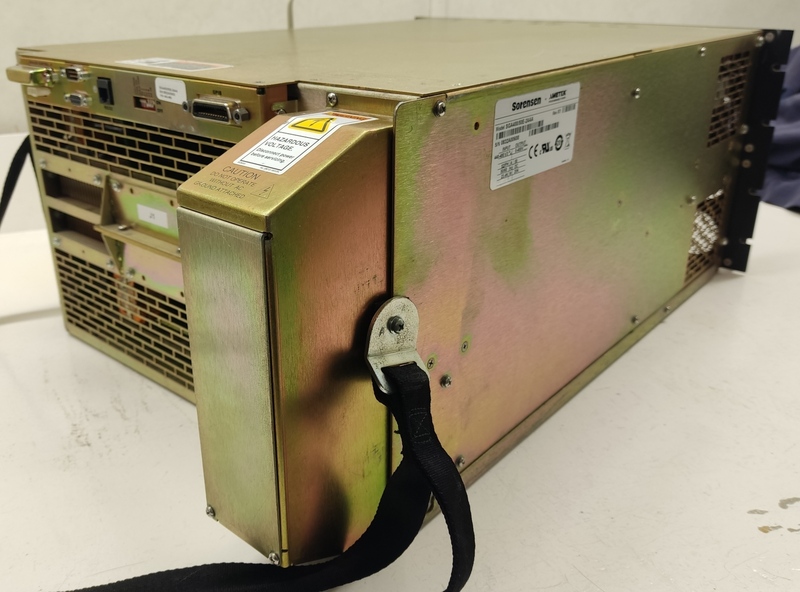

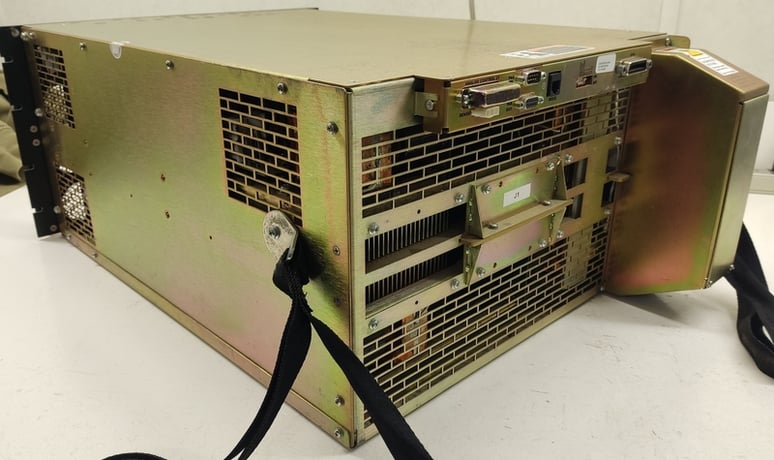

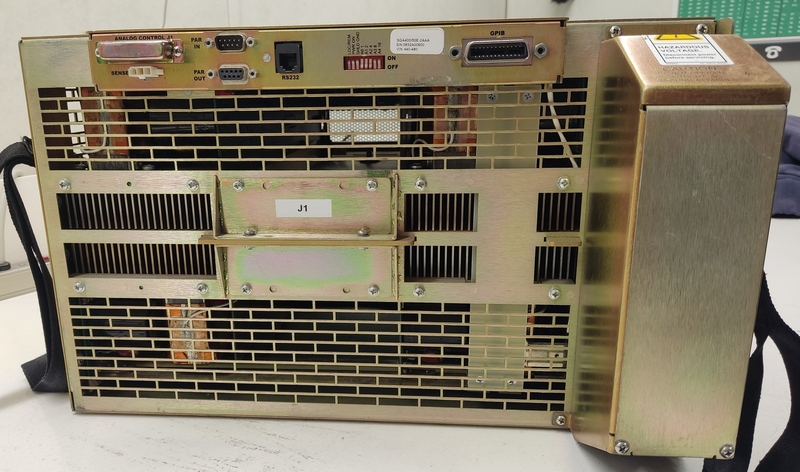

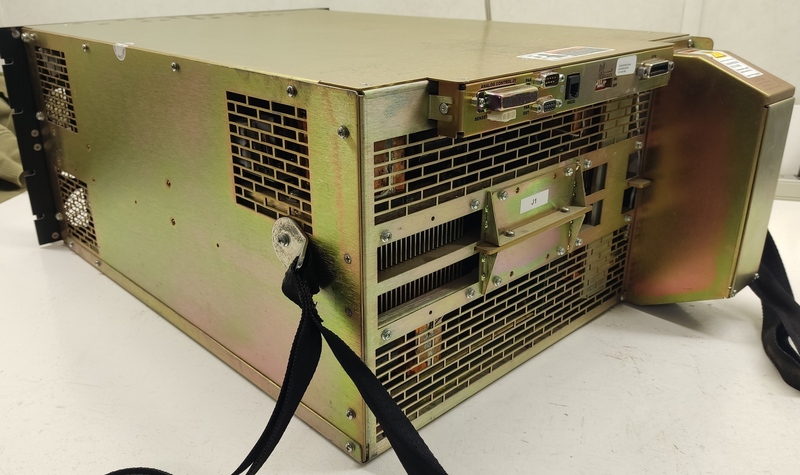

- Rear Service and Communication Panel
