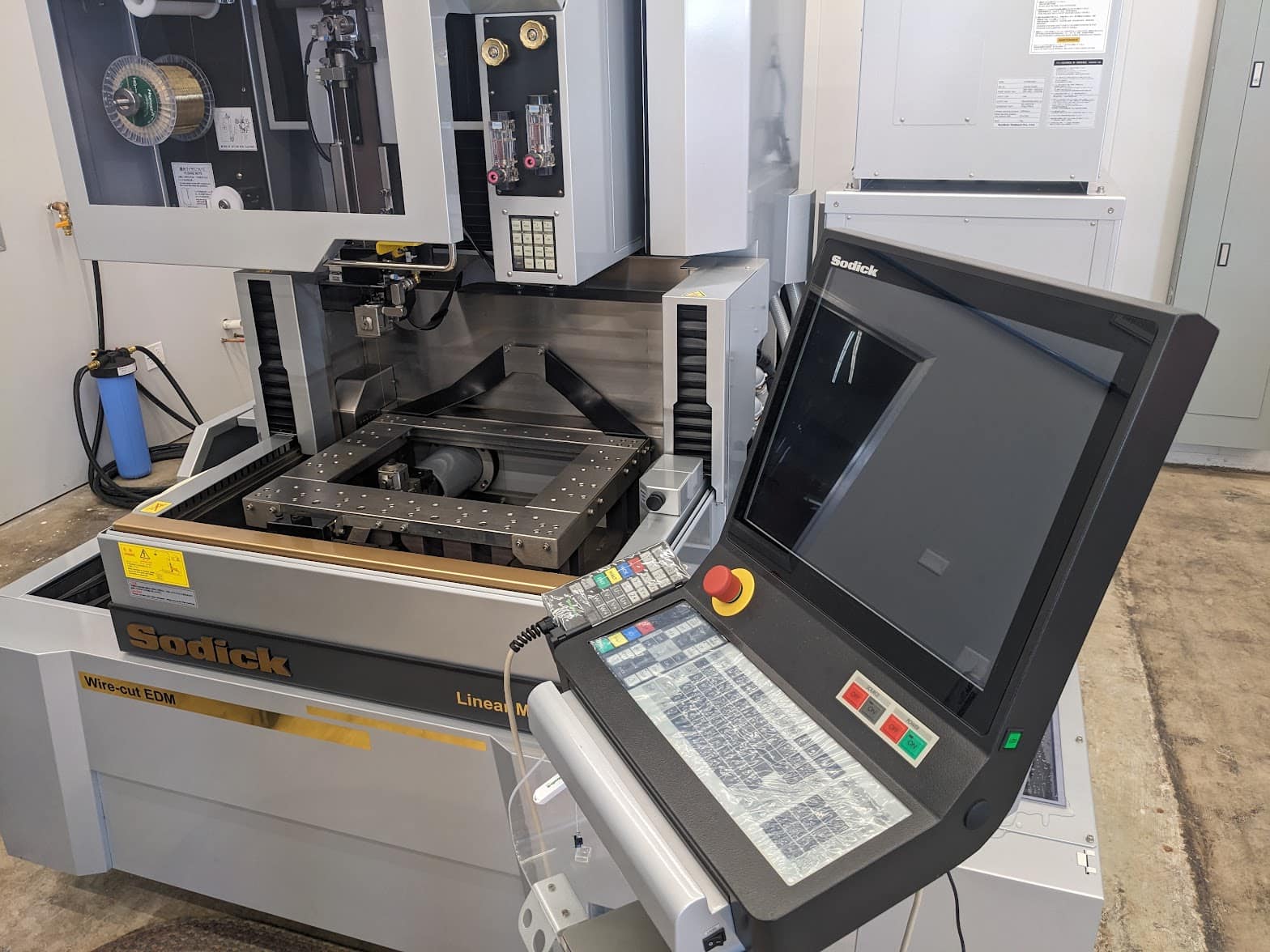

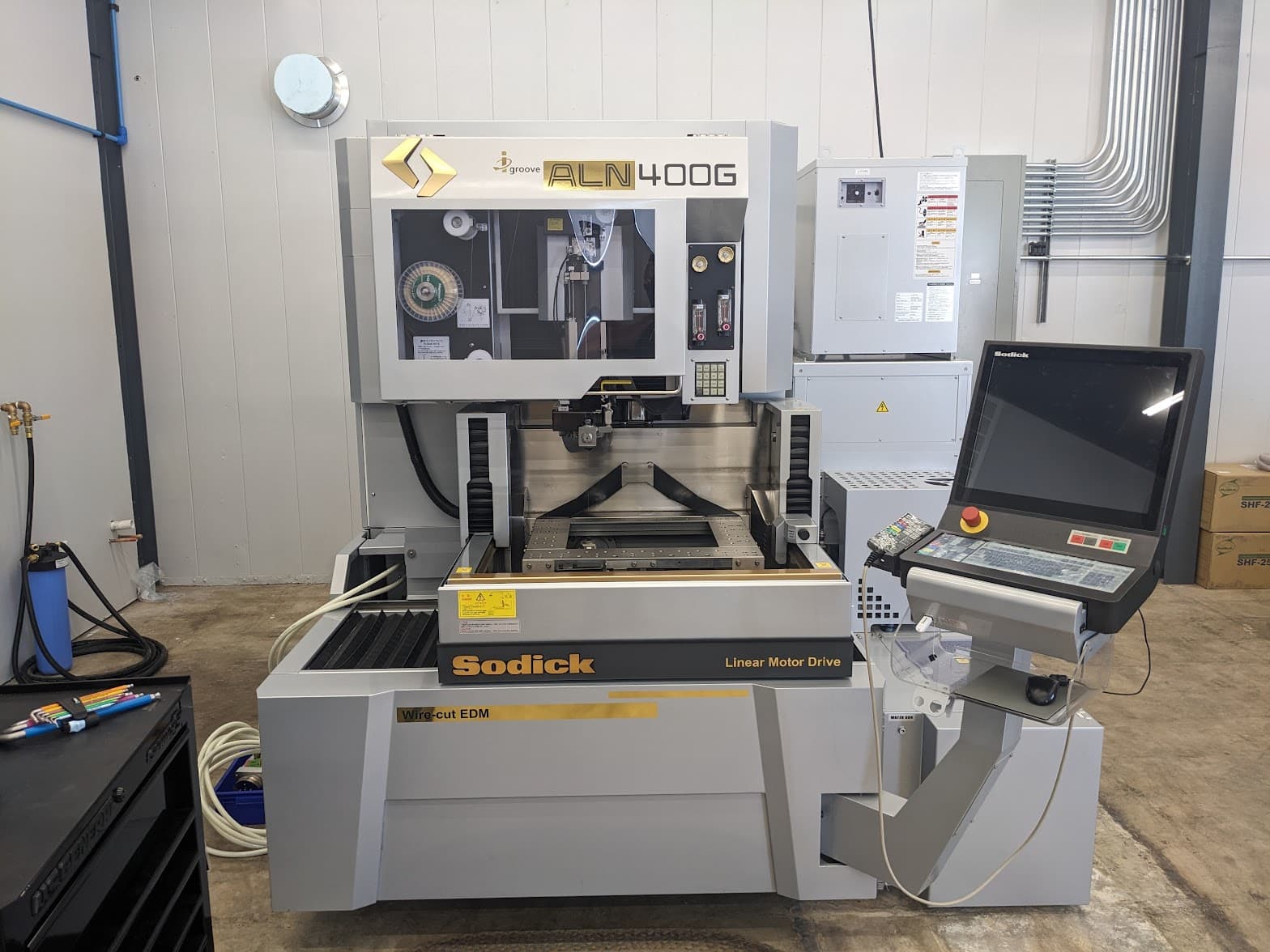

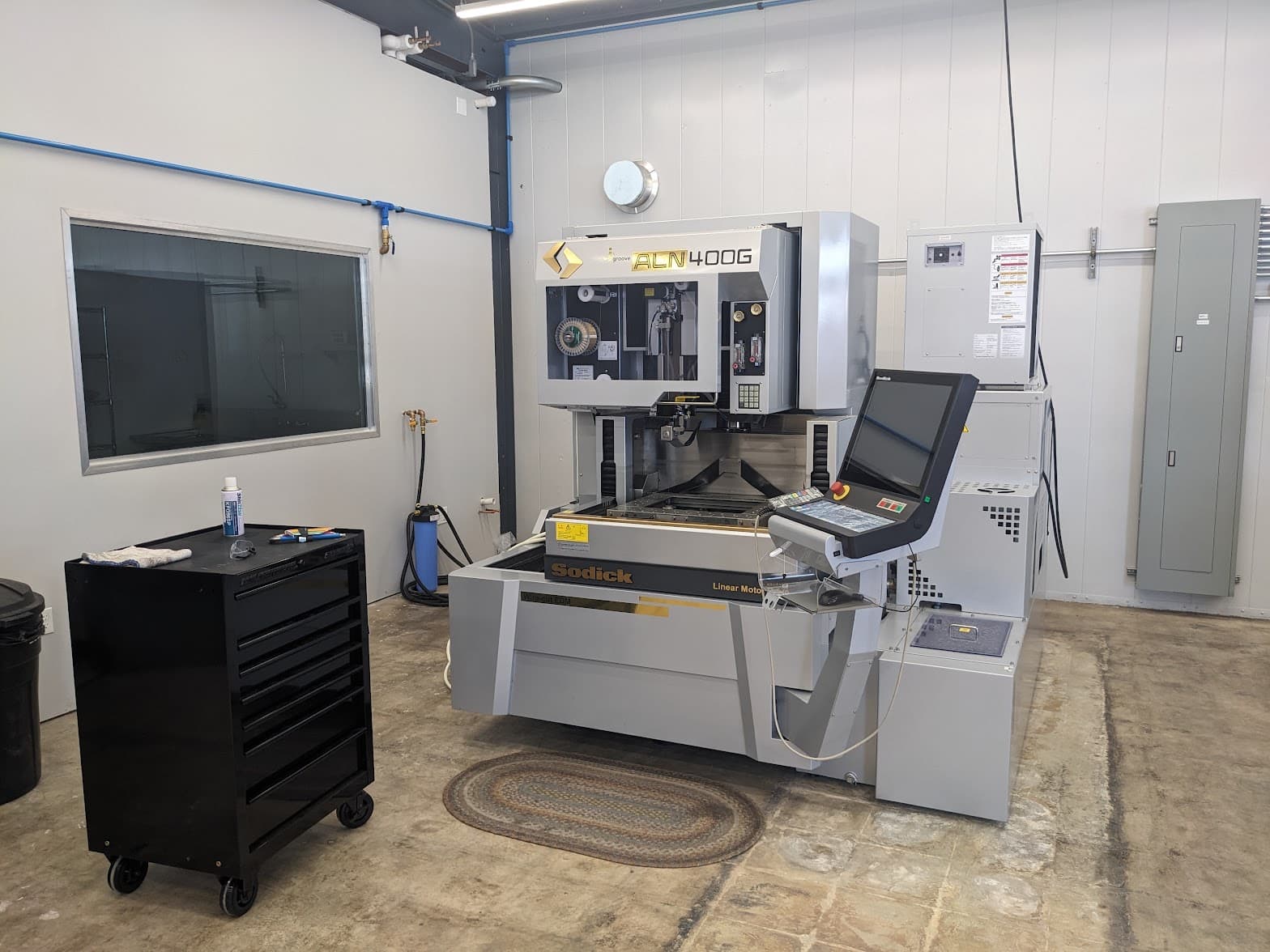

Sodick #ALN-400G, CNC Wire Electrical Discharge Machine, 15.75" X, 11.81" Y, 9.84" Z, Sodick SPWE smart control, Sodick WS-4P rotary table, 2022

Max. Workpiece Size (Flushing): 23.6” x 18.5” x 9.4”
Max. Workpiece Weight (Flushing): 1,102 lbs
Max. Workpiece Size (Submerged): 23.6” x 18.5” x 9.0”
Max. Workpiece Weight (Submerged): 771 lbs
X-Axis Travel: 15.75”
Y-Axis Travel: 11.81”
Z-Axis Travel: 9.84”
U-Axis Travel: 5.91”
V-Axis Travel: 5.91”
Max. Taper Angle: + 25°

Wire Diameter Range (Min. ~ Max.): 0.004” ~ 0.012”
Work Tank Dimensions: (W x D) 33.45” x 24.01”
Distance from Floor to Table Top: 39.17 ’’
Wire-Feed Speed (Max.): 16.5”/sec
Wire Bobbin Weight: 22 lbs

External Dimensions: (W x D x H) 87” x 96” x 87”
Machine Weight: 7,500 LBS

Equipped With:

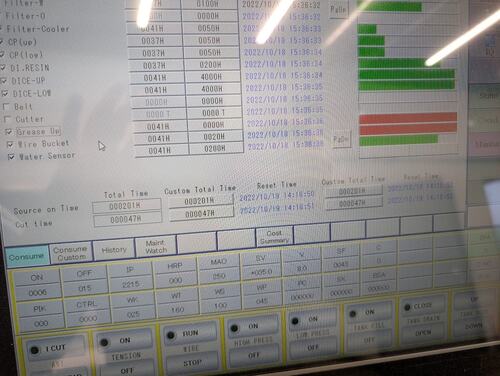

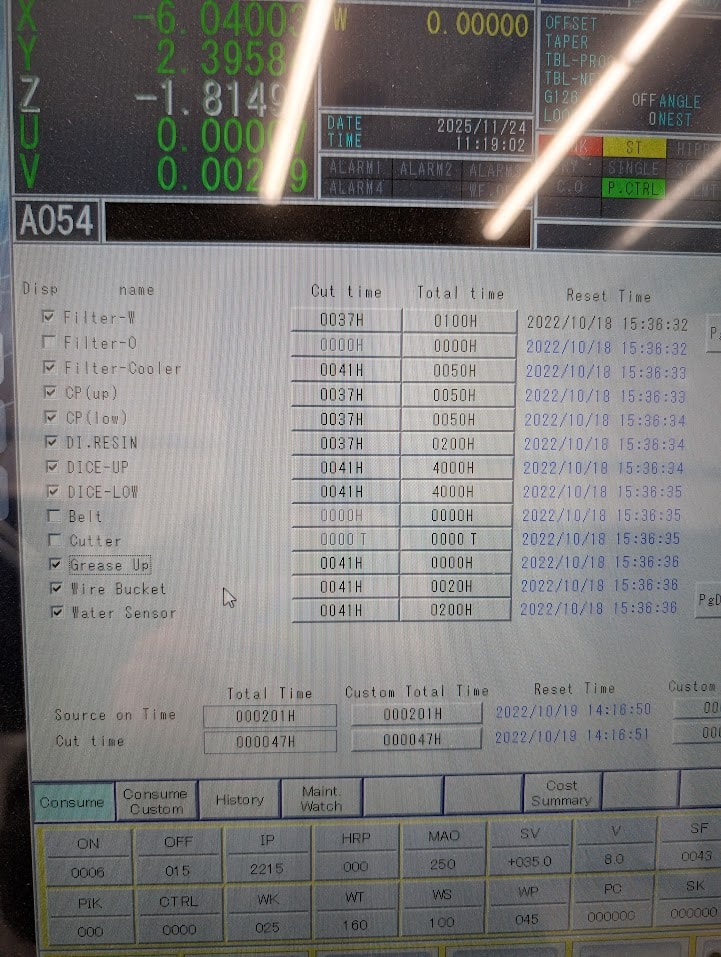

Sodick SPWE Smart Control

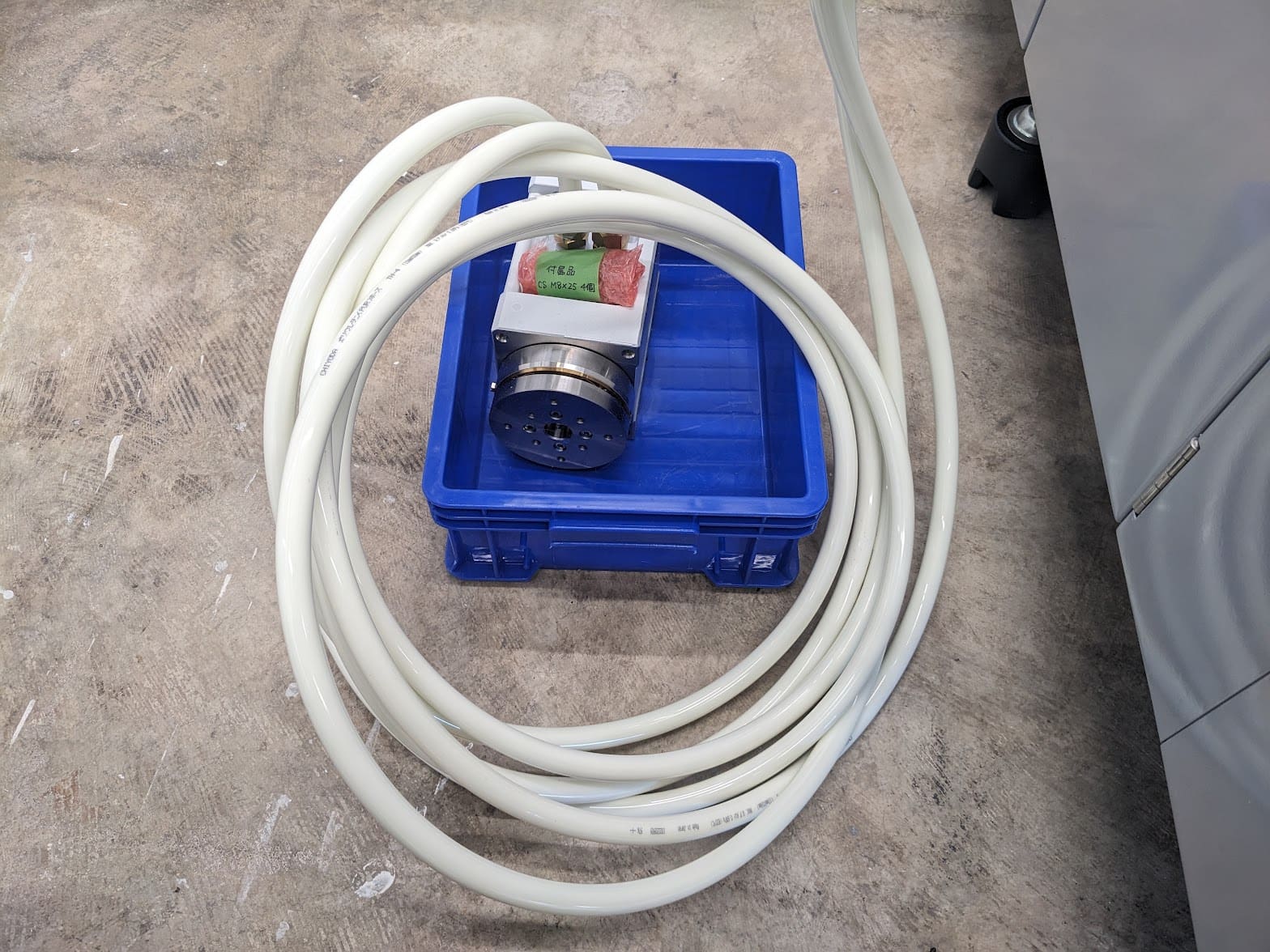

Sodick WS-4P Rotary Table
Table Interface
Taper Flex NEO
Rigid Precision Linear Motors (X, Y, U, V-Axes)
Absolute Glass Scales (X, Y, U, V-Axes)
TH COM (Thermal Displacement Compensation System)
iGroove – Wire Rotation Strategy
Fixed-Jet AWT (Automatic Wire Threader)
Remote Pendant
Water Deionizer
Automatic Voltage Regulator
Sodick LED Work Light
3-Sided Rise/Fall Work Tank

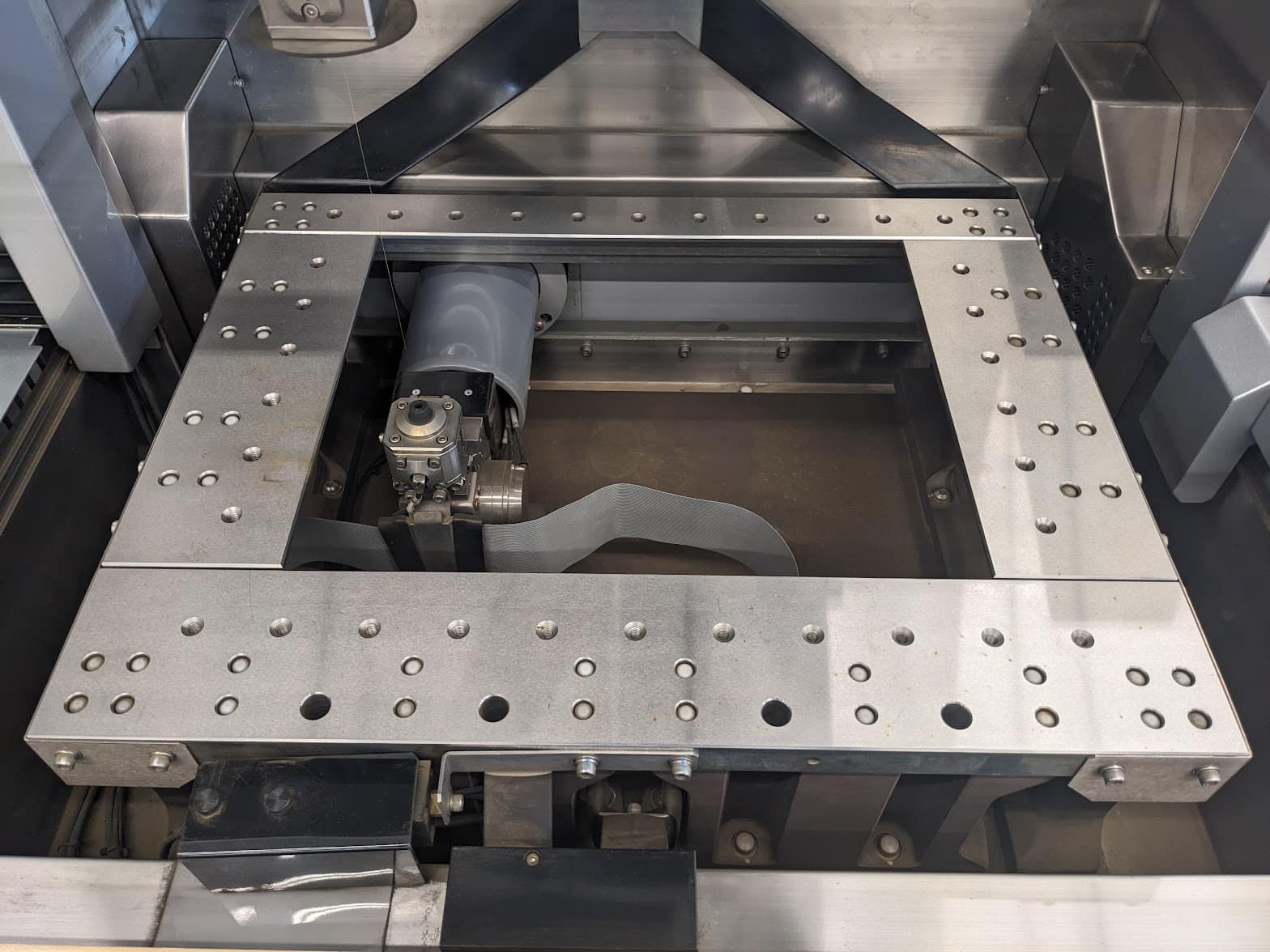

4-Sided Clamping Table
Z-Axis Automatic Fluid Level Control

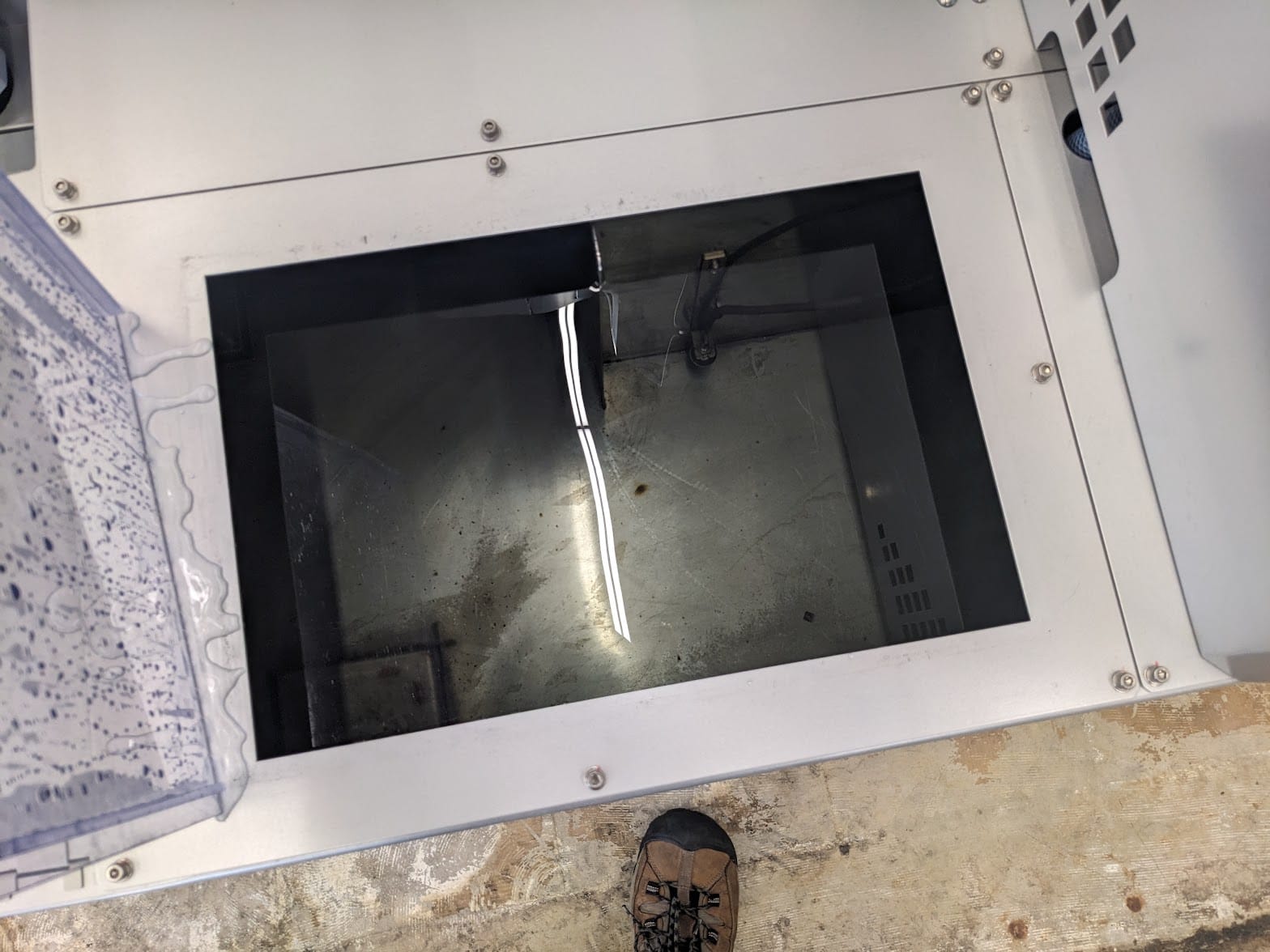

Dielectric Cooling Unit (Chiller)
