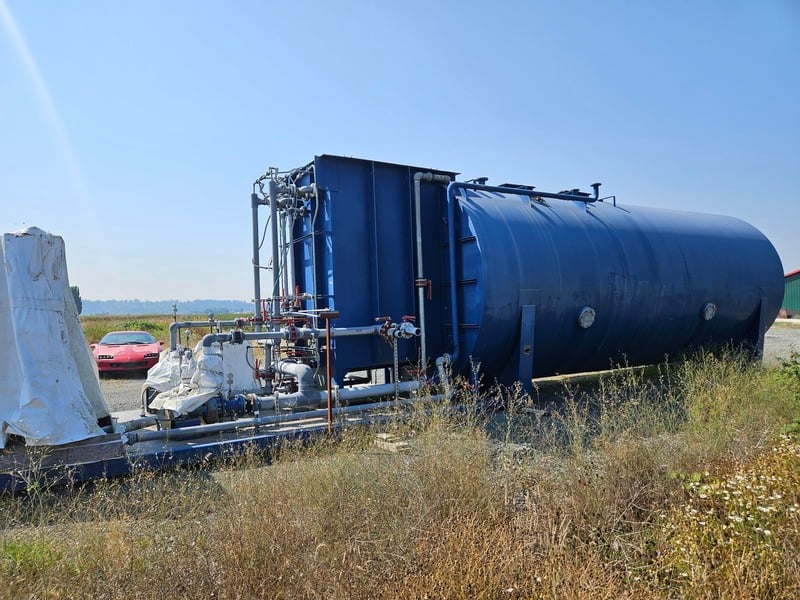

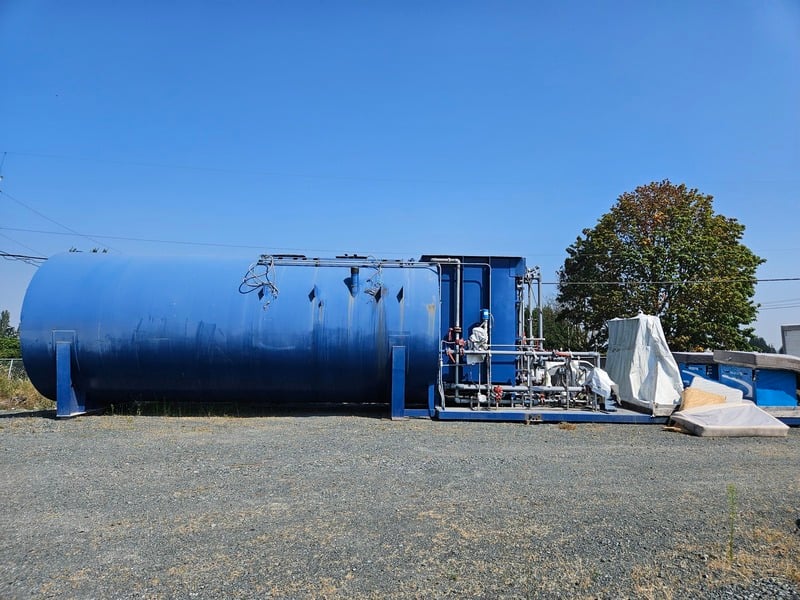

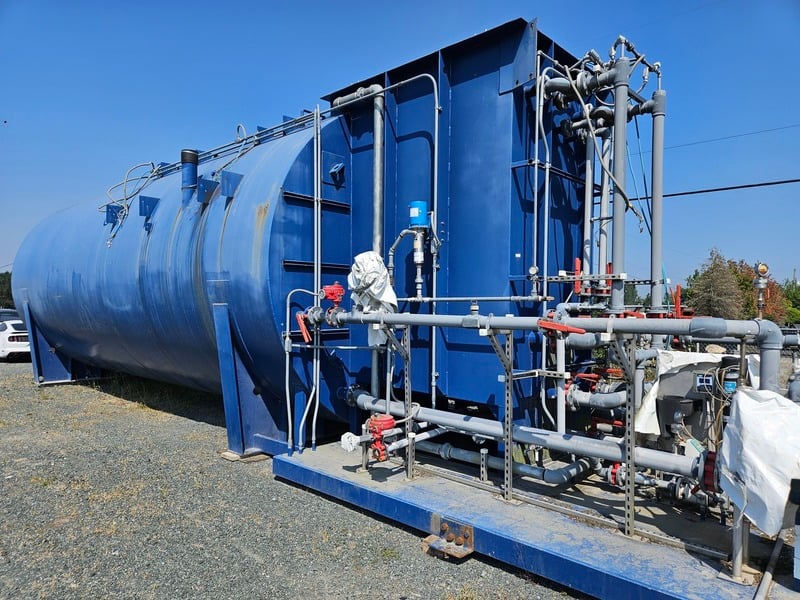

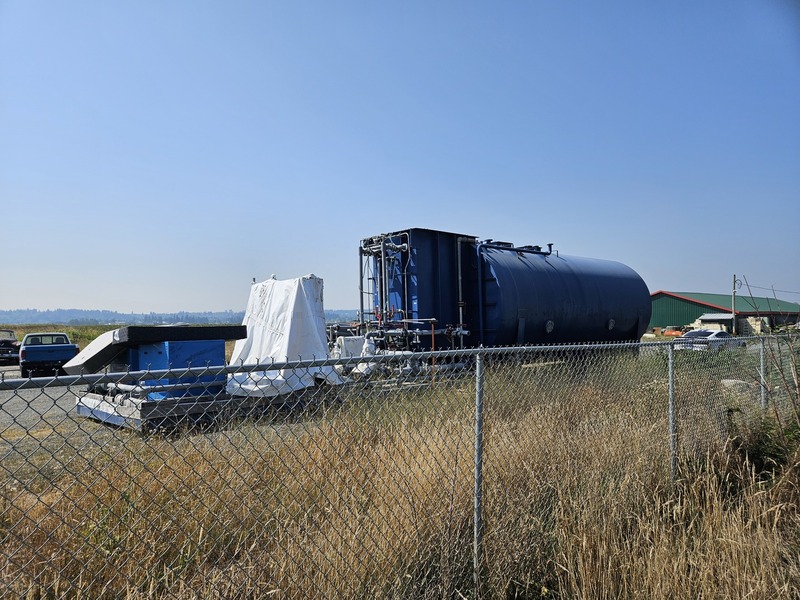

Siemens MemJet Xpress, Membrane Bioreactor Plant, 50,000 GPD avg. & 100,000 GPD peak, 0.1 micron PVDF hollow fiber, 12' diameter tank, 2009, Rebuilt

$246,304 USD

Request Formal Quote

SKU: 157088
Year: 2009
Condition: Refurbished/Rebuilt
Additional Description:
PDF Resources
Overview
The MBR processes used in sequence are as follows:
- primary treatment using fine screening (2mm perforated plate drum screen)
- biological nutrient removal including anoxic (denitrification) zone and aerobic (nitrification) zone with dissolved oxygen control
- membrane operating system (MOS) for filtration
Key advantages of an MBR wastewater treatment package plant are:
- High-quality effluent, with very low suspended solids and strong removal of bacteria and pathogens.
- Small footprint, because the membrane unit replaces a large secondary clarifier, making it suitable for tight sites and modular package plants.
- Better reuse potential, since the treated water can often be used for irrigation, toilet flushing, or industrial applications.
- Strong and stable treatment performance, because the membranes retain biomass and allow high mixed liquor concentrations.
- Easier expansion and packaging, since decentralized MBR systems are often built in modular, pre-engineered units that deploy quickly.
- Lower sludge production than many conventional systems, which can reduce sludge handling costs.
- For a package plant specifically, the biggest practical benefits are compactness, fast deployment, and consistently high effluent quality
Specifications
Year: Originally commissioned in 2009
Operation: Operated for approximately 6 years
Average Daily Capacity: 50,000 Gallons per day
Peak Capacity: 100,000 Gallons per day
Membrane Filtration Rating:> 0.1 micron
Membrane Type: Hollow-fiber membranes
Hollow Fiber Material: Chlorine-resistant PVDF
Biological Tank: 12 ft. diameter (painted carbon steel) divided into two separate internal zones.
Tank Anoxic Zone Volume: 28,224 L
Tank Aerobic Zone Volume: 51,273 L
Design MLSS (in aerobic zone): 10,000 mg/L
Blower System: (2) ROOTS EasyAir 8000 Blower packages
Overall Length: 53 ft. (skid and tank are welded together)
