Siemens HMI Touch Panel 6AV6643-0CD01-1AX1 24 VDC

Product Specifications

• Manufacturer: Siemens
• MPN / Model: 6AV6643-0CD01-1AX1
• Product Type: MP277 10 in Touch Panel
• Serial Number: C-W6B35050
• E-Stand: 16
• Input: DC 24V / 0.8A max
• Ambient Temperature: 0 C to +50 C, vertical mounting
• Enclosure: Type 4X, Type 12, IP66, indoor use only, watertight
• FM Approval: Cl. I, Div. 2, GP. A, B, C, D, T4; Cl. I, Zone 2, GP. IIC, T4
• UL Listing: cULus Listed 3DA1, Ind. Cont. Eq. for Haz. Loc.
• ATEX: II 3 D Ex tD A22 IP66 T70 C, KEMA 06ATEX 0266X
• Marks: CE, N117
• Country of Origin: Germany
• Condition: Surplus - Untested

Product Description

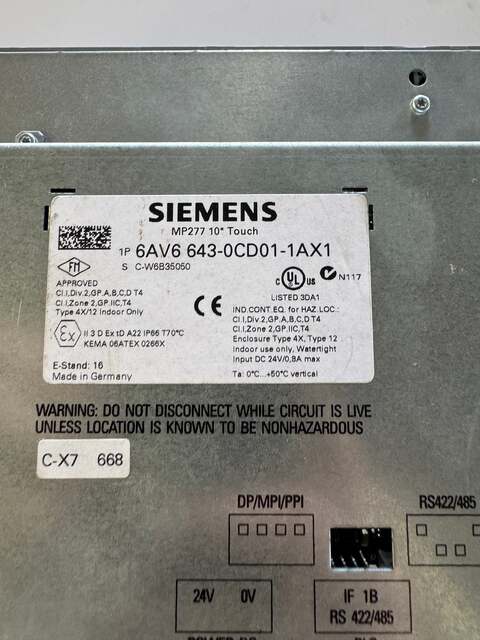

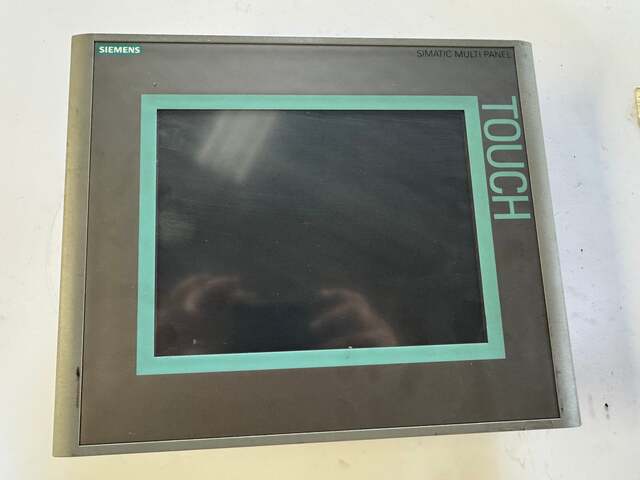

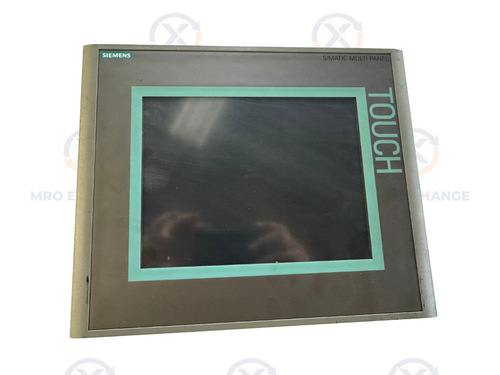

This is a Siemens 6AV6643-0CD01-1AX1 MP277 10 in Touch panel. The nameplate reads Siemens, MP277 10" Touch, 6AV6 643-0CD01-1AX1, serial C-W6B35050, E-Stand 16, Made in Germany. It lists FM approval for Cl. I, Div. 2, GP. A, B, C, D, T4 and Cl. I, Zone 2, GP. IIC, T4, Type 4X/12 indoor only, ATEX II 3 D Ex tD A22 IP66 T70 C (KEMA 06ATEX 0266X), cULus Listed 3DA1 for industrial control equipment for hazardous locations, input DC 24V/0.8A max, and Ta 0 C to +50 C vertical. CE and N117 marks are printed on the plate.

The rear of the housing shows a DP/MPI/PPI terminal block, an RS422/485 terminal block, a 24V/0V power input terminal, and an IF 1B RS 422/485 port. A warning printed below the nameplate reads do not disconnect while circuit is live unless location is known to be nonhazardous.

Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the display, touchscreen, ports, and firmware have not been verified.
