Siemens HMI Touch Panel 6AV6 644-0AA01-2AX0 24 VDC

Product Specifications

• Manufacturer: Siemens
• MPN / Model: 6AV6644-0AA01-2AX0
• Product Type: HMI Touch Panel
• Series / Model Name: SIMATIC Multi Panel MP 377 12" Touch
• Serial Number: C-E2H08202
• MAC Address: 28-63-36-03-A7-FC
• E-Stand: 13
• Input Power: 24V DC, 1.8 A max
• Ambient Temperature: 0 C to +50 C (vertical)
• Enclosure Rating: Type 4X / Type 12, indoor use only, watertight; IP66
• Hazardous Location Rating: Class I Div. 2 Groups A, B, C, D T4; Class I Zone 2 Group IIC T4
• ATEX: II3D Ex tD A22 IP66 T70, KEMA 06 ATEX 0266X
• Certifications: FM Approved, UL Listed 3DA1 (Ind. Cont. Eq. for Haz. Loc.), CE, KC
• Country of Origin: Germany
• Condition: Surplus - Untested

Product Description

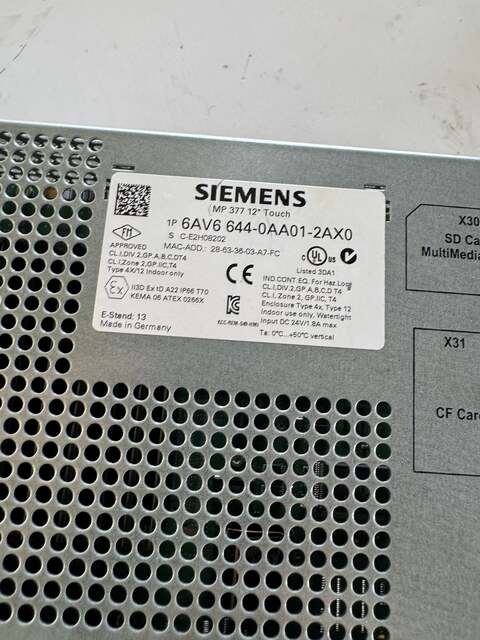

This is a Siemens 6AV6644-0AA01-2AX0 SIMATIC Multi Panel MP 377 12" Touch HMI. The rear label reads SIEMENS, MP 377 12" Touch, 1P 6AV6 644-0AA01-2AX0, S C-E2H08202, MAC-ADD.: 28-63-36-03-A7-FC, E-Stand: 13, Made in Germany, Input DC 24V/1.8A max, and Ta: 0 C...+50 C vertical. It also reads FM Approved Cl. I, Div. 2, Gp. A, B, C, D, T4, Cl. I, Zone 2, Gp. IIC, T4, Type 4X/12 Indoor only, II3D Ex tD A22 IP66 T70, KEMA 06 ATEX 0266X, UL Listed 3DA1 Ind. Cont. Eq. For Haz. Loc., Enclosure Type 4x, Type 12, Indoor use only, Watertight, and CE and KC marks. The back panel has vent holes and ports marked X30 SD Card / MultiMedia and X31 CF Card.

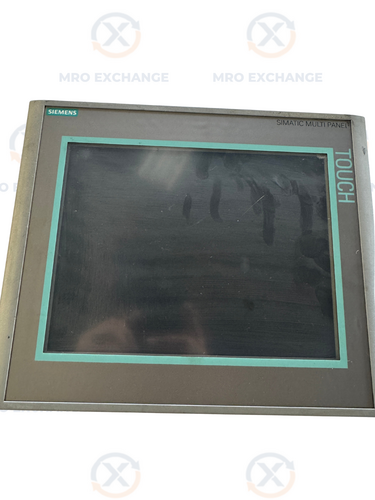

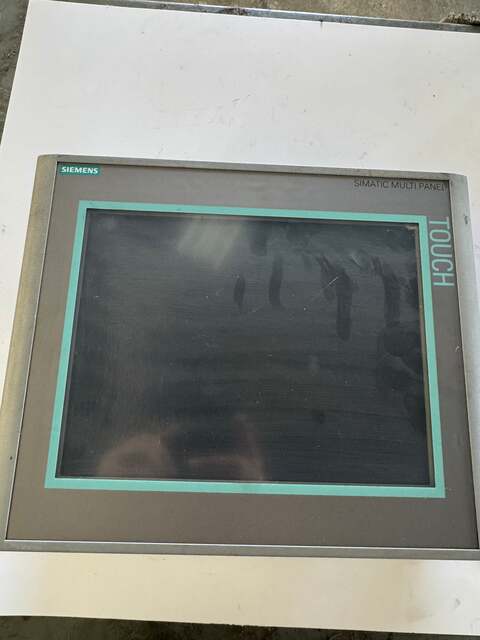

The front has a gray bezel with a green frame around the touch screen, and SIEMENS and SIMATIC MULTI PANEL printed on it. The screen is dark and off in the photo. There are fingerprints and smudges on the screen and light scratches on the bezel and screen. The bezel shows dirt and wear.

Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the display, touch function, ports and software have not been verified.
