$1,200 USD
Description
Description

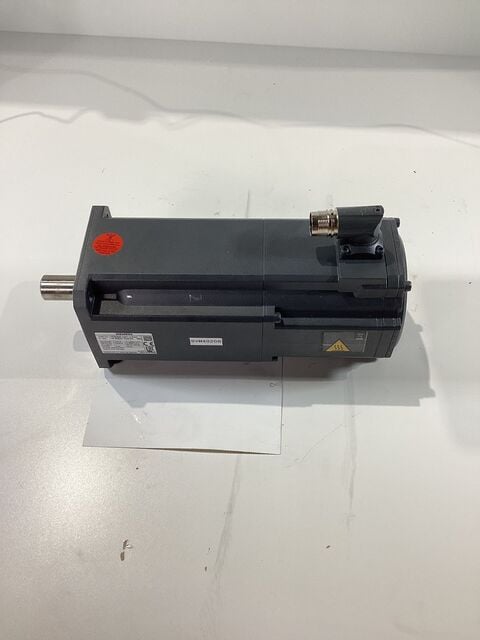

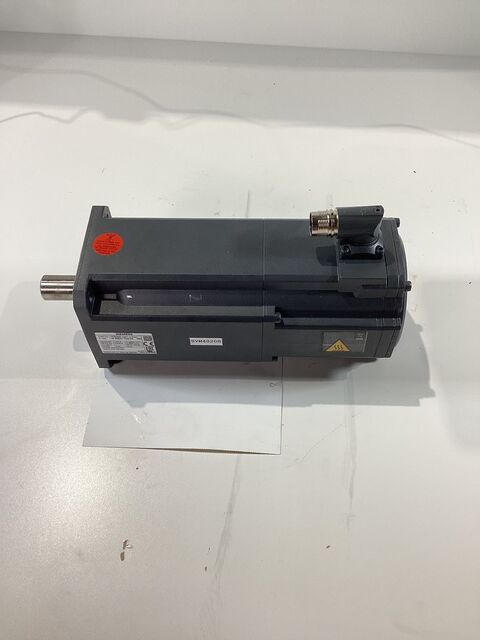

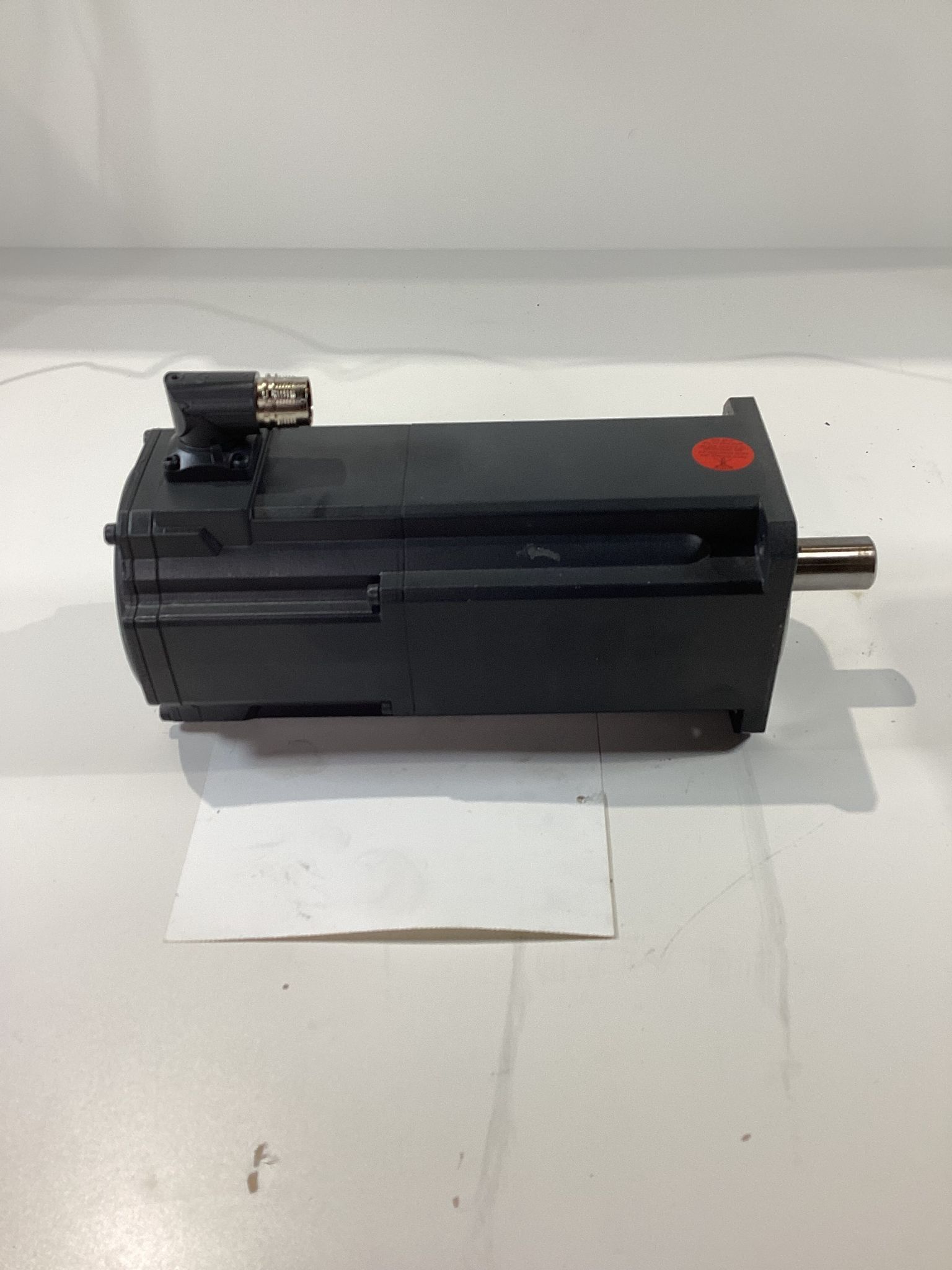

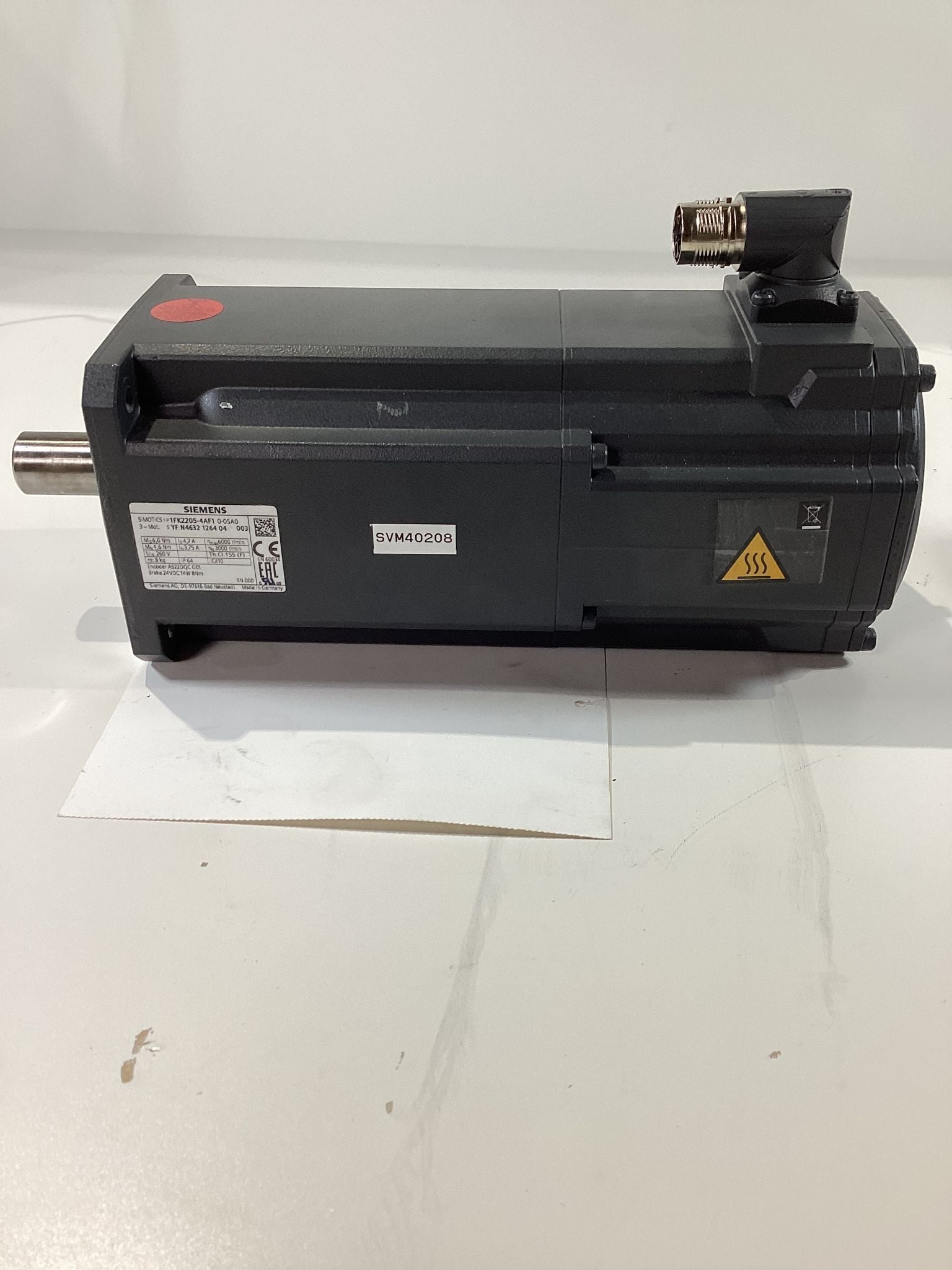

This listing is for a USED Siemens SIMOTICS spindle motor, part number 1FK2205-4AF10-9SA0. It is designed for highperformance spindle applications in CNC machine tools and industrial automation systems. It includes operation for 3phase AC supply, integrated encoder feedback, and a 24 VDC holding brake.
Spec Sheet
Manufacturer: Siemens
Series: SIMOTICS 1FK2
Part Number: 1FK2205-4AF10-9SA0
Condition: USED
Motor Type: Servo / Spindle Motor
Phase: 3Phase AC
Rated Voltage: 260 V
Rated Current: 13.5 A
Rated Power: 4.6 kW
Rated Speed: 3000 rpm
Maximum Speed: 6000 rpm
Torque (M0): 14.6 Nm
Protection Rating: IP64
Cooling: IC410
Encoder: A5Z0006 G01 (as marked)
Brake: 24 VDC, 14 Nm (holding brake)
Standards / Compliance:
EN 60034
CE Marked
EAC Marked
Country of Manufacture: Germany
This listing is for a USED Siemens SIMOTICS spindle motor, part number 1FK2205-4AF10-9SA0. It is designed for highperformance spindle applications in CNC machine tools and industrial automation systems. It includes operation for 3phase AC supply, integrated encoder feedback, and a 24 VDC holding brake.
Spec Sheet
Manufacturer: Siemens
Series: SIMOTICS 1FK2
Part Number: 1FK2205-4AF10-9SA0
Condition: USED
Motor Type: Servo / Spindle Motor
Phase: 3Phase AC
Rated Voltage: 260 V
Rated Current: 13.5 A
Rated Power: 4.6 kW
Rated Speed: 3000 rpm
Maximum Speed: 6000 rpm
Torque (M0): 14.6 Nm
Protection Rating: IP64
Cooling: IC410
Encoder: A5Z0006 G01 (as marked)
Brake: 24 VDC, 14 Nm (holding brake)
Standards / Compliance:
EN 60034
CE Marked
EAC Marked
Country of Manufacture: Germany
