For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description

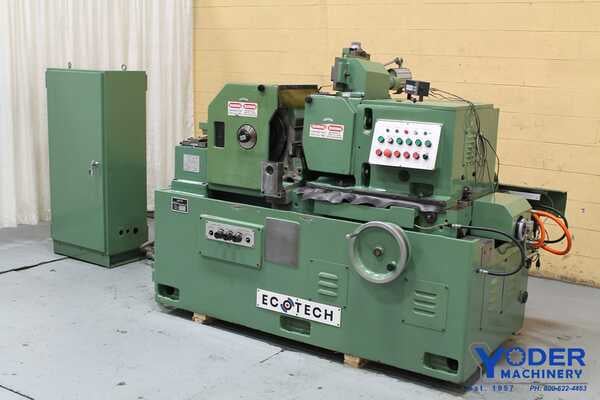

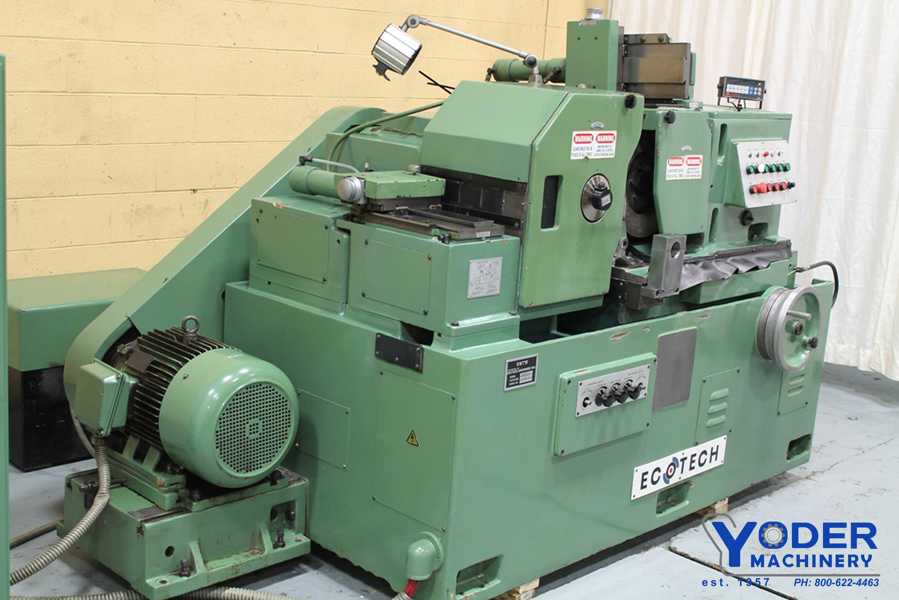

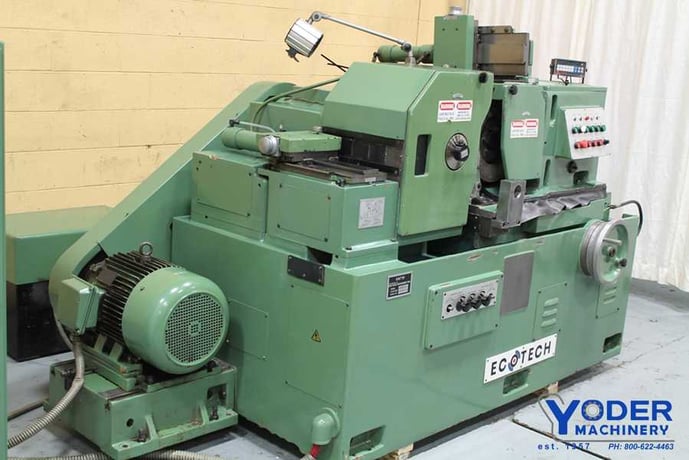

SERIAL ................ 734
MODEL ................. M10100
YEAR .................. 2006
INFEED:
DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST)
LENGTH ................ 7.67 MAX
THROUGH FEED:
DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST)
LENGTH ................ CONTINUOUS
CENTER HEIGHT ......... 8.66" (FROM WORK TABLE)
MAX WORK LOAD ......... 50 LBS (INFEED)
NET WEIGHT ............ 15,500 LBS
DIMENSIONS ............ 154.0"L X 129.0"W X 85.0"H

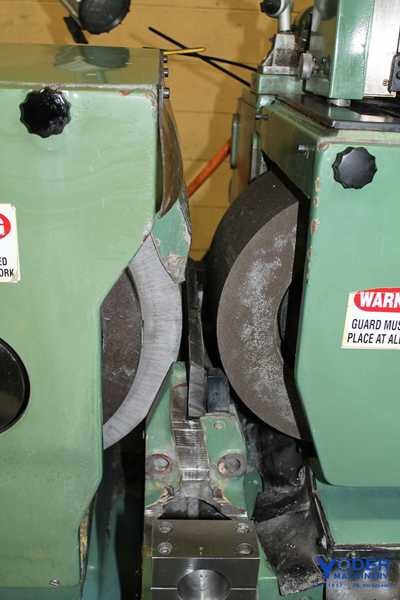

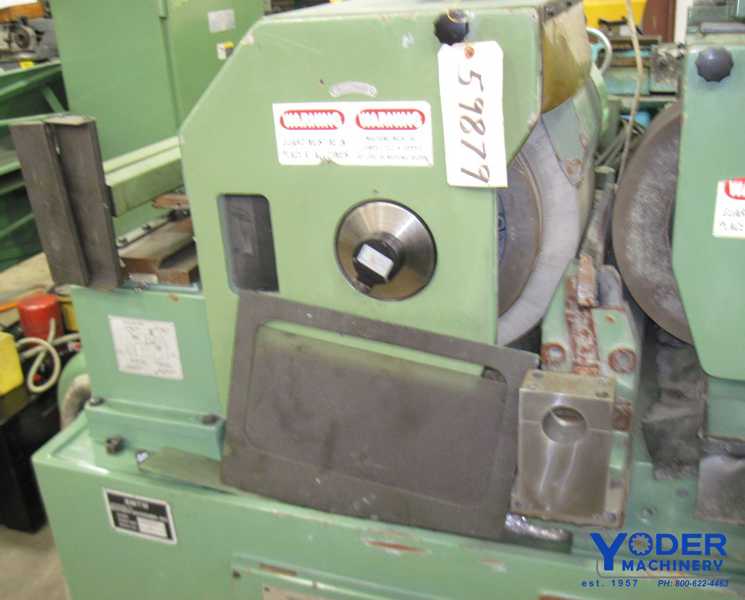

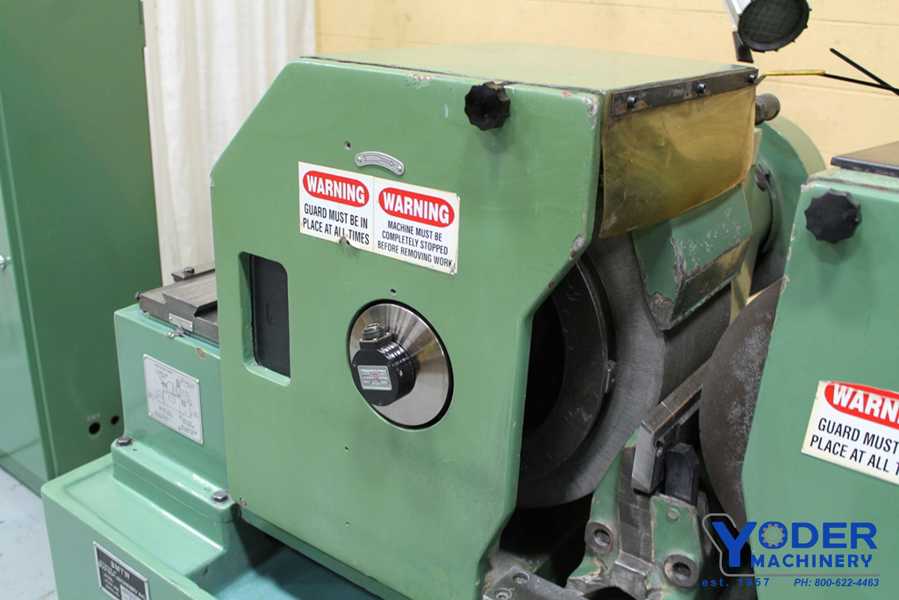

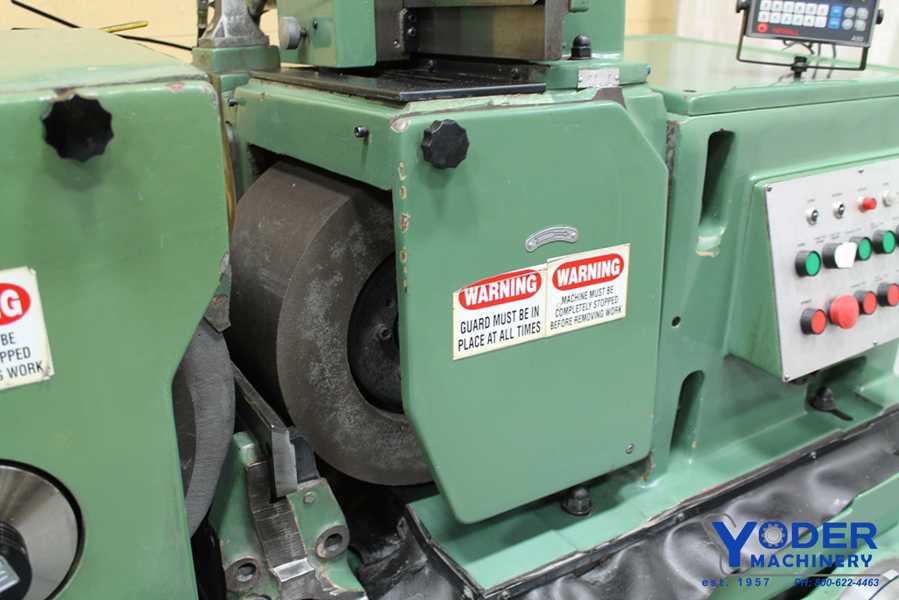

GRINDING WHEEL:
HORSEPOWER ............ 30
WHEEL SIZE ............ 20"D X 8"W X 12"B
WHEEL SPEED ........... 1,100 RPM
SURFACE SPEED ......... 6,801 SFM
DRESSER UNIT .......... STEPPING MOTOR INFEED W/TEMPLATE
DRESS SWIVEL .......... 1 AXIS + OF -3
SPINDLE TAPER ......... 1:5 TAPER
SPINDLE BEARING ........ CANTILEVER TYPE/4 SHOE HYDRODYNAMIC
REGULATING WHEEL:
RAPID TRAVEL .......... 30 IPM
MAX TRAVEL RP ......... .78"
OIL RESERVOIR ......... 5.3 GAL - 60 ISO VISCOSITY GRADE
HORSEPOWER ............ 4 (DC)
WHEEL SPEED ........... 10-300 RPM / VARIABLE
VERTICAL SWIVEL ....... -2 / +5
HORIZONTAL SWIVEL ..... -1 / +3
WHEEL SIZE ............ 13.7" X 7.87" X 8"
SPINDLE BEARING ....... CANTILEVER TYPE/3 SHOE HYDRODYNAMIC
DRESSER UNIT .......... VARIABLE HYDRO FEED/TEMPLATE FORMING
DRESS SWIVEL .......... 2 AXIS / 1ST-2 TO +5 / 2ND -3 TO +3
HYDRAULIC SYSTEM:
FLOW RATE ............. 5.2 GPM
PRESSURE .............. 241 TO 284 PSI (WORKING) 14/21 PSI (LUBE)
RESERVOIR ............. 66 GAL
HORSEPOWER ............ 1.5
MODEL ................. M10100
YEAR .................. 2006
INFEED:
DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST)
LENGTH ................ 7.67 MAX
THROUGH FEED:
DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST)
LENGTH ................ CONTINUOUS
CENTER HEIGHT ......... 8.66" (FROM WORK TABLE)
MAX WORK LOAD ......... 50 LBS (INFEED)
NET WEIGHT ............ 15,500 LBS
DIMENSIONS ............ 154.0"L X 129.0"W X 85.0"H
GRINDING WHEEL:
HORSEPOWER ............ 30
WHEEL SIZE ............ 20"D X 8"W X 12"B
WHEEL SPEED ........... 1,100 RPM
SURFACE SPEED ......... 6,801 SFM
DRESSER UNIT .......... STEPPING MOTOR INFEED W/TEMPLATE
DRESS SWIVEL .......... 1 AXIS + OF -3
SPINDLE TAPER ......... 1:5 TAPER
SPINDLE BEARING ........ CANTILEVER TYPE/4 SHOE HYDRODYNAMIC
REGULATING WHEEL:
RAPID TRAVEL .......... 30 IPM
MAX TRAVEL RP ......... .78"
OIL RESERVOIR ......... 5.3 GAL - 60 ISO VISCOSITY GRADE
HORSEPOWER ............ 4 (DC)
WHEEL SPEED ........... 10-300 RPM / VARIABLE
VERTICAL SWIVEL ....... -2 / +5
HORIZONTAL SWIVEL ..... -1 / +3
WHEEL SIZE ............ 13.7" X 7.87" X 8"
SPINDLE BEARING ....... CANTILEVER TYPE/3 SHOE HYDRODYNAMIC
DRESSER UNIT .......... VARIABLE HYDRO FEED/TEMPLATE FORMING
DRESS SWIVEL .......... 2 AXIS / 1ST-2 TO +5 / 2ND -3 TO +3
HYDRAULIC SYSTEM:
FLOW RATE ............. 5.2 GPM
PRESSURE .............. 241 TO 284 PSI (WORKING) 14/21 PSI (LUBE)
RESERVOIR ............. 66 GAL
HORSEPOWER ............ 1.5
Get Your Price from Yoder Machinery Sales!
