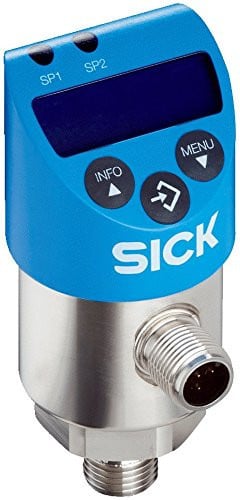

Sick PBS-RB025SG1SSNBMA0Z 6038889 PBS Universal Pressure Sensor With IO Link-Belt, NEW

$813 USD

Request Formal Quote

Measuring Range: 0 to 25bar. Process Connection: G 1/4 according to DIN 3852-E. Electrical Connection: M12 plug, 4-pin. Output Signal: 1 x PNP + 4-20mA. Seal: NBR. The PBS electronic pressure switch is designed for pressure monitoring, measurement and control in liquid and gaseous media. It is a pressure switch, transmitter and display in one device. In its standard configuration it has two switching points with optional one or two switching points and an analog output signal. The display and electrical connector can be rotated against the process connector and against each other to allow visible display orientation and clean cable routing. The PBS has a circular welded stainless steel membrane making it suitable for a large variety of corrosive media. FEATURES: Compact and robust design. Rotatable housing for flexible installation. Safe and simple operation and set-up with three large buttons and large display. Wide application range. Suitable for corrosive media through hermetically sealed stainless steel membrane. Cost reduction through IO-Link. SPECIFICATIONS: Measuring Range: 0 to 25bar. Process Connection: G 1/4 according to DIN 3852-E. Electrical Connection: M12 plug, 4-pin. Output Signal: 1 x PNP + 4-20mA. Seal: NBR. Materials: 316L stainless steel (check data for full details). Temperature: -20 to +85C. Supply Voltage: 15 to 35VDC. Accuracy: Standard.. Sick. Sick AG. PBS-RB025SG1SSNBMA0Z.
