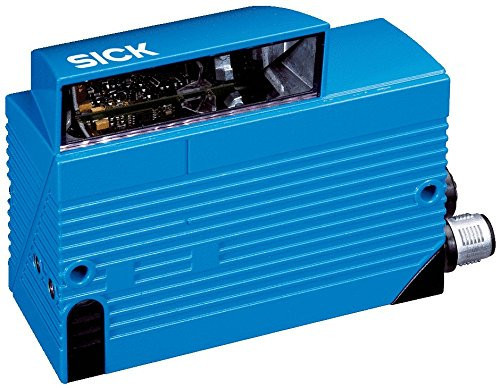

Sick #CLV630-2120, Long Range Right Angle Barcode Line Scanner, Vis Red, NEW

$2,615 USD

Request Formal Quote

Version: Long Range. Connection Type: Ethernet. Reading Field: Side (105deg). Scanner Design: Line Scanner. Focus: Fixed Focus. The CLV63x Bar Code Scanner is an intelligent sensor for the automatic recognition and decoding of bar codes on objects e.g. in a conveyor system. The intended use of the bar code system results from the following description of the function: In a reading station, the bar code scanner is installed in a holder, either on the side of a conveyor system (side reading) or above it (reading from above). The bar code scanner transfers the reading data via the host interface to a superordinate host computer for further processing. The bar code scanner is configured/operated using the SOPAS-ET configuration software that runs on a standard client PC provided by the customer. Communication takes place using RS-232 or Ethernet. SPECIFICATIONS: Version: Long Range. Connection Type: Ethernet. Reading Field: Side (105???). Scanner Design: Line Scanner. Focus: Fixed Focus. Light Source: Visible Red Light (655 nm). MTBF: 40,000 h. Laser Class: 2 (EN 60825-1 (A2:2001-03), IEC 60825-1 : 2007-03, Ed. 2.0). Aperture Angle: ???? 50???. Scanning Frequency: 400 Hz ... 1,200 Hz. Code Resolution: 0.35 mm ... 1 mm. Reading Distance: 44 mm ... 683 mm 1). Heating: Optional. Bar Code Types: All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey. Print Ratio: 2:1 ... 3:1. No. of Codes Per Scan: 1 ... 20 (Standard decoder), 1 ... 6 (SMART decoder). No. of Codes Per Reading Interval: 1 ... 50 (auto-discriminating). No. of Characters Per Reading Interval: 5,000, 500 (for multiplexer function in CAN operation). No. of Multiple Readings: 1 ... 99.. Sick. Sick AG. 1041973.
