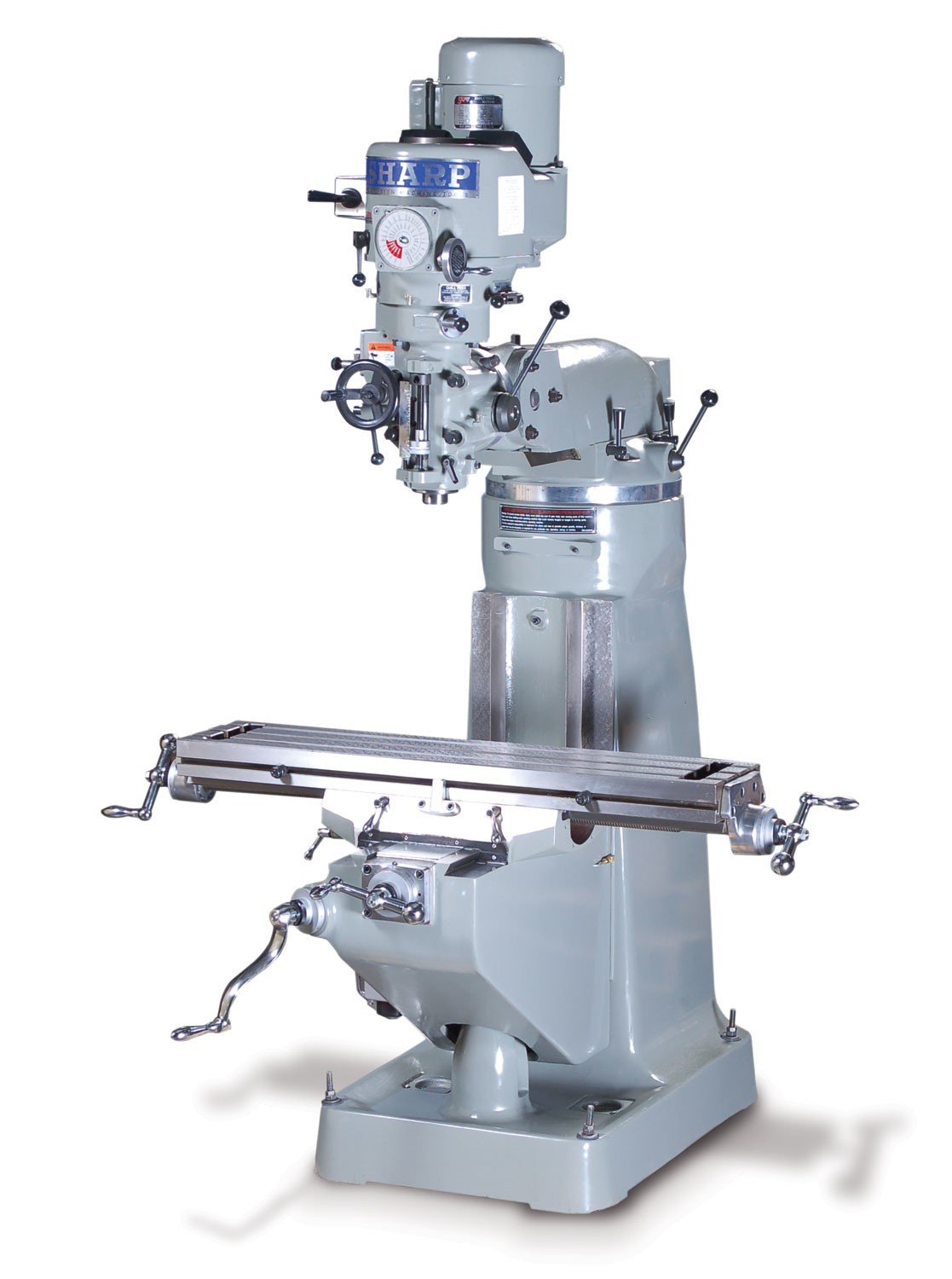

Sharp #LMV-50, vertical knee mill, 9" x50" table, 3 HP, 60-4500 RPM, R-8 Spindle, dual fans

9" X 50" Manual Vertical Knee Mill with 3HP Motor Variable Speed Drive (60-4500 RPM), R-8 Spindle, Dual Cooling Fans, Meehanite Casting, Chromed Ways, Self-Lubricating Motor Shaft Extends Pulley Life, Abec-7 Super Precision Spindle Bearings, Precision Ground and Flaked Table, Unique Double Nut Backlash System, Double Fan Cooling System, Cutler Hammer On/Off Switch, Front And Rear Way Covers, One Shot Lube System (X , Y , Z Axes)

STANDARD EQUIPMENT:

• Hard-Chrome Ways And Gibbs
• Precision Ground And Flaked Table
• Unique Double Nut Backlash System
• Double Fan Cooling System
• Cutler Hammer On/Off Switch
• Front And Rear Way Covers
• One Shot Lube System (X , Y , Z Axes)
• Tool Kit Includes: Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set Of 6 Allen Wrenches, Philip Screw Driver, Flat Head Screwdriver, Oil Can, Grease Gun, Rear Way Cover Bracket, Pin For Indicator, Can Of Paint
• Wired 220V or 440V. Please Specify. (Note: 440V requires additional transformer for optional DVS Machine)

FEATURES:

• HP Motor
• Variable Speed Drive (60-4500 RPM)
• R-8 Spindle
• Dual Cooling Fans
• Meehanite Casting
• Chromed Ways
• Self-Lubricating Motor Shaft Extends Pulley Life
• Abec-7 Super Precision Spindle Bearings

SPECIFICATIONS:

Table

Working Surface: 9” x 50”

T-Slots Number and Size: Slots, 5/8”

Capacity

Travels (X, Y, And Z): 37” x 12” x 5”

Ram Travel: 12”

Knee Travel: 16”

Spindle To Column (Min-Max): 6-3/4”-18 1/2”

Spindle Nose To Table (Min-Max): 2-1/8”-18”

Spindle

Spindle Motor: 3 HP

Spindle Nose Taper: R8

Spindle Variable Speed Drive: 60-4500 Rpm

Quill Feed 3 Speed (IPR): .0015,.003, .006”

Head Swivels: 360°

Head Tilt (Lt. To Rt) : 45°

Head Tilt (Up And Down): 45°

Dimensions and Weight

Floor Area (W x D x H): 7’x 6.5’x 6.75’

Weight: 2,500 LBS

Total Power Consumptions: 220V 3KVA/15 amps, 440V 3KVA/7.5 amps

Features, Function, & Benefits:

• ISO 9002 Certified: Quality Up To World Industry Standards.

• Meehanite Casting: Highest Grade Of Casting Possible.

• A Pair Of High Out-Put Fans:Keeps Head And 3-Hp Motor Cool, To Run Jobs For Extended Periods Without Damaging The Motor, Belts And Bearing.

• A Pair Of Precision ABEC-7 Angular Contact Bearings To Support Spindle. The Quill Is Ground And Chromed To Fit The Housing: This Insures A Spindle Run out Of .0002” T.I.R.

• Motor Shaft And Varidrive Pulleys Are Dynamically Balanced, Then Chromed For A Flawless Fit, Ground Ribs On Inside Diameter: For Smooth Speed Changes.

• Motor Shaft Has An Oil Channel In The Center That Is Fed By A Grease Fitting On The Lower End: To Keep Vari-Drive Pulley Moving Smoothly On The Shaft.

• This LMV-50 Mill Uses A Roller Bearing For The Lower Support Of The Shaft: It Ensures Proper Loading, Support And Alignment It Also Prevents The Shaft From Being Distorted By The Tension Of The Belt: For Quiet, Accurate Operation At Any Speed For Years And Years.

• One Shot Lubrication System:For Lubrication Of Ways And Lead Screws. (X,Y And Z-Axis)

• Hand Scraped Saddle And Knee: For Better Oil Retention. It Avoids Having Chips And Dirt Embed In The Knee And Damage The Sliding Surface.

• Oil Groove Are Milled: For Maximum Lubrication On All Wear Areas.

• Table And Saddle Backlash Is Controlled By Double Nut Design: Keeps Lead Screw In Contact With Bronze Nuts An All Times To Keep Backlash At .0008” Within 20”.

• Table And Saddle Are Mounted With Thrust Bearings That Are Pre Loaded: Eliminating Endplay For Precisely Controlled Lateral Movement.

• Patient Knuckle Design Uses 6 Bolt 3 Per Side, Securing Them From The Outside: This Method Locks The Head Securely Resulting In Better Accuracy And Performance.

• Ways Are Hard Chrome Dovetail On Saddle And Column: For long term wear and durability
