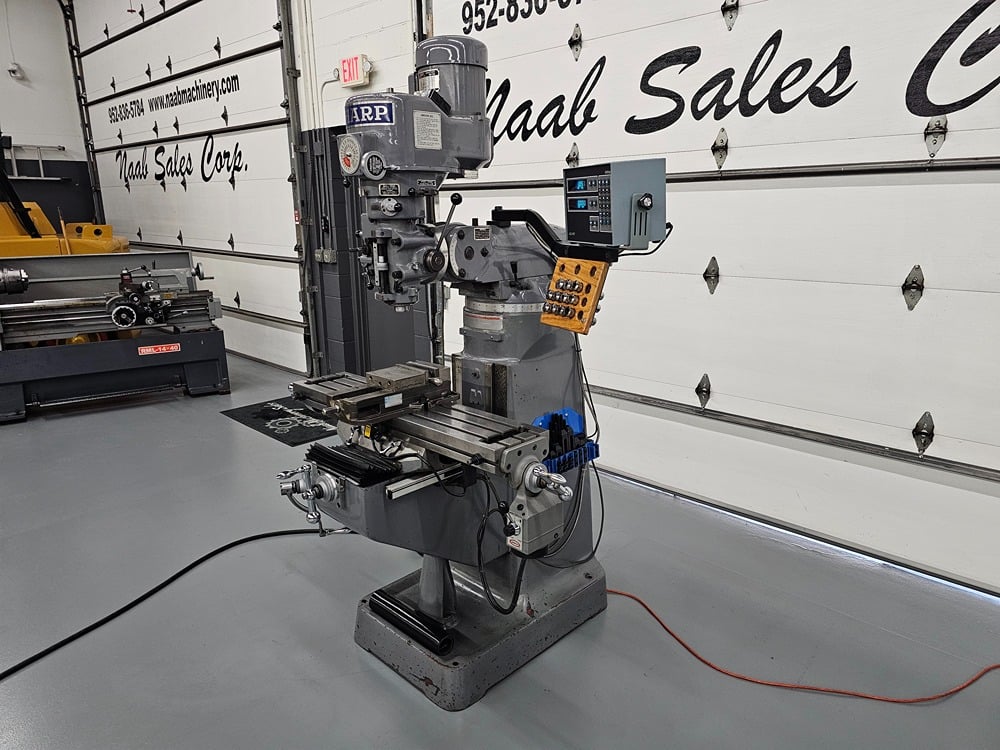

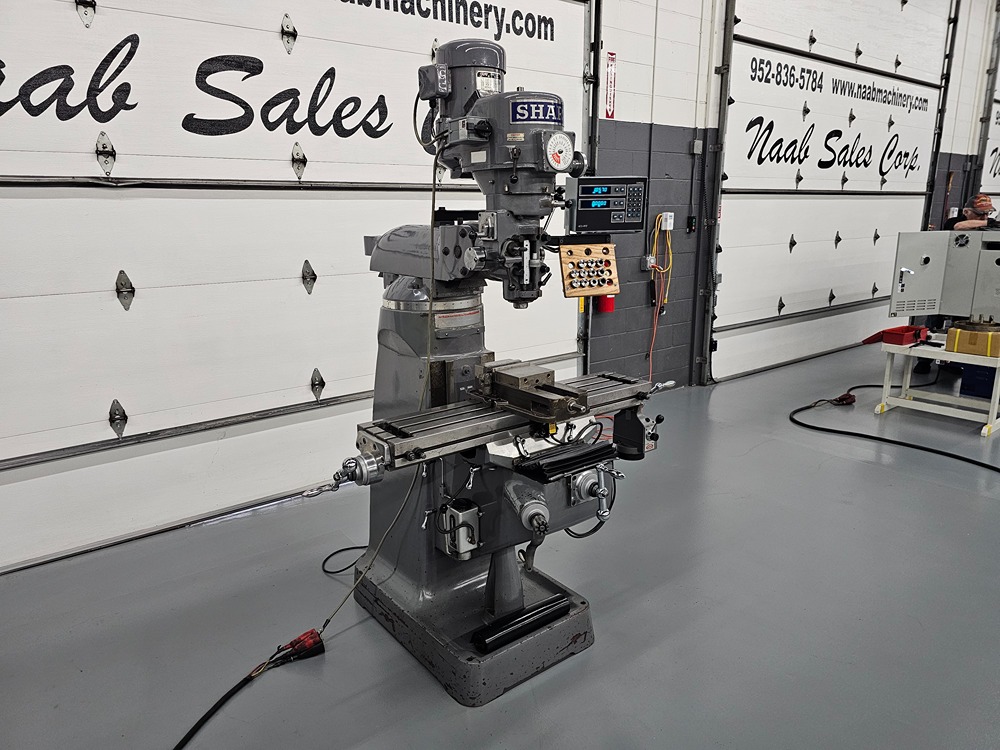

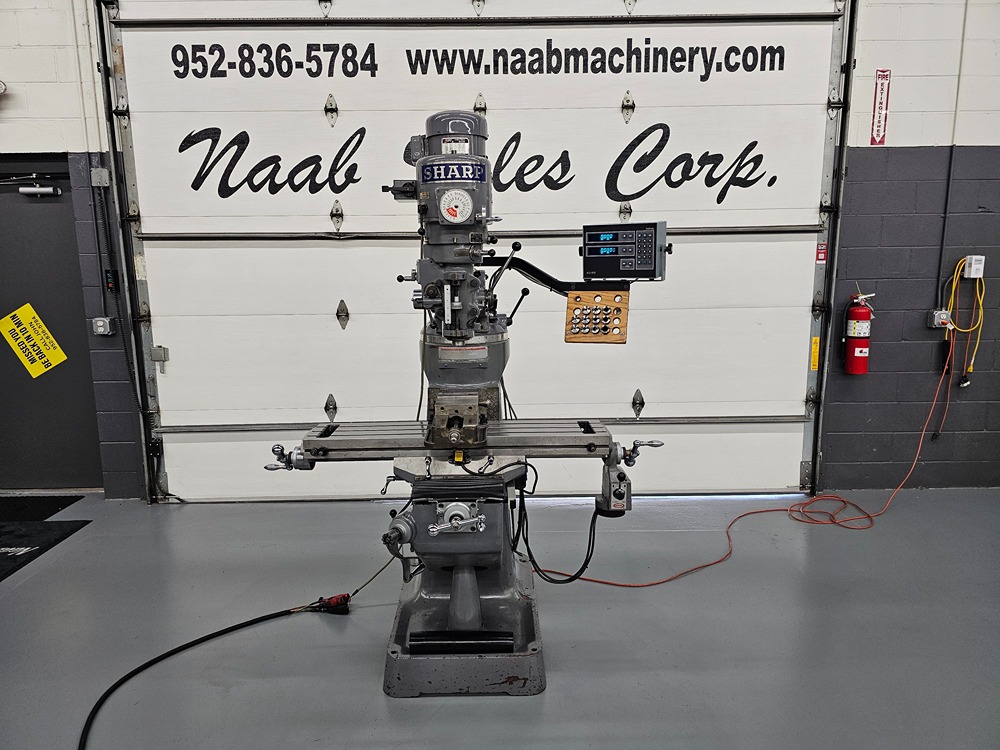

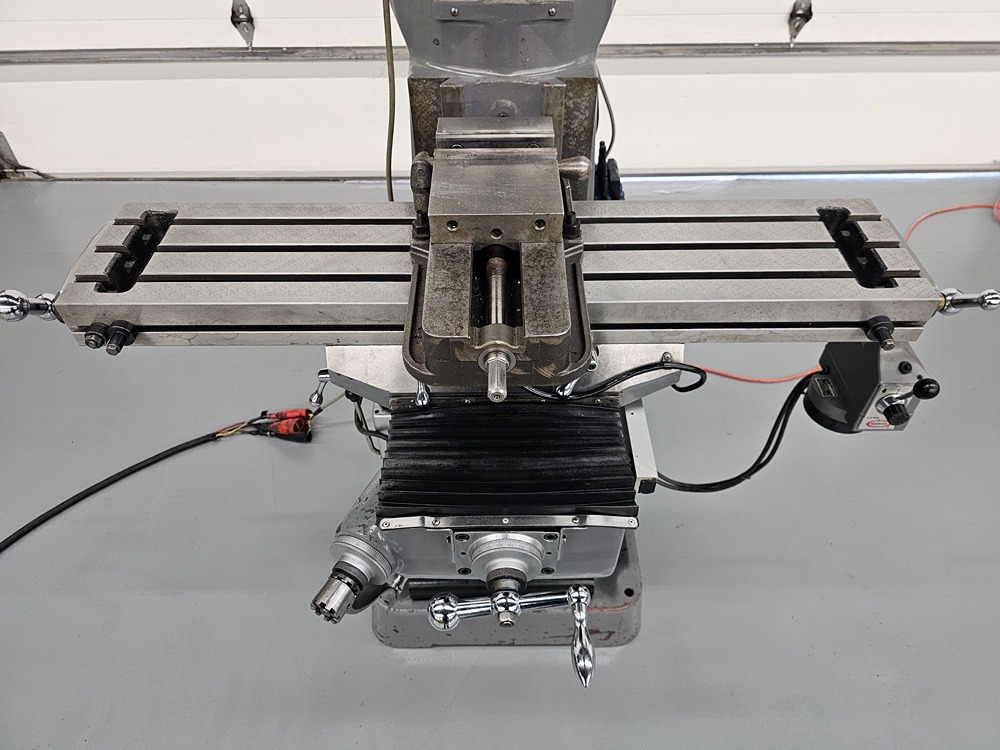

Sharp #LC1-1/2VH, Vertical Knee Mill, 9" x 42" table, 30" X, 12" Y, 16" Z, 5" quill travel, 12" ram travel, 16" knee travel, 3 HP, 4500 RPM, Acu-Rite 2-axis digital read out, 220 Volt, 3PH

Here We Have:
9” x 42″ Sharp LC 1 ½ VH, Vertical Mill, W/ Acu-Rite 2 Axis DRO , Z Axis Pwr. Feed

Model: LC 1½ VH
Serial Number: 50222102
TABLE:
Working Surface: 9” x 42″
T-Slot Number, Size: 3, 5/8″
CAPACITY:
Table Travel: X-Axis: 30″
Saddle Travel: Y-Axis: 12″
Ram Travel: 12″
Quill Travel: 5″
Knee Travel: 16″
Spindle to Column (min-max): 6-3/4 – 18-1/2″
Spindle to Nose to Table: 2-1/8 – 18″
SPINDLE:
Motor: 3 hp
Wiring Voltage: 220V, 3Ph, 60Hz
Taper: R-8
Speed (vari speed): 60-4,500 RPM
Quill Feed (IPR): 0.0015, 0.003, 0.006″
Head Swivel: 360 degree
Head Tilt; right-to-left (each way): 45 degree
Head Tilt; up-and-down (each way):45 degree
WEIGHT: 2,400 lbs.
STANDARD EQUIPMENT:
3 HP Variable Speed Head
One Shot Lube
Complete With:

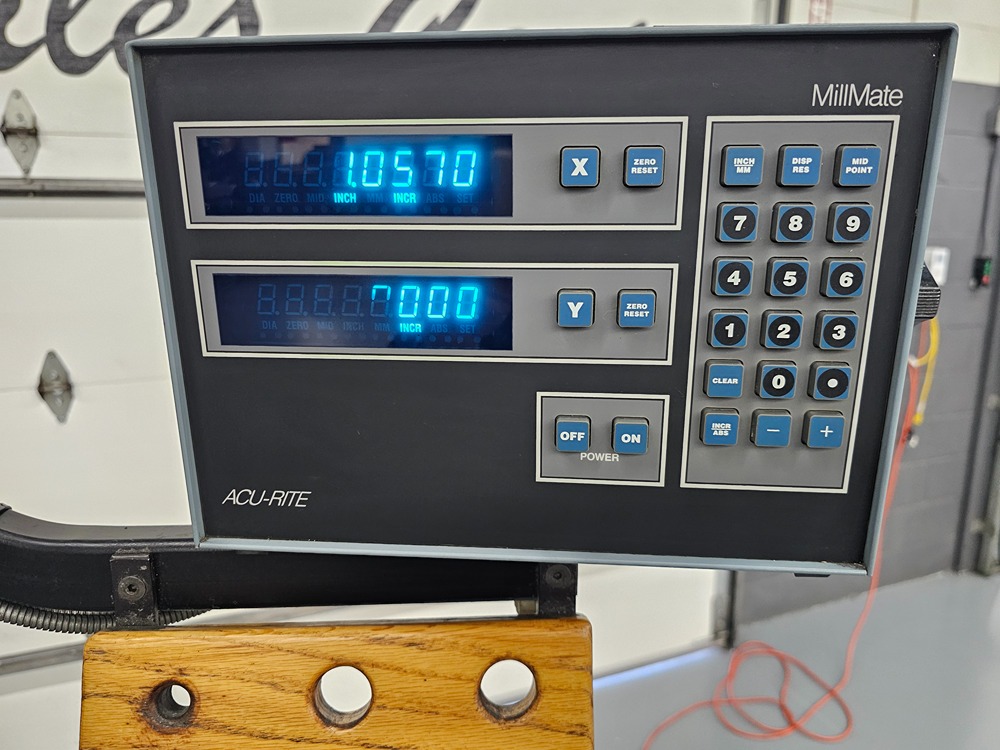

Acu-Rite 2 Axis DRO

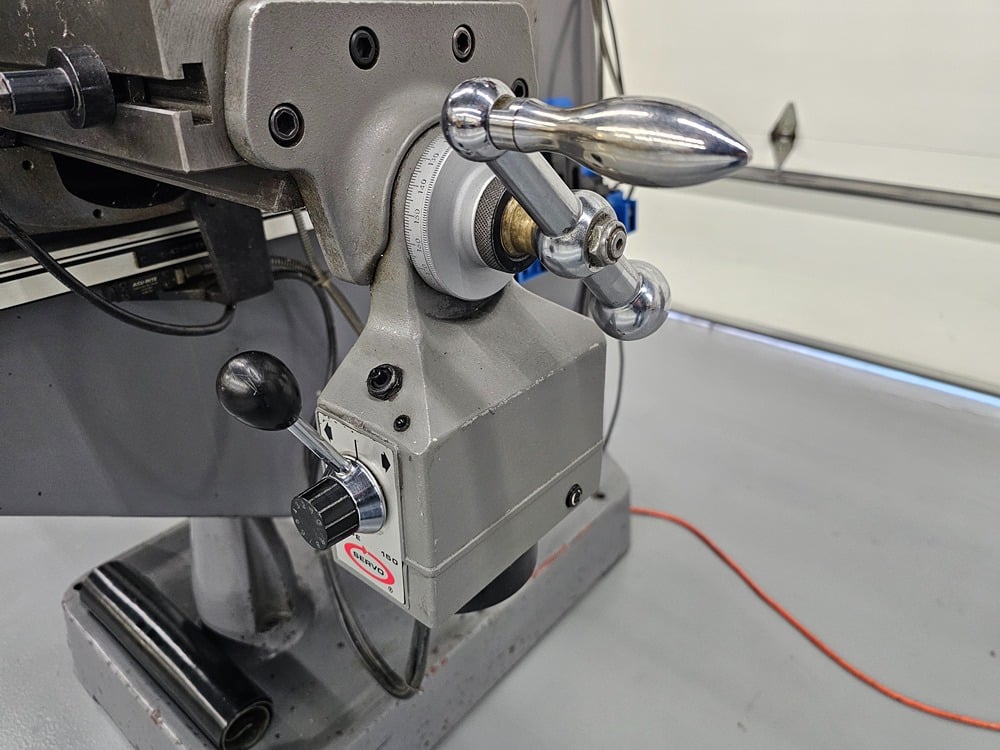

X Servo PWR Feed

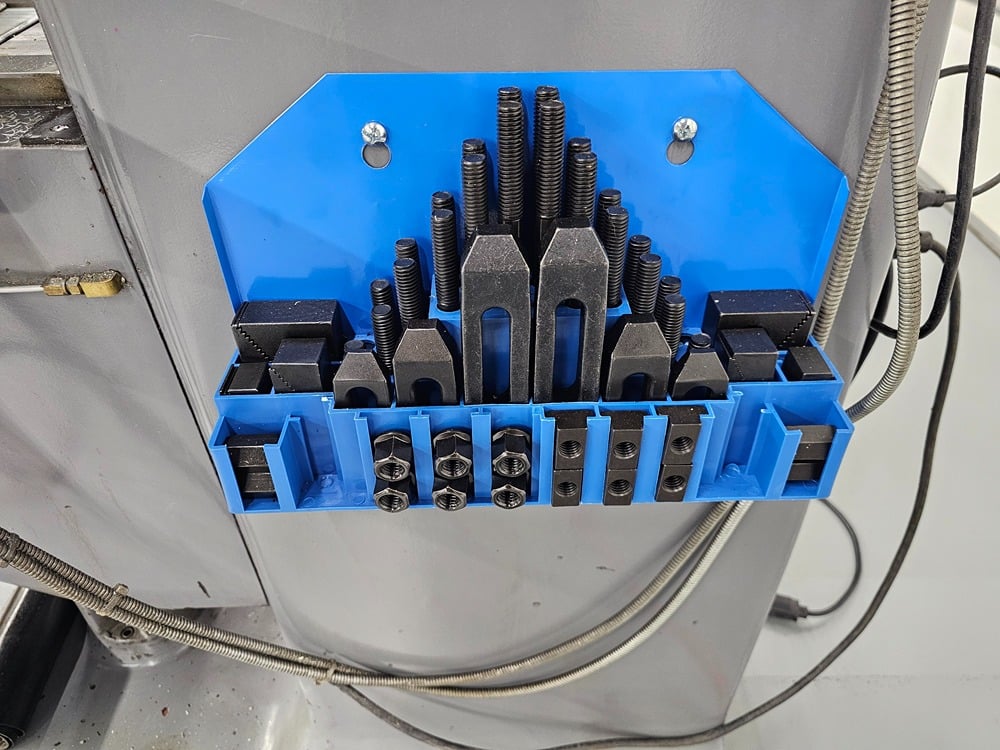

New Kit of Hold Downs

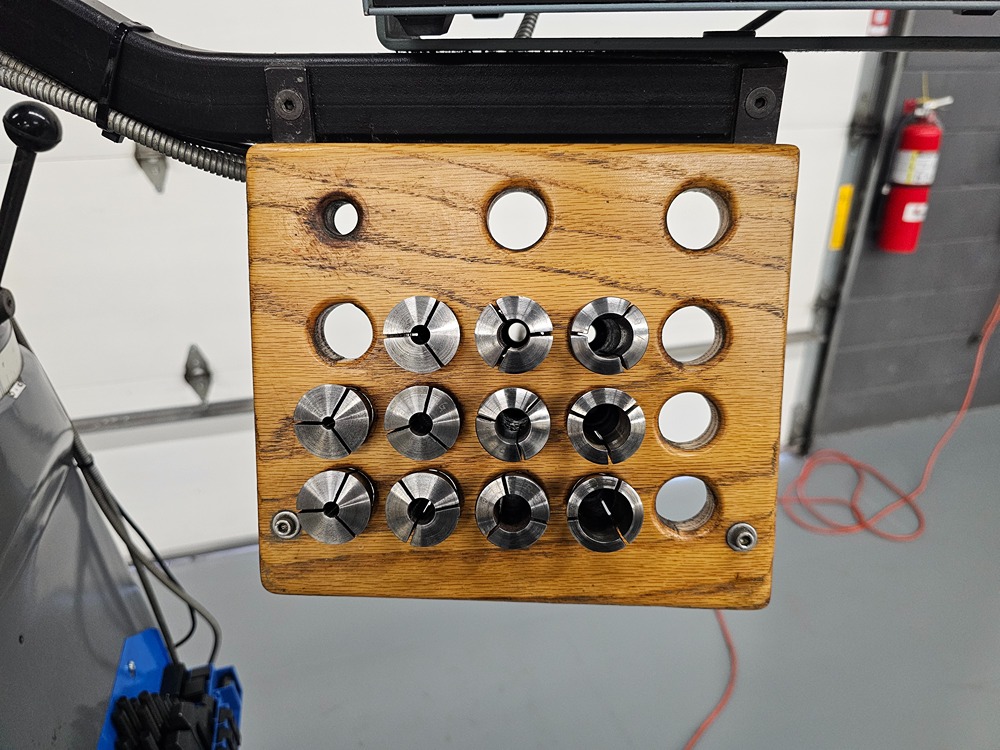

Collets and Holder
Kurt Vise and Handle
