Selmers ID/OD coating facility, cleaning & coating, 100' pipe conveyor, 2019

SELMERS INSIDE DIAMETER & WHEELABRATOR/GEMA OUTSIDE DIAMETER PIPE
COATING FACILITY

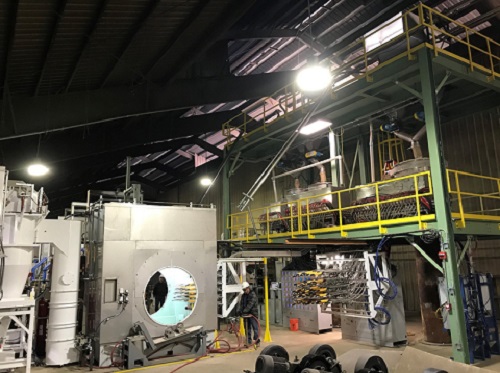

SELMERS INSIDE DIAMETER COATING FACILITY:
PURCHASED NEW IN 2019
THE SELMERS INSIDE DIAMETER COATING FACILITY HAS THE CAPABILITY TO STRIP, COAT
AND CURE 30"-48" DIAMETER X 80' LONG PIPE
THE INSIDE DIAMETER PLANT CONSISTS OF - PIPE ENTRY CONVEYANCE, ID BLASTING
UNIT, ID COATING UNITS, PIPE CONVEYANCE, AND CURING OVEN W/ EXIT TABLE

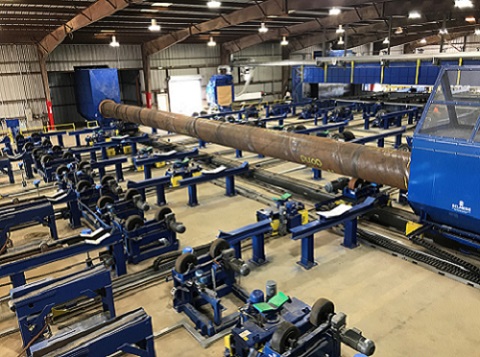

WHEELABRATOR/GEMA OUTSIDE DIAMETER COATING FACILITY CONSISTING OF:
THE WHEELABRATOR/GEMA OUTSIDE DIAMETER COATING FACILITY HAS THE CAPABILITY TO
STRIP, COAT AND CURE 10"-48" DIAMETER X 80" LONG PIPE
THE PLANT CONSISTS OF - PIPE CONVEYANCE, OUTSIDE DIAMETER PREHEAT OVEN TO PREP
COATING PRIOR TO SHOT BLAST, (2) WHEELABRATOR OUTSIDE DIAMER SHOT BLAST UNITS
W/ PIPE CONVEYANCE FOR END CAP/PLUG ASSEMBLY , (4) PREHEAT OVENS, (2) GEMA
PAINT SYSTEM SPRAY BOOTHS WITH 56 SPRAY GUNS PER BOOTH, WATER QUENCH, AIR
RUNOUT, INSPECTION AREA, COATING REPAR AREA, PIPE CONVEYANCE AND OFFLINE CUT
AND BEVEL, PAINT POWDER MIXING ROOM WITH POWDER DELIVERY SYSTEM
OUTSIDE DIAMETER COATING CAPABILITY
FUSION BONDED EPOXY (FBE) - 10" - 48" OD, 10 -40 THICKNESS (MILS), 25' - 80'
LENGTH
ABRASION RESISTENT OVERLAY (ARO) - 10" - 48" OD, 20 -60 THICKNESS (MILS), 25'
- 80' LENGTH
INTERNAL FLOW - 16" - 42" OD, 1.5 - 4 THICKNESSS (MILS), 25' - 80' LENGTH
CONCRETE WEIGHT COATING (CWC) - 12" - 42" OD, 1" - 6" THICKNESS (MILS), 35' -
45' LENGTH
