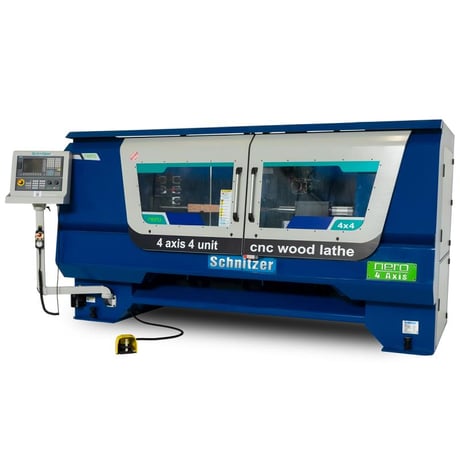

Schnitzer #Nero-4X4, 4-Axis 4-Head CNC Controlled Wood Lathe, 47.25" length, 6.3" square, 5 ATC, 2026, new

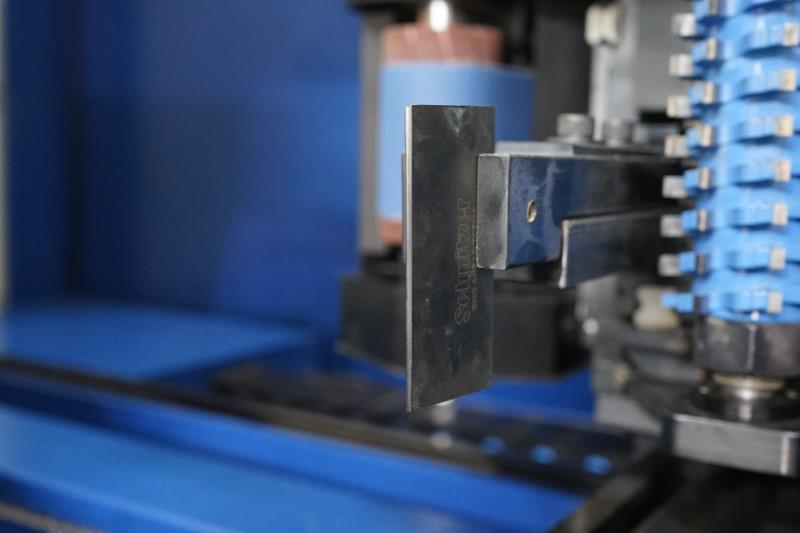

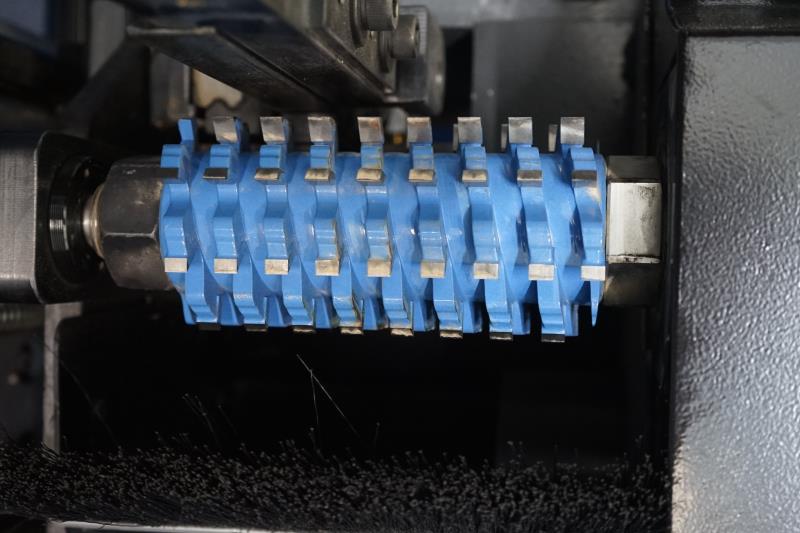

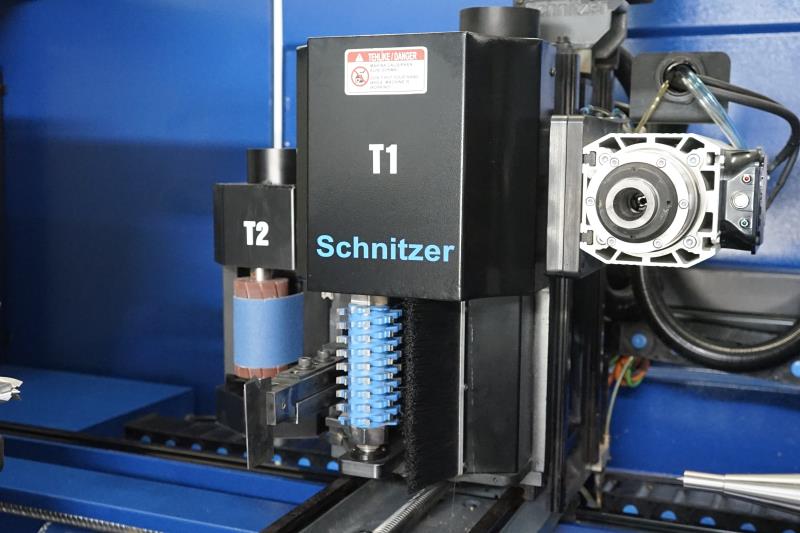

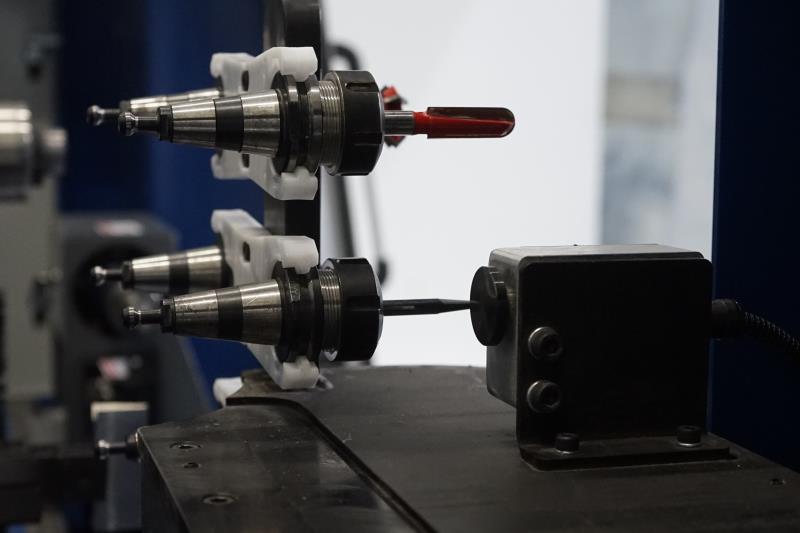

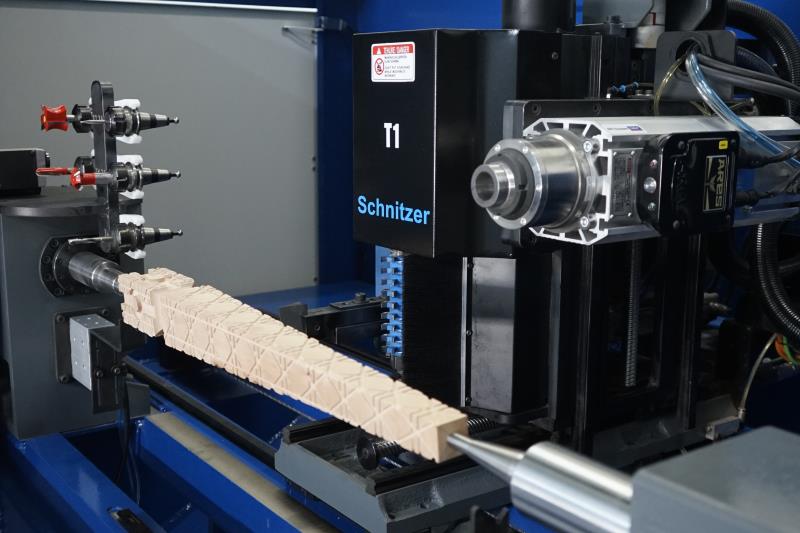

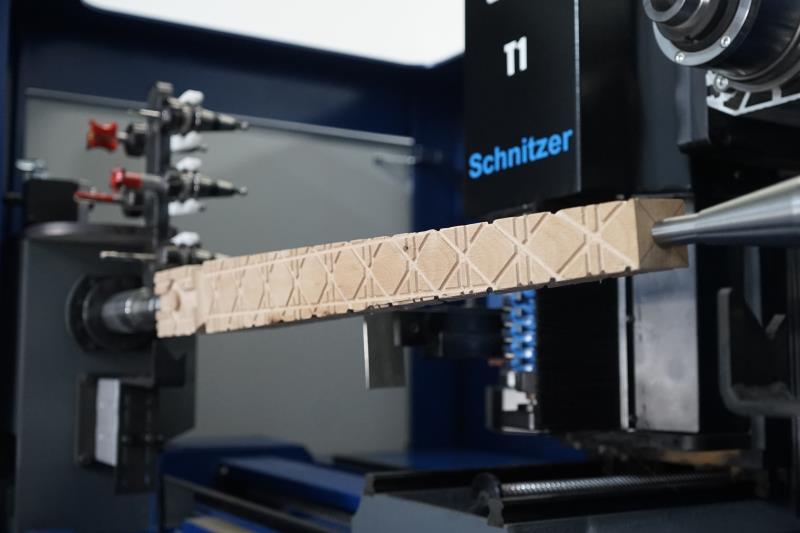

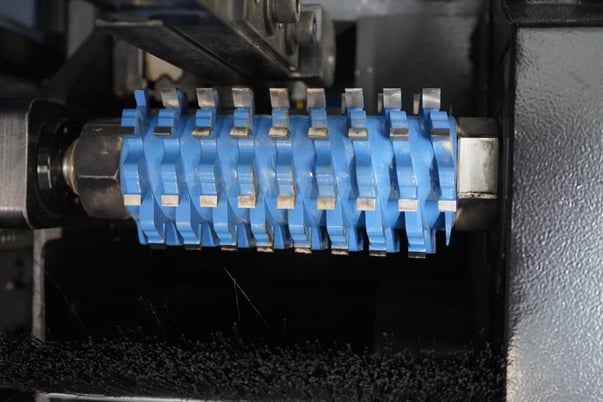

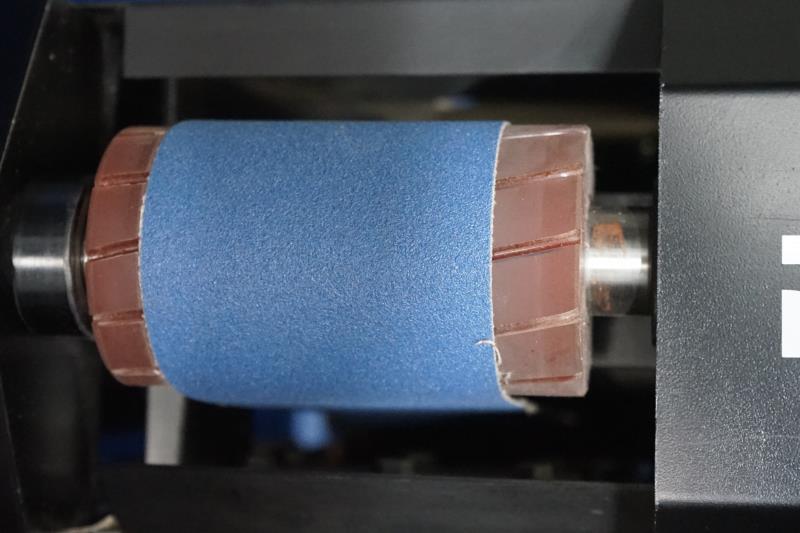

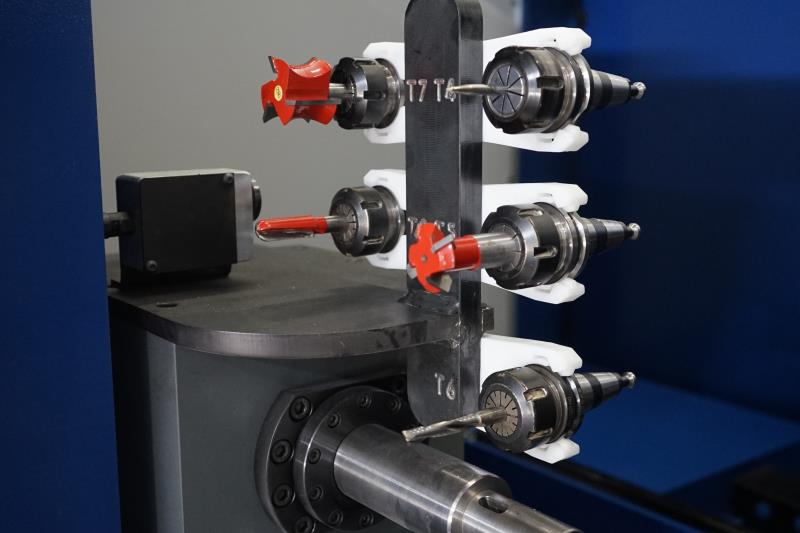

SCHNITZER 4-Axis 4-Units CNC Controlled Automatic Lathe. A versatile Multi-Axis CNC lathe that allows the machining of any asymmetrical and symmetrical parts according to your programmed geometry. Made with well-known high-quality components such as SIEMENS, SCHNEIDER, SKF, FAG, FESTO, etc. -- Dimensional Capacity: Max Length: 1200 mm (47.25"); Min Length: 30 mm (1.81"); Max Square: 160 X 160 mm (6.3"); Min Square 20 x 20 mm (0.787"). -- Motion Model: X-Y-Z-A Axis Ball Screw Driven. -- Motion Unit/Heads: 1st Unit::Spiral/Roughing/Debarker Turret.7.5KW (10 HP). 2nd Unit: V-Gouge/Knife. 3rd Unit: AREL Milling/Router 4 KW (5.4 HP), 18,000 RPM. Spindle Motor.. (Avaialble with Optional Tool Changer). 4th Unit: Sanding Unit with oscillation or Cup Knife. -- SIEMENS Servo Drives: X-Motor: 1.50 kW (2 HP) Servo Motor with Absolute Encoder; Y-Motor: 0.75 kW (1 HP) Servo with Absolute Encoder; Z- Motor: 1 kW (1.4 HP) Servo with Absolute Encoder ; A-Motor: 3.7 kW (5 HP) – 6000 RPM Spindle Servo motor with Absolute Encoder, Air cooled and Electro Magnetic Brake System. X-Y-Z Servos with 'ABSOLUDE ENCODER' (No Referemce needed). Double Direction Cutting. -- Speeds: Longitudinal Axis Speed : 90 m/Min (297 FPM); Transversal (short) Axis Speed: 40 m/Min (132 FPM); Y-Axis Speed : 30 m/Min (100 FPM). -- Controller Unit: Programmable SIEMENS MC 808D. Industrial fast-precise with its user-friendly interface, simple menu, and functional shortcuts. -- Software: SCHNITZER standard CAD/CAM included. -- Features: Double-Directional cutting; CMSA Linear Movement System; Auto Lubrication (every 200 min -15 sec duration); Auto workpiece centering (pneumatic).with a foot pedal.Tailstock. Clamping - pneumatically driven. Hand wheel. Vibration-free cast monoblock frame. SIEMENS outer surface metal coated cables for long-term protection. SIEMENS fuses & SCHNEIDER contacts that are among the best. World brand FESTO pneumatics. Superior strength 40x40 long-axis ball screw, cutter group. -- Installed Power: 22 KW. -- Dimensions: Approx. 3,689 mm x 1,845 mm x 1,898 mm (146" x 73" x 75"). Weight 3,200 KG ) 7,040 Lbs. -- Warranty: (1) Year after installation and training. -- Installation: By factory SChNNITZER Technician - Flight, Lodging, and Food payable by customer. -- Available options: a.) Automatic Hopper Feed.- Cost upon request. b.) PEGASUS CAD/CAM (popular Italian made software) . Call for Price. c.) Automatic Tool Changer (ATC) - Alsoavailable on 5-Axis version. d.) Ribbon Sander - Call for Price. e.) Oscillating sander - Call for Price.. f.) 4-Axis, 6 Units. - Call for Price. g.) 5-Axis with many otions. - Call for Price. g.) 4-Axis 3-Heads (with/without sanding). Call
