Schiatti Angelo FPS-15, Vertical Glass Edge Grinder, 8-spindle, R-L, 0.6 - 4.4 m/min., 150 x 150 mm min. size, 3 - 20 mm thick, 765 mm working H, 12.7 kW, 1987

Estimated monthly payment valid upon approved credit.

Request Formal Quote

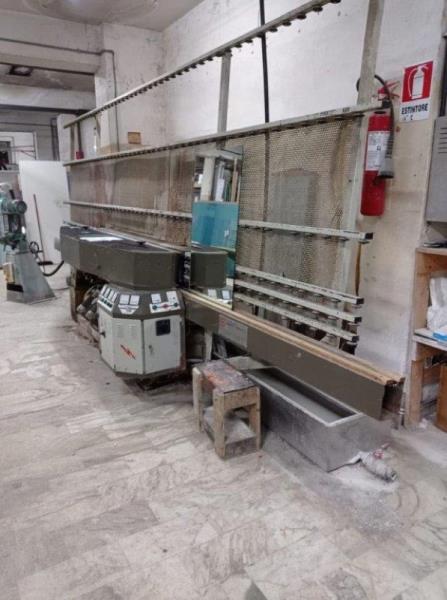

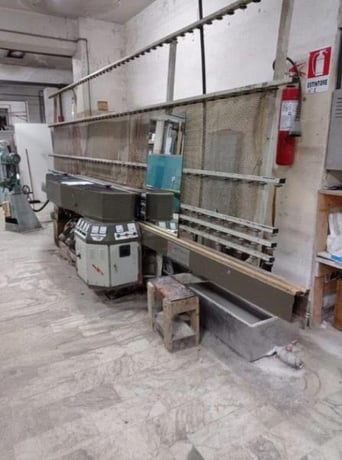

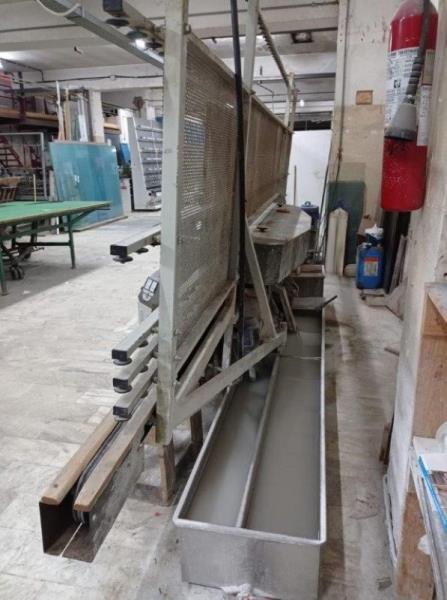

SCHIATTI ANGELO FPS-15 Vertical Edger

(8) Spindle Straight Grinding machine for the processing of flat edge and arris and cerium oxide polishing on the edge.

Especially suitable for small and medium glass companies for the production of mirrors, shelves for furniture, laminated glasses, glass tables and stairs.

PLC touch screen to adjust thickness, working speed, to input and display all the working parameters and diagnosis of imperfections.

Wheel Configuration:
POS. 1 Diamond cup wheel CC
POS. 2 Diamond cup wheel CC
POS. 3 Diamond cup wheel arris CC
POS. 4 Diamond cup wheel arris CC
POS. 5 Polishing cup wheel arris
POS. 6 Polishing cup wheel arris
POS. 7 Polishing cup wheel
POS. 8 Polishing cup wheel

Specifications:
● (8) Spindles
● Right to left operation
● Feed: 0.6 - 4.4 m/Min
● Min. Glass measure: 150 x 150 mm
● Glass thickness: 3 - 20 mm
● Working height: 765 mm (32")
● Power: 12,7 Kw

NOTE: Machine was reconditioned.
