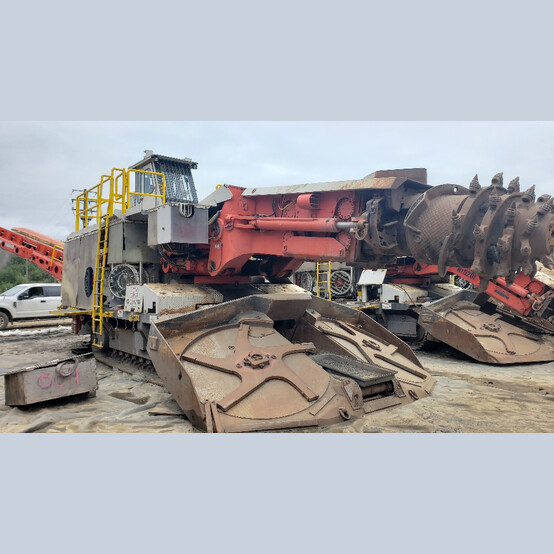

Sandvik #MT520, Roadheader, 123 Ton, 315 kW Cutter Head, 3,756 Cutting Hrs, 2016

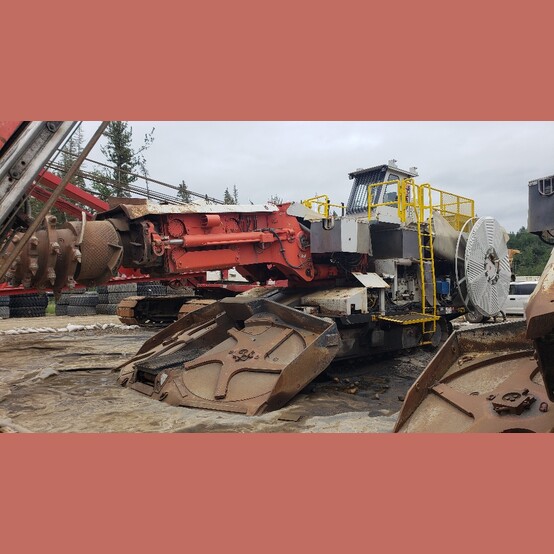

Sandvik MT520 Roadheader

Now Located at Our Site in Savona, B.C. Canada!
Inquire Today!

• Make: Sandvik
• Model: MT520
• Type: Roadheader
• Serial: 023
• Condition: Used, Reported In Good Condition
• Year: 2016
• Hours:
  • Hydraulic Motor: 5,542 Hours
  • Cutting Head Motor: 3,756 Hours
• Cutter Head: R315-IC39
  • Optimum Application: Rock with Compressive Strength from 40-60 MPa
  • Tipped: 39 Pick Boxes for 38/30mm, 38mm or 30mm Shank Diameter Picks
  • Diameter: 1430mm
  • Width: 1160mm

• Description: The Sandvik Roadheaders are Electro-Hydraulically Powered and equipped with powerful, geometrically optimized, inline or transverse cutter heads proven to give the best cutting performance in a wide range of rock conditions. Subway tunnels, road tunnels, shaft sinking, rehabilitation of existing tunnels and excavation of underground caverns are just a few examples where these machines have demonstrated their great flexibility. Our Sandvik MT520 PLC-controlled Roadheader has been designed for use in tunneling, as well as salt, potash and chalk mining with a maximum profile up to 70m². It has a modular design that offers more flexibility than standard Roadheaders and works in most rock conditions up to 100 MPa compressive strength.

• General Model Specifications:
  • General Data:
    • Total Length with Belt Conveyor: 20,000mm (Approx.)
    • Total Length: 12,900mm (Approx.)
    • Machine Width - Chassis: 3,695mm
    • Machine Width - Tracks: 3,300mm
    • Min Travel Height: 4,800mm (Approx.)
    • Total Height: 4,950mm
    • Loading Table Width: 4,620mm
    • Crawler Track Width: 800mm
    • Total Weight Basic Machine: 123 Tons (Approx.)
    • Ground Clearance: 242mm
    • Total Available Power: 537kW
    • Machine Ground Pressure: 0.23 MPa
  • Navigable Area of Application:
    • Cone Radius - Min: 25m (Approx.)
    • Basin Radius - Min: 20m (Approx.)
    • Max Side Tilt Angle during Tramming: ±5°
    • Max Front Tilt Angle During Tramming: ±18°
    • Cuttable Uniaxial Compressive Strength: 80-140 MPa
    • Power Supply: 1000 Volt / 60Hz

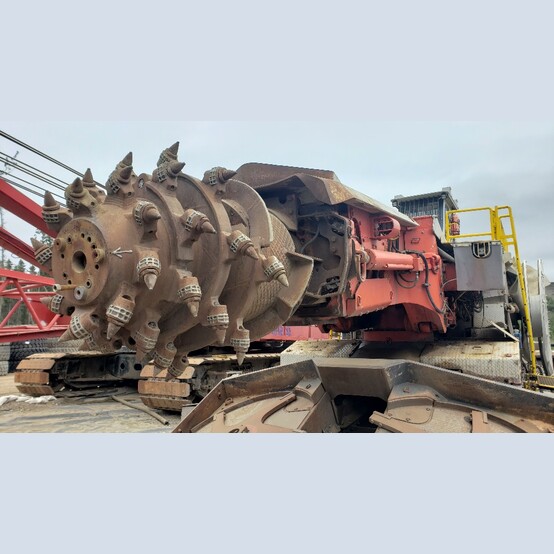

  • Cutter Head:
    • Max Cutting Height Above Track Level: 7,100mm
    • Min Cutting Height above Track Level: 6,350mm
    • Cutting Width: 7,900-9,300mm (±37° Horizontal Angle)
    • Max Undercut Below Floor Level: 750mm
    • Head Diameter: 1,460mm
    • Head Width: 1,160mm
    • Max Cutting Speed: 1.5m/sec
    • Optimum Swivel Speed: 0.05-0.08m/sec
    • Cross-Sectional Area to Floor Level: 47-70m²
    • Available Power: 315kW

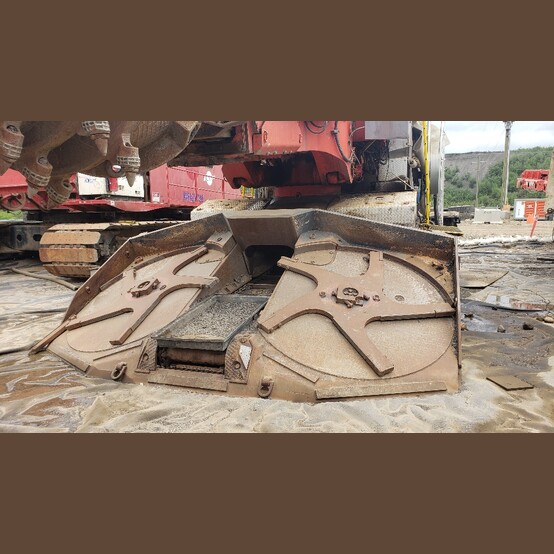

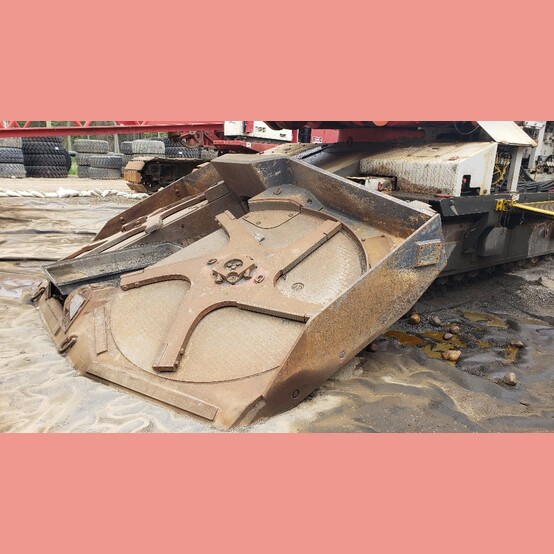

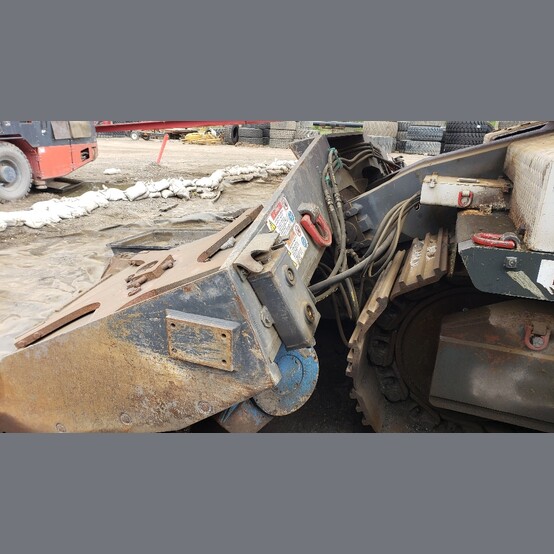

  • Loading Device:
    • Device: Spinner
    • Loading Capacity: 350m³/h Max.
    • Loading Width: 4,620mm
    • Loading Device Height Above Floor Level: 635mm
    • Loading Device Height Below Floor Level: 230mm
    • Available Power: (2) 36kW

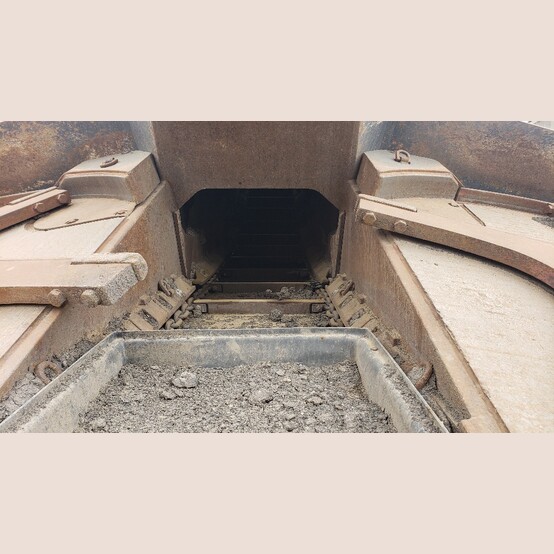

  • Conveyor:
    • Conveyor Width: 840mm
    • Conveyor Chain Speed: 0.5-0.9 m/sec
    • Conveyor Capacity: 350m³/h Max
    • Installed Power (Hydraulic Driven): 90kW

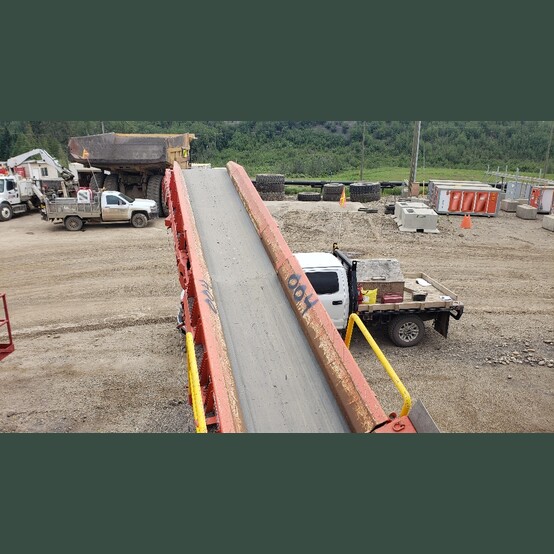

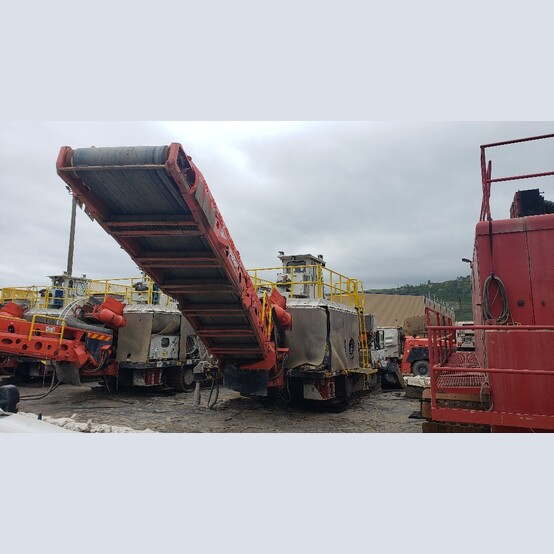

  • Swivel Belt Conveyor:
    • Swivel Belt Conveyor Width: 1,000mm
    • Swivel Belt Conveyor Overhang: 6,600mm
    • Swivel Belt Conveyor Chain Speed: 2m/sec Max
    • Swivel Belt Conveyor Max Discharge Height: 6,000mm
    • Swivel Belt Conveyor Min Discharge Height: 3,500mm
    • Available Power: 25kW
  • Frame/Crawler Track:
    • Tramming Speed: 0-18 m/min
    • Track Force Per Track: 465kN
    • Track Overall Width - Track Exterior: 3,300mm (Approx.)
    • Track Ground Length: 3,800mm (Approx.)
    • Track Chain Width: 800mm
  • Electrical System:
    • Electrical Potential: 1000 Volt / 60Hz
    • Available Power:
      • Cutter Motor - Water Cooled: 315kW
        • Rotational Speed: 1475 RPM
        • Nominal Torque: 1,942Nm
      • Hydraulic Motor - Air Cooled: 150kW
        • Rotational Speed: 1489 RPM
        • Nominal Torque: 962Nm
      • Loader Motors - Water Cooled: (2) 36kW
        • Rotational Speed: 1450 RPM
        • Nominal Torque: (2) 237Nm
  • Hydraulic System:
    • Available Power: 150kW
    • Pressure - Machine: 280 bar
    • Pressure - Chain Conveyor: 330 bar
    • Tank Capacity: 480 Liters
    • Total Oil Capacity: 680 Liters
  • Water System:
    • Quantity of Water, min.: 43 L/min
    • Pressure: 4 bar Min, 20 bar Max
    • Water Temperature: 12-35° C
    • Spraying System Type: Cutterhead and Cabin
  • Additional Equipment:
    • Fire Protection: Fire Suppression/Detection System + (2) Hand Extinguishers

• Overall Dimensions:
  • Length: 20m (20,000mm)
  • Width: 4.62m (4,620mm)
  • Height: 5.15m (5,150mm)
  • Weight: 123 Tons (123,000 kgs)

• Location: Savona, British Columbia, Canada

View More Roadheaders

Watch YouTube Video Here: https://www.youtube.com/watch?v=_lBd1Gq-Bgo
