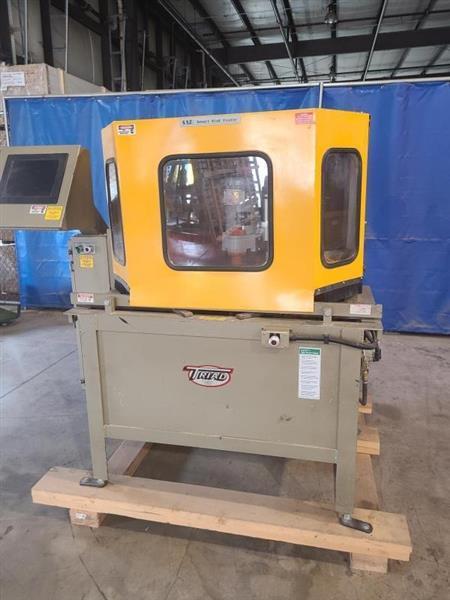

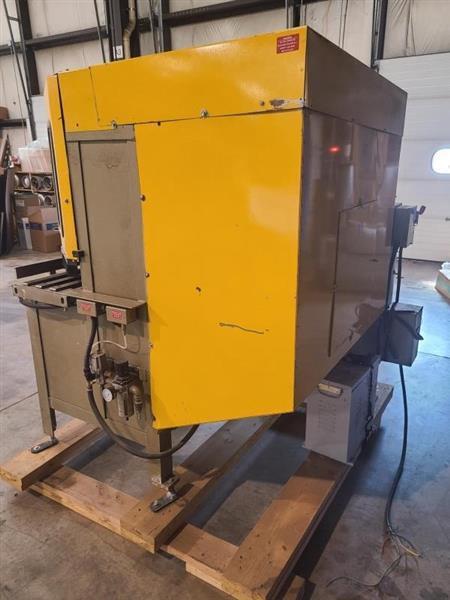

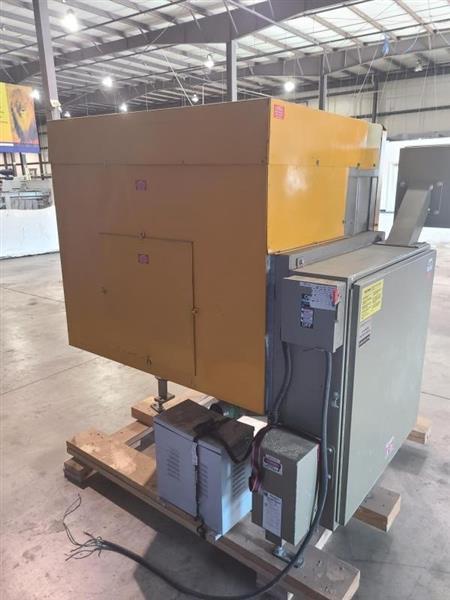

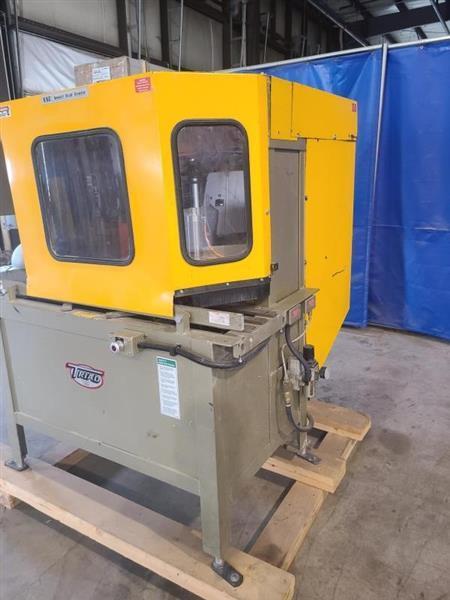

Ruvo #SSR, Automatic CNC Double Stair Router, 2" x 12" max. stringer size, 8"-12.5" tread, 5.5"-9" riser, (2) 2 HP belted routers, 1/2" collet

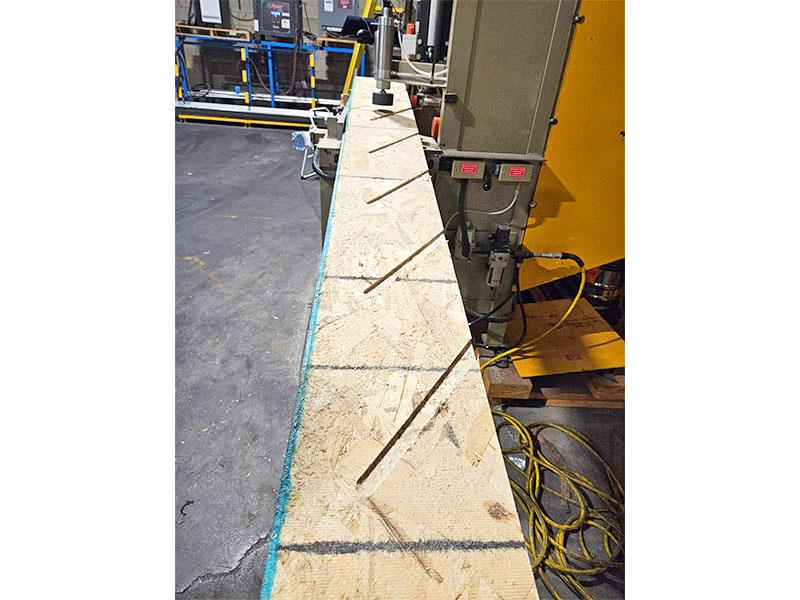

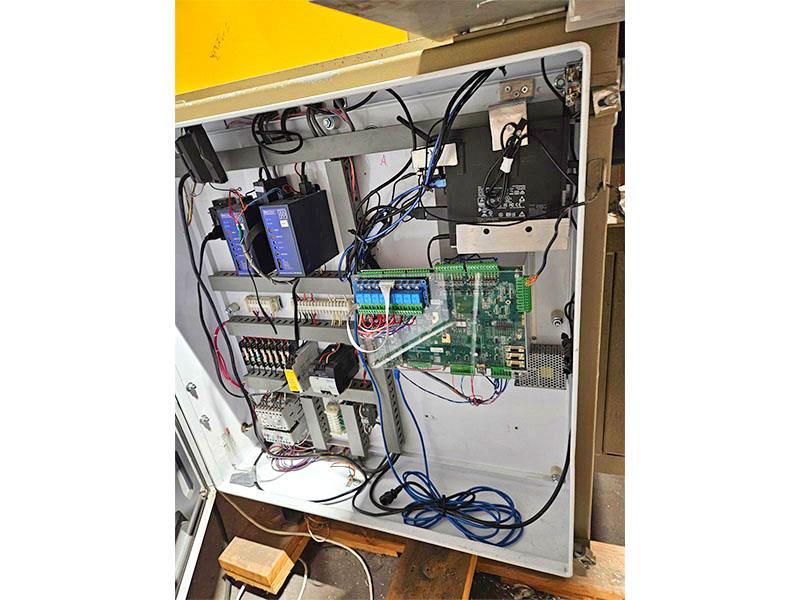

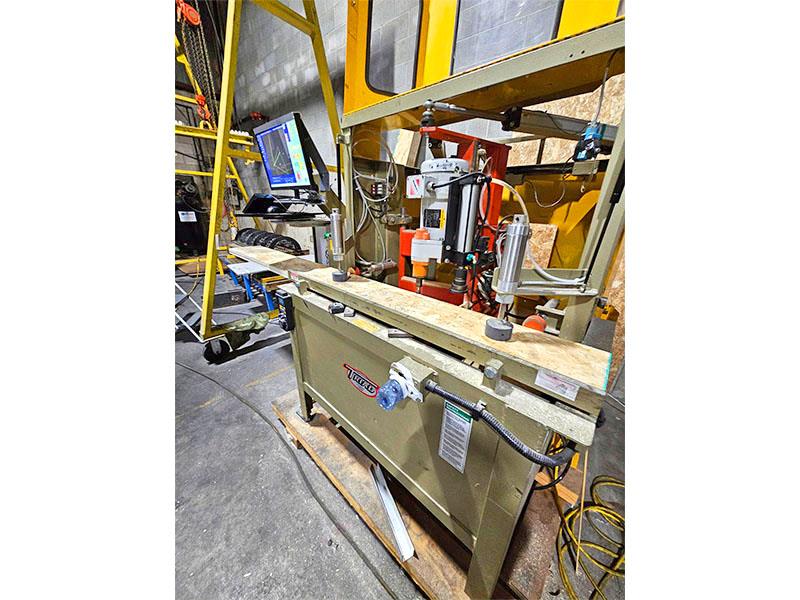

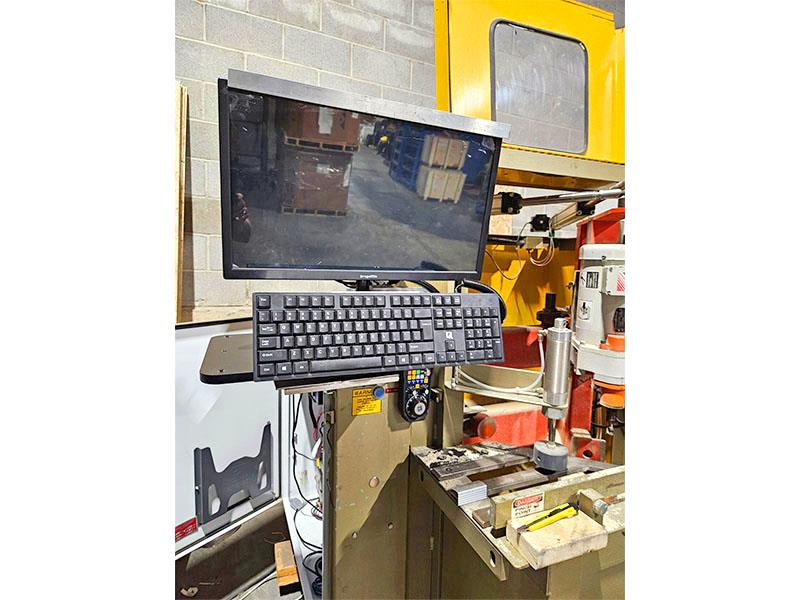

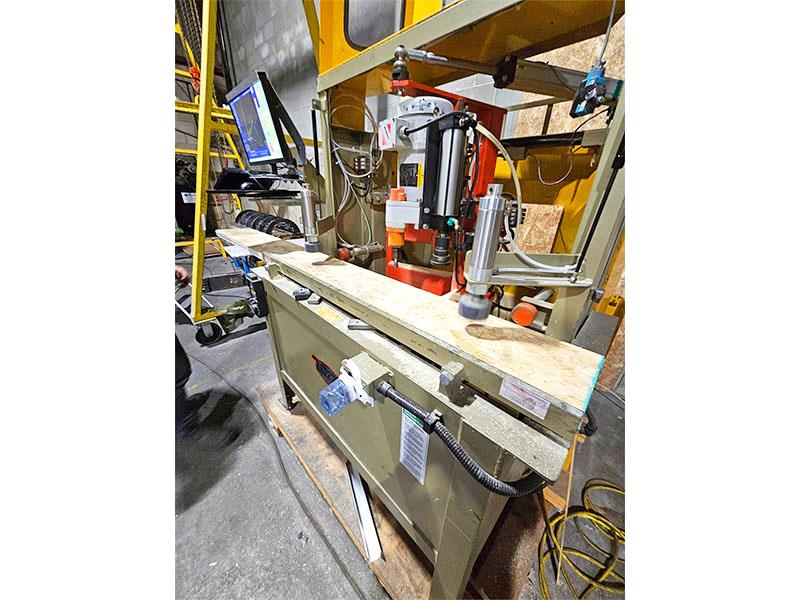

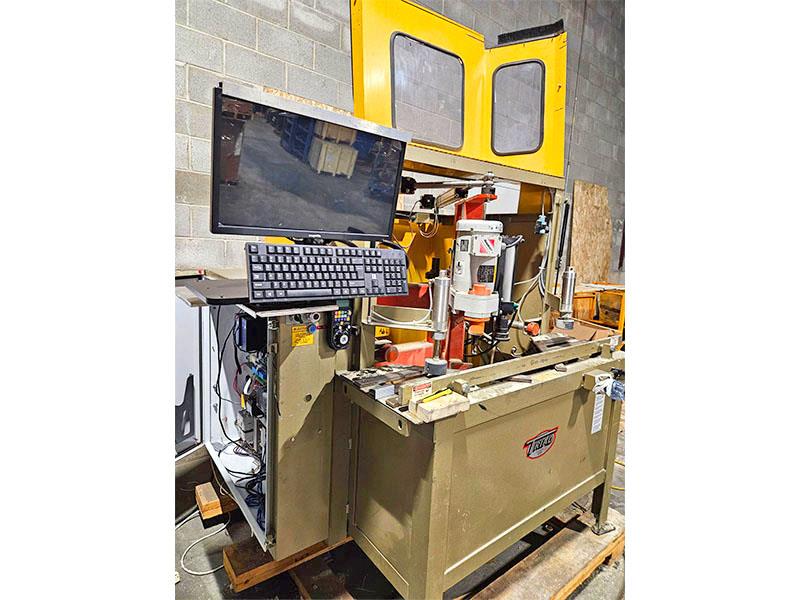

TRIAD/RUVO/MERRICK MACHINE SSR CNC 'Smart Stair Router' with new PC, CNC controller and software.CNC Controlled Stair Trencher for 2" x 10" or 2" x 12" max. stringer size. -- Operation: Automatic operation by entering the parameters of the stringer on the touch screen and press the RUN button and the SSR will do the rest. -- Routers: (2) Heavy duty 2 HP Belted routers with 1/2" collet. Will cut the top or the bottom stringer only or both stringers simultaneously with the specified profile, it will automatically index the material the proper distance. -- Capability: Can accommodate standard stair profiles, no rise profiles and split stringer configuration, closed/open stringer; User configured hard or soft wood selections automatically adjust the router feed rate to maximize performance. Features: -- (2) Stepper-motors powering (2) linear actuators for cutting stair profile. -- Same stepper/actuators will move the board along indexed for macining subsequesnt steps -- 628 Lbs Vertical clamp and 352 Lbs pressure horizontal clamp. -- Tread 8" to 12-1/2"; Riser 5-1/2" to 9"; Nose clearance 1/2" to 3"; Nose extension 1/2" to 2"; tread thickness 1" to 1 3/4"; stringer material 2" x 10", 2" x 12", 3/4" x 10", 3/4" x 12". -- No riser menu selectable. -- Bit size: 7/8" Dia. straight flute RH or LH. Comes With: 'WIN 11' DELL compact PC mounted inside the main control panel; CENTROID/ACORN step and direction CNC control system w/built-in motion control CPU kit. Touch screen display/keyboard/mouse. Hand-Held remote control. New user-friendly software and program template written for all types of Stair Tread machining.
