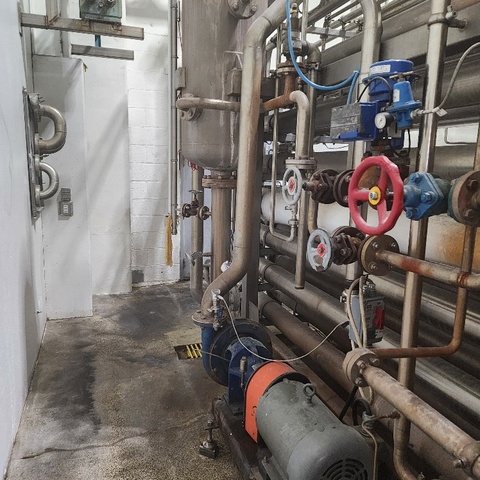

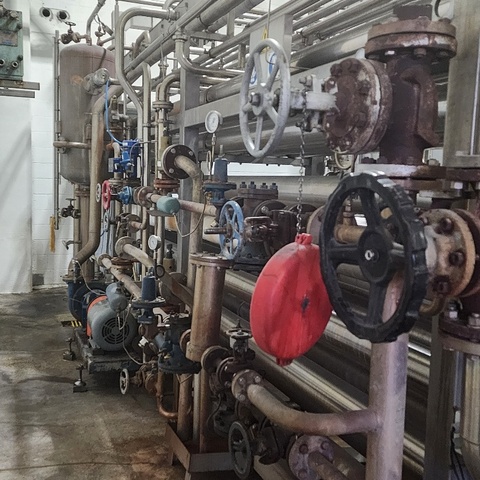

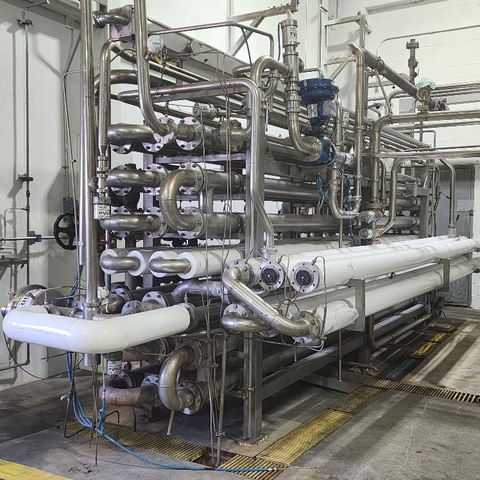

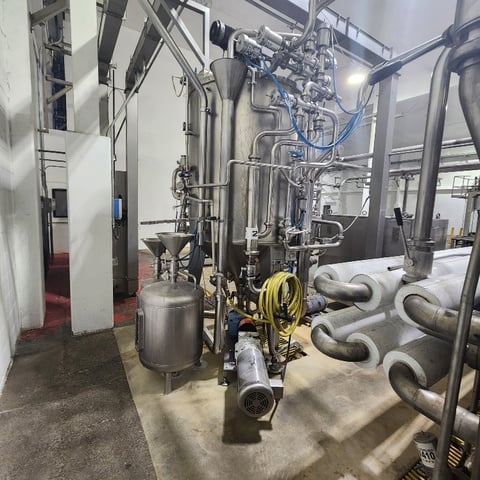

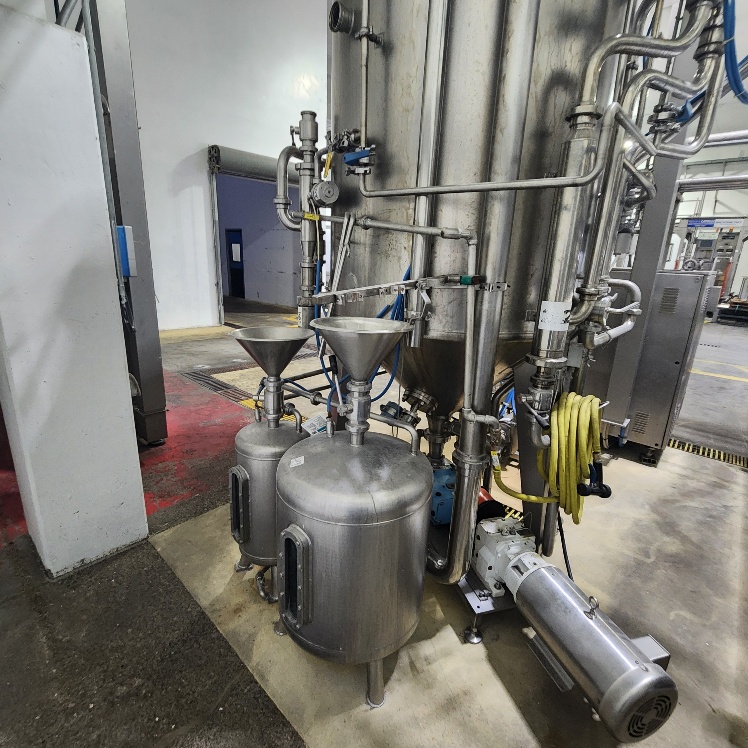

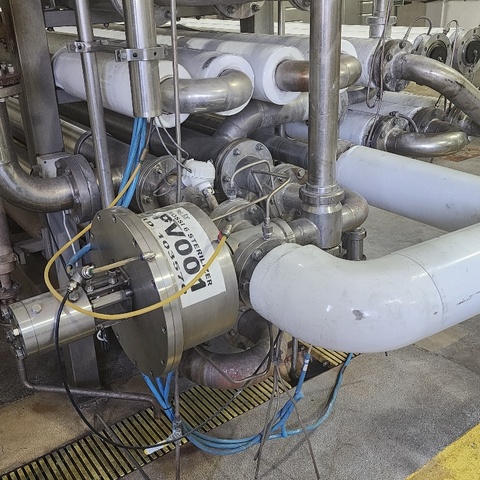

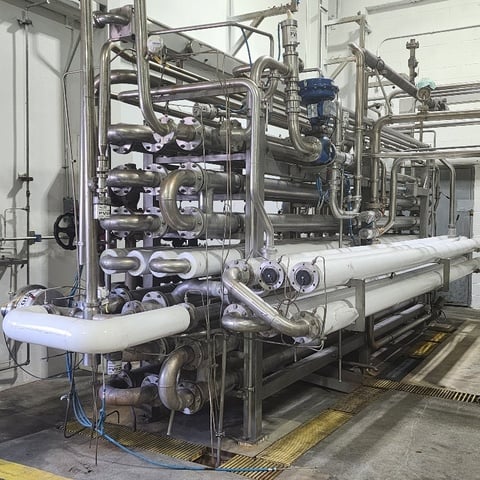

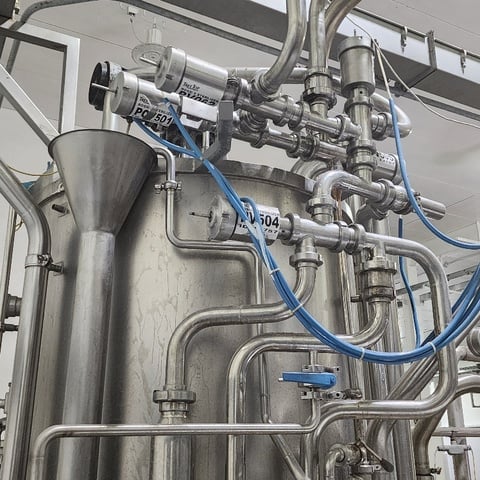

Rossi & Catelli, pasteurizer, tube in tube, HTST, 30 gpm, aseptic filler

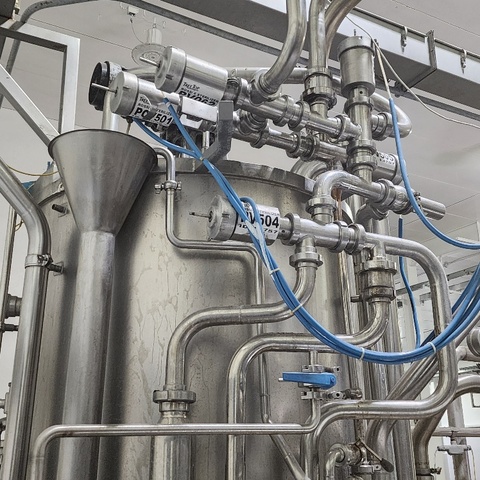

Rossi & Catelli tubular HTST pasteurizer with Macropak aseptic filling system for drums, totes and other containers. Product is set up to be fed from evaporator, the system sterilizes the product prior to feeding into aseptic filler. Previous application ran with (11) Holding tubes, (6) Cooling tubes and (6) Heating tubes. Sterilization process includes drainage of condensate with steam injection, sterilization, high pressure piston pump product transfer, end cooler, production, programmed recirculation, tank emptying, and end cycle. System is also set up for CIP with initial rinse, soda wash, soda rinse, acid wash, acid rinse and final drain, all with temperature control.
Capacity ratings: Single Strength Flow Rates: 7 tubes =s 30.5 GPM and 9 tubes =s 39.2 GPM; 38 45 brix Flow Rates: Would be the same flow rate for any brix running, however the smaller tube configuration, relieves the product pressure seen by the thicker product. Previously run on concentrated apple juice at 101 C at max speed of 30.5 GPM, using 7 hold tubes. Flow rates can be increased by running hotter in the heater section. Flows above are based on previous internal flow validation testing.
Containers previously run: Different styles of tote packaging Plastic, Metal, and cardboard totes. As for drums it was plastic or metal drums. Can run pails with pail filler attachment (not included).
Capacity: 30.5 GPM to 39.2 GPM (Can be increased)
Materials of Construction: Stainless Steel
Previous Use: Various Juices
