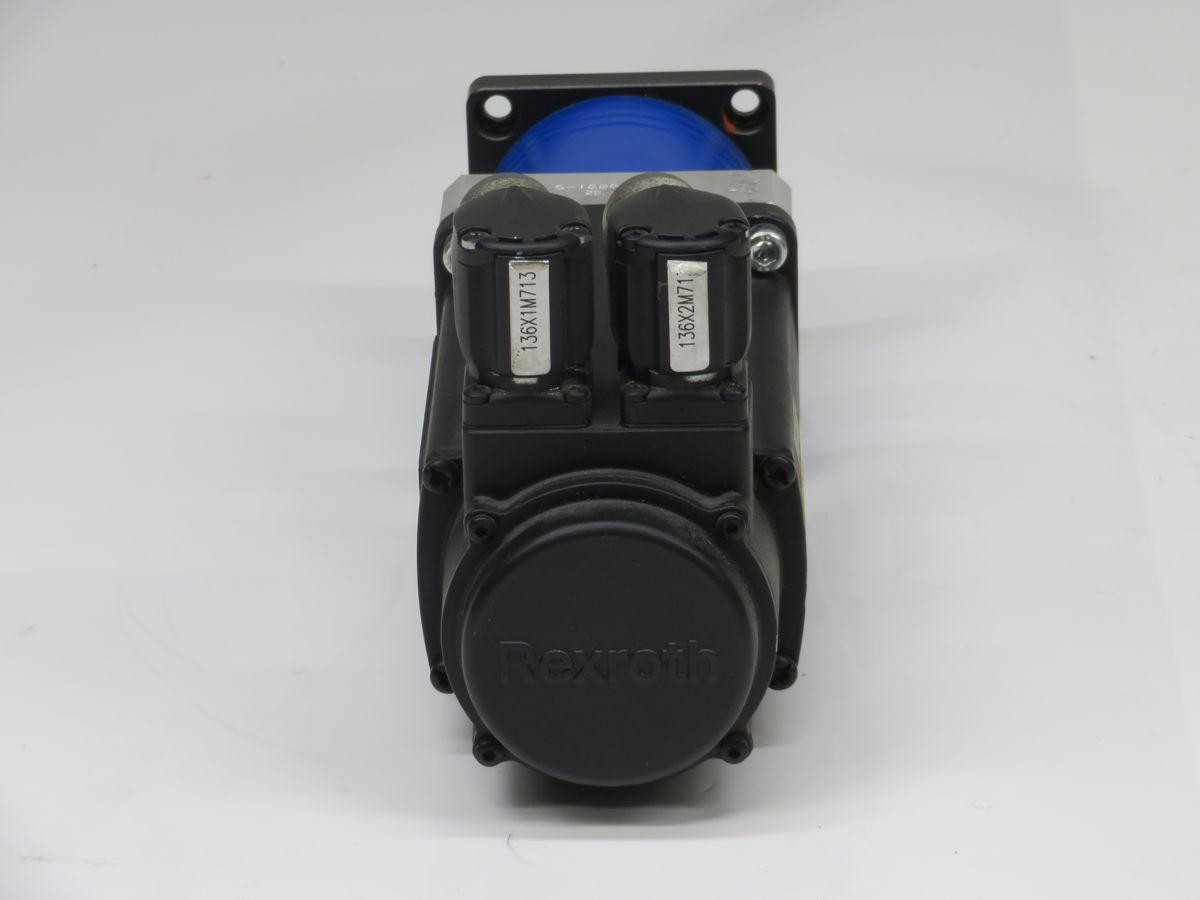

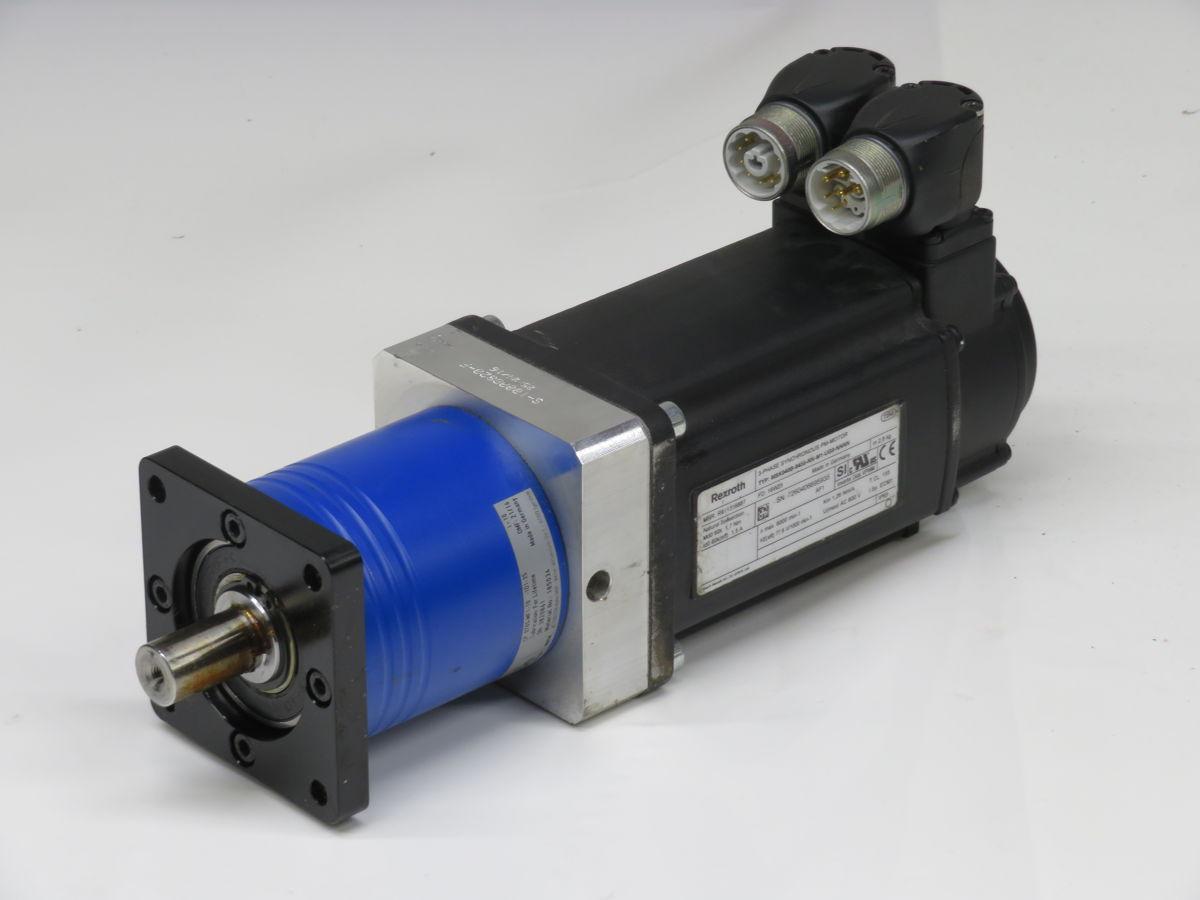

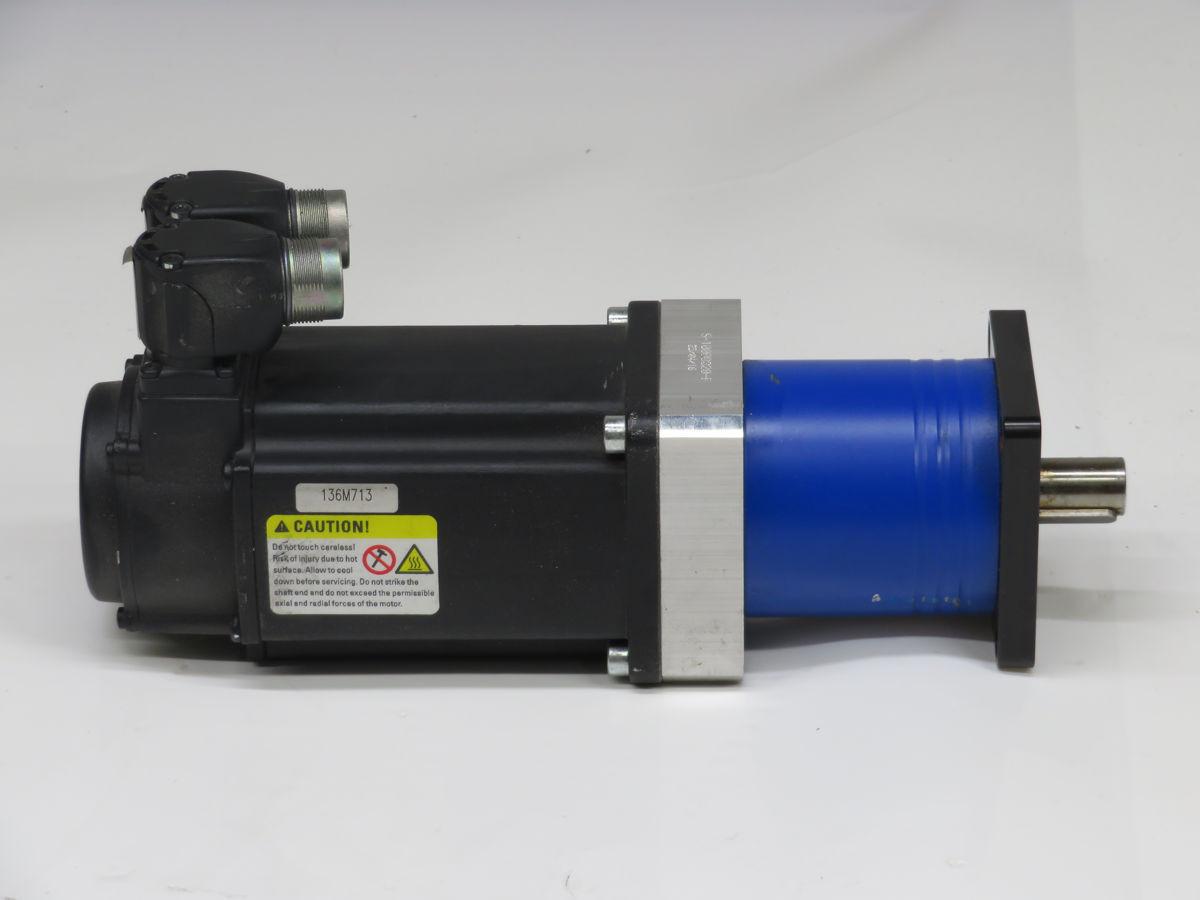

Rexroth #R911316887, Servo Motor, 9000 RPM, 1.5 Nm, 600 Volts (2 available)

$1,408 USD

Request Formal Quote

THE REXROTH R911316887 IS A 3-PHASE SYNCHRONOUS PERMANENT MAGNET SERVO MOTOR, DESIGNATED AS AN MSK040B-0450-NN-M1-UG0-NNNN. THIS MOTOR FEATURES A 030 SIZE CLASSIFICATION AND IS CHARACTERIZED BY A 40MM X 40MM FLANGE. IT IS DESIGNED FOR OPERATION WITH A MAXIMUM SPEED OF 9000 RPM AND IS RATED FOR 600 VAC. THE MOTOR UTILIZES NATURAL CONVECTION FOR COOLING. CONFIGURED WITH WINDING 0450, IT PROVIDES A NOMINAL CONTINUOUS TORQUE OF 0.5 NM AT A NOMINAL SPEED OF 6000 RPM, WITH A NOMINAL CONTINUOUS CURRENT OF 1.5 A, AND A PEAK TORQUE CAPACITY OF 1.5 NM. INTEGRATED FEEDBACK IS PROVIDED BY A MULTI-TURN ABSOLUTE HIPERFACE ENCODER OFFERING 128 SIGNAL PERIODS. THE SHAFT IS ENGINEERED WITH A KEYWAY AND INCORPORATES A SEALING RING.
