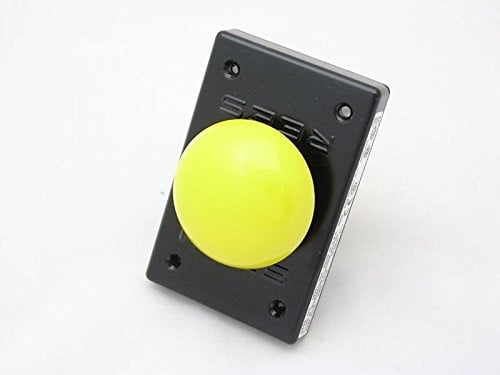

Rees 02761-004 2.25" Metal Mushroom Plunger Pushbutton Switch, 2 NC 2 NO, Moment, NEW

$408 USD

Request Formal Quote

Plunger Color: Yellow. Cover Color: Black. Operating Force: 3.7 lb. Contact Arrangement: #64 2 NO + 2 NC. Contact Type: Snap-Action. The following switch is a hand operated, control circuit device, rated ?'Heavy Duty?' normally for use with electromagnetic equipment. The black cover, painted with a dry powder paint, is made from die-cast zinc. The yellow mushroom plunger head is powder painted zinc die-cast. Gold plated contacts eliminate high resistance tarnishing. Nema 12/13, IP 65. Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with all mounting hardware and a solid neoprene rubber gasket which provides an oil tight seal upon installation. The mechanical life of this device is 1,000,000 operations. This switch can be found on a variety of machines such as punch presses, press brakes, and spot-welding equipment as ?"RUN?", ?"START?" or ?"STOP?" buttons. Its rugged construction and long term reliability make this switch extremely well suited to function within various industrial/commercial environments. Electrical Ratings: ?"HEAVY DUTY ?- A600 / N300?". Listed under UL 508 ?- File # E 58589. Certified under CSA C22.2 ?- File # LR 3648. CE Compliant IEC/EN 60947-5-1. Third party certified under DEMKO File # FI-17205. Operating: +32oF to +131oF (0oC to +55oC). Storage: -40oF to +185oF (-40oC to +85oC). Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids. SPECIFICATIONS: Plunger Color: Yellow. Cover Color: Black. Operating Force: 3.7 lb. Positive Opening Contact. Contact Arrangement: #64 2 NO + 2 NC. Contact Type: Snap-Action. Operating Type: Momentary. Approx. Shipping Weight: 1.35 lb. Old Catalog Number 2761.. Rees. Rees Inc. 02761-004.
