Rapid Industries #RPB-08-12-14, Abrasive Shot Blast Room System, cross auger floor reclaim system, 6500 cfm @ 50 FPM dust collector, storage hopper, grating floor, wash booth, 2022

Design Specifications:

• Manufacturer: GAT / RTT / Springer Industrial
• Working Dimensions with Conveyor: 3-0 W x 10-0 H x 14 D
• Maximum Product with Conveyor: 2-0 W x 8-0 H x 12-0 L
• Note: A wider part may be ran if conveyor is modified or carts are used. A 4 wide part may be processed with the system as is with carts. If booths are widened a 7 wide part may be processed on carts.
• Utilities: Electric @ 480-V / 3-Ph, Gas = Natural @ 16.5 W.C, City Water 1 @ 40 PSI
• Year: 2022 / 2023
• Condition: Excellent, operational through 2026
• Location: Wisconsin

Equipment Specifications:

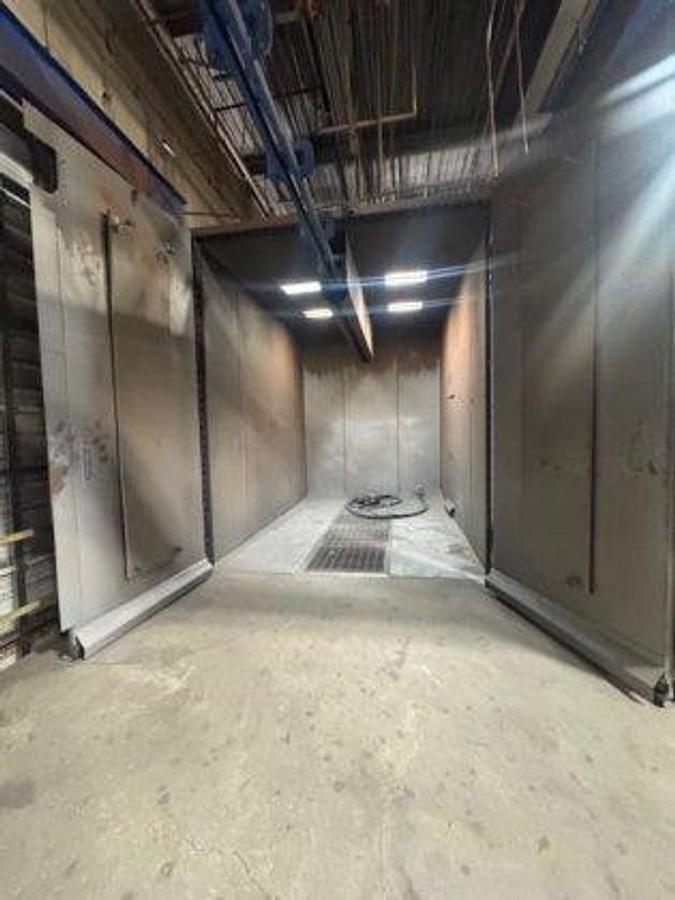

Abrasive Shot Blast Room & Blast Equipment:

• Manufacturer: Springer Industrial
• Outside Dims/ Footprint: 17-0 W x 17-4 H x 16-0 L, Pit Required for Elevator
• Working Dimensions: 10-0 W x 12-0 H x 14 D
• Construction: Booth Steel & Aluminum, Steel Plate Floor
• (4)15,000 Lm LED Lights

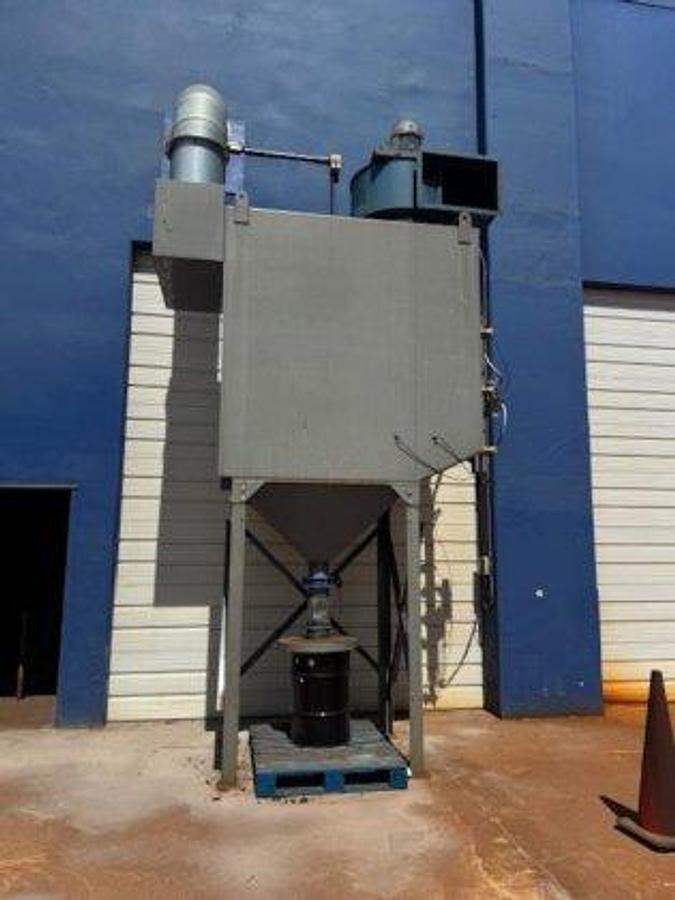

• Dust Collector 6,500 cfm @ 50 fpm

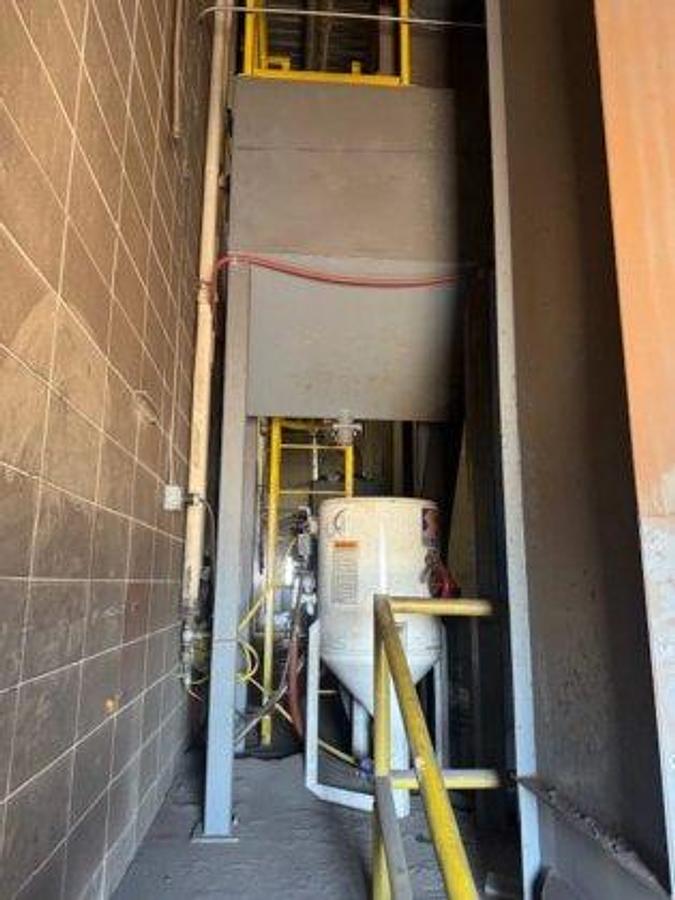

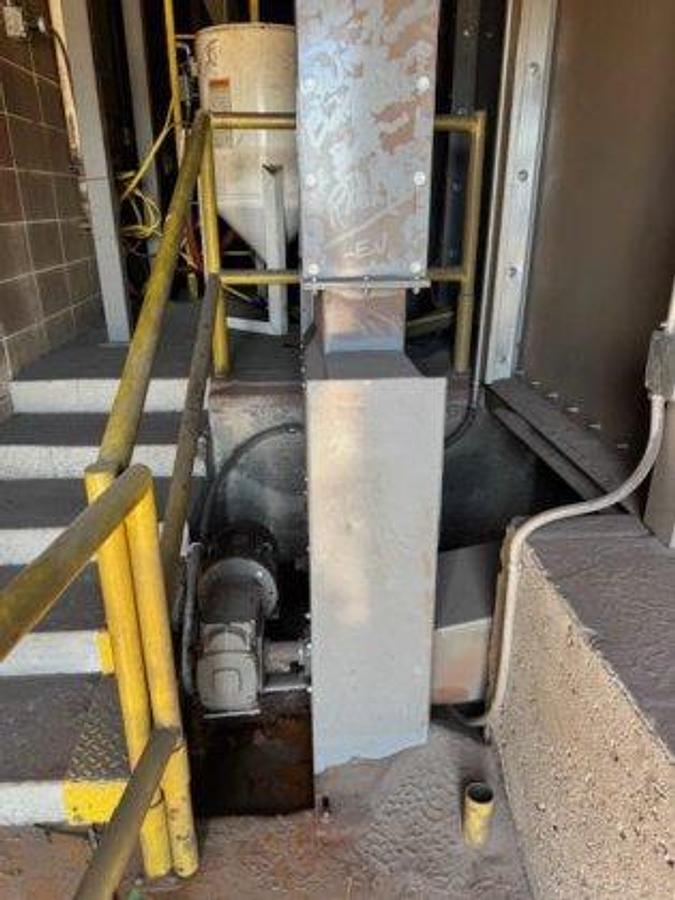

• Elevator / Separator / Storage Hopper /Cross Auger Floor Reclaim System, Blast Pot, Operator Equipment, Grating and All related equipment provided.
• Man Door
• Conveyor Slot for Conveyor Rail

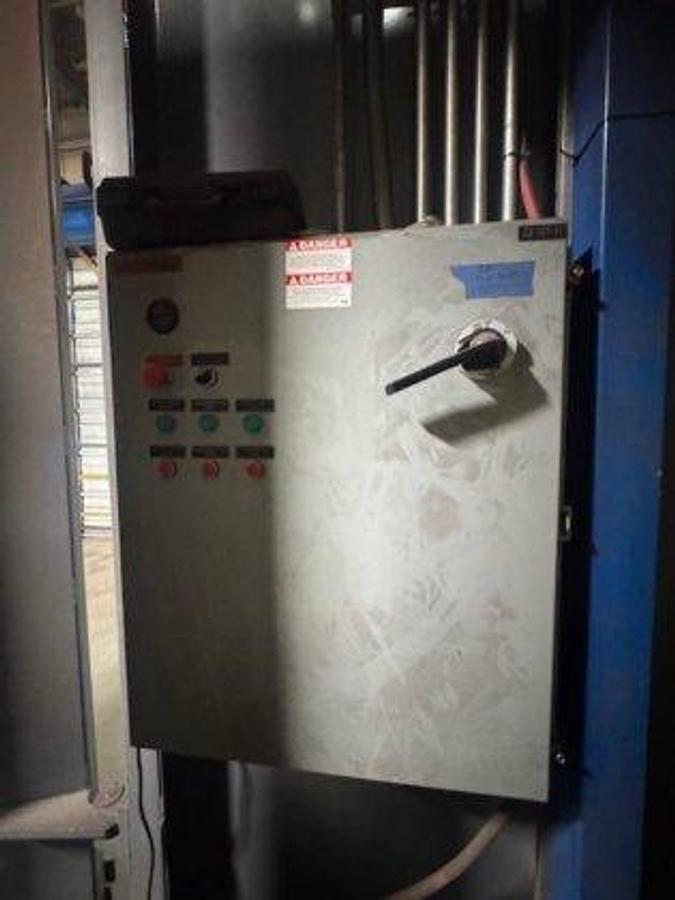

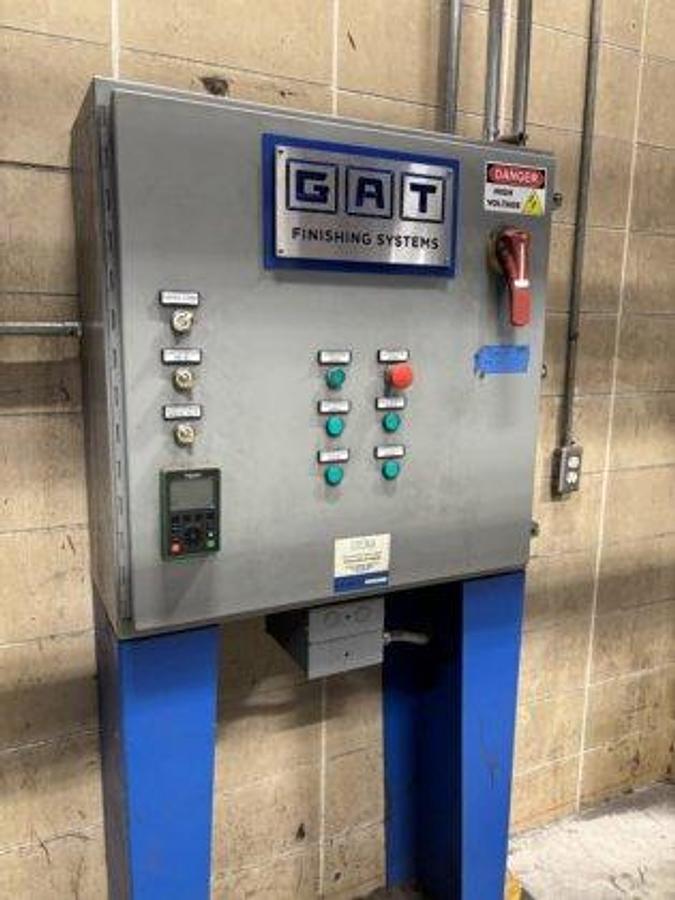

• System Control Panel 480 V, 3-Ph, 50 Amp Feed

Wash Booth:

• Manufacturer: GAT
• Outside Dimensions: 12 W x 13-0 H x 16-0 L
• Working Dimensions: 5-0 W x 10-0 H x 16 D
• Construction: Stainless Steel Frame with Poly Wall/Roof
• (4) Vapor Rated 48 LED Lights
• Exhaust Fan. 30 Tubeaxial, 8,519 cfm, 1HP
• Conveyor Slot for Conveyor Rail
• System Control Panel 480 V, 3-Ph, 20 Amp Feed
• 945N Hotsy HWE Hot Water Pressure Washer, very little use
• Steam heat to drain design

Batch Ovens (2 Included):

• Manufacturer: GAT
• Outside Dimensions: 10-10 W x 13-3 H x 16L, 20 L with Burner box
• Working Dimensions: 8-0 W x 10-0 H x 14-0 D
• Design Temperature: 450 Degrees F
• Designed Throughput: 3,000 lbs/hr
• Rear-Mount Burner Box (10 HP, 9,932 cfm) & Integral Exhaust Fan (1,156 cfm)
• Side Mount Duct
• Conveyor Slots for Conveyor Rail
• 6 Thick Insulated Oven Panels for Walls and Roof
• Eclipse Burner with Dungs Gas Train
• Gas: Natural or Propane, 1.2 Mbtus Hr Rated Capacity
• System Control Panel, 480 V, 3-Ph, 30 Amp Feed

Powder Booth Systems (2 Included):

• Manufacturer: RTT
• Model: RPB-08-12-14
• Outside Dimensions: 8-4 W x 12-2 H x 14-4 L, 20 L with Fan Package
• Working Dimensions: 5-0 Wide x 10-0 High x 14 Deep
• Type: Rear-draft, Cartridge, Non-Reclaim booth
• Steel Canopy
• (3) 48 LED Lights
• 5,000 CFM, Fan Packages, Cartridge Type with Pulse Down
• Conveyor Slots for Conveyor Rail
• System Control Panel, 480 V, 3-Ph, 30 Amp Feed
• ITW Gema Powder Guns and Hoppers

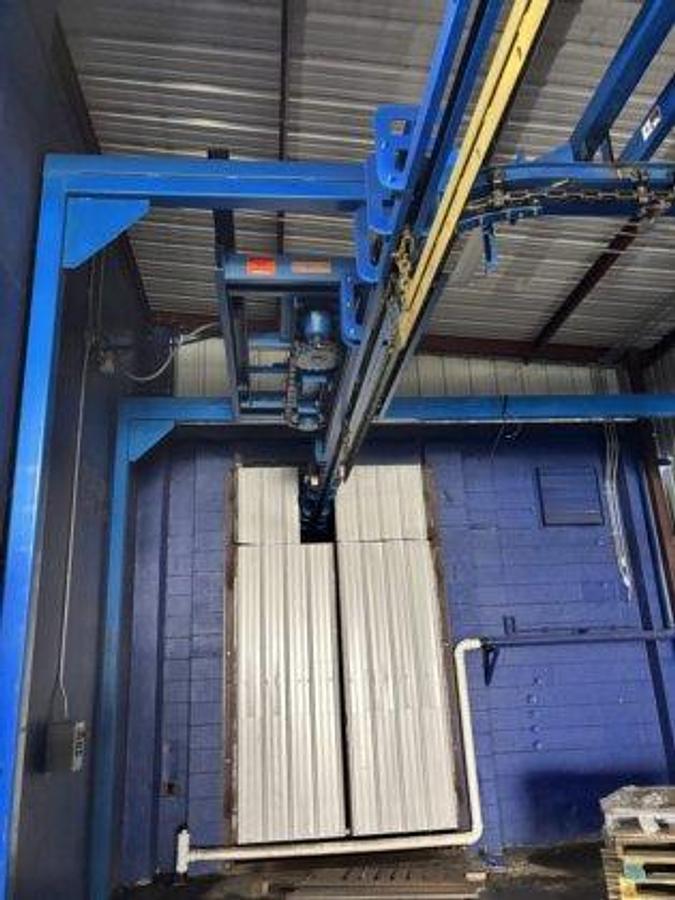

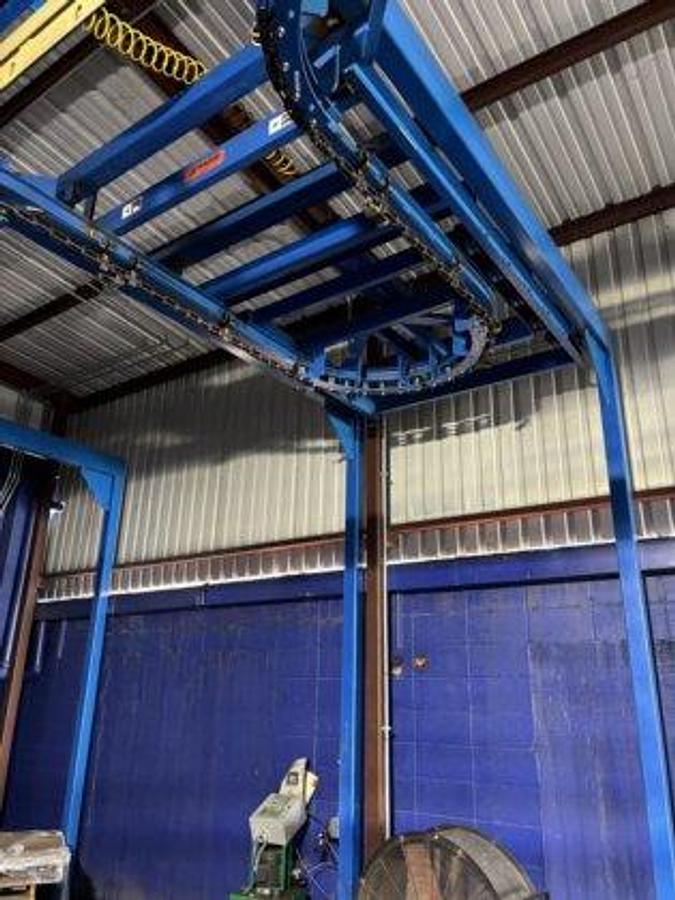

Conveyor Systems 1 Powered and 1 Manual

• Manufacturer: Rapid Industries
• Type (Powered): 3x3x3 Power & Free
• 20 Carriers / Loadbar Sets with a 3,000 lb part capacity
• All Components to include Track, Turns, Drive, Take-Up, Oiler, Etc included.
• Heavy-Duty Structure Supports
