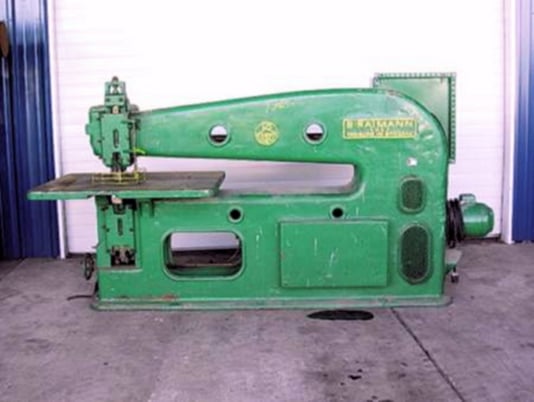

Raimann ASA-1650, Veneer Patcher, 61" throat capacity, 3 HP gearmotor, (40) plugs/min., 1/32" - 1/5" (soft woods), 1/20" - 3/16" (hard woods), P-34 dies

RAIMANN Model ASA 1650 II, Veneer Patcher.Specifications: -- 5HP gearmotor, drive conversion wit new clutch and motor. Strip type mechanical plug-feeder mechanism - cap.. of up to (40) Plugs/Min.; -- Thickness of veneer patchable 1/32" - 3/16" (0.8 mm - 4.76 mm). Profile P-34 dies in good condition. -- Table dimensions approx. 39" x 47" -- Throat distance from tool to back column 65" -- Table height 35" -- Tool sequence: Veneer patch is cut by the table die and scrap is ejected into discharge chutes, veneer patch blank is then positioned against the underside of the table die, plug punch cuts replacement veneer patch from underside and patch is inserted into the proper position. -- Reconditioned by experts. -- Overall size: 10' 8" (3,250 mm) Length x 67" (1,700 mm) height; approx. weight 12,000 Lbs (5,450 kG). --Option: Veneer Strip Feeder. Feeds standard strip widths continuously. Venturi vacuum cup strip feed mechanism. All pneumatic operation. 120 Volt/60 Hz controls.please inquire for price extra. --Actual model is RAIMANN Model ASA II 1650.
