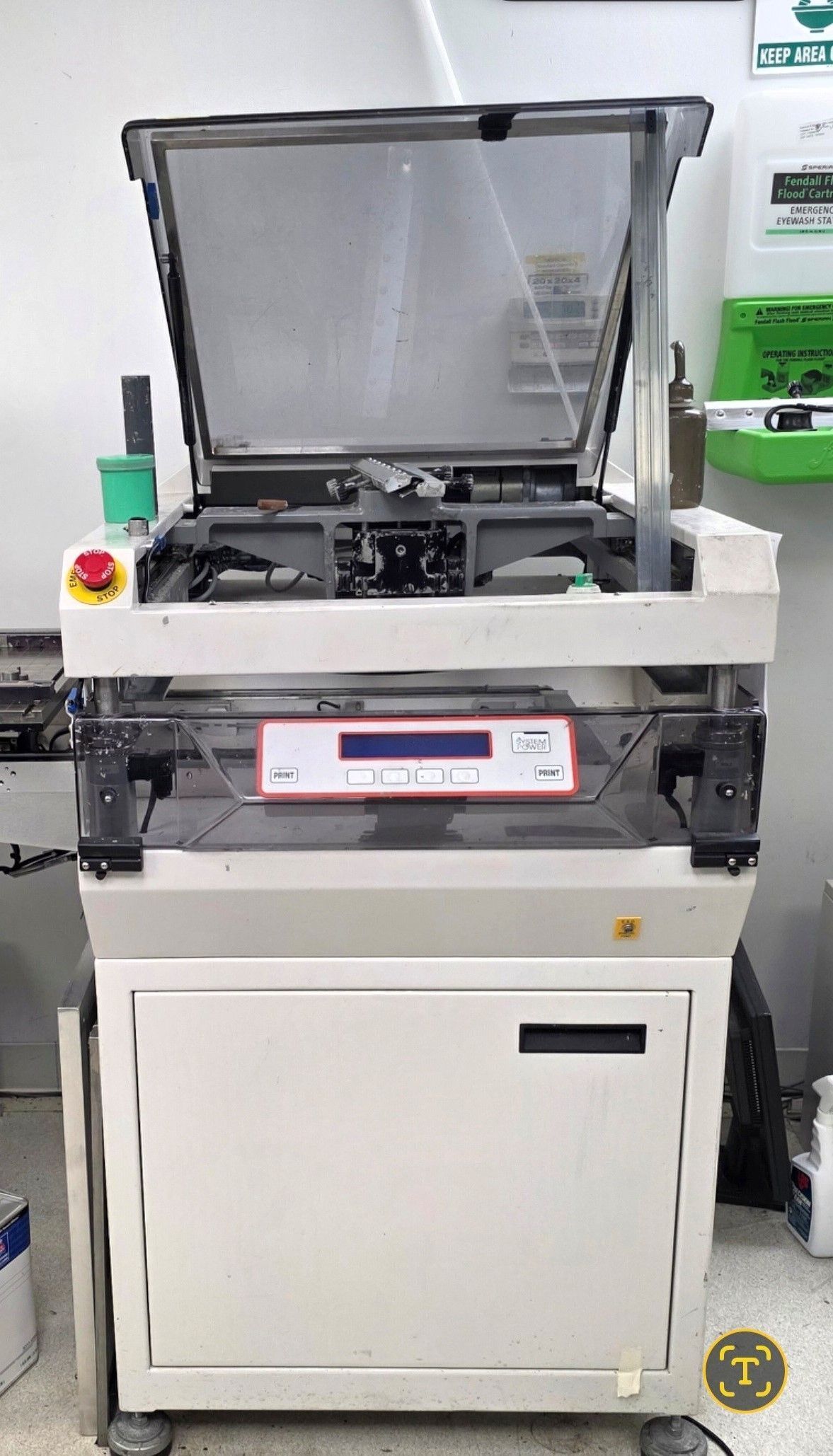

Quad #UP100, semi-automatic SMT stencil screen printer, 20" x 20" max stencil frame, 17.7" x 19.7" max PCB, dual squeegees, SMEMA, 110 V., 1999

$3,150 USD

Request Formal Quote

QUAD UP100 SMT Stencil Screen Printer | Semi-Automatic | Solder Paste Printer | 1999

MACHINE OVERVIEW
For sale is a QUAD UP100 (also sold as Speedline/Electrovert UP100 and SMTech 100MV) semi-automatic SMT solder paste stencil screen printer manufactured in 1999 and in good working condition. The UP100 is a proven, professional-grade inline stencil printer designed for small-to-medium PCB production runs. Its compact footprint, 110V single-phase power, and fine-pitch capability make it one of the most accessible industrial solder paste printers available on the used market. Located in Princeton, NJ available for local pickup or contact us for a freight quote.

KEY SPECIFICATIONS
- Type: Semi-automatic stencil/screen printer
- Max Stencil Frame Size: 20" × 20"
- Max PCB Size: ~17.7" × 19.7" (450mm × 500mm)
- Squeegee System: Dual independently controlled squeegees
- Alignment: Manual vision alignment system
- Fine Pitch Capable: Yes
- Power: 110 VAC, 5A, single phase
- Compliance: SMEMA compatible
- Tooling: Adjustable, configurable

FEATURES & BENEFITS
- Semi-automatic operation easy to set up and use
- Dual squeegee system for consistent solder paste deposition
- Fine pitch capable suitable for modern PCB designs
- Compact footprint space-efficient for smaller shops
- 110V single-phase no special electrical installation required
- SMEMA compliant tooling for inline integration
- Authorized service and spare parts available through SigmaPrint Technologies

CONDITION & AVAILABILITY
- Year: 1999
- Condition: Good working condition
- Location: Princeton, New Jersey
- Pickup: Available (local)
- Shipping: Available contact us for a freight quote

IDEAL FOR
Small PCB assembly shops, electronics manufacturers, prototyping labs, rework operations, and anyone needing a reliable, professional-grade stencil printer at an accessible price point.

QUESTIONS?
Message us with any questions. Additional photos available. All sales are as-is.
