Description
A fully integrated, inline Surface Mount Technology (SMT) production cell ideal for low-to-medium volume PCB assembly, prototyping, or high-mix electronics manufacturing. This complete line setup includes print, placement, reflow, board conveyance, computer controllers, and stencil storage accessories.

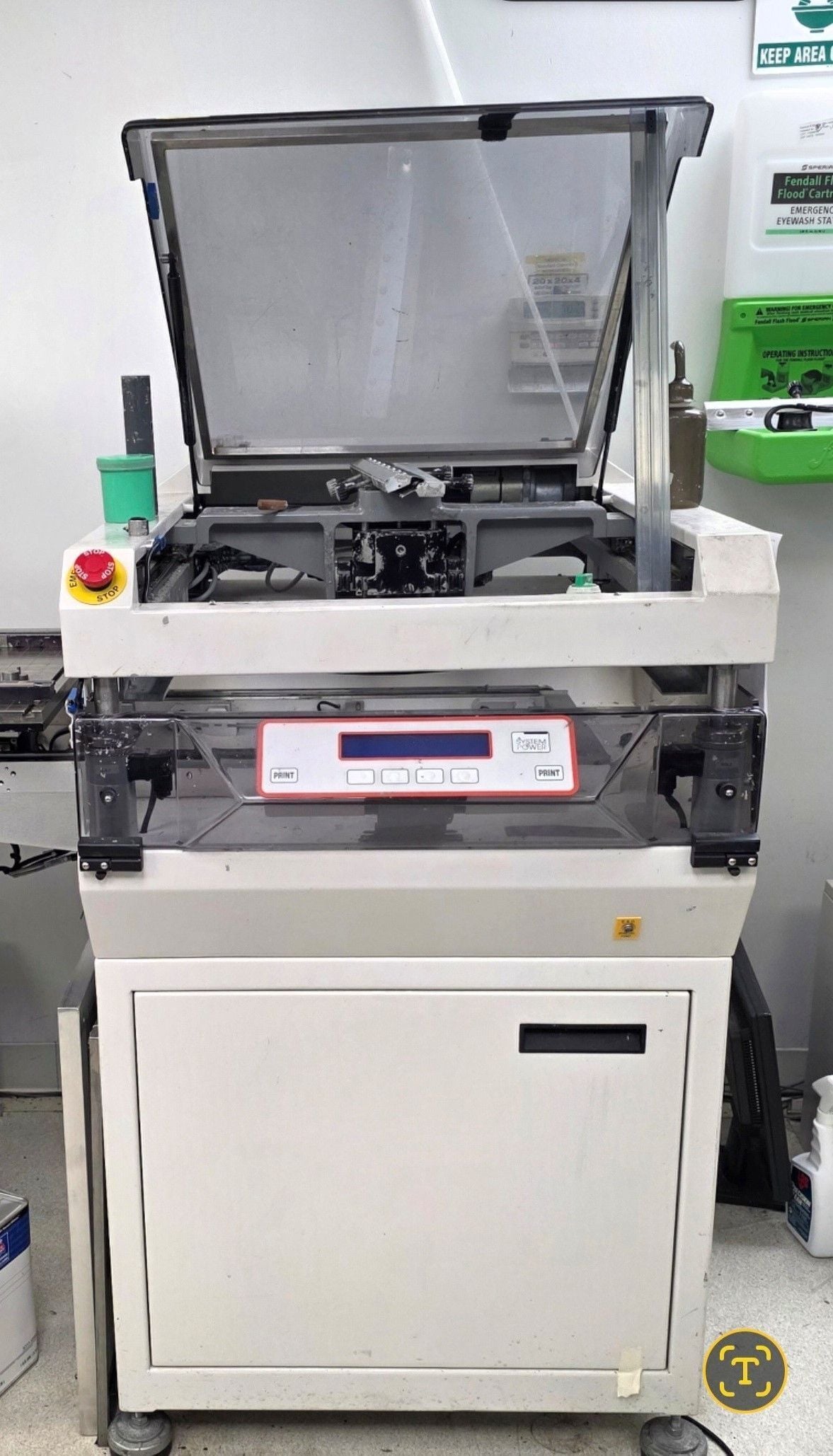

Included Primary Machinery: Quad UP100 Screen / Stencil Printer: Semi-automatic/manual alignment printer with squeegee assembly.

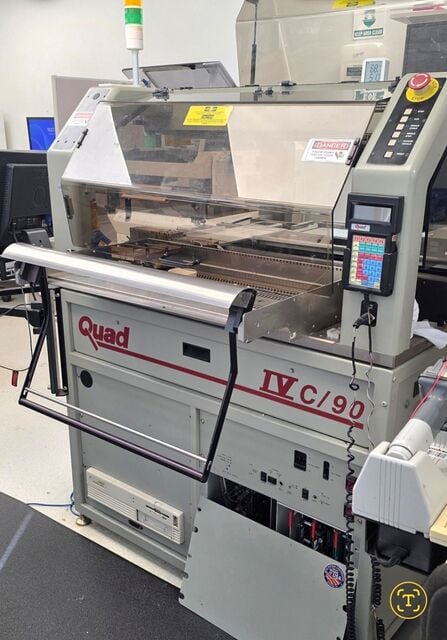

Quad IV C/90 Pick & Place Machine: Entry/fine-pitch SMT component placement system.

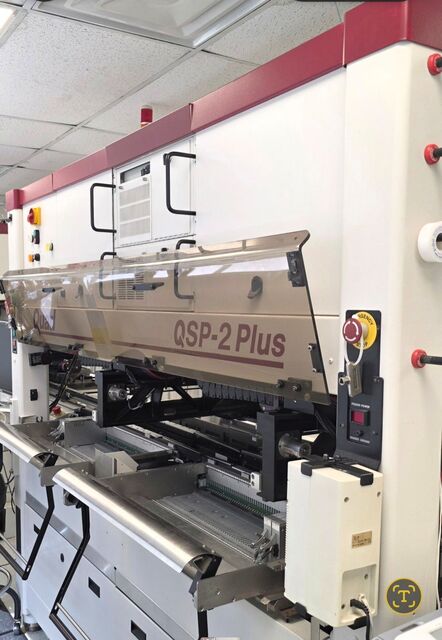

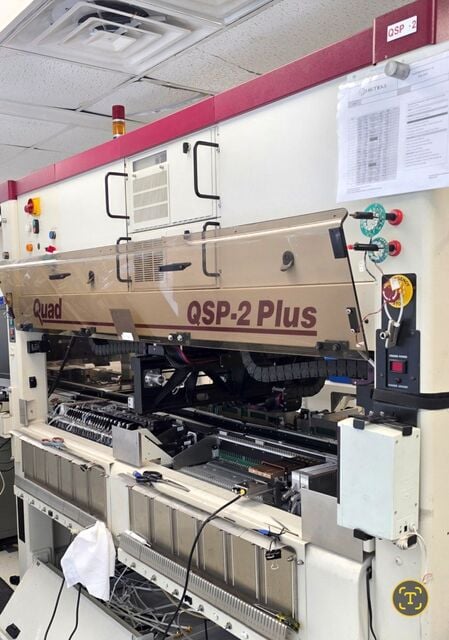

Quad QSP-2 Plus Pick & Place Machine: High-speed placement module with extended feeder capacity.

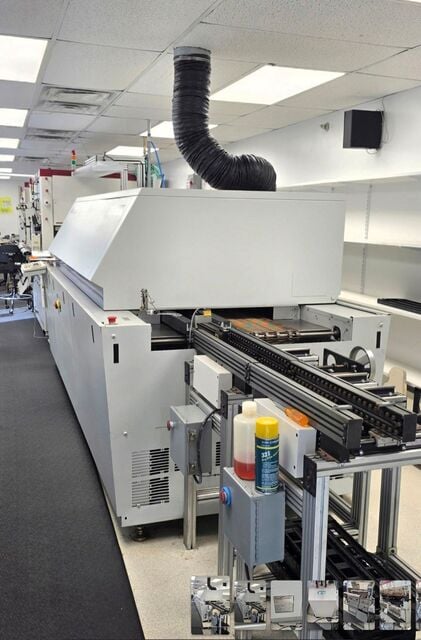

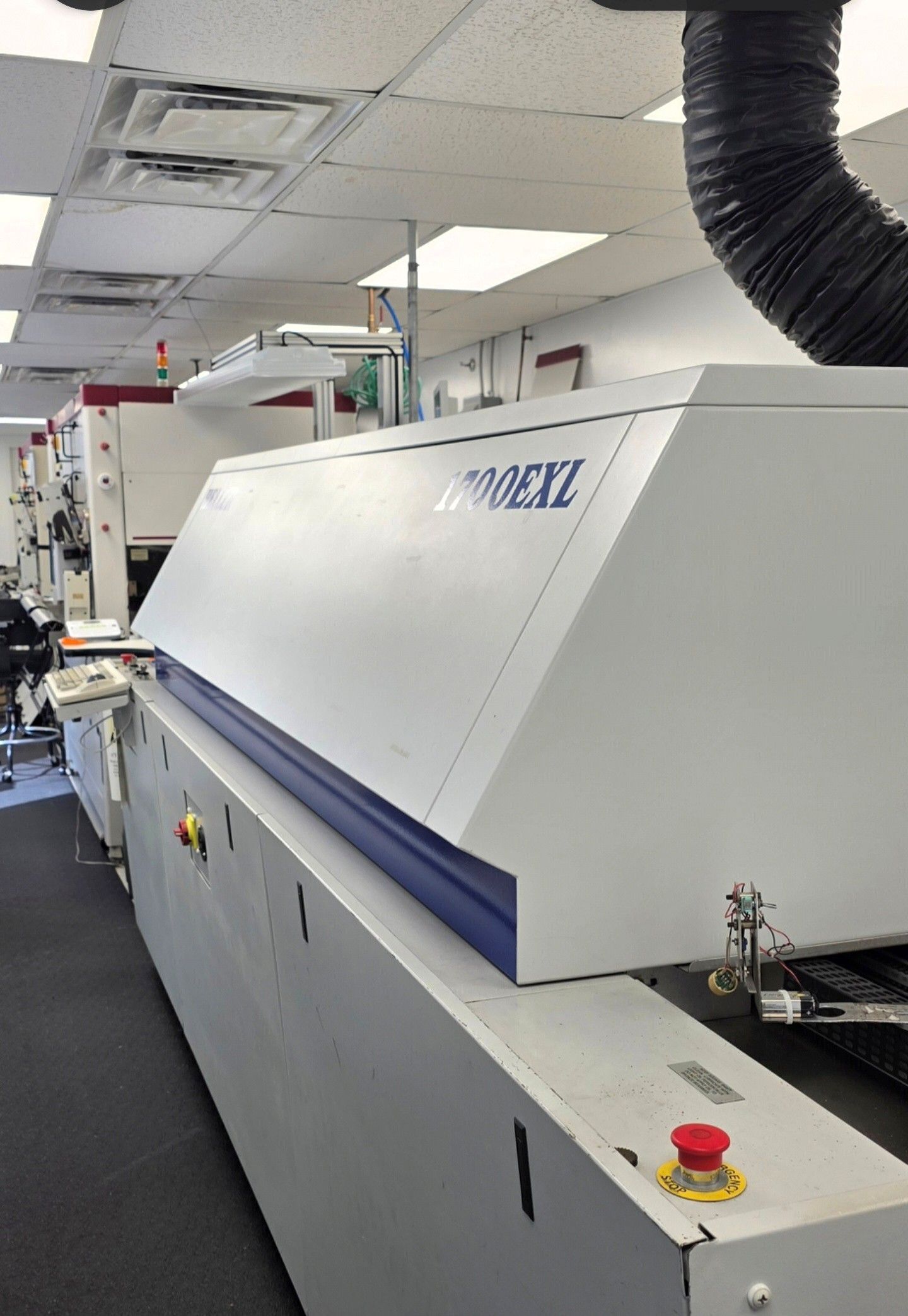

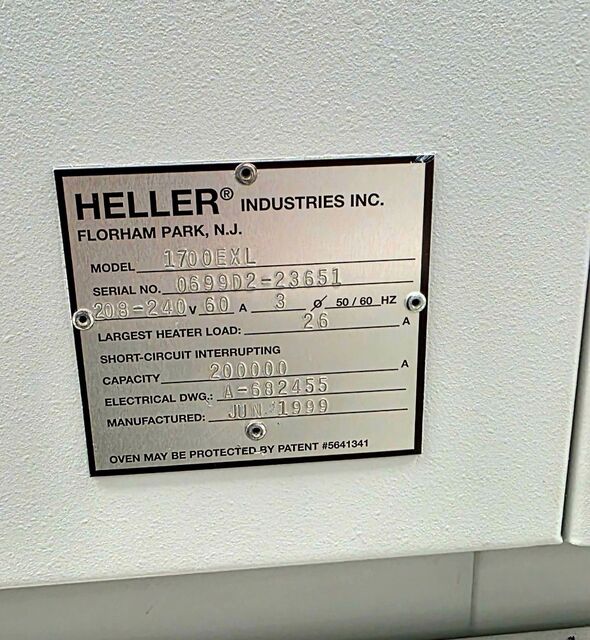

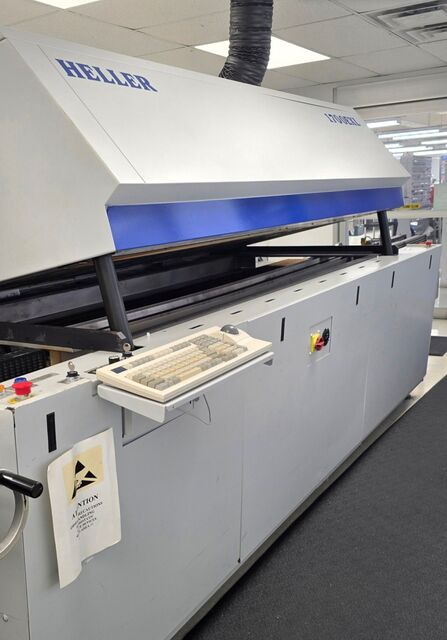

Heller 1700EXL Reflow Oven: Multi-zone forced-convection reflow soldering oven with pin-chain/mesh belt conveyor system and exhaust connection.
Included Line Integration & Accessories: Inline Conveyor System: Segmented edge-belt conveyors with manual width adjustments connecting all process stages into a continuous flow.
Control PCs & Terminals: Dedicated host computers with monitor swing arms, keyboards with integrated trackballs, and operating system software interface.
Feeder Package: Complete set of installed Quad tape feeders and reel holders.
Stencil Storage Rack: Multi-tier storage shelving unit filled with framed SMT printing stencils.
Production Workstations & Consumable Supplies: Operator chairs, side worktables, and label printing equipment.
Condition: Complete operational production setup.
Location: Offered as a single lot package for removal and re-installation.
Removal: Disassembly, removal, loading, and transportation is the sole responsibility of the buyer. Contact us if you have questions about this or would like to discuss assistance.
