Description
Year: 2004
240 3 Phase – 30 HP

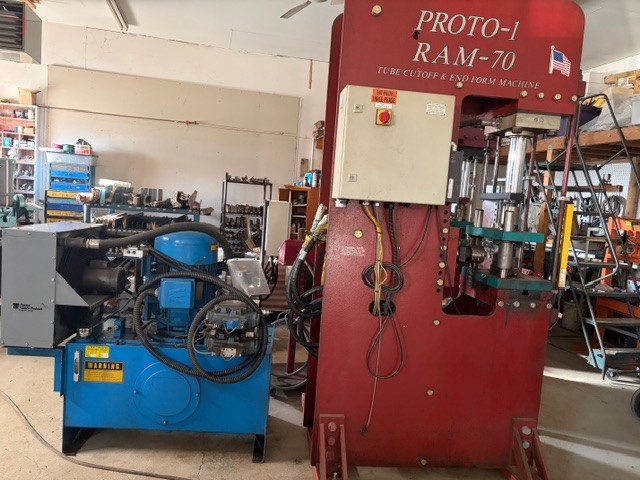

70 ton 7 position progressive ram end forming and tube cut-off machine for tube and pipe from 0.125’’- 7.0’’ diameter. Ram-70 has tube cut-off capability for after bend. Proto-1’s tube cut-off technology is industry leading and allows for a quick cut-off resulting in no burr’s. Proto-1’s RAM-70 End Form Applications: offset expands, coping, piercing, trim/form, tube reducing, bending, swaging, spline, slotting, hole punch, beading, flaring, notching, and large bead.
SPECIFICATIONS
Tube Diameter: .125″ – 7.0″
Tube Wall: .020″ – .120″
Cycle Time: Depends on tooling and material
Hydraulic Cylinders Clamp (70 ton vertical with 8″ bore and 18″ stroke)
Hydraulic Cylinders Ram (70 ton horizontal with 8″ bore and 14″ stroke)
Dimensions: 138.9″ length x 96.6″ width x 114.1″ height
