Mario Di Maio, 12 roll tube former

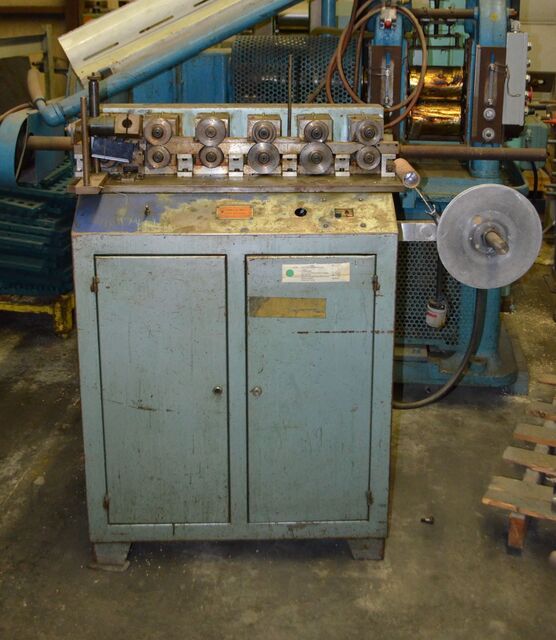

Mario Di Maio 12-Roll (6-Station) Tube Forming Machine
Mario Di Maio tube forming mill configured with six forming heads (12 rolls total across six stations) for progressive roll forming of round tube. The line includes a strip payoff arm and a strip entry guide of approximately 1" width fitted with inline slitting knives. The knives trim the incoming strip to approximately 0.750" wide and condition the strip edges to produce a clean, consistent edge for proper forming and downstream welding. The strip then passes through the six-station forming train, progressively shaped to approximately 6mm outside diameter tube.
Specifications (approximate, as taken from service):
Configuration: 12 rolls / 6 forming heads (6 stations)
Strip entry guide: approx. 1" wide with inline edge-conditioning slitting knives
Strip width after slitting: approx. 0.750"
Finished tube: approx. 6mm OD
Strip payoff arm included
Drive: 3/4 HP
Electrical: 208V, 3-phase
Footprint: 48" L x 24" W x 48" H
Not included: Welder. The machine is equipped with a welder holder/mount at the weld station, but no welding unit (TIG, HF, or laser as applicable) is included. This machine performs roll forming and is set up to accept a weld head, but a welder is required to produce finished welded tube and is not part of this offering.
Roll tooling is configured as removed and reflects the tube size the machine was last set up to produce. Changeover to other tube sizes or profiles would require appropriate tooling.
This machine was taken from service in operating condition to the best of our knowledge. It is offered on an AS-IS, WHERE-IS basis with no warranty of any kind, express or implied, including no warranty of merchantability or fitness for a particular purpose. It has not been operated, tested, or verified by International Rolling Mills since removal from service. All dimensions, capacities, and configuration details are approximate and provided for general reference only. Buyer is responsible for inspection and for confirming suitability for Buyer's intended application prior to purchase.
