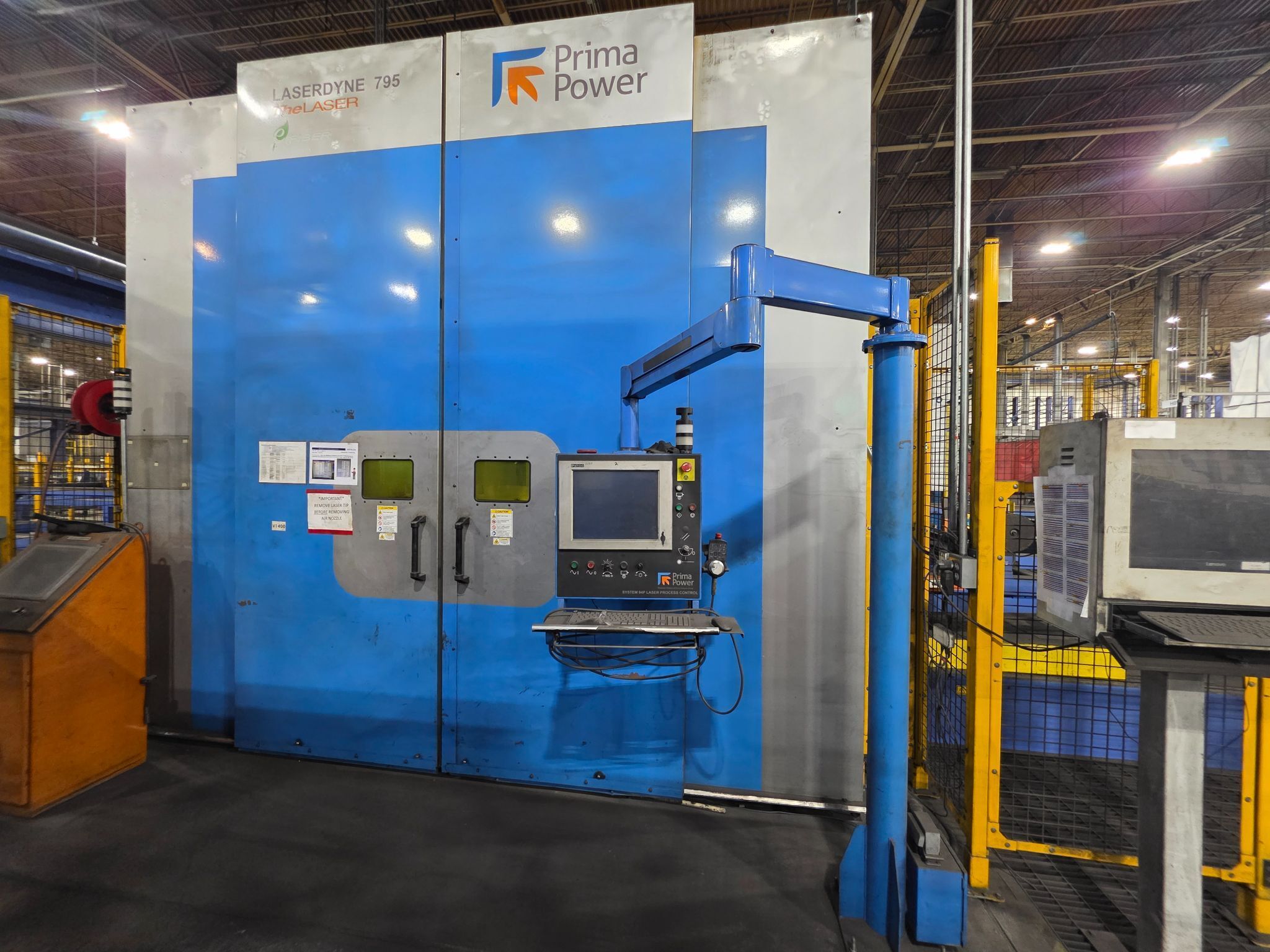

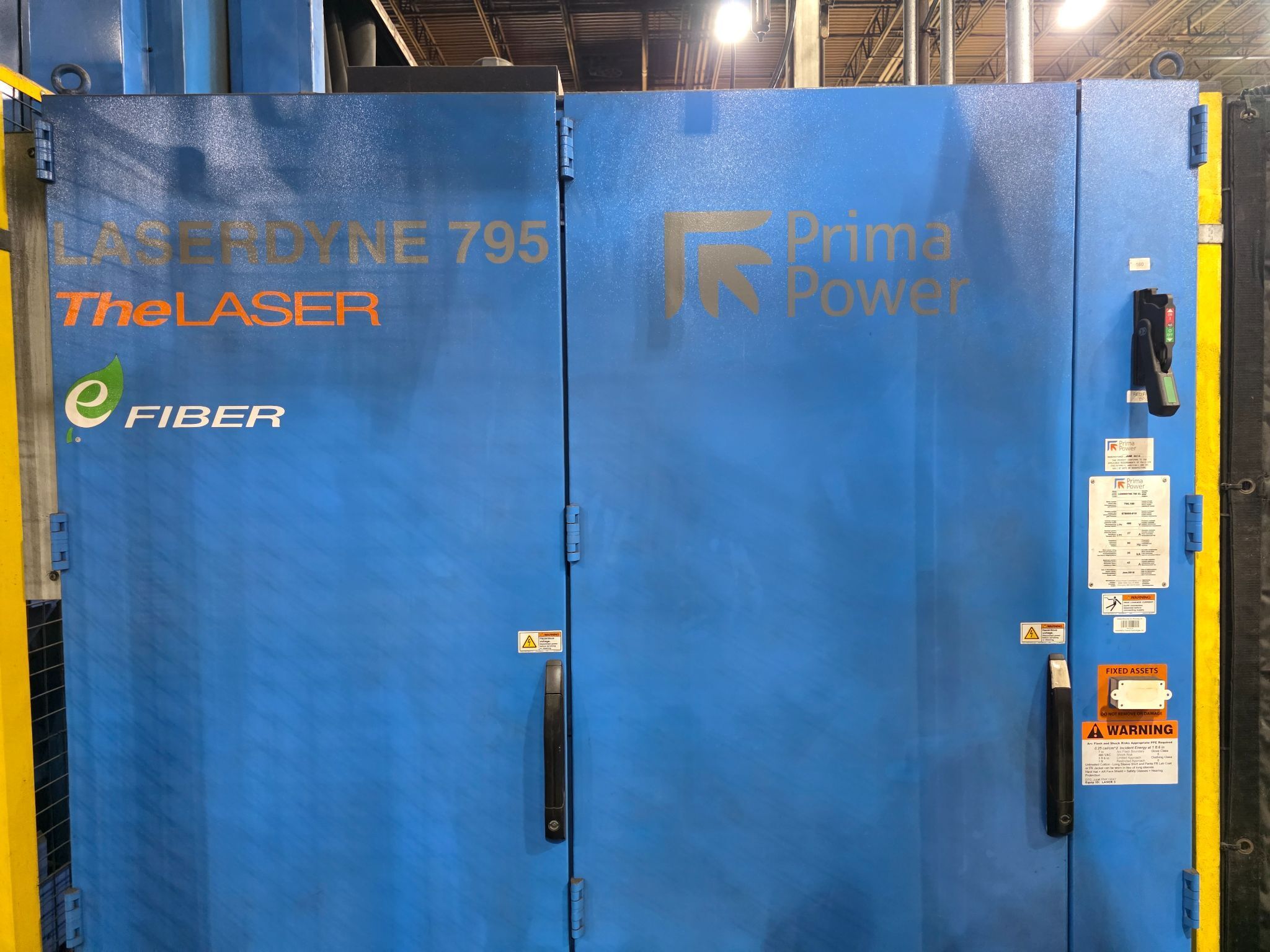

Prima Power #Laserdyne-795XL, premier multi-axis laser processing system, 2016

2016 PrimaPower
THE PREMIER MULTI-AXIS LASER PROCESSING SYSTEM FOR DRILLING, WELDING AND
CUTTING PRECISION COMPONENTS
The LASERDYNE 795, a 5-axis laser machining system, is designed to drill, cut and weld medium to large 3D parts with a
unique moving beam motion system. Constructed for high-speed operation without compromising mechanical accuracy, it
is the first and only standard built multi-axis laser system to guarantee volumetric accuracy.
The LASERDYNE 795 is designed to accept CO2
, Nd:YAG and now fiber lasers for cutting, drilling and welding 2D and 3D
parts. These systems are used by aerospace, turbine engine and contract manufacturing companies that require flexibility of
motion and tight tolerances when laser processing. The open frame architecture and moving beam motion system allows
the system to be configured to handle parts of virtually unlimited size.
Has around 13,880 hours
Located in Virginia, USA
We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.
LASERDYNE 795
Travel
LASERDYNE 795 XS: X 1,000 mm Y 1,000 mm Z 1,000 mm
LASERDYNE 795 XL: X 2,000 mm Y 1,000 mm Z 1,000 mm
Note: extended Z heights are available: 1370mm (54 in) or 1830 mm (72 in)
BeamDirector: C 900 D 300 (150 from vertical)
Axis speed
X, Y, Z: 20 m/min
BeamDirector: 90 rpm
Accuracy
X, Y, and Z axis = 25 um (0.001 in)
BeamDirector = +/-15 arcsec
Rotary/Tilt = variety of options available
Repeatability
X, Y, and Z axis = 25 um (0.001 in)
BeamDirector = 15 arcsec
Rotary/Tilt = variety of options available
Laser source
YLS-2000/20000-QCW
