Description

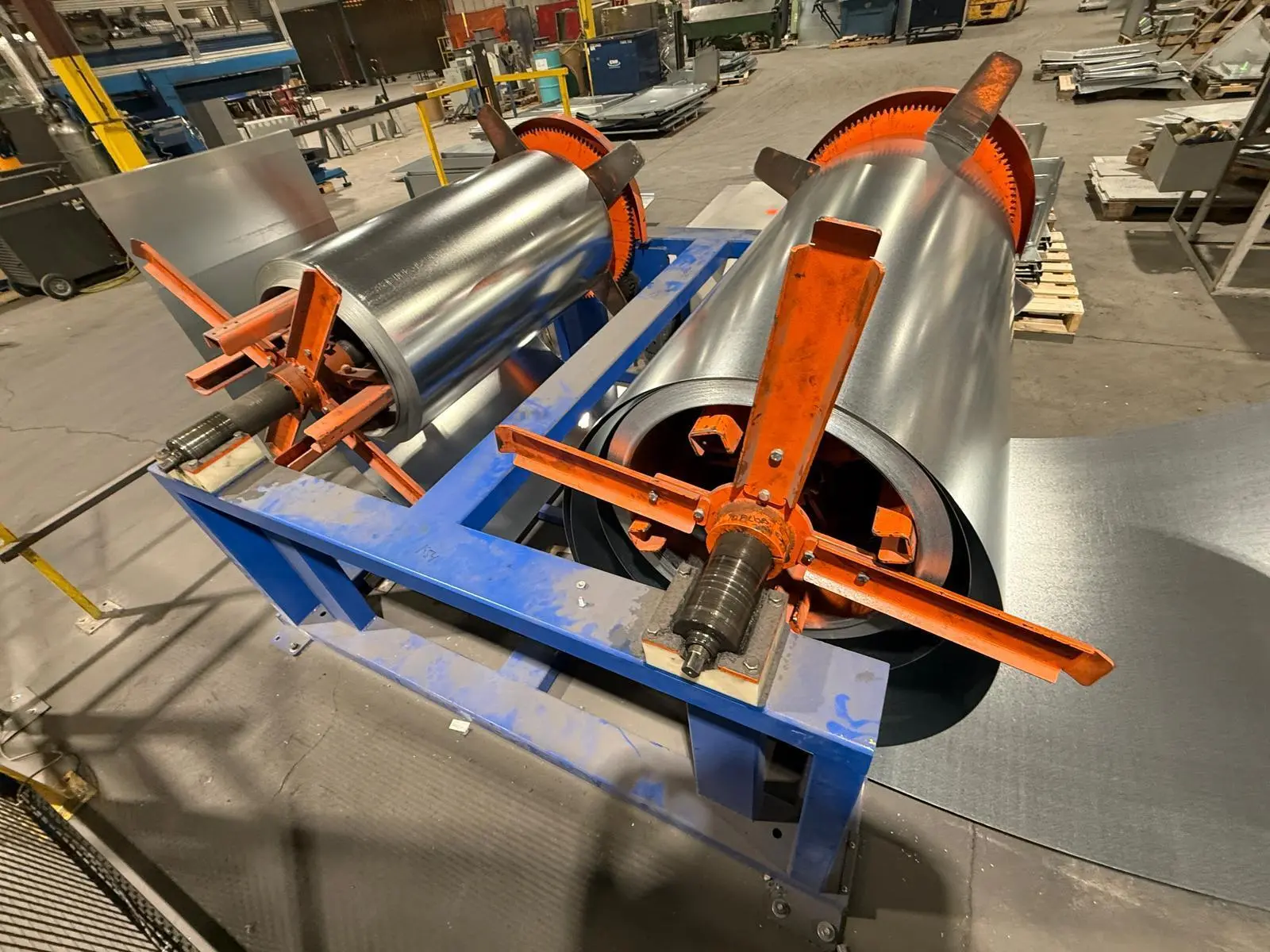

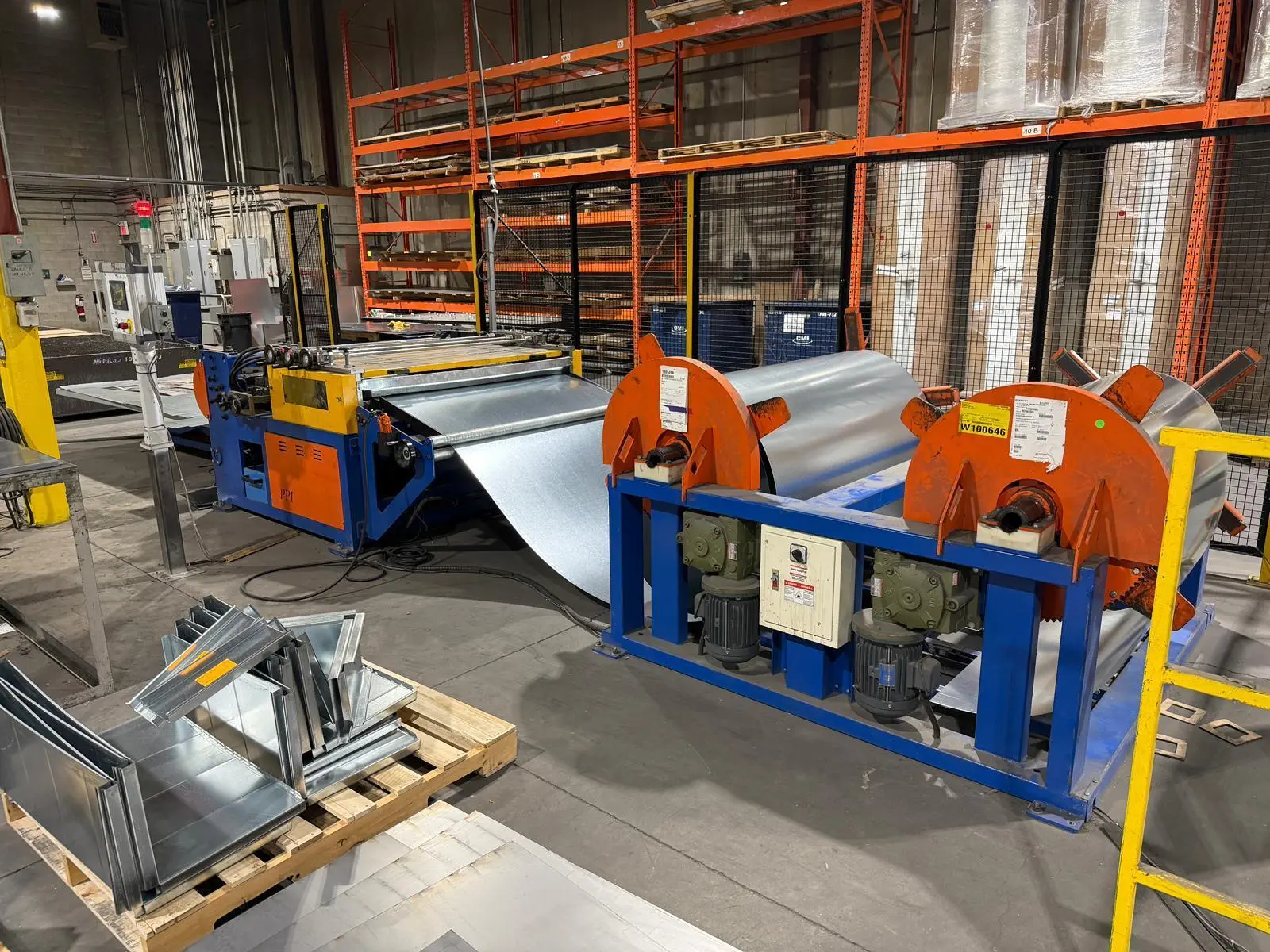

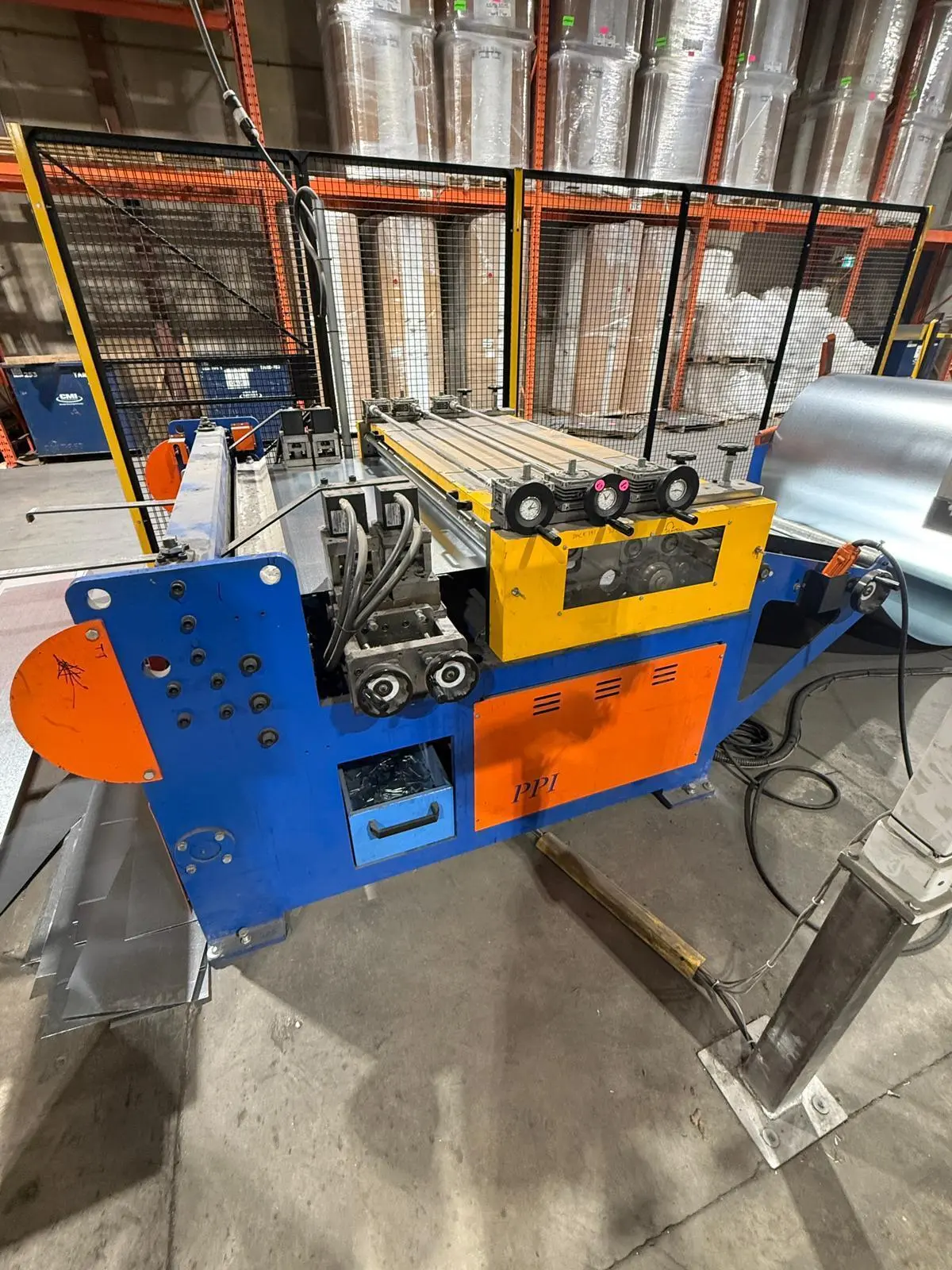

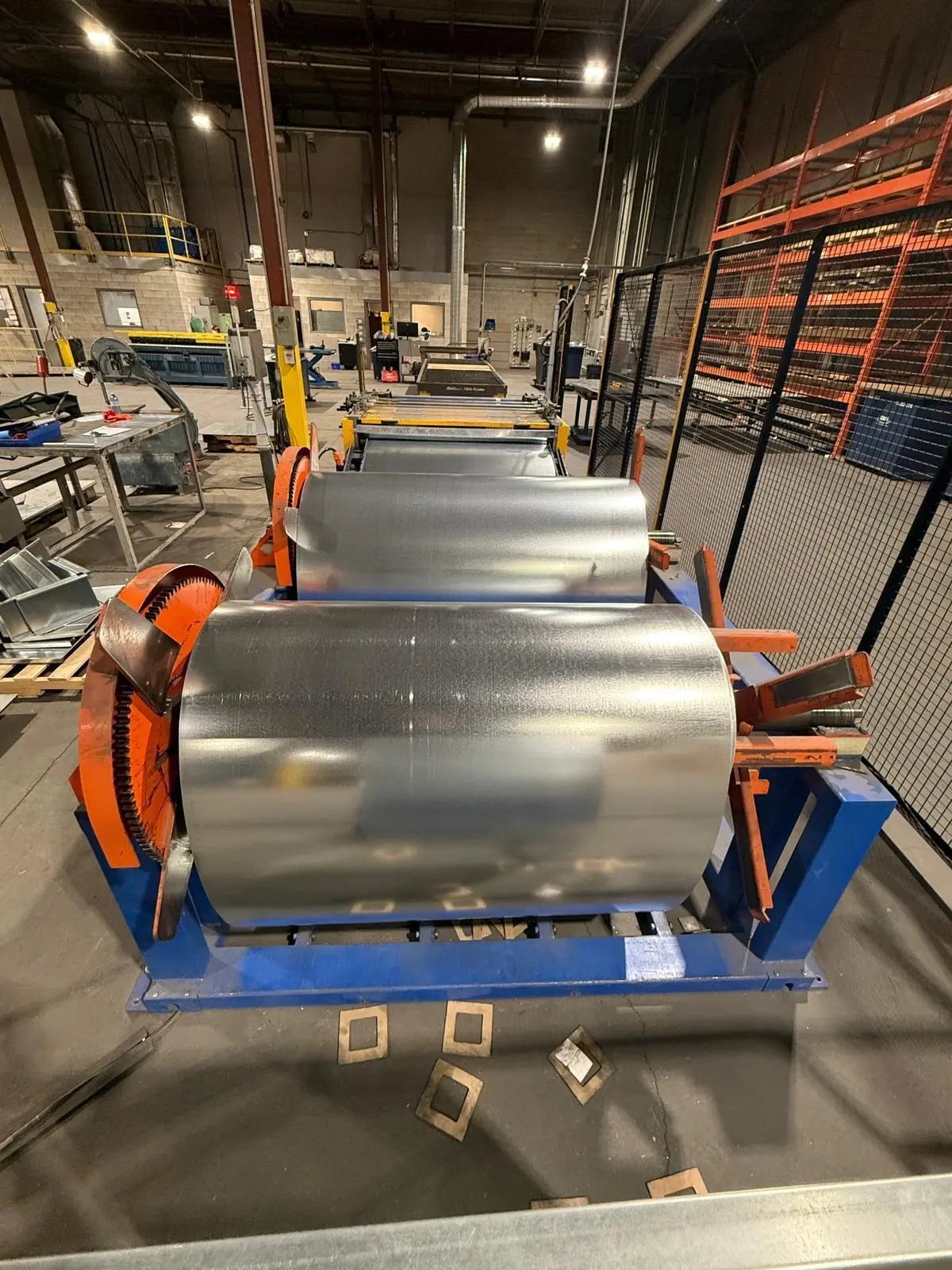

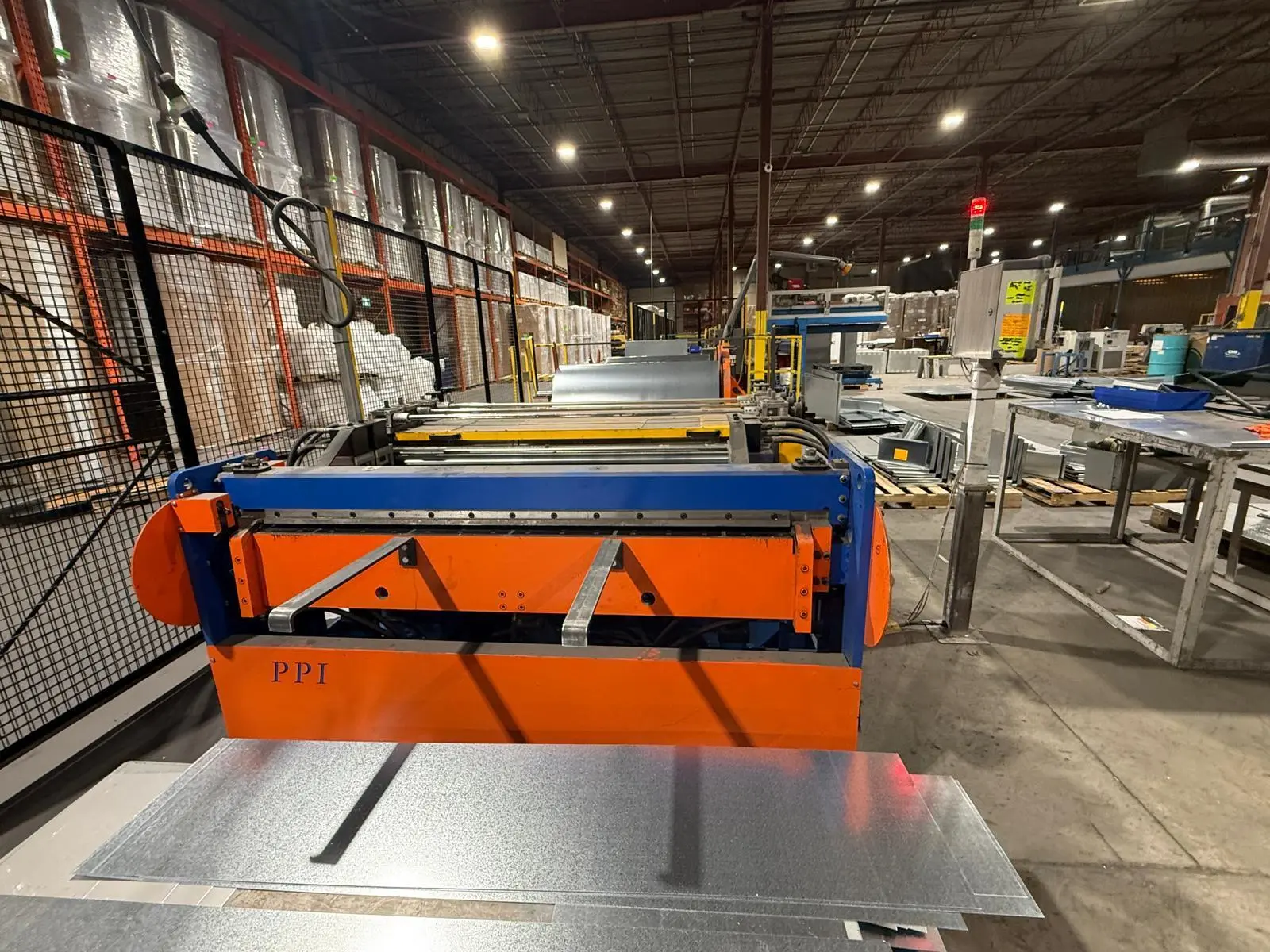

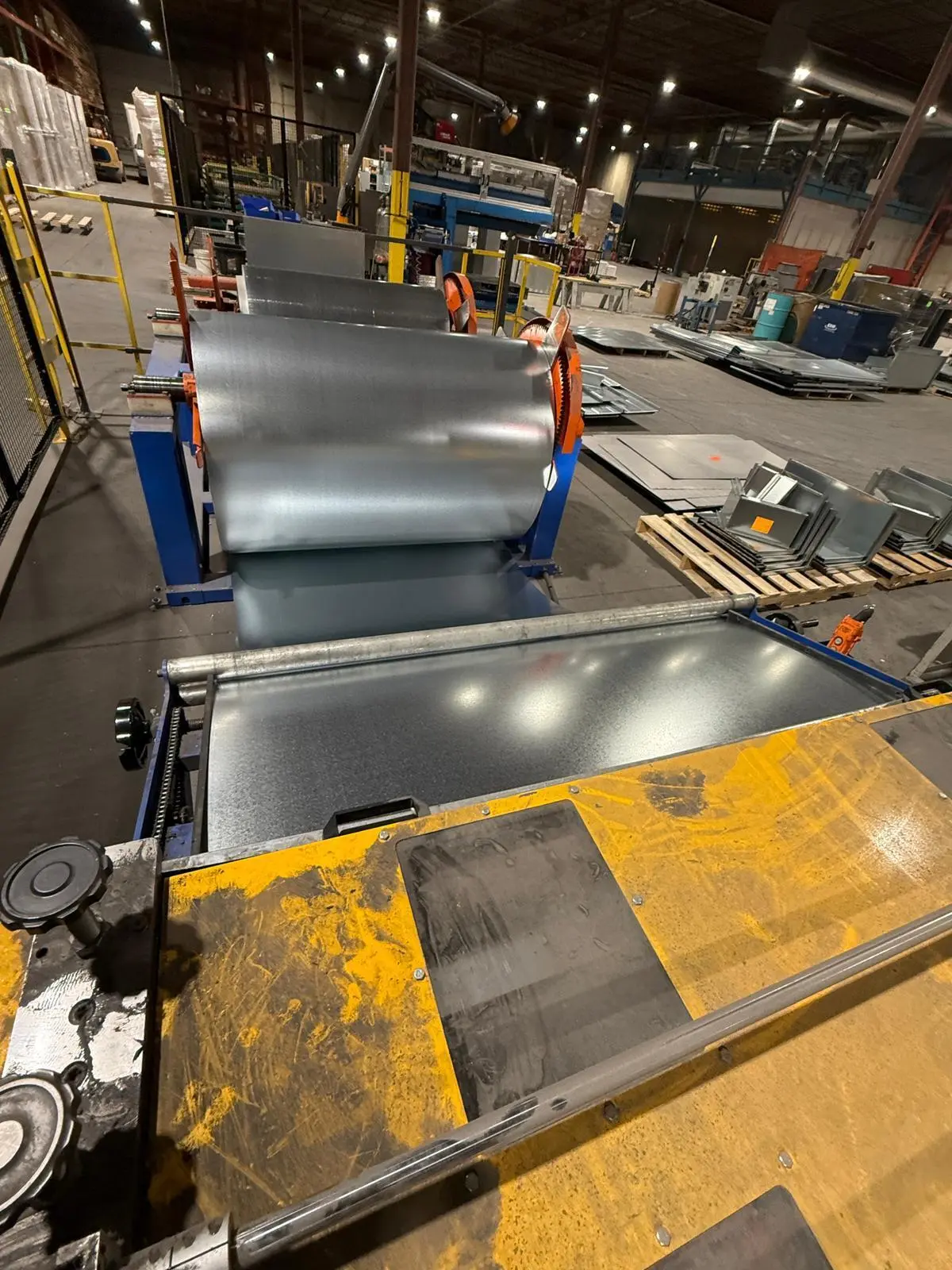

THE PPI CHALLENGER STARTER UNCOILER LINE IS A 2022 MODEL DESIGNED FOR EFFICIENT SHEET METAL FABRICATION, SPECIFICALLY CAPABLE OF PROCESSING FLAT SHEETS, L-SHAPE, AND WRAP-AROUND STYLE DUCT. THE MACHINE IS ENGINEERED TO PRODUCE DUCT BLANKS INCLUDING FLAT BLANKS, “L” SECTIONS, AND WRAP DUCT BLANKS. IT ACCOMMODATES A MAXIMUM COIL WIDTH OF 60 INCHES AND A MATERIAL THICKNESS CAPACITY OF UP TO 18 GAUGE. THE COIL LINE FEATURES TWO STANDARD, MOTOR AND GEAR-DRIVEN UN-COILER STATIONS, EACH WITH A MAXIMUM COIL CAPACITY OF APPROXIMATELY 12,000 LB. IT INCLUDES BEADING CAPABILITY, APPLYING ADJUSTABLE REINFORCEMENT BEADS ON 12-INCH CENTERS, AND SUPPORTS NOTCH STYLES FOR BOTH SLIP AND DRIVE, AND PPF/C DUCTS. THE SYSTEM OPERATES ON 230/460V, 60HZ, 3PH POWER. THE MACHINE’S DIMENSIONS ARE 20' X 8' X 6' WITH A LISTED WEIGHT OF 18,000 LBS.
Inquire Further with Aucto!
