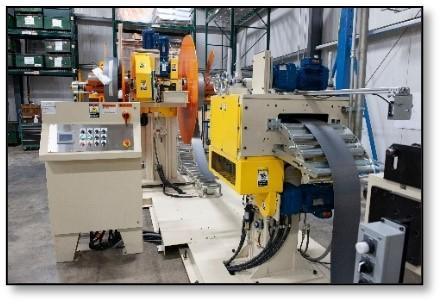

Machine Concepts #L2 14"/ DM10-14", Precision Straightener with Double Arm Decoiler, 14" width, .035" max stock thickness, 72" Coil O.D., 2018

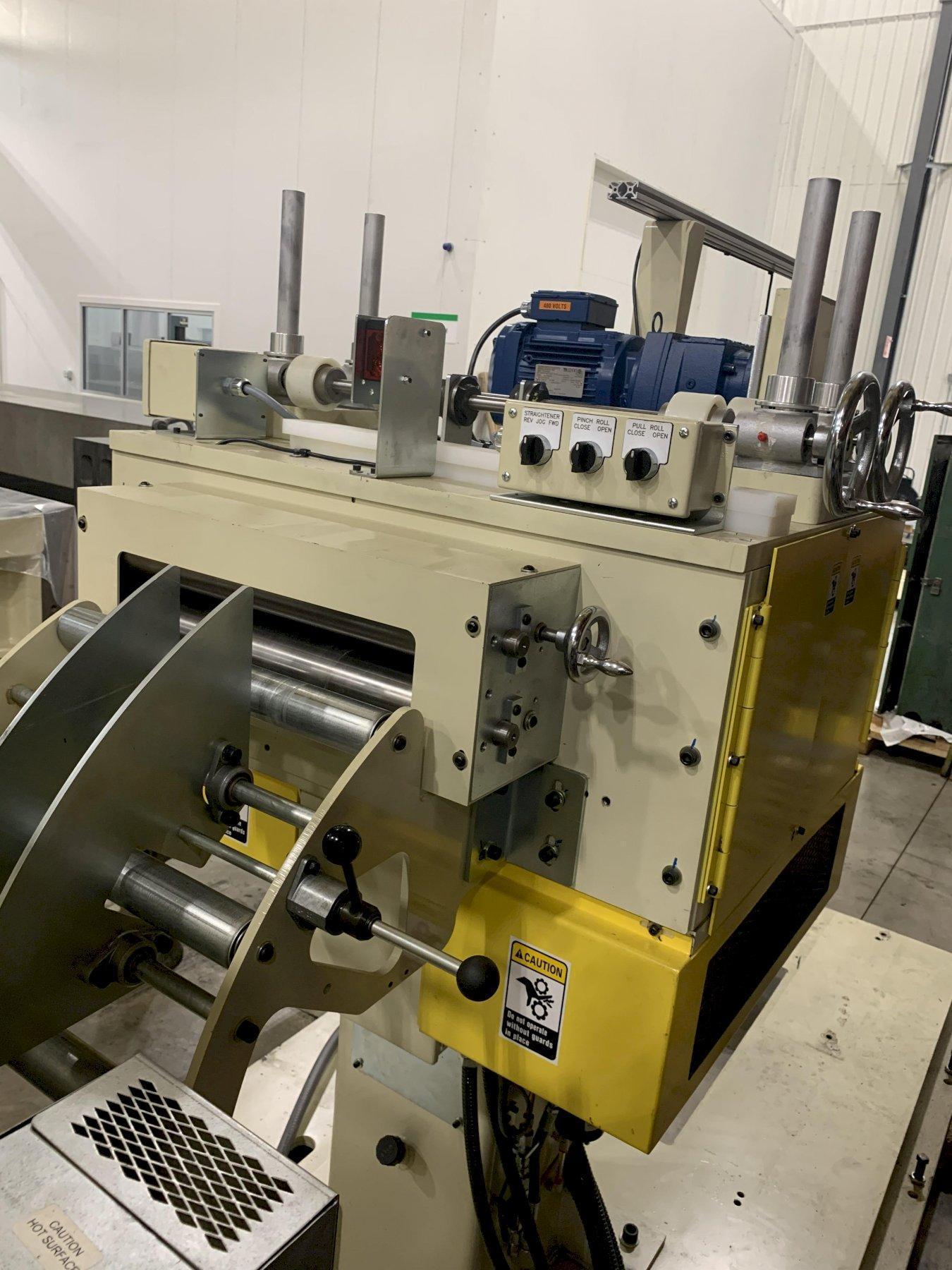

Generation L2 14” Precision Straightener

· 16.00 in. wide Roll Face (406 mm)*

· 0.007 – 0.035 in. thickness range (0.18 - 0.89 mm)*

· 55,000 psi yield strength*

· 0.875 in. diameter work rolls (22 mm)

· 50.00 – 54.38 in. pass line height (1270 - 1381 mm)

· 5 hp cassette drive (610 mm)

· 2400 ipm speed (61 m/mn)

· Two (2) Backup Rail Sets

· Fifteen (15) total number of straightening rolls

· Quick change roll cassette

· Two point drive connection

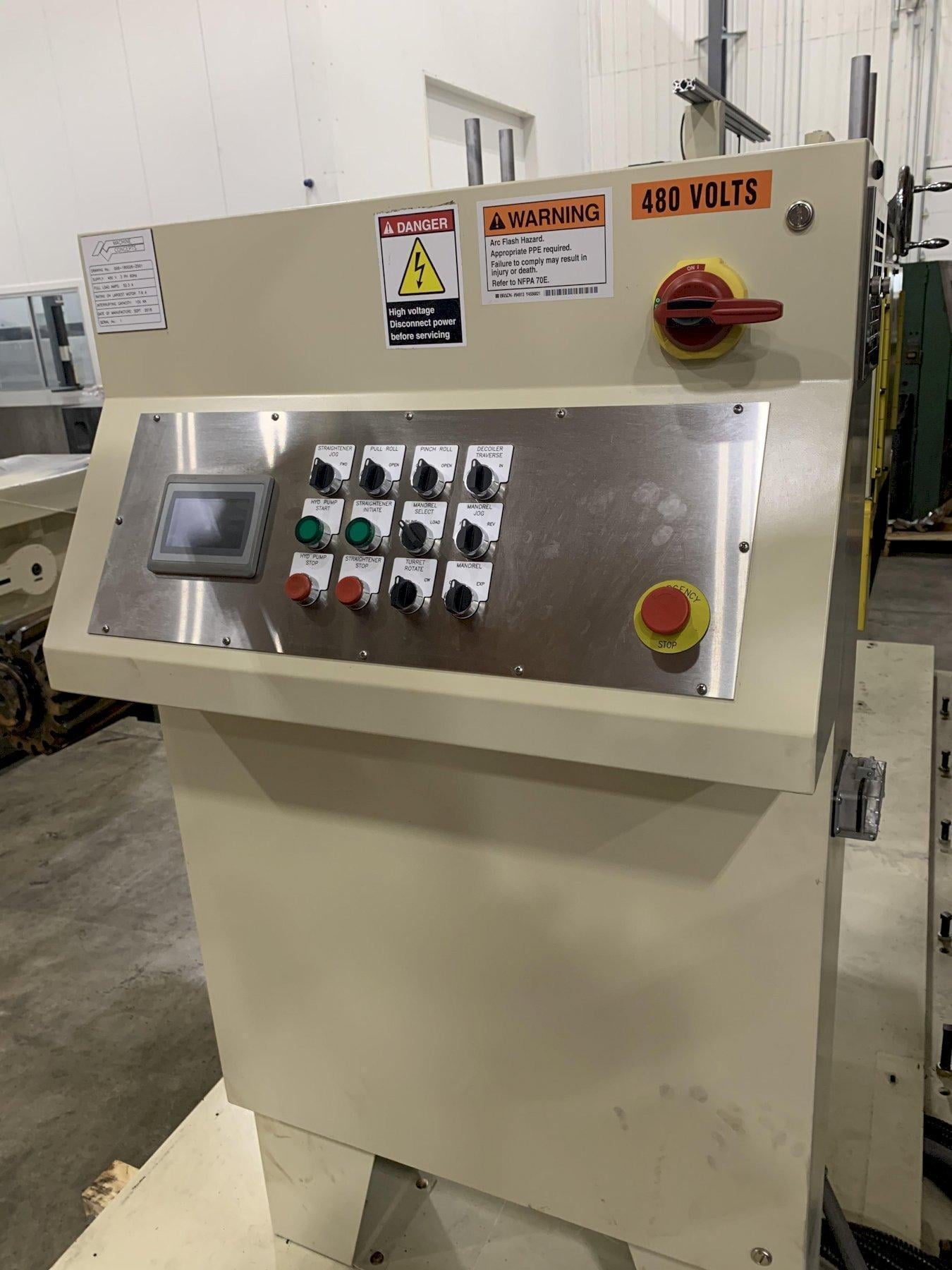

· Allen-Bradley Control System

· Constant Torque Variable Frequency Drive and motor

· Exit side pull roll

· Powered pinch roll

· Self-centering edge guide

· End of strip sensor

· Integration of Reel Controls

· Common mounting base

· Non-contacting loop control

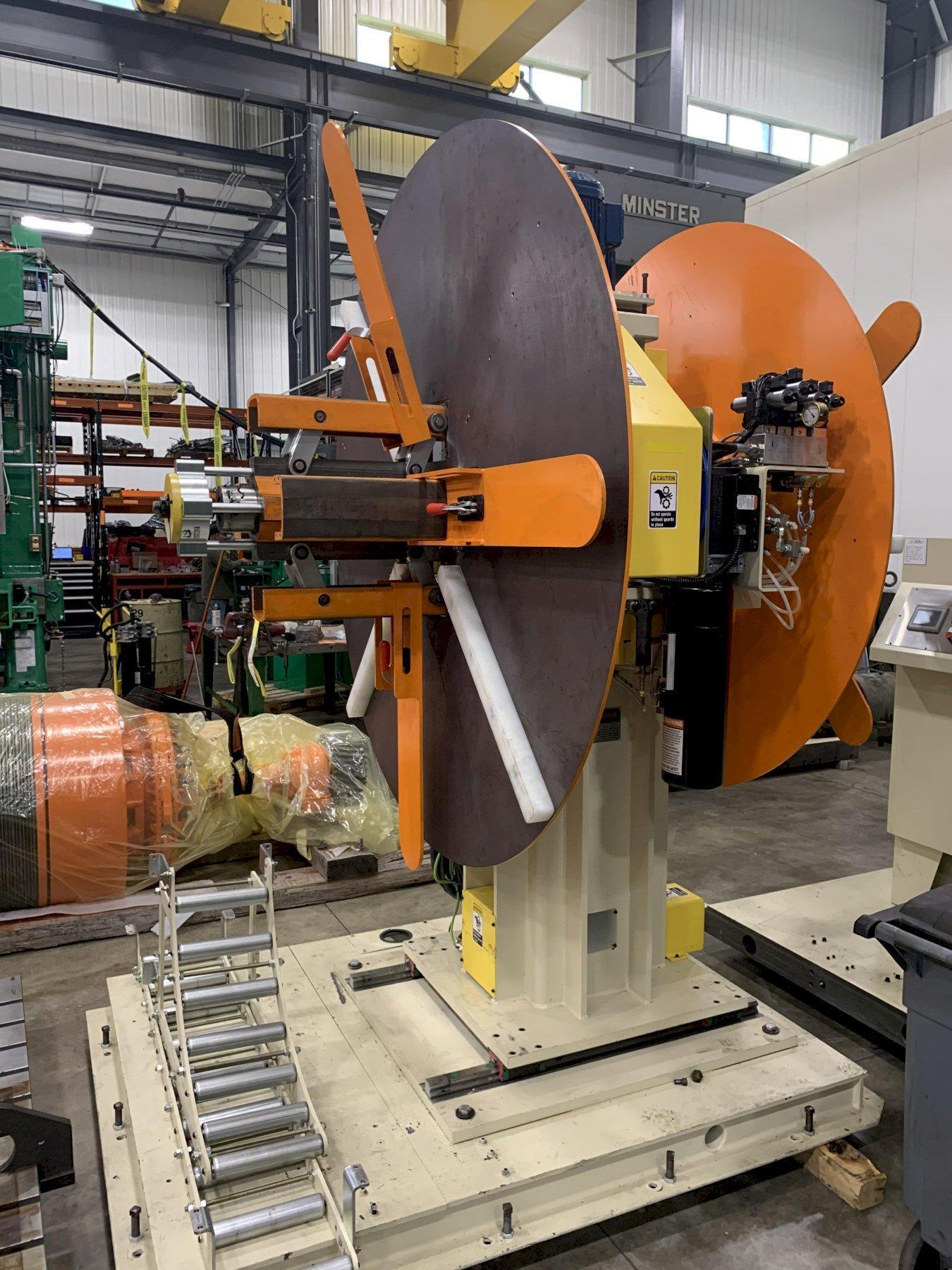

DM10-14” Double Arm decoiler

· 10,000 pound max. capacity per side (4536 kg)

· 18.00 to 22.00 in. expansion range (457 – 559 mm)

· 72.00 in. maximum coil od (1829 mm)

· 14.00 in. maximum coil width @ 60.00 in. coil od
(357 x 1524 mm)

· 0.093 in. maxi material width @ full width (2.36 mm)

· Hydraulic actuation of:

o Expansion

o Turret rotation

o Coil side shift

· Adjustable lower base

· Pneumatic drag brake

· Allen-Bradley controls

· Electric powered payoff

· Eddy Current Drive
