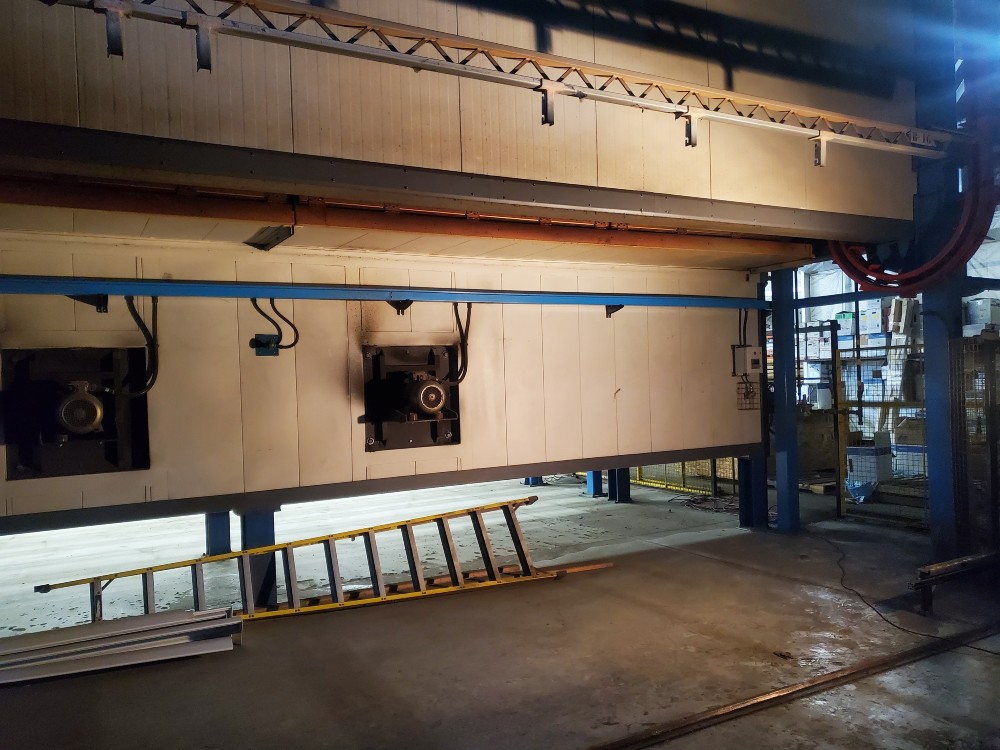

Powder coating, Sef Italia up to 8 meter or 26' part length, small fraction of replacement cost

All the plant is manufactured according the UL-CSA rules

Material to be painted : aluminium or steel profiles and sheets -

Medium charge dimension : mm 6500 x 300 x 1500 (H). -

Maximum charge dimension : 8000 x 500 x 1500 mm.

In this case the bars holding pieces should be loaded at a double step -

Maximum sheets dimension : mm 5.000 x 1500 x 3. -

Maximum charge weight : kg. 120. -

Theoretical production capacity (maximum) :> 18- bars holding pieces/hour equal to. 864 aluminium profiles (considering profiles having a medium weight of 4 kg.) and the plant equipped with n. 1 application unit > 30 bars holding pieces/hour equal to. 1440- aluminium profiles (considering profiles having a medium weight of 4 kg.) and the plant equipped with n. 2 application units - Curing temperature : 180-210° C. - Curing time : 25 minutes about - Max. oven air temperature : 230°C. - Electric power installed : 350 kW approx. - Power : 400Vac,50Hz,3Ph+hearth - Thermal capacity installed : 500.000+160.000 Kcal/h
