Manufacturer: Gema & Trimac
Model: POWDER COAT PAINT SYSTEM
Year: 2021
Type: powder coat paint system
Stock # 48843
1 / 10
Click to zoom in
1 / 10
For Sale by Perfection Industrial Sales
Surplus Record Dealer Since 2010
Location: Bromont, Canada
Contact Jennifer Reiner
Phone Number: 847...> Show Phone Number 847-545-6374
Let the seller know you found their listing on Surplus Record!
Description
Specifications

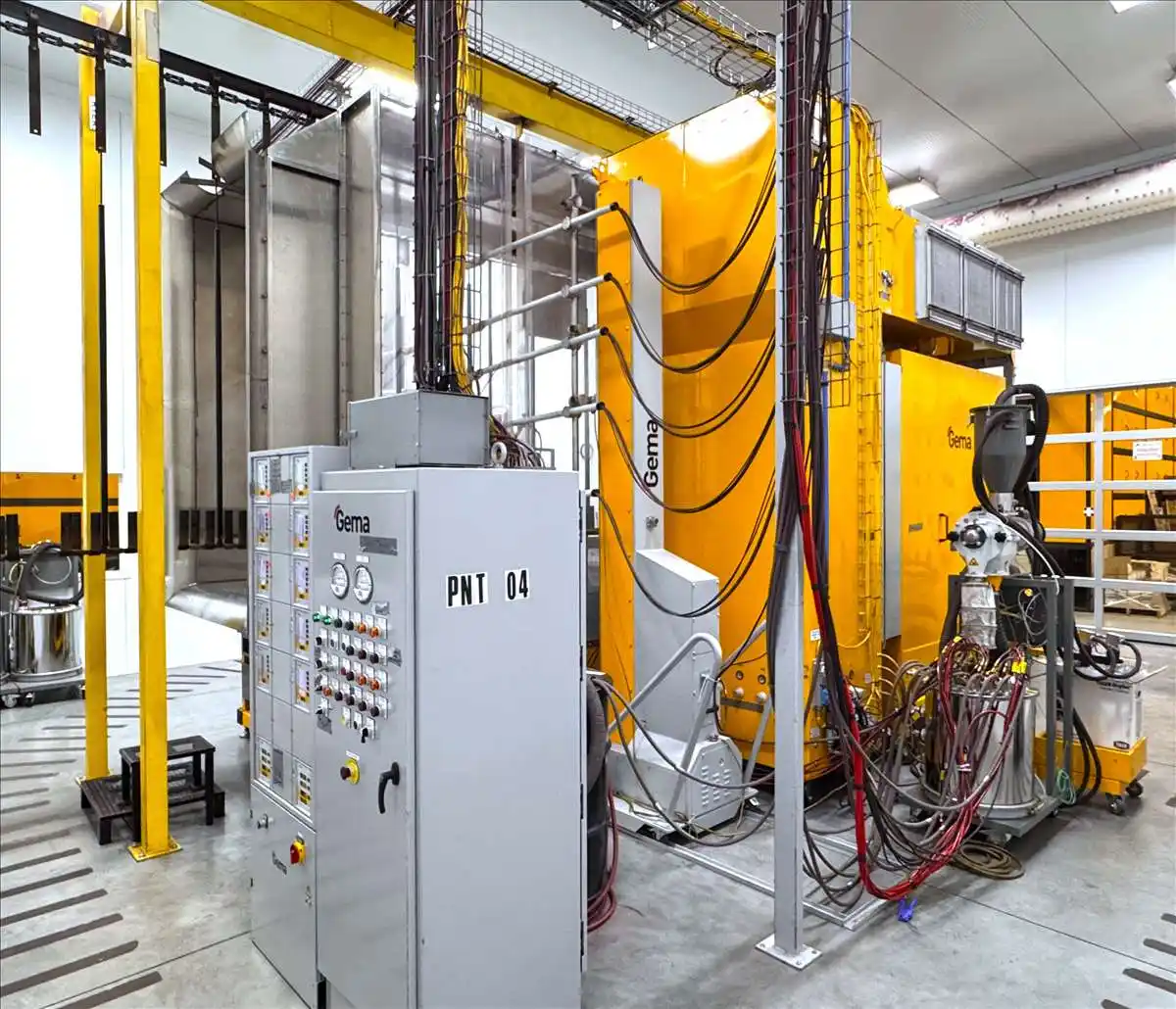

- GEMA Smart-10K Electrostatic Powder Coat Paint System
- Opening: 48” x 96”

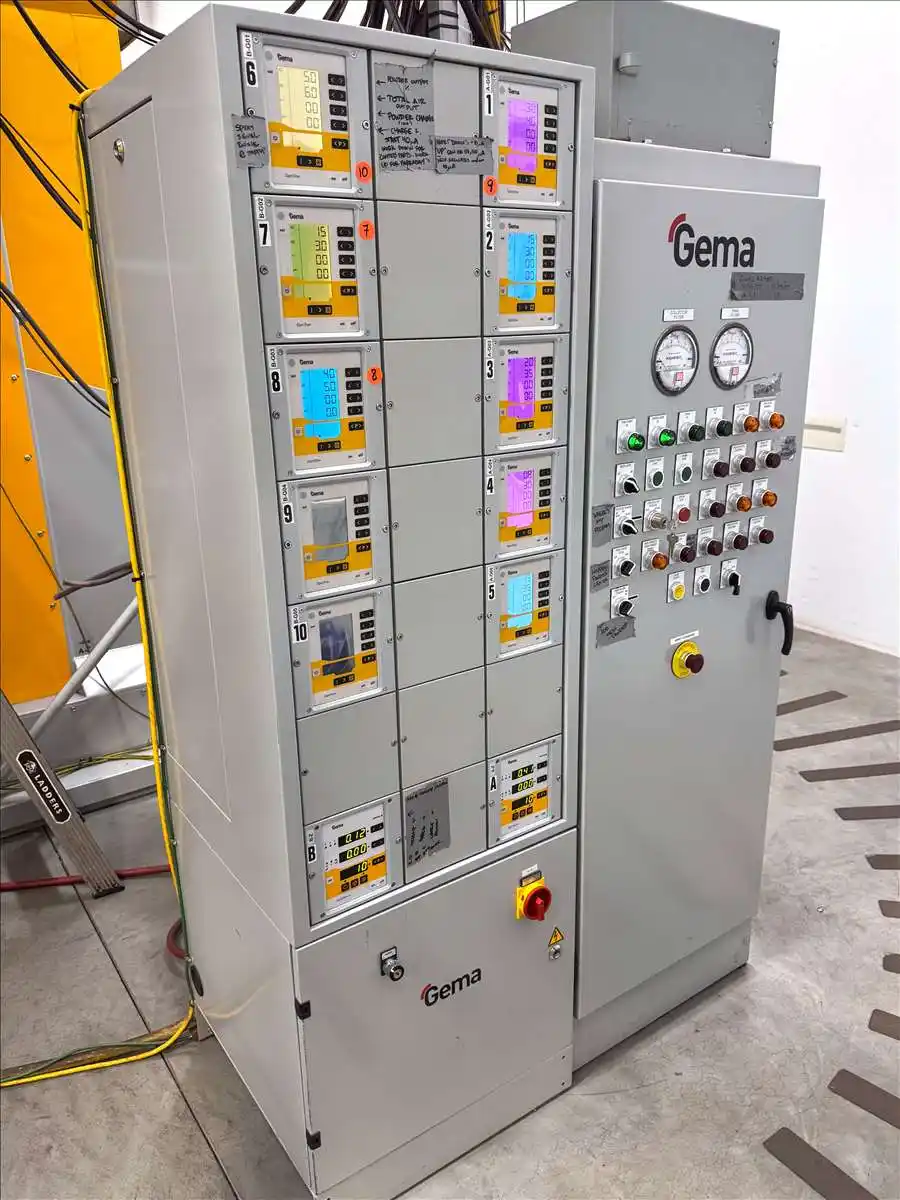

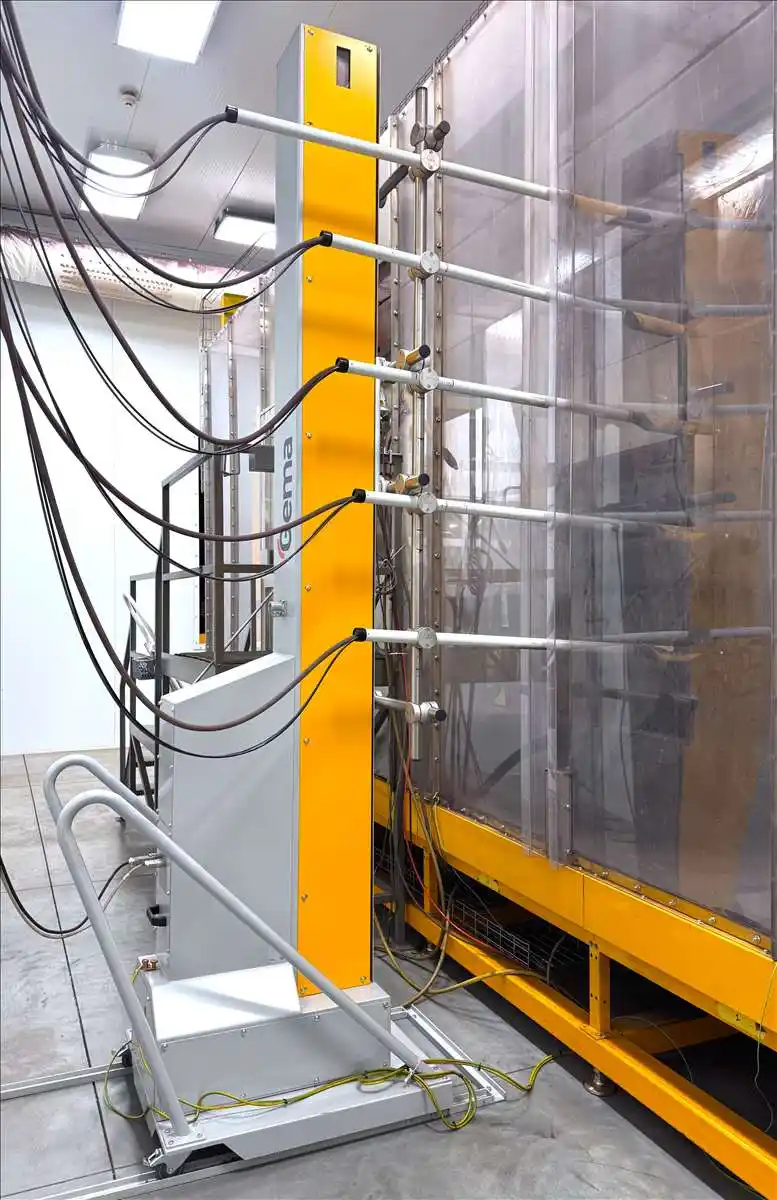

- (2) 2020 GEMA Reciprocator ZA08-23 5-Gun Automatic Spray Systems w/ Gema OptiStar Guns Controls & (2) GEMA OptiMove Axis Controls
- (2) GEMA OptiFlex Manual Guns w/ OptiStar CG13 Gun Controls

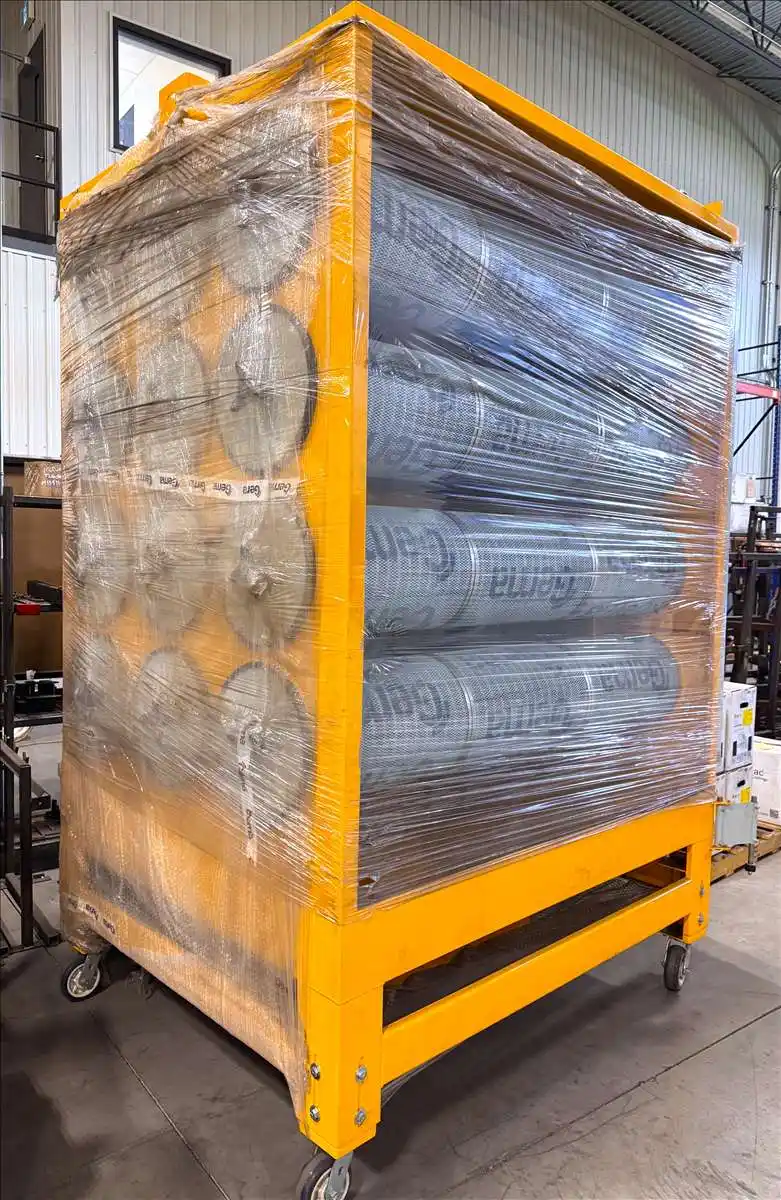

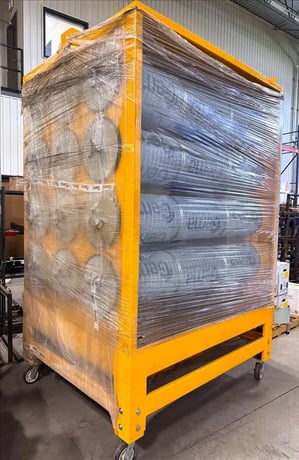

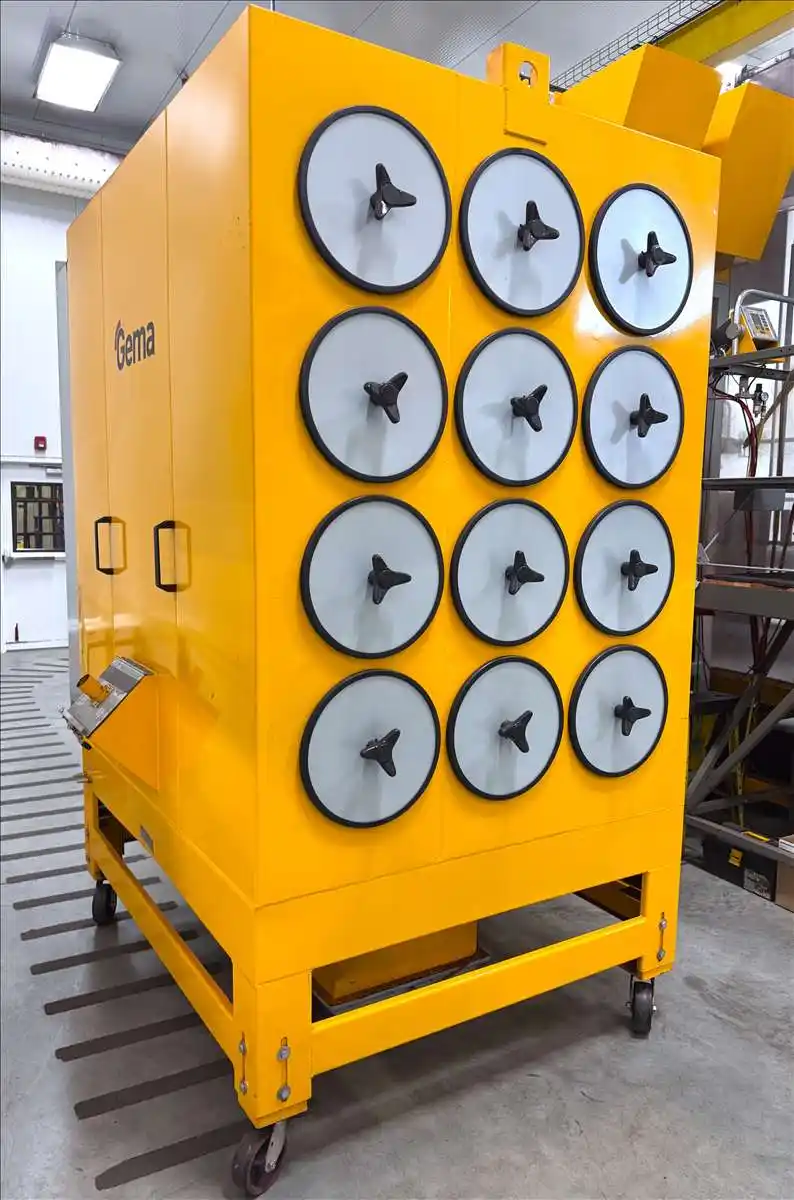

- Reclaim System w/ (2) 12-Cartridge Filters (NEW - Never Used 12-Cartridge Filter Included)

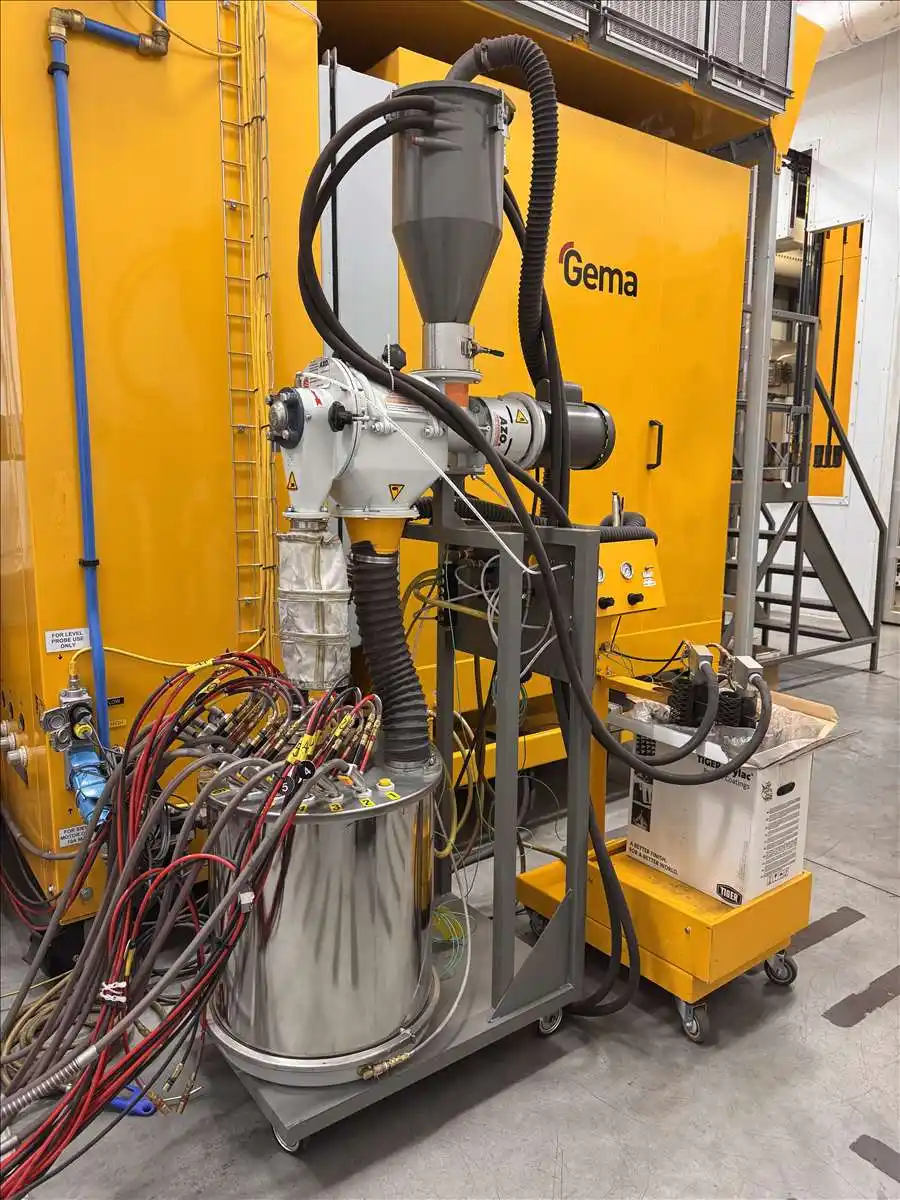

- Powder Hopper
- Thermal Wrap System

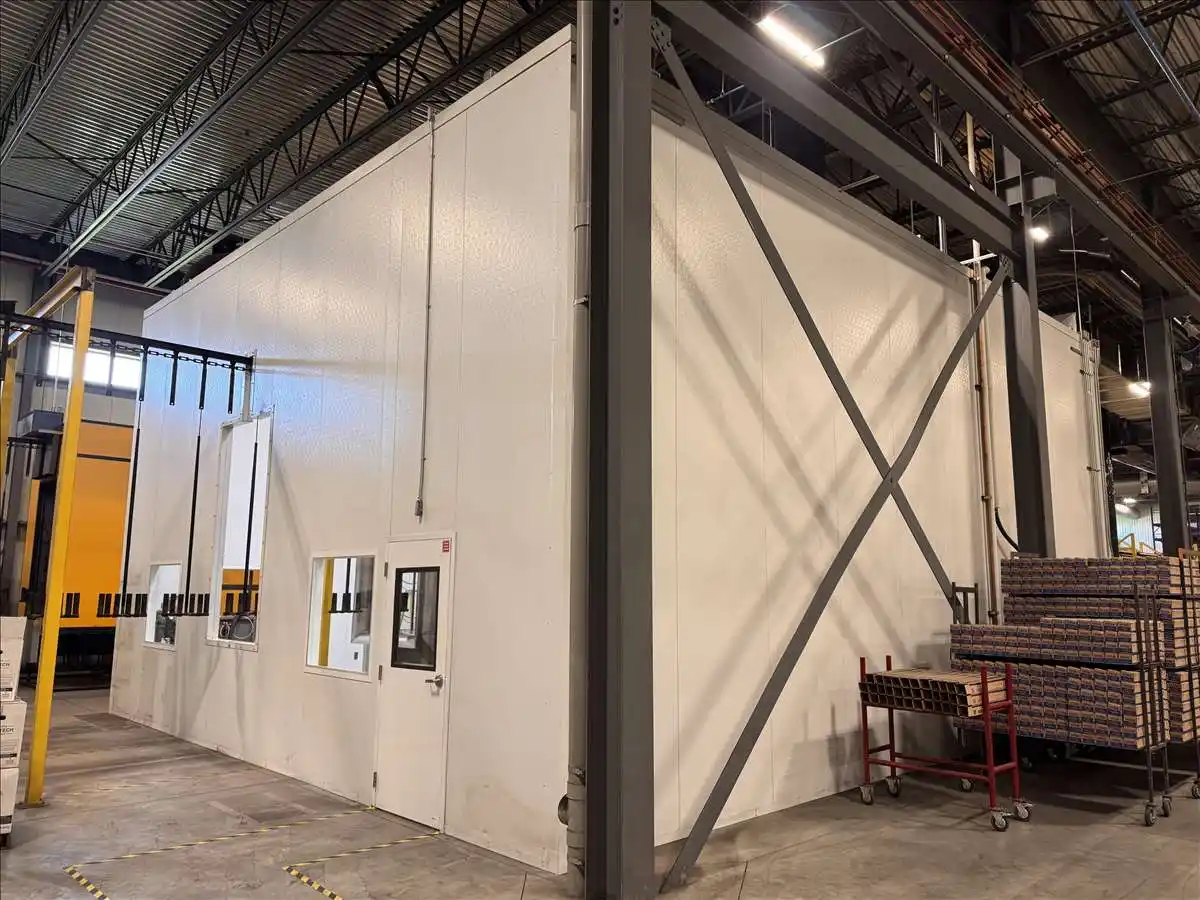

- Environmental Room
- Smooth White Steel/Foam/Steel Tongue & Groove Panel
- R-119 Encapsulated Insulation
- Hi-Bay Lights
- 10' x 10' Garage Door
- (2) Man Doors
- Total Dimensions (W x H x L): 30’8” x 18’ x 30’8”

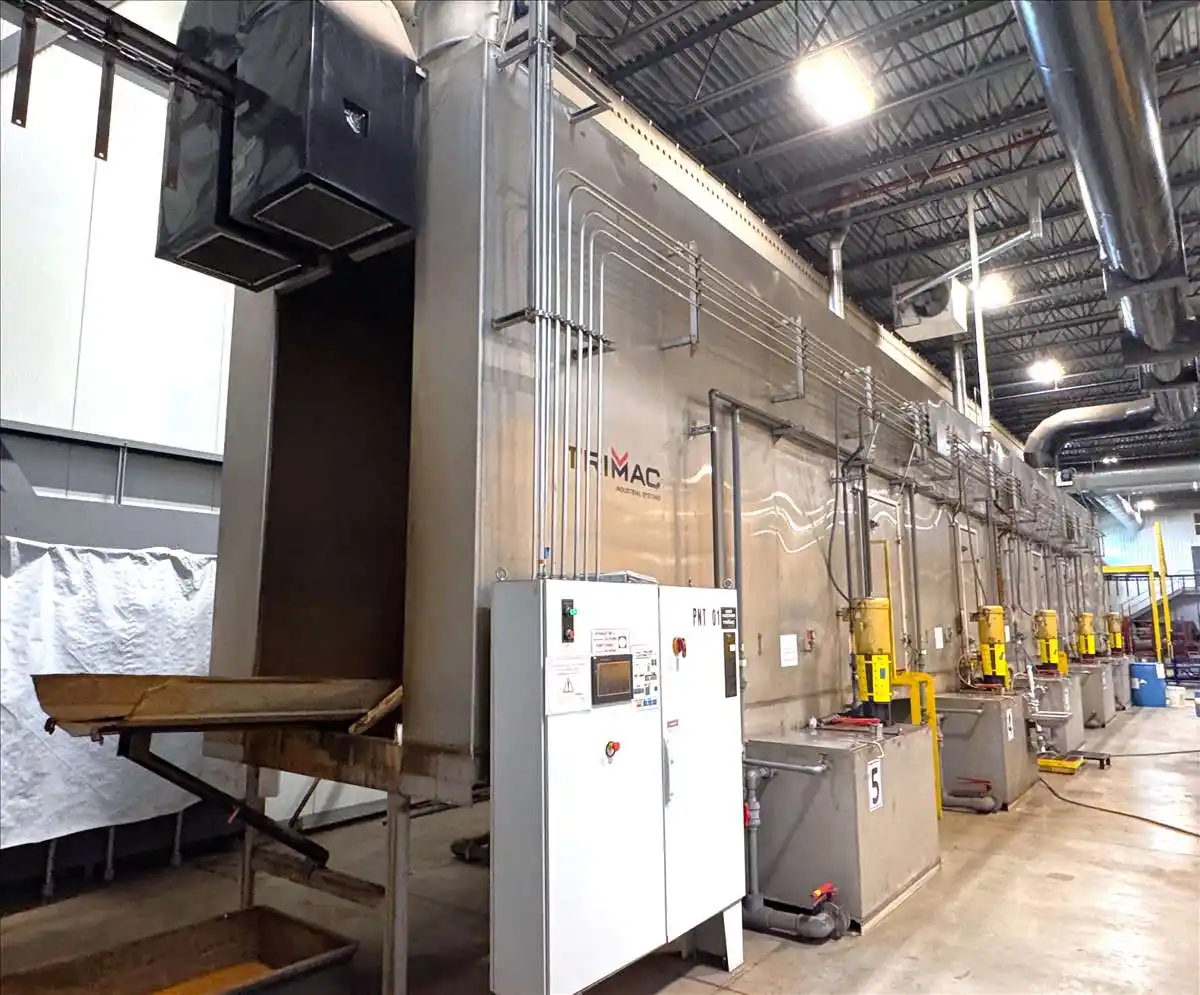

- 2021 TRIMAC INDUSTRIAL SYSTEMS KEMAC Stainless Steel 5-Stage Wash
- Stage 1: Wash - 8’ Length, 1476 Gallon Tank, 80 Seconds, 140°F, 2.8 GPM Nozzles, (9) Risers, 172 Nozzles, 482 GPM Pump, 15 HP
- Stage II: Rinse - 5’ Length, 950 Gallon Tank, 50 Seconds, Ambient. Drain - 8’ Length, 80 Seconds
- Stage III: Phos - 5’ Length, 950 Gallon Tank, 50 Seconds, 120°F
- Stage IV: Rinse - 5’ Length, 950 Gallon Tank, 5 Seconds
- Stage V: Rinse - 5’ Length, 950 Gallon Tank, 50 Seconds, Ambient. Exit Drain - 8’ Length, 80 Seconds
- Stages 2-5: 2.8 GPM Nozzles, (6) Risers Each Stage, (114) Nozzles Each Stage, 319 GPM Pumps, 10 HP Motors, (2) 30” 6600 CFM Exhaust Fans
- Total Dimensions (W x H x L): 13’6” x 9’6” x 76’

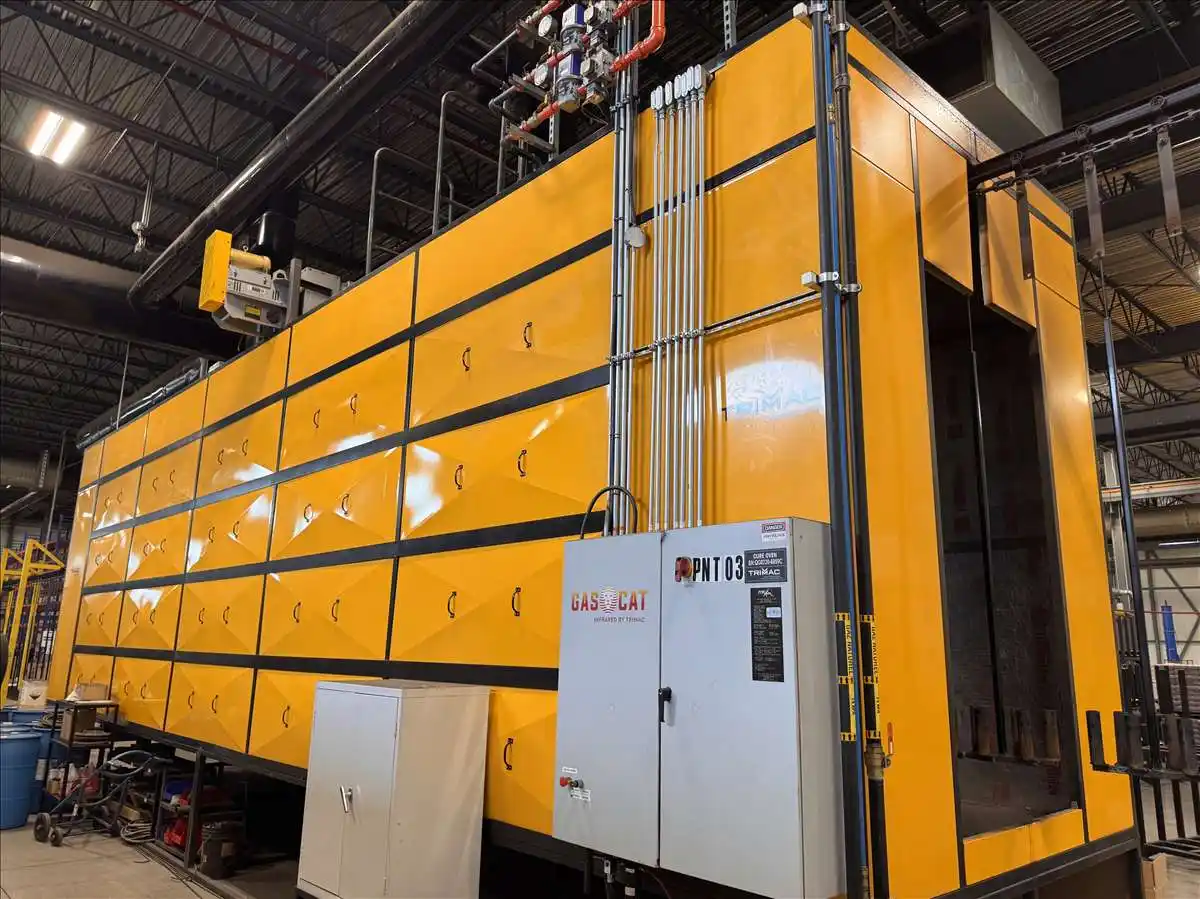

- 2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT DRY Infrared Dry-Off Oven
- Thermal Wrap System w/ 3500 CFM High Temp. Recirculation w/ Adjustable Controls
- Variable Speed Motor Control for Air Volume
- High Reflective Aluminum Insulated Panel Construction
- (16) 24” x 72” Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each
- 192 Sq/ Ft. Catalytic Surface Area - Total of 1,152,000 BTU/Hr
- Line Speed: 6 FPM
- Opening: 48" x 96"
- Hook Slot: 8" x 18"H
- Heated Process Time: 2.5 Minutes
- (2) 1500 CFM Exhaust Fans
- (2) 2500 CFM Recirculation Fans
- Total Dimensions (W x H x L): 12' x 7'2" x 27'

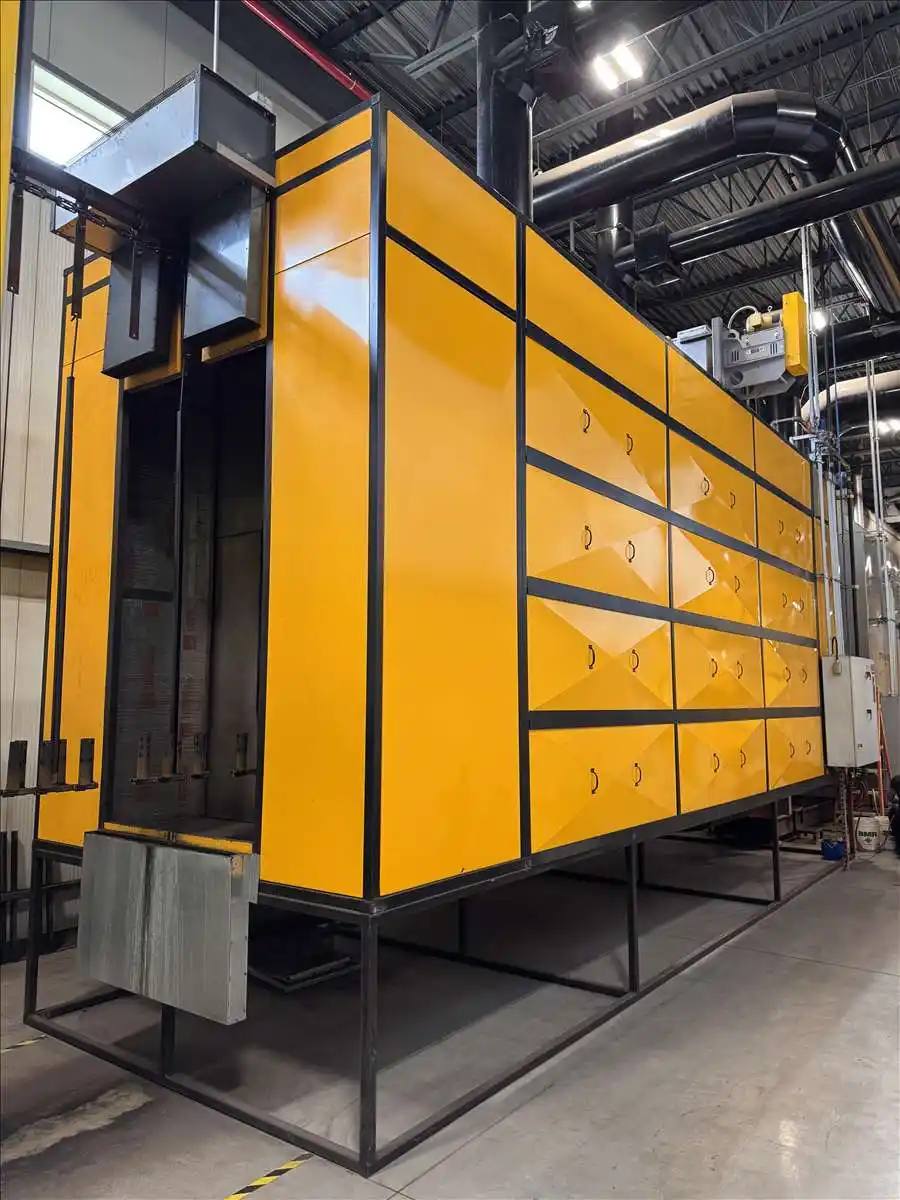

- 2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT CURE Infrared Cure/Bake Oven
- Thermal Wrap System w/ 5000 CFM High Temp. Recirculation w/ Adjustable Controls
- Variable Speed Motor Control for Air Volume
- (32) 24” x 72” Trimac Flamless Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each
- 384 Sq. ft. Catalytic Surface Area - Total of 2,304,000 BTU/Hr. 4-Zone
- 576,000 BTU/Hr Per Zone w/ (8) Emitters/Zone
- High Reflective Aluminum Insulated Panel Construction
- Line Speed: 6 FPM
- Opening: 48" x 96"
- Hook Slot: 8" x 18"H
- Heated Process Time: 5 Minutes
- (2) 1500 CFM Exhaust Fans
- (2) 2500 CFM Recirculation Fans
- Total Dimensions (W x H x L): 12' x 7'2" x 42'
- Conveyor System
- Enclosed Track Monorail
- Centers: 8"
- Length: 350'
- Max. Weight Per Hanger: 125 lb.
- Drawings Available Upon Request
