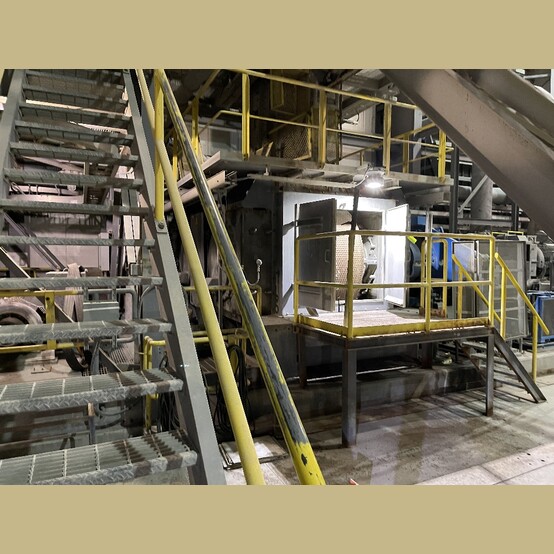

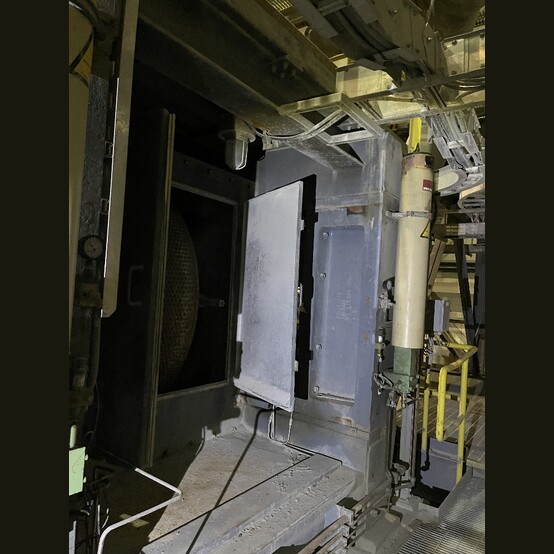

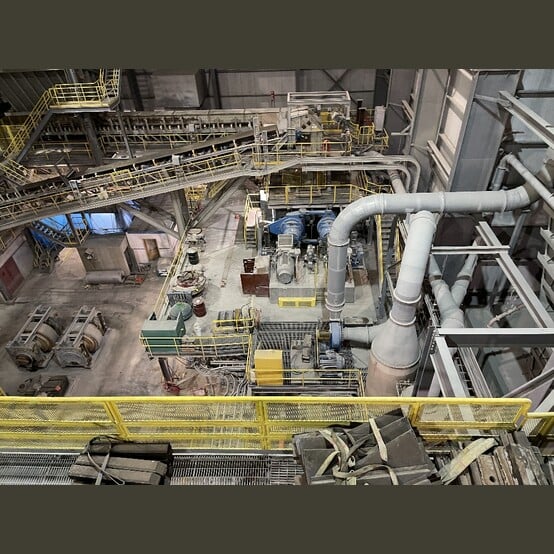

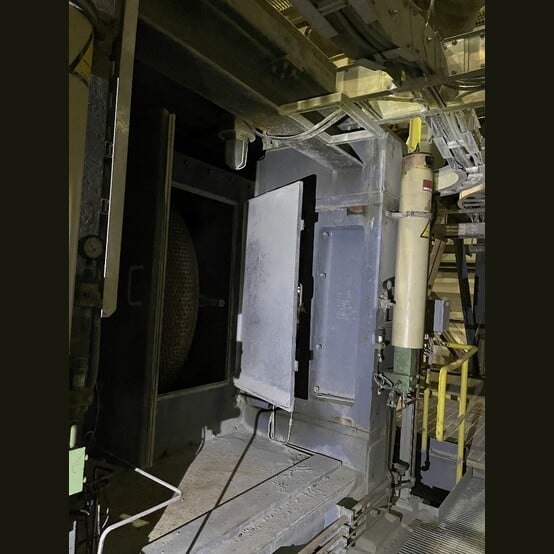

POLYSIUS HPGR Polycom High-Pressure Grinding Roll

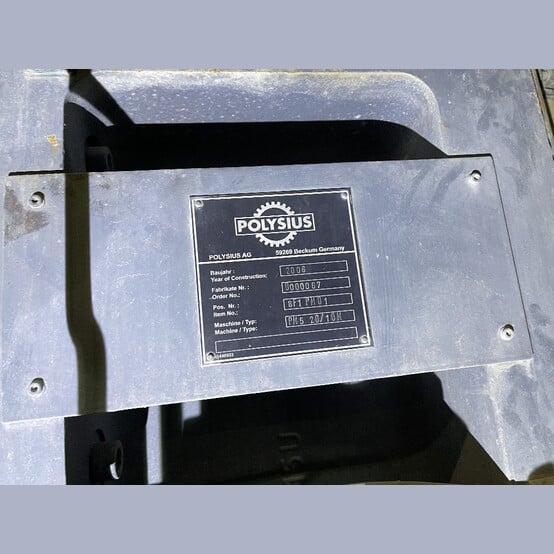

- Make: Polysius
- Model: PM5 20/10M
- Type: High Pressure Grinding Roll
- Year: 2006
- Capacity: 450 MTPH
- Condition: Used, Reported in Good Condition
- Complete With:

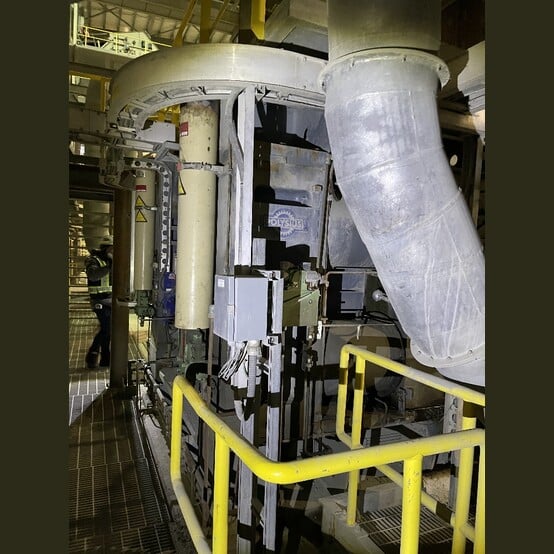

- Machine Frame with Feed System

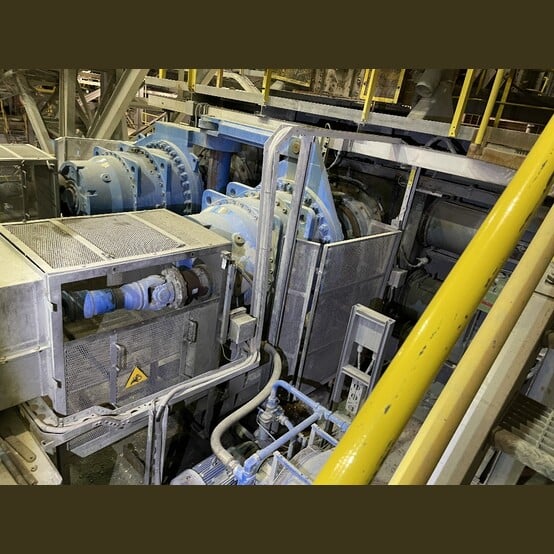

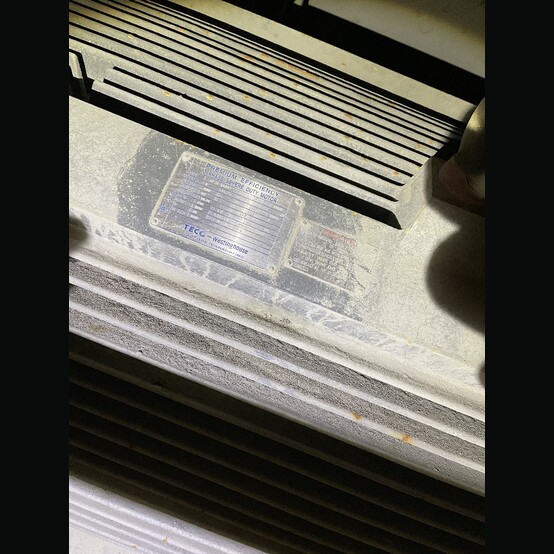

- Drive Unit Powered by 2x Teco-Westinghouse Variable Speed Motors
- Type: AEJH-SA001
- Power Output: 2x 900HP
- Voltage: 4000 Volts
- RPM: 1188
- Spare Parts
- Special Tooling
- General Specifications For Polysius Polycom PM5 20/10M Grinding Roll
- Type: PM5 20/10M

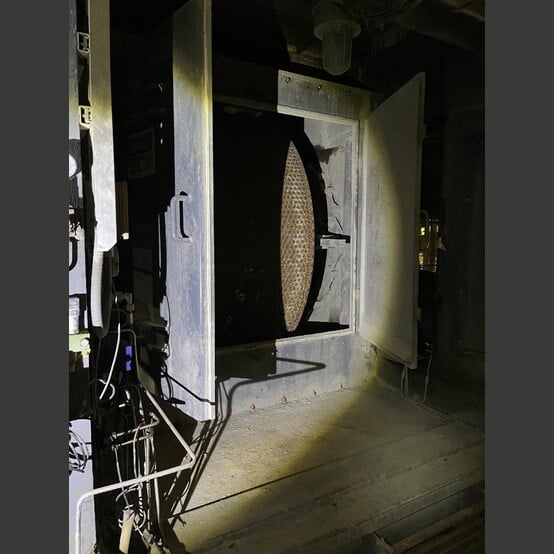

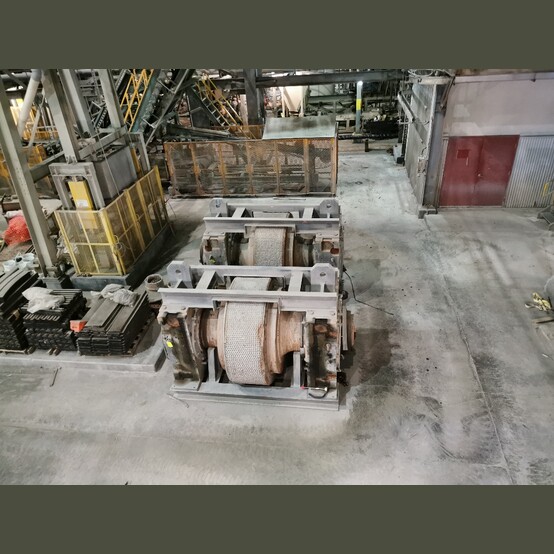

- Roll Diameter: 2,000mm (78.7in)
- Roll Width: 1,000mm (39.4in)
- Grinding Force: 8,600kN
- Motor Power:
- 2x 1,600HP - Hard Rock Application
- 2x 900 - Kimberlite Application

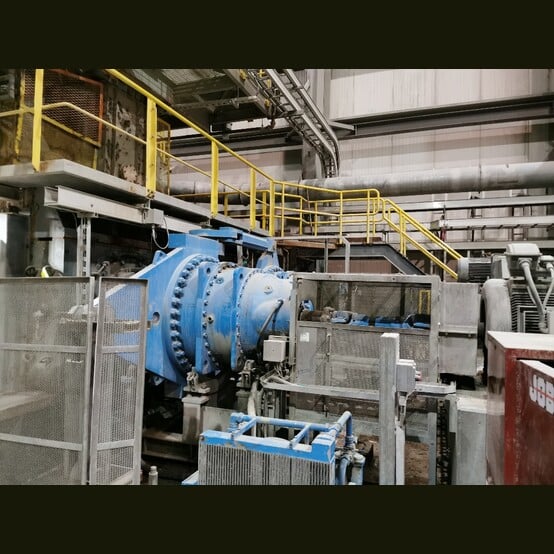

- Motor Connection: Cardan Shaft Connection to the Gear Units
- Roll Surface Lifetime: 60,000 Hours Iron Ore Pellet Feed, 20,000 Hours Hard Rock Application
- Approx. Dimensions:
- Length: 9,270mm (365in)
- Width: 5,160mm (203in)
- Height: 7,500mm (295in)
- Location: Canada
