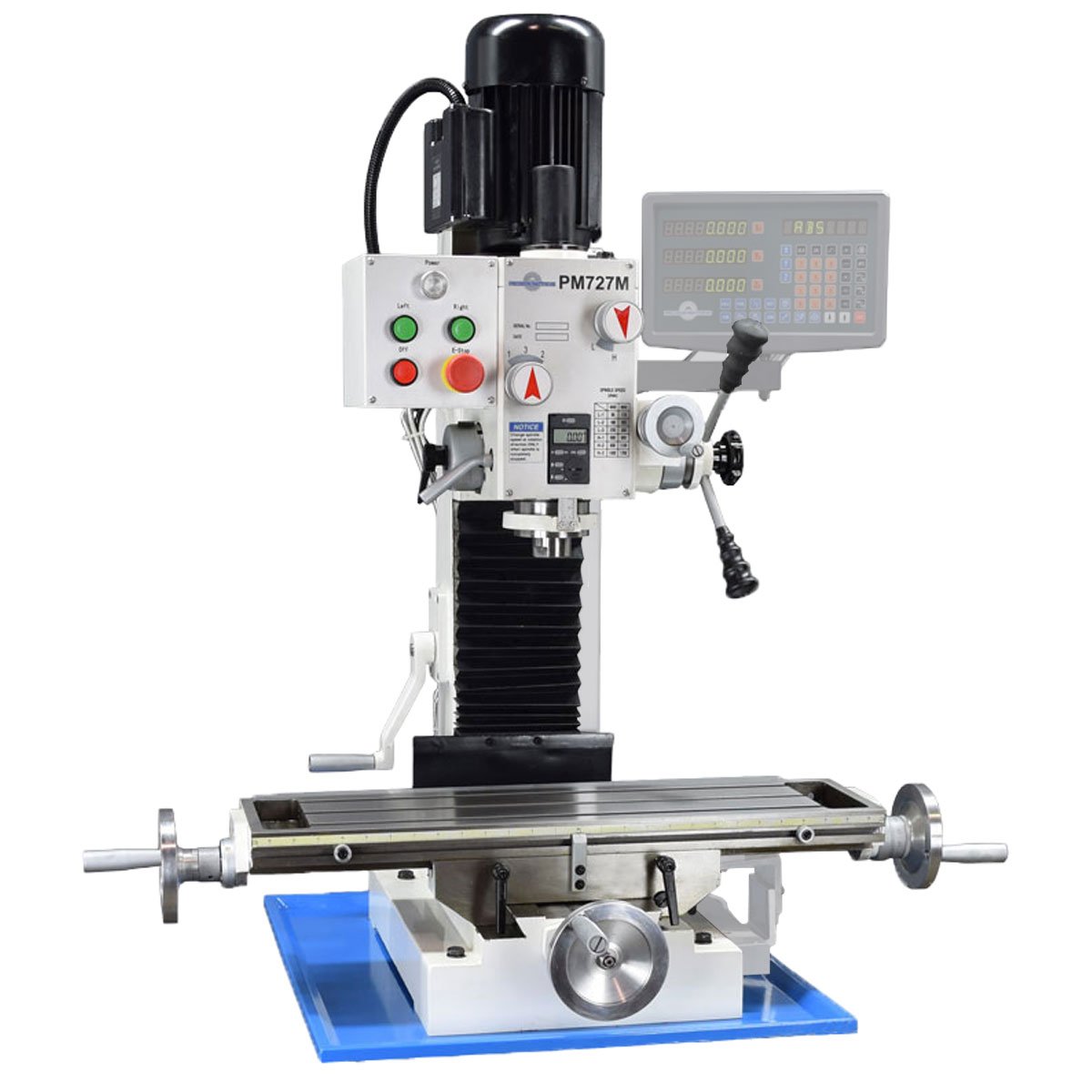

Precision Matthews #PM-727M, Bench Type Vertical Milling Machine, 7-1/8" x27-1/2" table, 1 HP

Main Specifications PM-727M:

Model No.: PM-727M
Max. Drilling Capacity: 1-1/4″
Max. End Milling Capacity: 1″
Max. Face Milling Capacity: 3″
Table Size: 27-1/2″ x 7-1/8″
Cross Travel (Y Axis): 8-1/2″
Longitudinal Travel (X Axis): 15″
Table Leadscrew Pitch 10 TPI (.100″ Per Turn)
Table Dial Graduations .001″
Vertical Travel (Z Axis): 16″
Max Distance Spindle to Table: 18-1/4″
Taper of Spindle: R-8, w/7/16-20 Drawbar Thread
Spindle (Quill) Travel: 3″
T Slot Size: 1/2″(T Slots are slightly less than 1/2″, actual size 12mm, our 1/2″ kit
is sized for this machine)
Range of Spindle Speeds: 115-1700rpm, 6 Steps
Head Tilt: Left & Right ±90°
Motor: 1 HP
Net Weight (Not Including Base): 475 LBS
Net Weight (With Optional Base): 575 LBS
Country or Origin: China
Power Required: 110/120V, Minimum 15 Amp Circuit, Approx. 5′ cord with standard 120V plug included
Dimensions (Assembled on stand): 39″W x 74″H x 30″D
Height with head at top of Z travel: 80″ (On Stand)
Height with head at normal working height: 75″ (On Stand)
Optional Stand Height 32″

Additional Specifications:
Machine Base Dimensions (Cast Iron Base of machine, where it sits on the chip pan) Approx. 13-1/2”Wx21”D
Machine Base Dimension (Bolt Pattern) Approx. 11”Wx14-1/4”D
Table Height, machine base (Where it sits on the chip tray) to table, approx. 8-1/2″

Main Features:
• Compact, Accurate, Economical Machine. Great for those who are looking for a
compact machine for a smaller work shop, yet need the ability to take heavier cuts
compared with other machines in this size range
• Spindle is Supported by High Precision Tapered Roller Bearings
• Mill Head May be Tilted ±90° (both left and right)
• Precision Manual Fine Down Feed is standard
• Adjustable Tapered Gibs for longer life
• Positive Locks are standard for Table, Head, Quill, and Column
• Easy Reading Dials Have Satin Chrome Finish, Graduated in .001″
• Quill DRO is Standard, Accuracy of the Display 0.0005”, Selectable from
mm/inch
• Generous 18-1/4″ Spindle To Table Max Distance for taller work
• 8-1/2″ Y Axis Travel, More than other machines in this class

Standard Equipment

1. PM-727M Milling Machine
2. Way Covers
3. Drawbar
4. R8 Spindle Taper
5. Quill DRO
6. Chip Tray

Optional Accessoriy Notes:
3 Axis DRO Installed Note: if a 3 axis DRO is added to the machine, the 3rd axis of the DRO reads the HEAD up and down, Not the quill, so it is not doubling up on the measurement. If you add the 3 axis DRO, now both Z Axis movements are covered)
