Phoenix Contact Terminal Block PT 2,5-QUATTRO

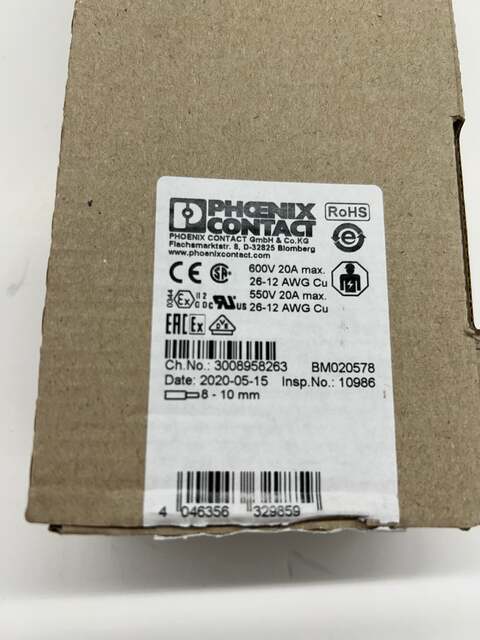

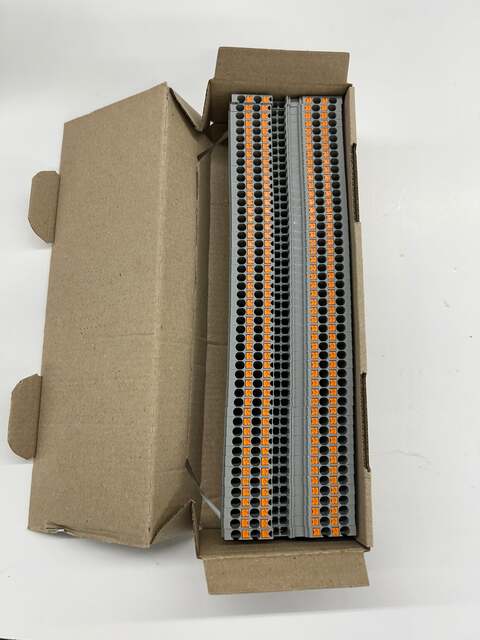

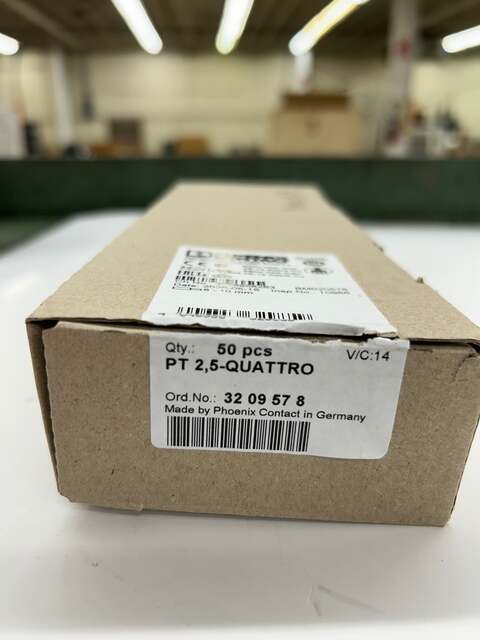

Phoenix Contact PT 2,5-QUATTRO push-in terminal blocks, offered here as a factory box of 50 pieces, order number 3209578, manufactured in Germany on 2020-05-15. These are four-conductor push-in connection terminal blocks rated for 600V 20A maximum and 550V 20A maximum per UL, accepting 26 to 12 AWG copper conductors with a strip length of 8 to 10 mm. The PT 2,5-QUATTRO series uses a tool-free push-in clamping mechanism, with each block providing four independent connection points on a single DIN rail mounted body. Certifications visible on packaging include CE, CSA, UL, ATEX (Ex II 2 G DC), EAC Ex, and RoHS compliance. The gray housing with orange actuator buttons is consistent with Phoenix Contact PT series construction. Batch number 3008958263, batch mark BM020578, and inspection number 10986 are confirmed from the packaging label. This listing covers the complete box of 50 terminal blocks as packaged.

Stock # 0326-1063
