Landgraf/kieserling Landgraf / Kieserling, 20 - 100 mm. peeling & straightening line

PEELING AND STRAIGHTENING LINE LANDGRAF/KIESERLING 20 - 100

Manufacturer: LANDGRAF (Italy) & KIESERLING (Germany)
Finished diameter:
Ø 20 ÷ 100 mm. for the peeling machine
Ø 20 ÷ 130 mm. for the straightening machine
Speed: Adjustable up to 40 mt./min. according to the peeling deepness and material characteristics
Bars length: 2 – 8 mt.
Peeling machine motor: 110 kW
Straightening machine motors: 2 x 110 kW
Tension: 400 V. - 50 Hz.

COMPOSITION OF THE LINE

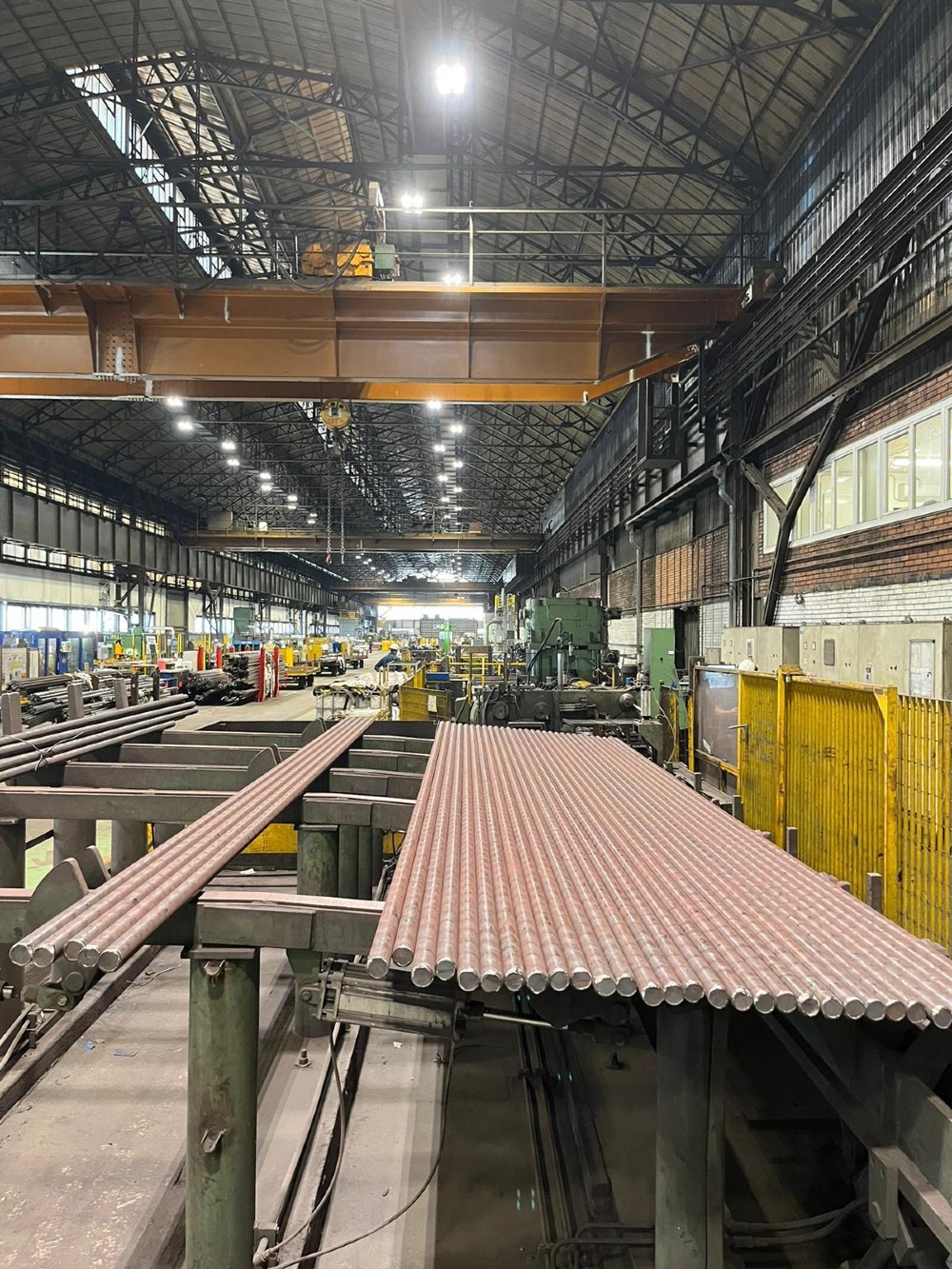

Bundle loading table

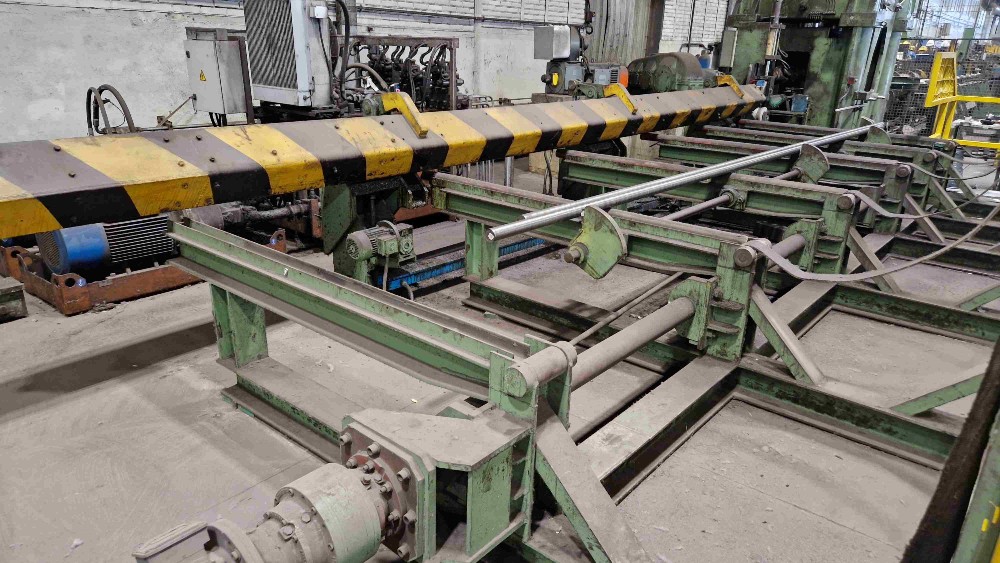

Feeding roller conveyor

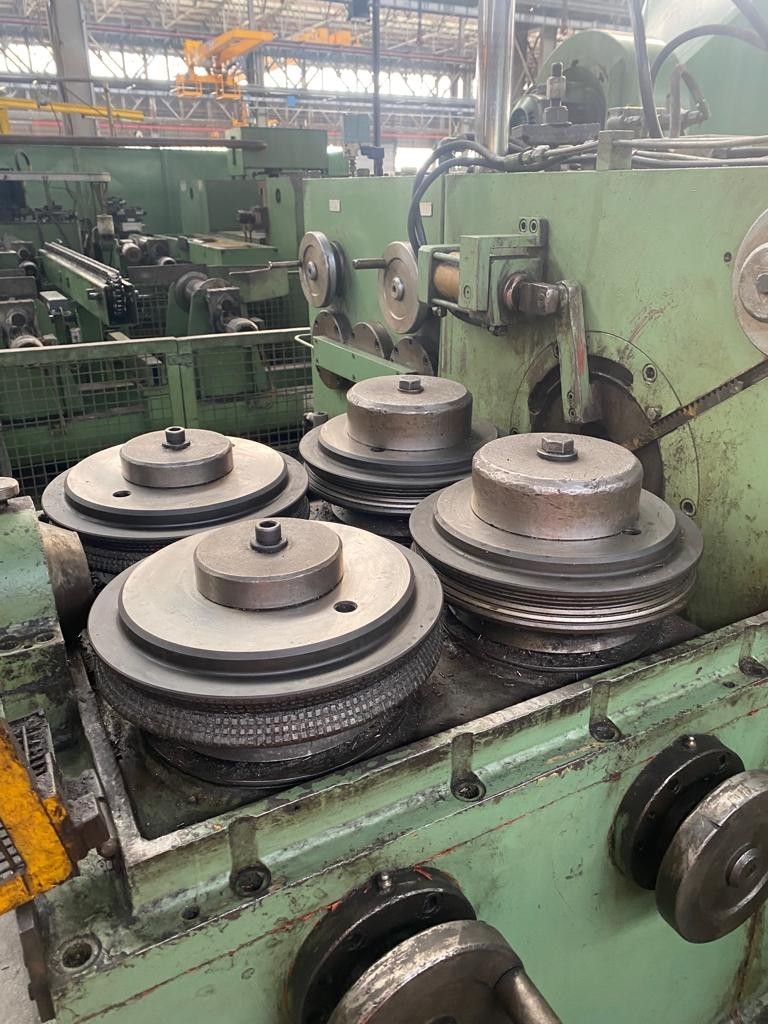

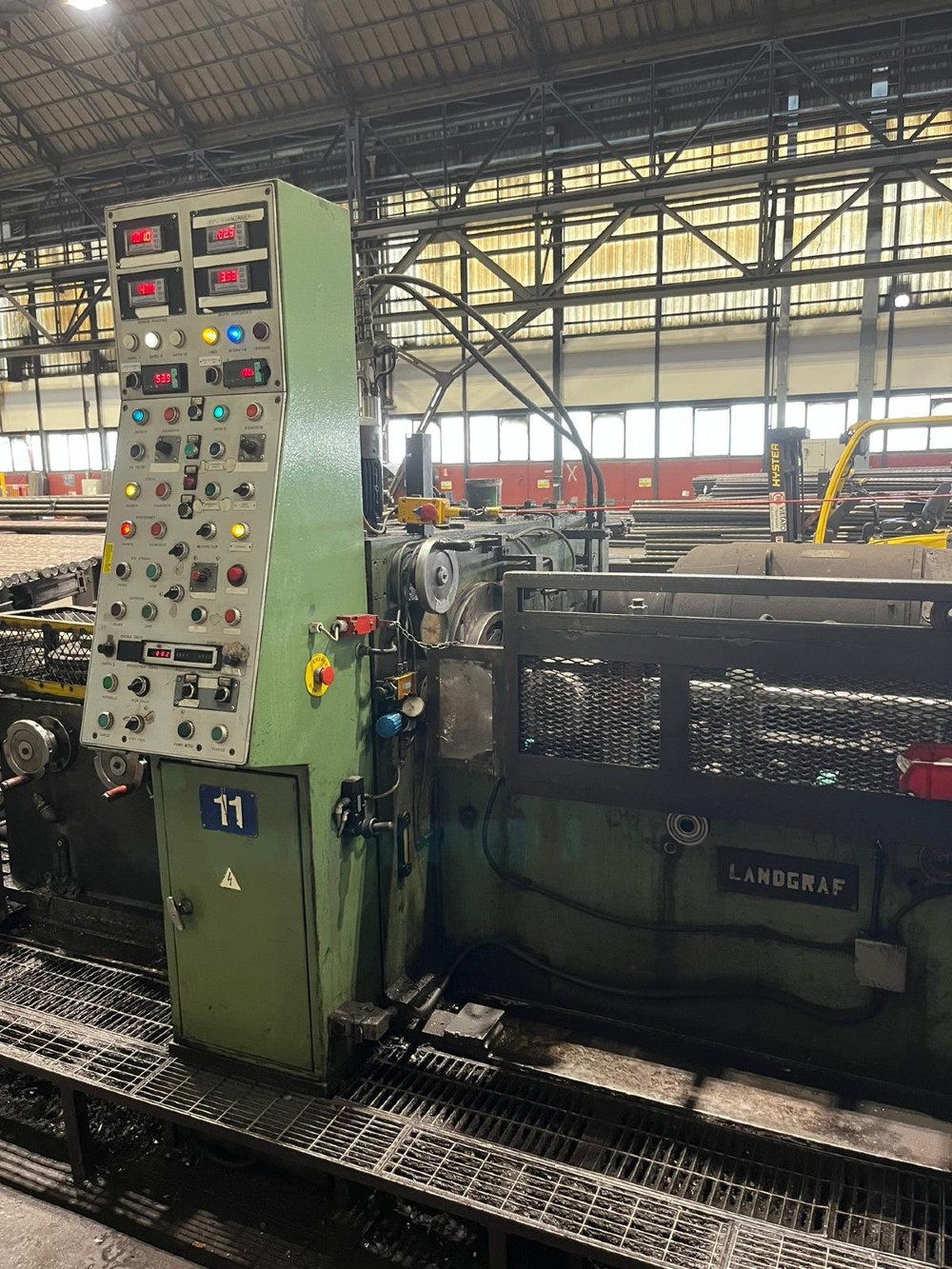

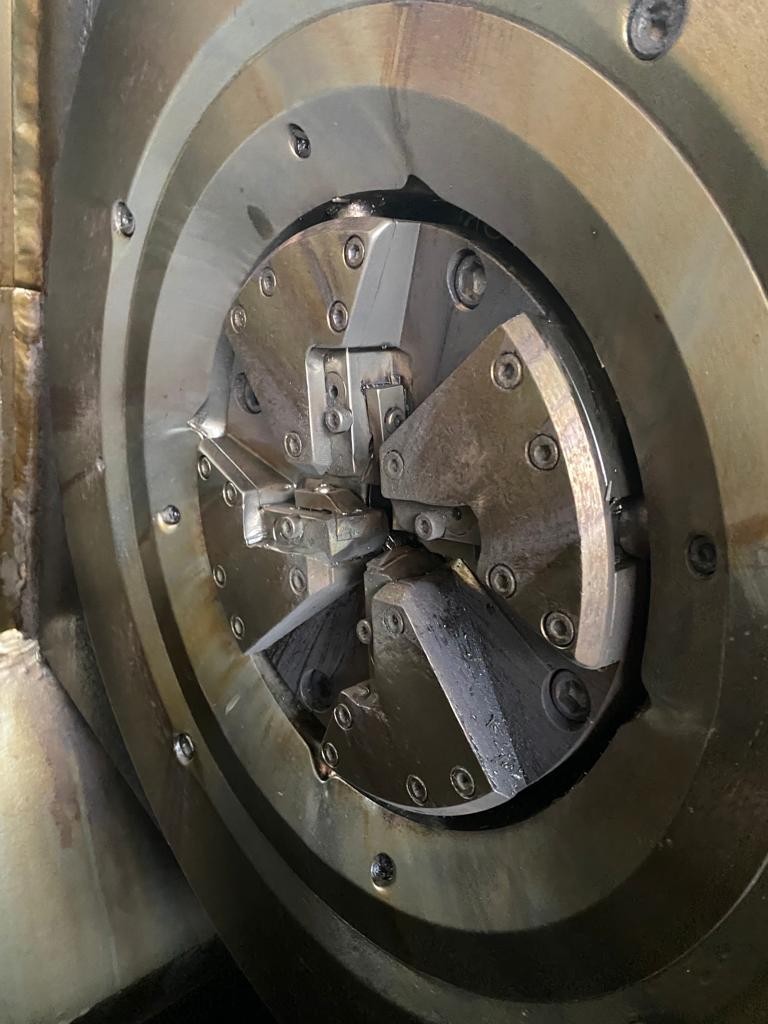

Peeling machine LANDGRAF
Exit roller conveyor
Collecting cradles for no conforming bars
Inlet channel to the two rolls straightening machine
Feeding pinch-roll

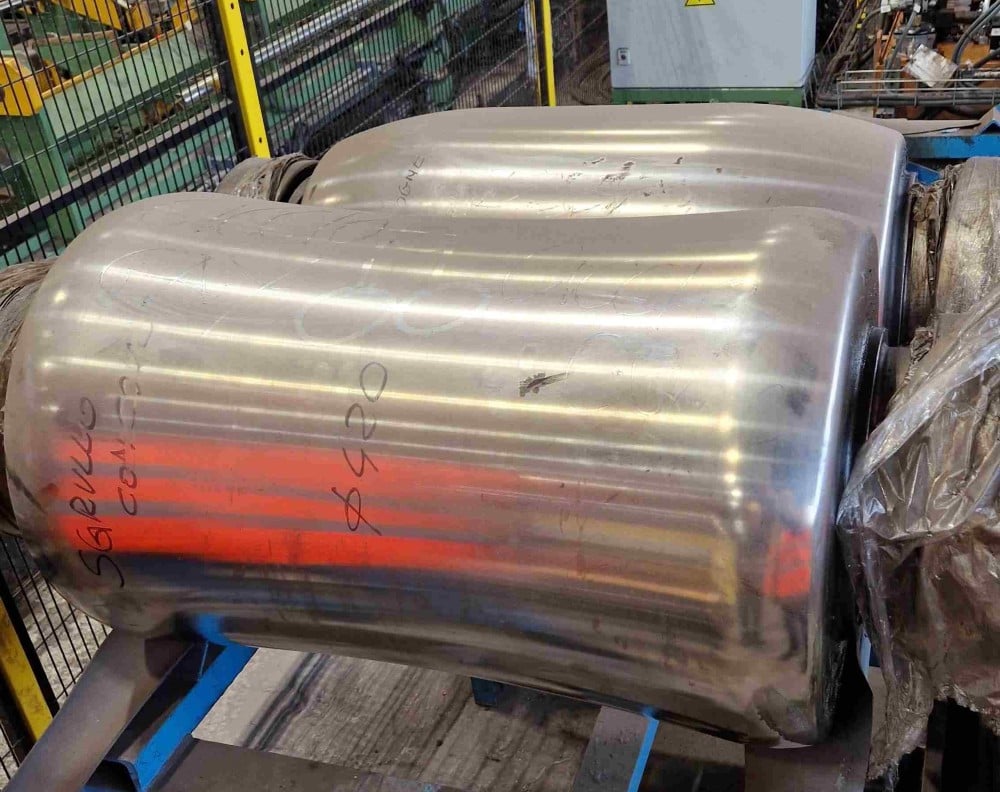

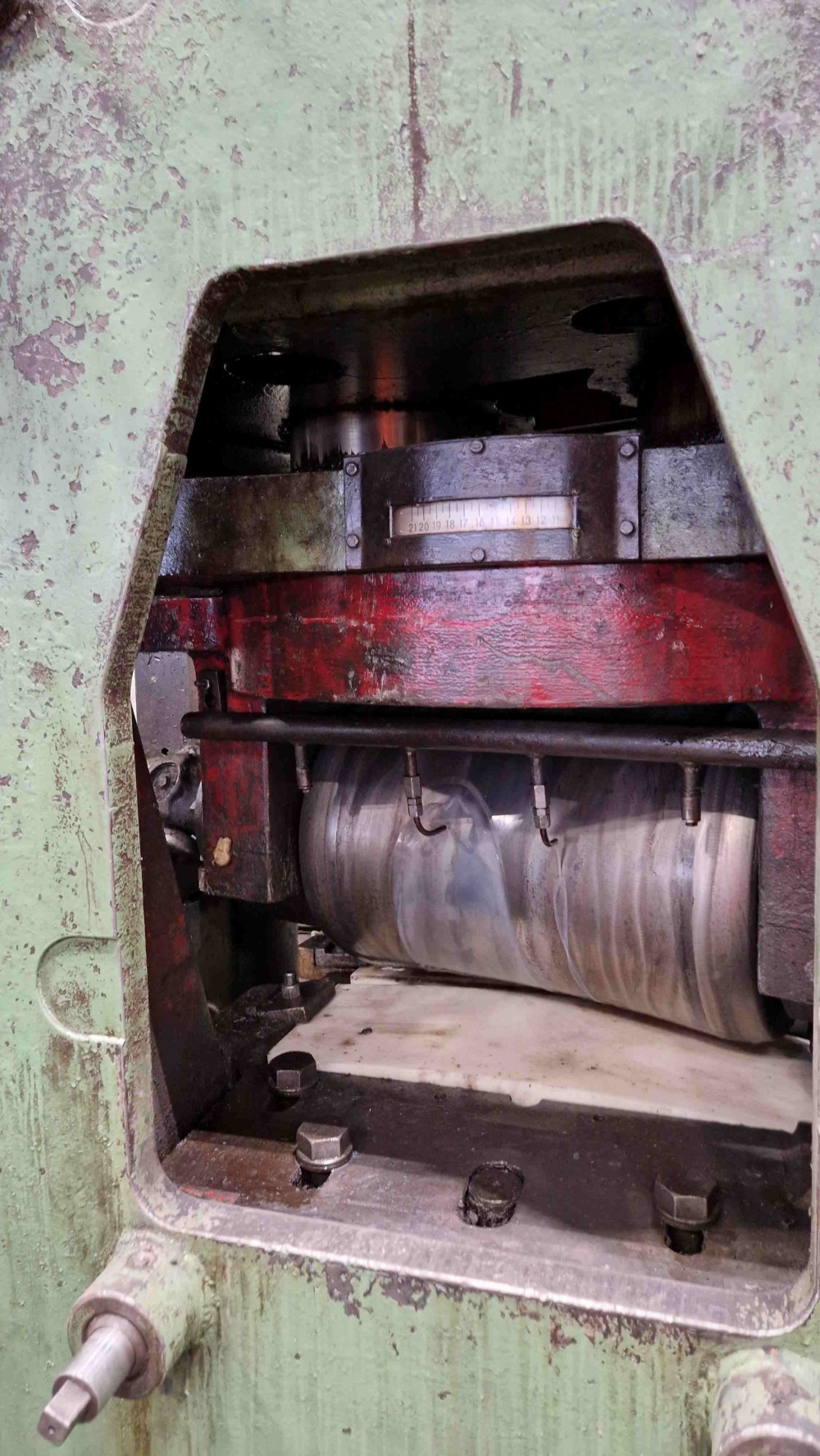

Two rolls straightening machine KIESERLING model WRPH-130
Exit pinch-roll
Exit channel
Collecting cradles

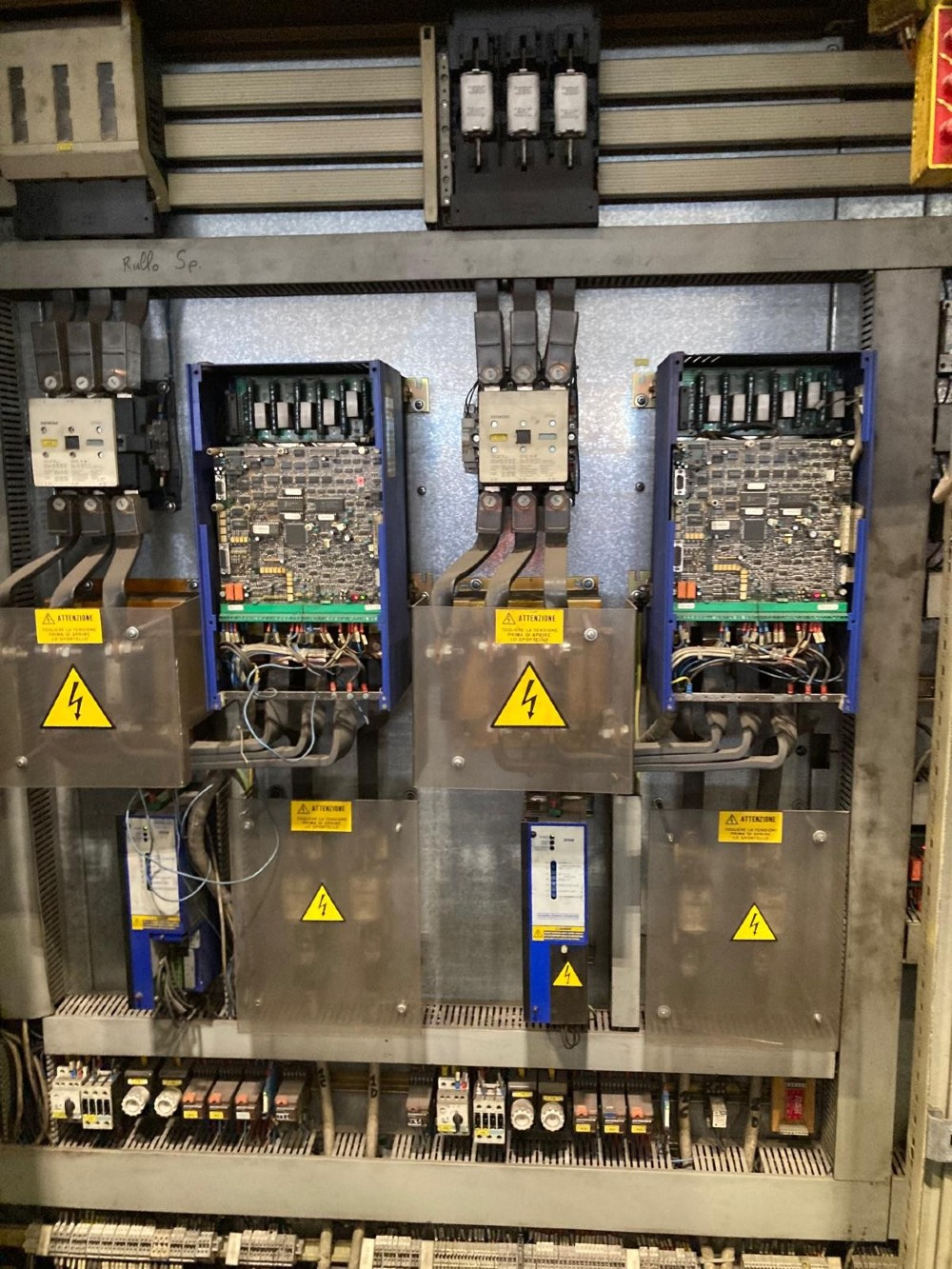

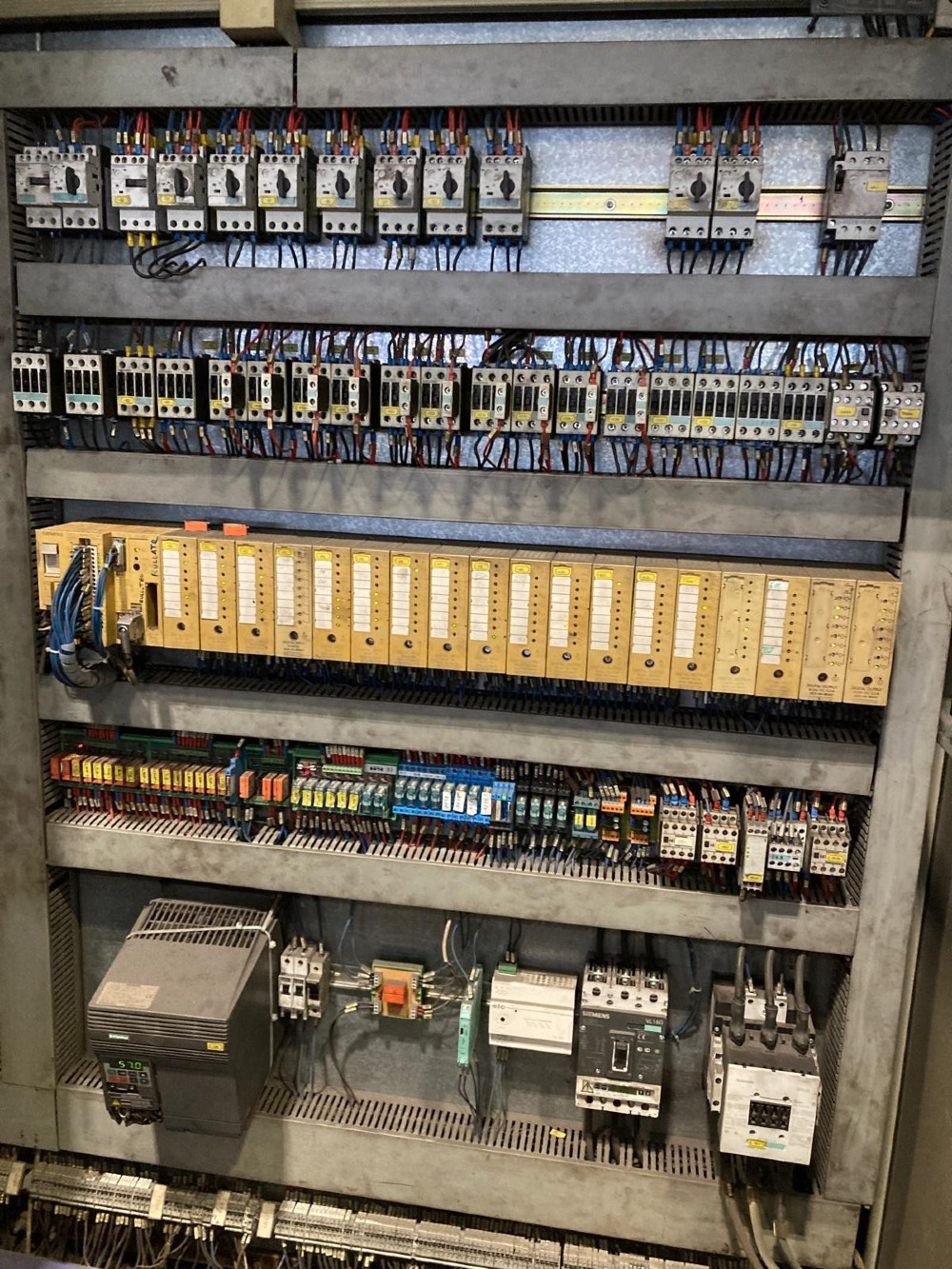

Electric system
Hydraulic power units
Cooling system of the two rolls straightening machine
Spare parts available
Manual and drawings available
