Pagnoni #Smartline-4'-X-8', feed through short cycle p, 53" x 102" plate, 1-1/4" thick, 10" between plate, 498 psi, (120) cycle/hr, (6) 11" diameter cylinder, 27 Ton, 2026, new

$841,022 USD

Request Formal Quote

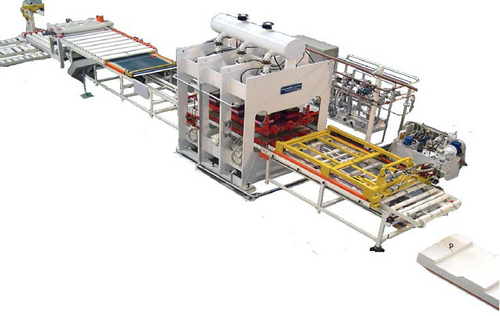

PAGNONI SMARTLINE 4' x 8' Single Opening Melamine Press.Standard Press Line for Short Cycle Lamination of 4' x 8' Particleboard and MDF Panels. This is a complete PLC Controlled Line with material handling. The line consists of the following groups:Infeed System with Continuous Feed: -- Table with motorized rollers to receive raw boards and transfer them to the lifting table. -- Hydraulic Lifting Table with motorized rollers. -- Raw Board Feeder to feed one board at a time from the lifting table. -- Brushing Machine to clean top and bottom surfaces. -- Bench with motorized rollers to take boards from the brushing machine. -- Staging Area with (2) tables to transfer the paper onto the board. -- Ionisation Bar to place a static charge on the paper to adhere it to the board prior to pressing.Lay-up are Prior to Pressing: The "sandwich" is created manually, composed on a mobile shuttle. -- After the operator places the bottom paper on a belt, the board is automatically placed over the bottom sheet. -- The operator places the top sheet. -- A clamp system holds the paper to prevent it from shifting prior to pressing.Single Opening Down-Stroke Press: 27 Ton, 4' x 8' Hydraulic Press made of High Resistance Steel (S275JR) to avoid deflection. Special Guides for the upper platen, insulating elements between the hot platens and the cylinders. A complete set of handles to attach the finishing plates.Technical Data: -- Size of the Hot Plates in the Press: 1,350 mm x 2,600 mm (53" - 102"). -- Thickness of the boards: 5 mm to 32 mm ( 3/16" - 1-1/4"). -- Distance between plates: 250 mm (10"). -- Specific Pressure: max. 35 kG/cm (498 PSI). -- Mechanical Capacity: (120) press cycles per hour. -- (6) Hydraulic Cylinders; diameter of the Cylinders: 280 mm (11"). -- Max. service temperature: 200C (400F). -- Total Weight of the Press: 27 Tons.Oil-Hydraulic Unit: -- Group of servo-controlled valves operating. -- Both fast and slow closing. -- Check valve. -- Fast pressure level. -- Decompression and fast opening. --High pressure pump, variable delivery. -- Also included in the Hydraulic Unit: High pressure accumulator, set of electro-valves for servo control and safety, tank complete with level gauges, filters and oil/water heat exchanger, set of valves to reduce pressure on head pistons for short panels processing; hydraulic components are "REXROTH" brand.Unloading and Stacking: -- Outfeed table with motorized belts, placed at the press outlet. -- It can also act as a holding station during caul plate changesIt acts also as supporting table during the finishing press plates exchange. -- Oil-hydraulic lifting platform to stack the laminated board.Control Desk: The operation and control are available in manual, semi-automatic and automatic mode.Equipped with: -- Touch Screen Operator Panel. -- Set of electric cubicles (MCC) containing the electric devices to control and check the motors (fuses, automatic thermal-magnetic switches, therma
