Opto 22 #B2 16-Channel Analog Optomux Protocol Brain Board, 5 .0 - 5.2 VDC at 0.5

$106 USD

Request Formal Quote

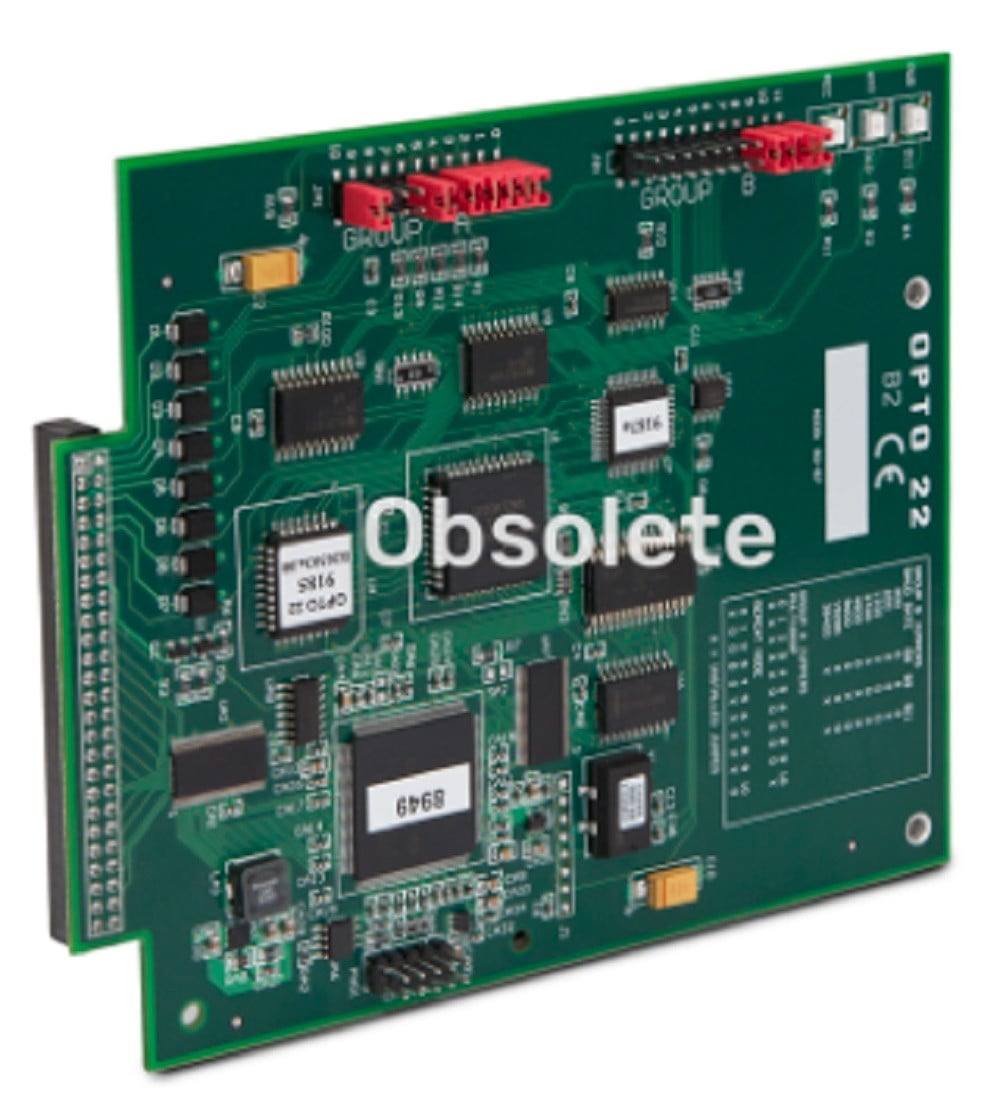

Power requirements: 5 .0 - 5.2 VDC at 0.5 amps (excludes analog module requirements). Operating temperature: 0 degree C to 70 degree C, 95 percent humidity, non-condensing. Interface: RS-422/485 communications, 50-pin female header connector to I/O mounting rack. Data rates: 300, 600, 1200, 2400, 4800, 9600, 19200 and 38400 baud. Multidrop range: up to 5000 feet total length with up to 32 optomux stations maximum; repeat mode range: up to 5000 feet between stations with up to 256 Optomux stations maximum. The B2 brain board is an intelligent processor that operates as a slave device to a host computer via an RS-422/485 serial link. The B2 mounts on Opto 22 I/O racks with header connectors to control Standard (G1) analog I/O modules. The B2 uses the Optomux protocol. Note that the E2 brain board is a drop-in replacement for the B2 and adds Ethernet capability as well as support for multiple protocols, including Optomux, Modbus/TCP and OptoMMP. B2 communicate with a host computer via an RSB1 422/485 serial link using twisted-pair cable that connects to each Optomux unit (brain board plus rack). The serial data link operates at selectable baud rates from 300 baud to 38.4 Kbaud. Optomux units can be configured for either multidrop or repeat mode operation. In multidrop mode, up to 32 Optomux units can be networked over a total line length of up to 5,000 feet. Additional units can be added by using a repeater. In repeat mode operation, up to 256 Optomux units can be networked with up to 5,000 feet between units. To use Optomux I/O on an Ethernet network, use Opto 22's E2 brain boards. These boards can use both serial and Ethernet networks simultaneously, and are drop-in replacements for and B2. Communications: full duplex, two twisted pairs, a signal common wire, and a shield. LED's: power, receive, and transmit. Jumper-selectable options: Address (0 to 255) Baud rate Multidrop or repeat mode 2- or 4-pass protocol. IEC 950: 1991-09. Opto 22. Opto 22. B2.
