Description

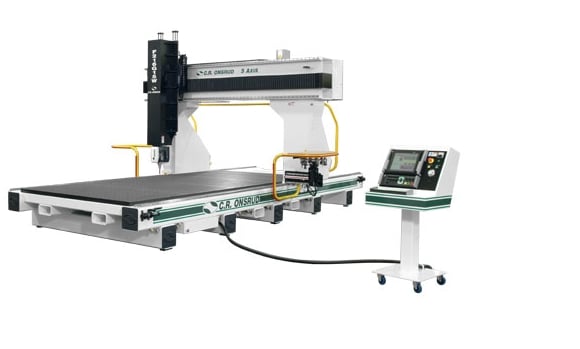

- C.R. Onsrud Model 241G CNC Router
- The largest moving gantry CNC router in our line-up is the G Series. This machine is particularly well suited for large, continuous panel and sheet processing operations. This fixed table - moving bridge design saves valuable floor space in your facility, keeps the price down, and still offers the full range of useful options (such as additional tool changers, multi- spindle drilling heads and more). The incredible throughput and productivity of our G Series design gives you the heavy cutting and high material removal rates you demand and can easily break down full sheets of 1-1/2" thick plywood, laminates, veneers, or aluminum plate at super fast feed rates while operating under continuous duty conditions. We've engineered this CNC router to help absorb many of the cutting vibrations normally associated with heavier cutting applications and operations, which eliminates time-stealing inefficiencies - thus high-volume panel processors and cabinetmakers love the flexibility and production capabilities the stout G Series design affords. Additionally, the lower purchase price opens up the benefits of a large table-size-to-cost ratio to a variety of industries, making the G Series moving gantry style CNC machine by C.R. Onsrud the logical choice for high volume manufacturing and reduced start-up costs.
- Standard Features
- Full 2 Year Warranty Factory
- Provided 24/7/365 After Hours Emergency Tech Support
- Factory Provided Onsite Machine Installation and Training
- Factory Provided Advanced Technical & Applications Support
- Factory Provided In Depth Remote Online Diagnostics
- 4-Pole, reversible, 24,000 RPM High Torque Spindle
- HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity Over 14 Inches of Z-Axis Clearance & 11 inches of Z-Axis stroke
- Finite Element Analysis used in Engineering entire frame
- FEA Engineered, Heavy-wall, All-Steel Bridge, Vertical Columns, & Table Support Base Std. 12 Position, Aggregate Ready, Dynamic Automatic Rotary Tool Changer
- Dual Support, Direct Drive, Independent Channel, Design Enhances Accuracy & Rigidity
- Compact Design Saves Valuable Shop Floor Space
- Intelligent Design Allows for Easy and Unrestricted Access to All Sides of the Machine
- Efficient and Effective Integrated Dust Transition that Only Requires a 8 inch Dust Hose
- C.R. Onsrud High-Flow Universal Vacuum Table System
- 3 Independently Controlled Vacuum Zones
- Comes Equipped with Choice of Flow Through or Dedicated Spoil Board FANUC, OSAI, and B&R control options
- 4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
- Full 3D capability with Helical Interpolation
- Tables Sizes in Excess of 60 feet long and up to 12 feet wide available on the Custom G Series
- And many more options or accessories available!
- Machine Specifications
- Table Size: 241" x 61"
- Z Clearance: 14"
- X-Axis Travel: 263"
- Y-Axis Travel: 78"
- Z-Axis Travel: 11"
- Aproximate Footprint: 28' x 11'
- Machining Speed: 2500imp
- X & Y Rapid Traverse: 3500ipm
- Standard Spindle: 18HP, 24,000rpm
- Tool Shank: HSK 63F
- Standard Tool Capacity: 12
- Standard Vacuum Zones: 5
Get Your Price from RT Machine!
