Onsrud #145G12, CNC router, 5' x12'tbl., 12 HP, HSK-63F, 12 ATC, 18k RPM, 2004

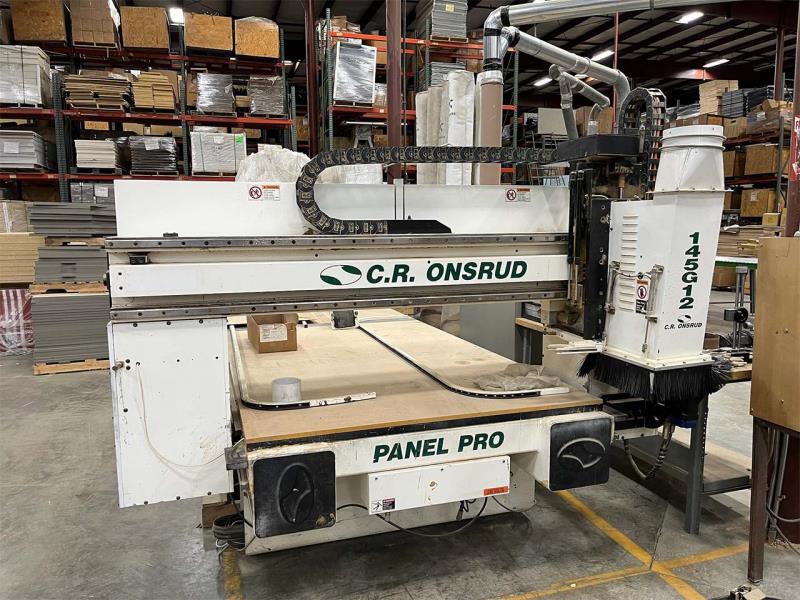

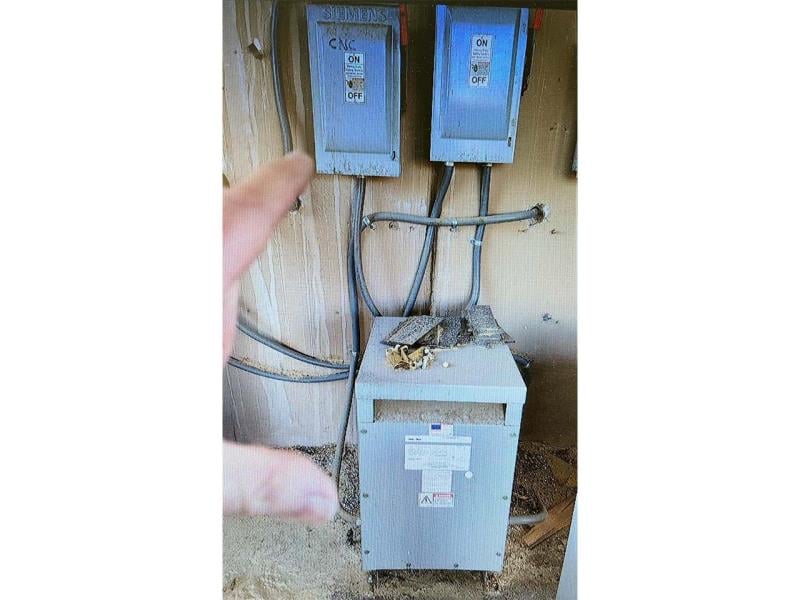

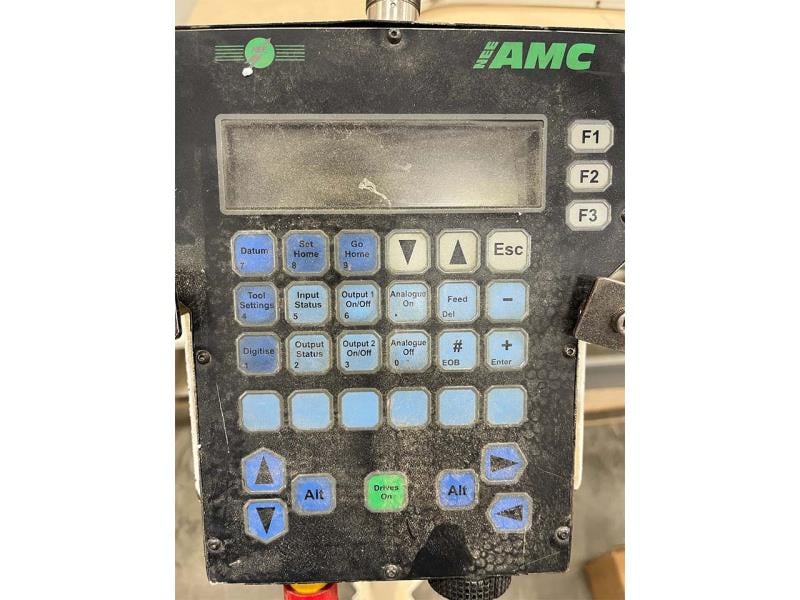

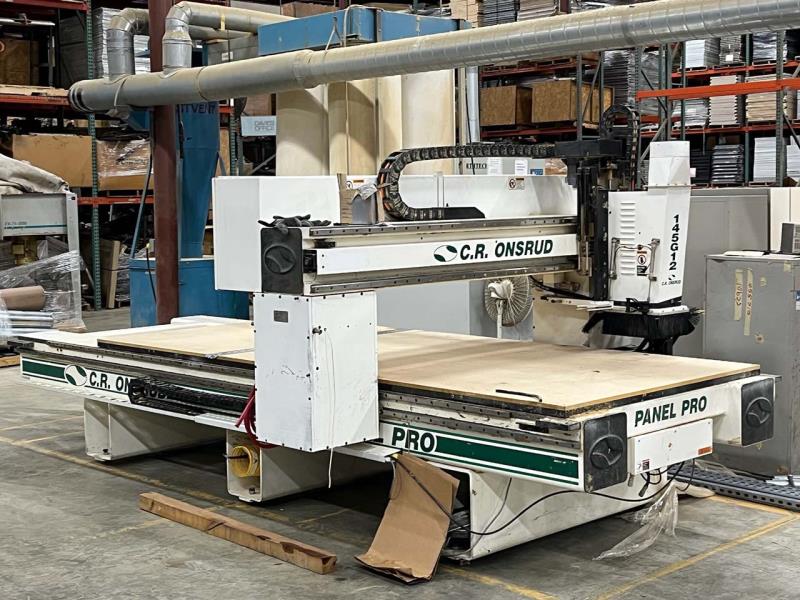

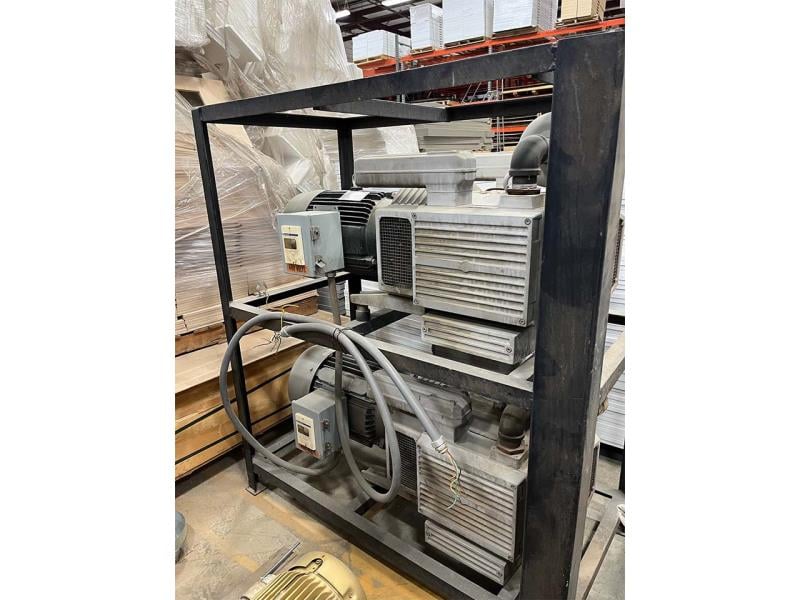

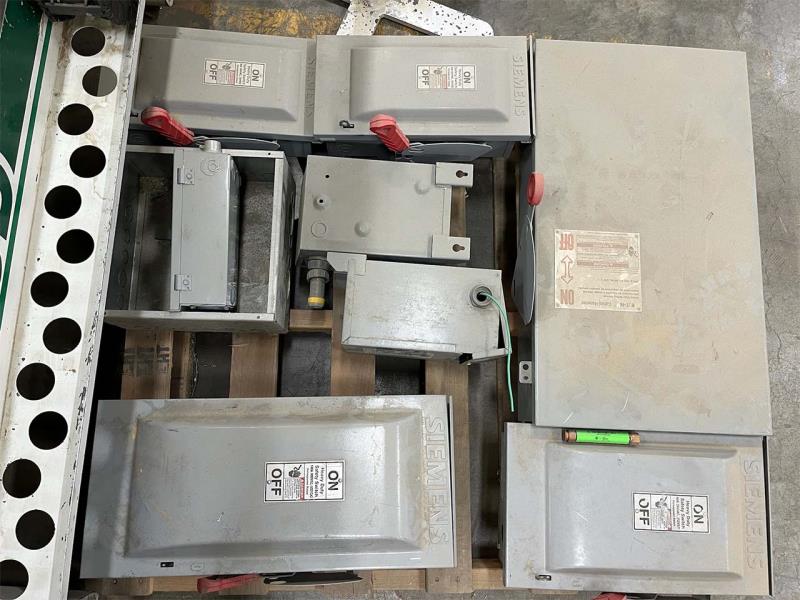

C.R. ONSRUD 145G12 Moving Gantry 5 X 12 CNC Router with ATC:144" x 60" worktable; machined table with (3) vacuum zones and Matrix Grid, cast iron moving gantry bridge and vertical supports. -- Equipped with: (1) 12 HP "HSK-63F" Type ATC spindle with side-mounted 12-position carousel and infinitely programmable spindle speeds from 3,000 - 18,000 RPM, -- Closed loop brushless AC Servo motors drive dual rack-n-pinion on the moving gantry and precision ball screws on the bridge and vertical axes: 2,000 IPM max. machining speed (straight or contour). -- All axes ride on extra-large precision contour linear guideways, axis travels provide full table coverage for all spindles. -- Control:Industrial "AMC" machine control system: Compatible with virtually all CAD/CAM packages that generate standard M & G codes. -- Featuring: Simultaneous 3-axis motion, 32-bit RISC processor w/115,000 baud rate download capability; -- RS-232 port, hand-held controller, inch/metric operation, and feed rate & spindle speed override. -- Complete with: (2) Rack-mounted 10 HP vacuum pumps. Transformer, Disconnects, Breaker Boxes, Assorted tool holders, and Documentation as pictured.
