Manufacturer: Omniturn
Model: GT75-SERIES-III
Stock # 8078
Price: $17,500 USD - Finance for as low as $355/mth
For Sale by Wheeler Machinery Sales
Surplus Record Dealer Since 1998
Dan Wheeler
909-34...> Show Seller's Phone Number 909-348-5610 Let the seller know you found their listing on Surplus Record!
Description

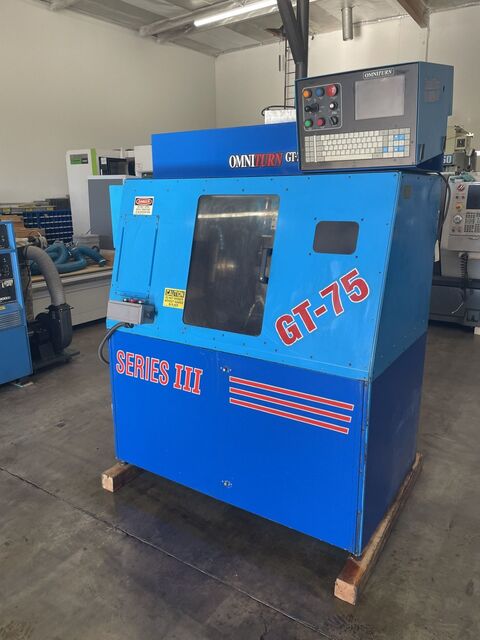

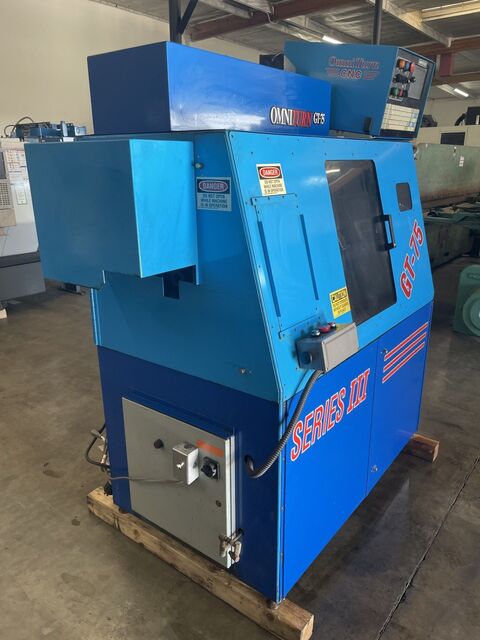

OMNITURN GT75 SERIES III CNC GANG LATHE #8078 #2
SPECIFICATIONS:
Capacities
Workholding: 5C Collet
Max. Cutting Diameter: 6
Max. Bar Diameter: 1.06
Tooling Plate: 6 x 14 with 3/8 T-Slot
Tooling height center of spindle to tool plate: .5
Spindle
Max Speed: 4,000 rpm
Max Rating: 5 hp
Spindle Nose: 5C w/4 camlock
Drawtube Bore: 1.125
C-Axis 3HP servo motor: .001 4000 rpm
Positioning resolution: .01 degree
Construction
Ways: Precision Linear Guides
Ball Screws: Precision-ground, Zero Backlash
Base Billet: MJ7 Composite Casting
Headstock: Mehanite
Coolant Pump: 1/8hp 5gpm (1/4hp 20gpm opt.)
Travels & Feed rates
X-Axis: 12
Z-Axis: 9
Resolution of Slide Travel: 0.00005
Repeatability of Slide Travel: 0.0001
Threading: 240tpi to 0.5tpi (2pitch)
Axes Thrust: 500lbs cont. 750lbs int.
Max Rapid: 300ipm
Max Cutting: 300ipm
General
Machine Weight: 1,650 lbs.
Air Required: 3 scfm @ 60 - 100 psi
Electrical: 208 - 240 VAC, 3 phase @ 20A
Floor Space: 34 x 66 (75 high)
SPECIFICATIONS:
Capacities
Workholding: 5C Collet
Max. Cutting Diameter: 6
Max. Bar Diameter: 1.06
Tooling Plate: 6 x 14 with 3/8 T-Slot
Tooling height center of spindle to tool plate: .5
Spindle
Max Speed: 4,000 rpm
Max Rating: 5 hp
Spindle Nose: 5C w/4 camlock
Drawtube Bore: 1.125
C-Axis 3HP servo motor: .001 4000 rpm
Positioning resolution: .01 degree
Construction
Ways: Precision Linear Guides
Ball Screws: Precision-ground, Zero Backlash
Base Billet: MJ7 Composite Casting
Headstock: Mehanite
Coolant Pump: 1/8hp 5gpm (1/4hp 20gpm opt.)
Travels & Feed rates
X-Axis: 12
Z-Axis: 9
Resolution of Slide Travel: 0.00005
Repeatability of Slide Travel: 0.0001
Threading: 240tpi to 0.5tpi (2pitch)
Axes Thrust: 500lbs cont. 750lbs int.
Max Rapid: 300ipm
Max Cutting: 300ipm
General
Machine Weight: 1,650 lbs.
Air Required: 3 scfm @ 60 - 100 psi
Electrical: 208 - 240 VAC, 3 phase @ 20A
Floor Space: 34 x 66 (75 high)
Inquire Further with Wheeler Machinery Sales!
